How to Use:

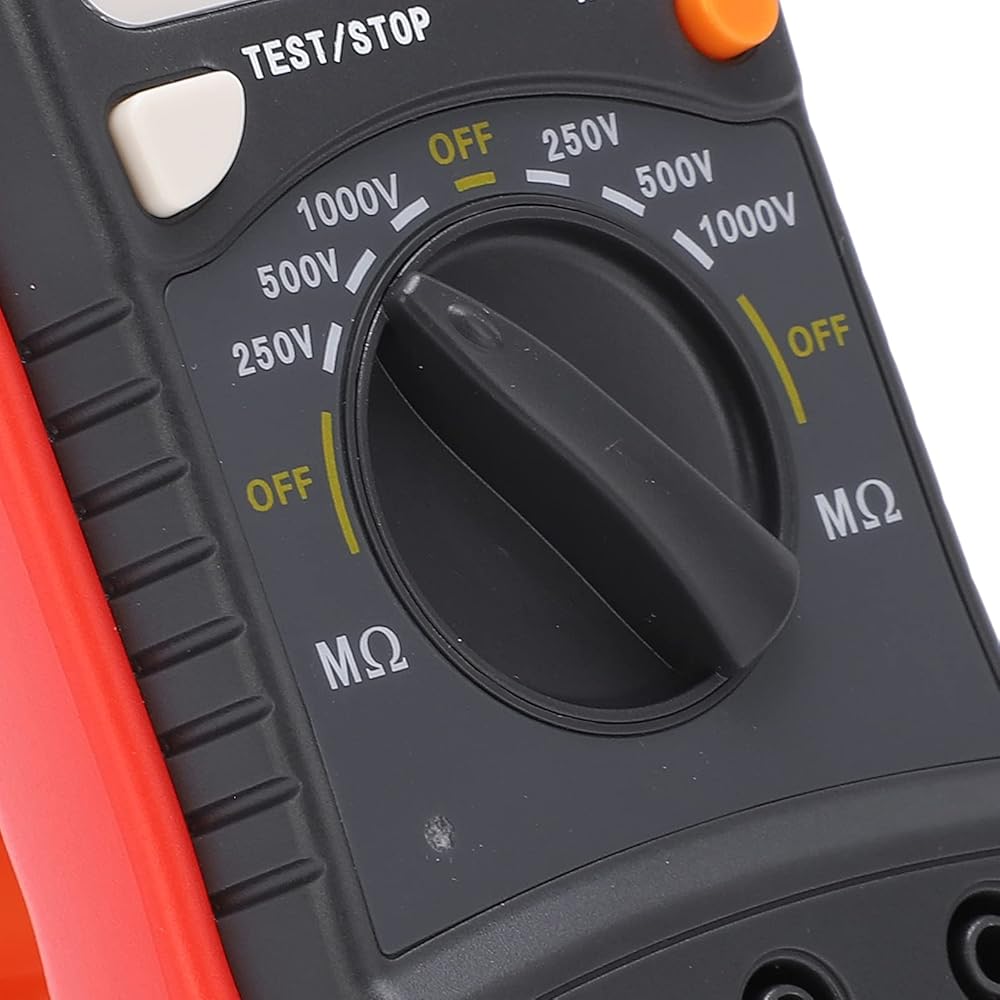

1. Turn the knob to the corresponding function according to the measurement needs

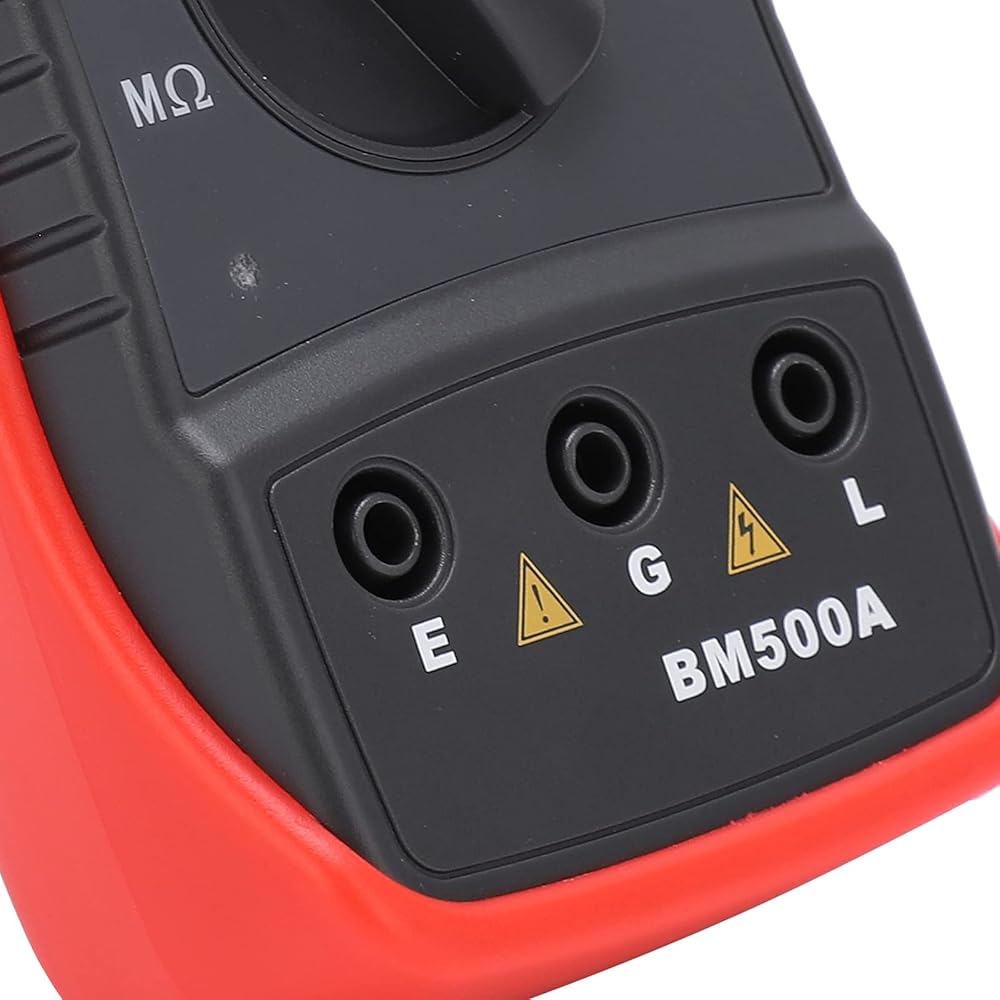

2. Connect the electrode of the measured object to the corresponding socket of this instrument
3. When testing the cable, connect the jack G to the protective ring

Specification:
Item Type: Resistance Tester

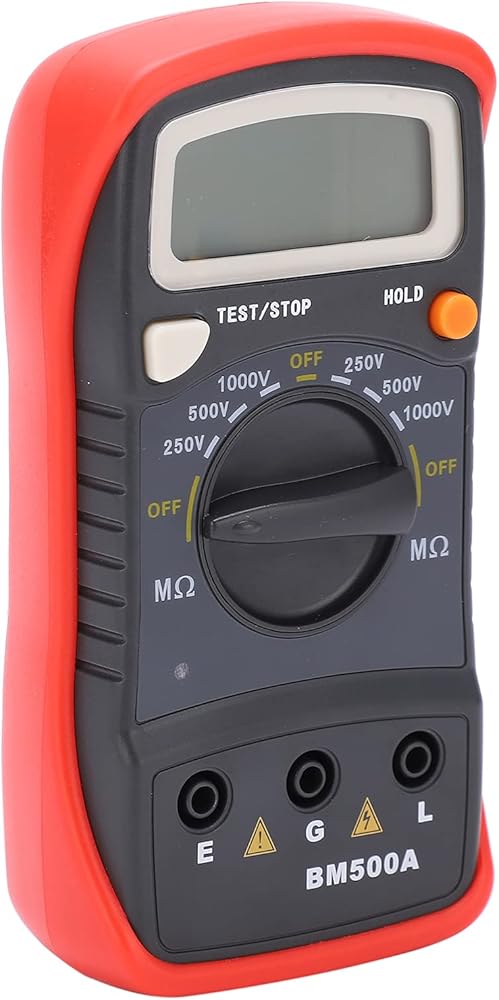

Model: BM500A
Material: ABS
Power Supply: 1 x 6F22 9V (Battery Not Included)
Application: Electricity numerical test
Automatic Range: Overload display "1"
Display Mode: LCD display
Maximum Display: 1999
Sampling Rate: 2.5 times/sec
Working Environment: 0°C-40°C, less than 75%RH
Storage Environment: -10°C-60°C, less than 80%RH
Rated Voltage 250V/500V/1000V Open Circuit Voltage 90%~110% of rated voltage Measuring Range 0.001~1999M? Minimum Resolution 0.001M? Accuracy 250V: About 500k? 500V: About 1.5M? 1000V: About 5M? Measure the achievable resistance value to maintain the lower limit of the rated voltage Not less than 1.5mA

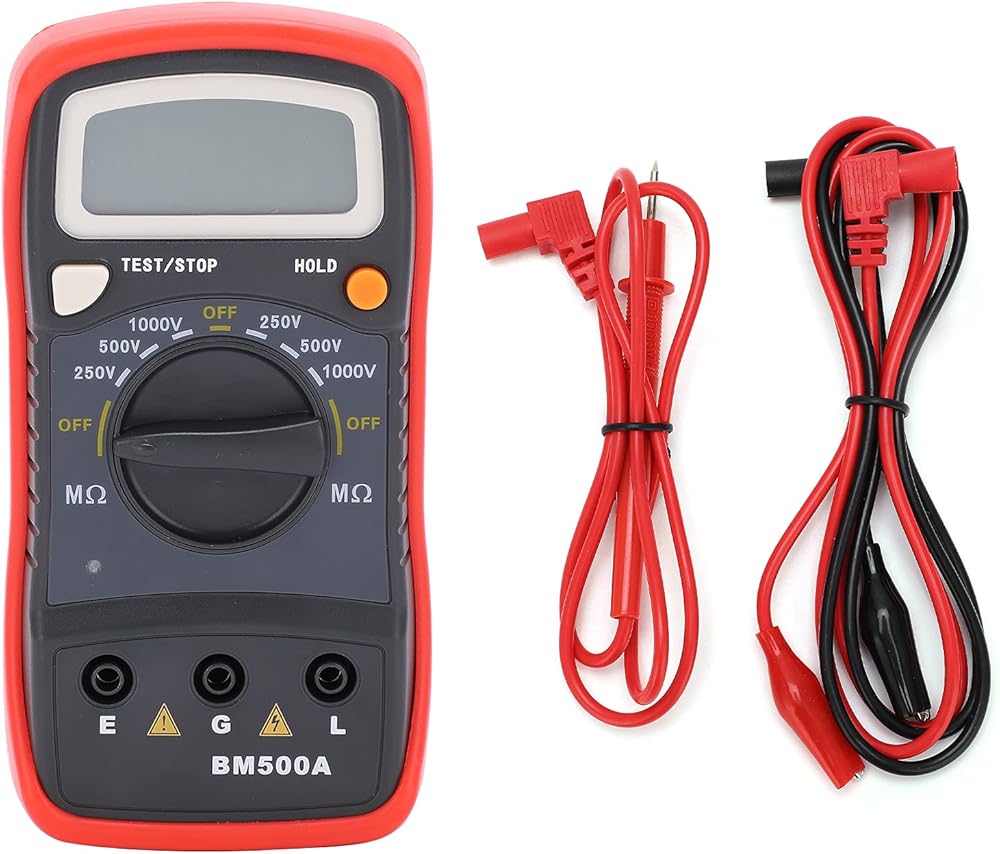

Package List:
1 x Tester (Battery Not Included)

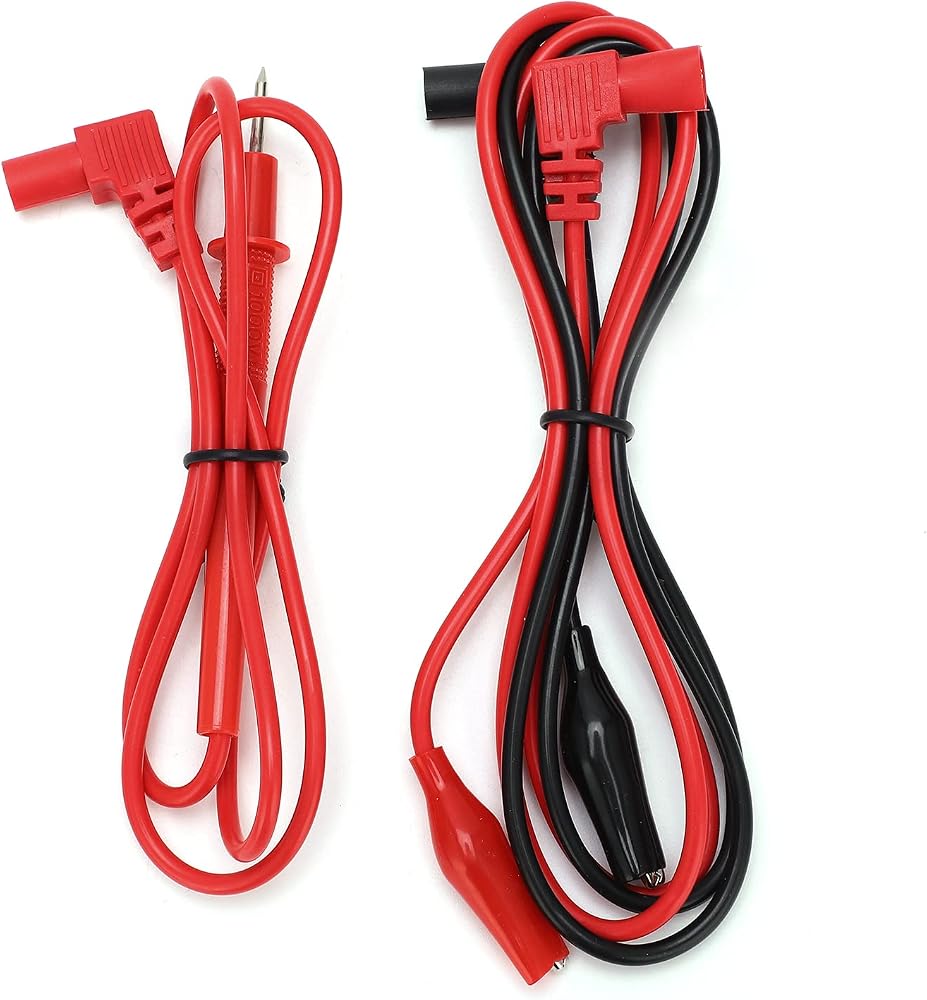

2 x Clip
1 x Test
1 x Manual

Note:

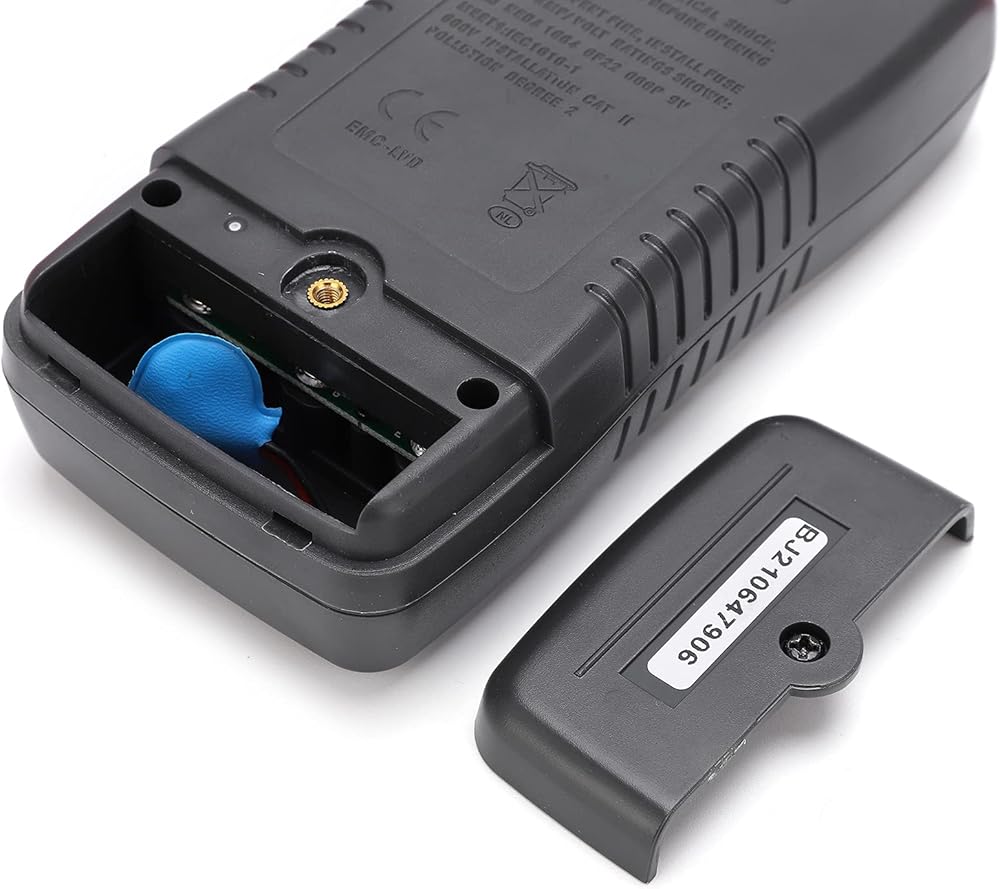

If the back cover of the meter is not in place, it is strictly forbidden to use it. Otherwise, it may cause electric shock.
