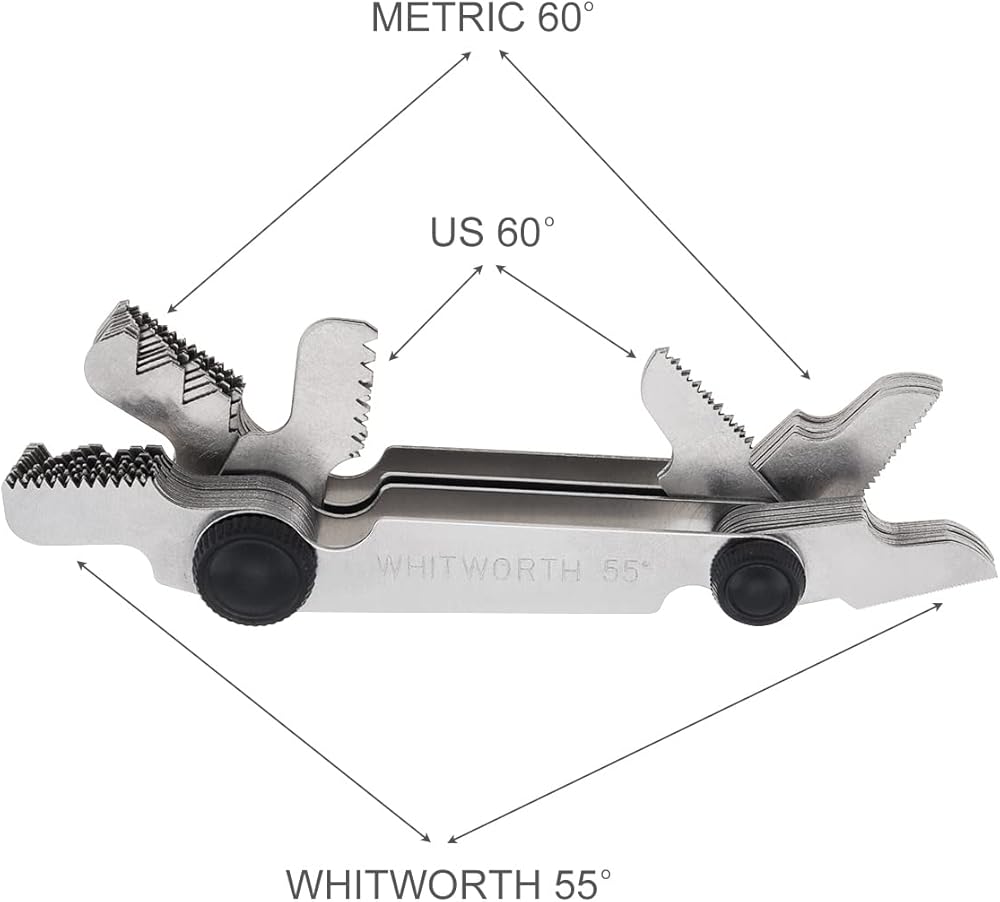

- 1 x Screw Gauge Set： It is 55 Degree & 60 Degree Thread / Screw Pitch Gauge gage with lock up device. Typically used to check the thread size determination is correct； It is useful to check the tool angle when cutting threads on a metal lathe; Check the angle on the thread cutting tool on the V-groove of the gauge
- Screw Gauge Set Specification: Metric & Imperial & US; Metric: 6.0, 5.5, 5.0, 4.5, 4.0, 3.5, 3.0, 2.5, 2.0, 1.75, 1.5, 1.25.1.0, 0.9, 0.8, 0.75, 0.7, 0.6, 0.5, 0.45, 0.4, 0.35, 0.3, 0.25； Imperial: 4G, 4 1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G, 30G, 32G, 36G, 40G, 48G, 60G, 62G; US: 8, 10, 11, 14, 19, 28
- 3 x Center Gauge： Whitworth 55 degree: Front measure increment (in Inch): 1/16inch and 1/20inch; Back measure increment (in Inch): 1/24inch and 1/32inch；US 60 degree: Front measure increment (in Inch): 1/16inch and 1/20inch; Back measure increment (in Inch): 1/24inch and 1/32inch.；Metric 60 degree: Measure increment (in Metric): 0.5mm and 1mm.
- 1 x US 60 Thread Gauge： It is 60 Degree Thread / Screw Pitch Gauge gage with lock up device. Specification: US; Measuring Range: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84
- All the blade was made by stainless steel, with wire drawing on the surface, not easy to rust. Ensure the accuracy of measurement

وصف

58PCS Metric & Imperial & US SAE Screw Gauge Specifications:

Features:

- It is useful to check the tool angle when cutting threads on a metal lathe.
- Check the angle on the thread cutting tool on the V-groove of the gauge.
- It is 55 Degree & 60 Degree Thread / Screw Pitch Gauge gage with lock up device.

Type: Thread gauge
Material: Stainless steel
Color: Silver
Specification: Metric & Imperial Blade
Thickness: 0.4cm

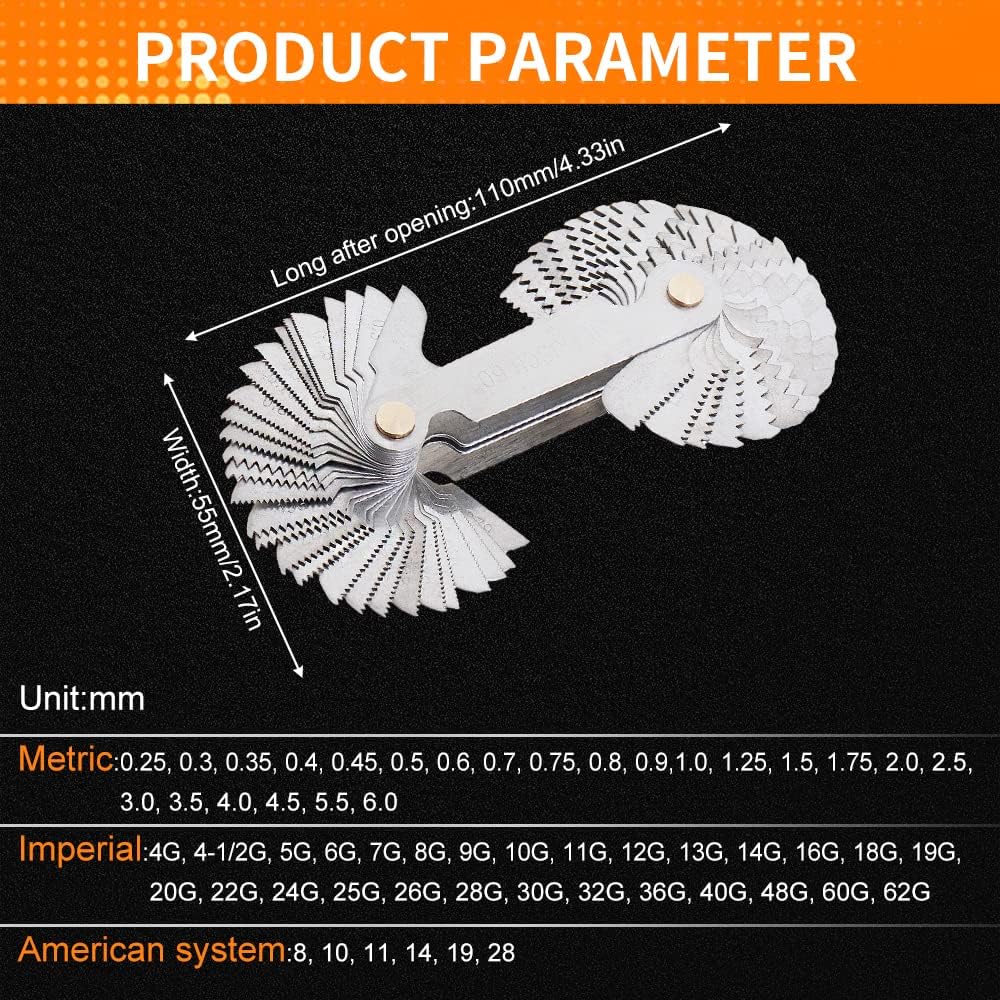

Measuring Range:
- Metric: 6.0, 5.5, 5.0, 4.5, 4.0, 3.5, 3.0, 2.5, 2.0, 1.75, 1.5, 1.25.1.0, 0.9, 0.8, 0.75, 0.7, 0.6, 0.5, 0.45, 0.4, 0.35, 0.3, 0.25
- Imperial: 4G, 4 1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G, 30G, 32G, 36G, 40G, 48G, 60G, 62G
- US: 8, 10, 11, 14, 19, 28

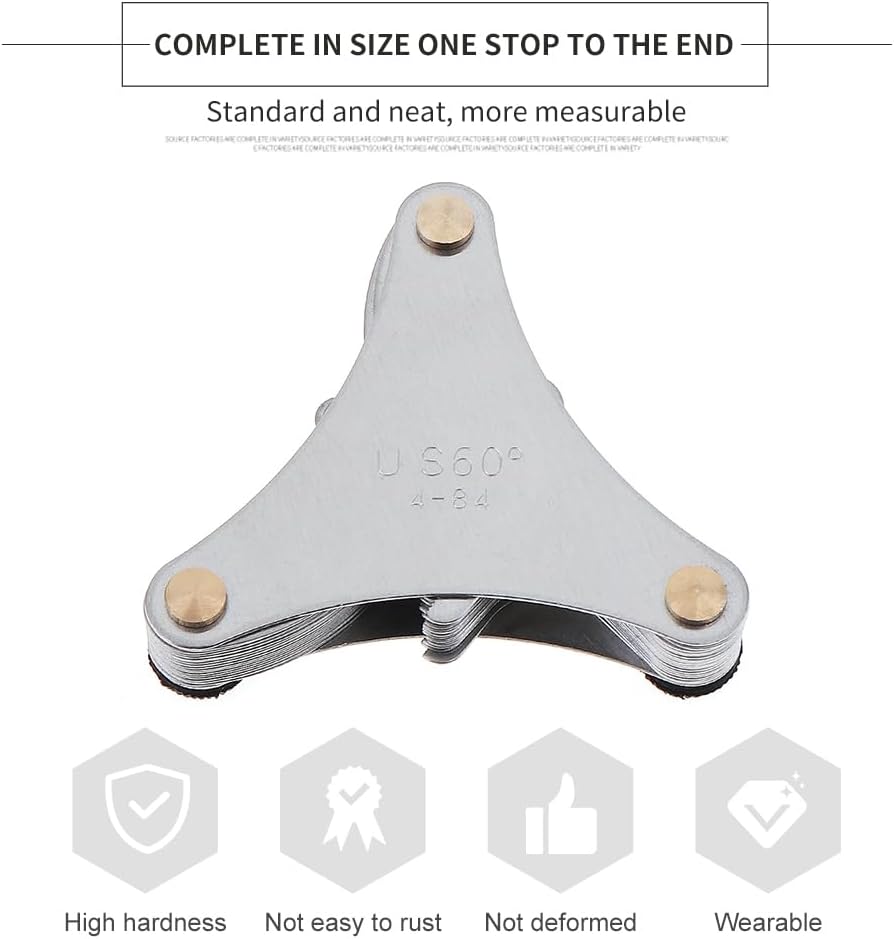

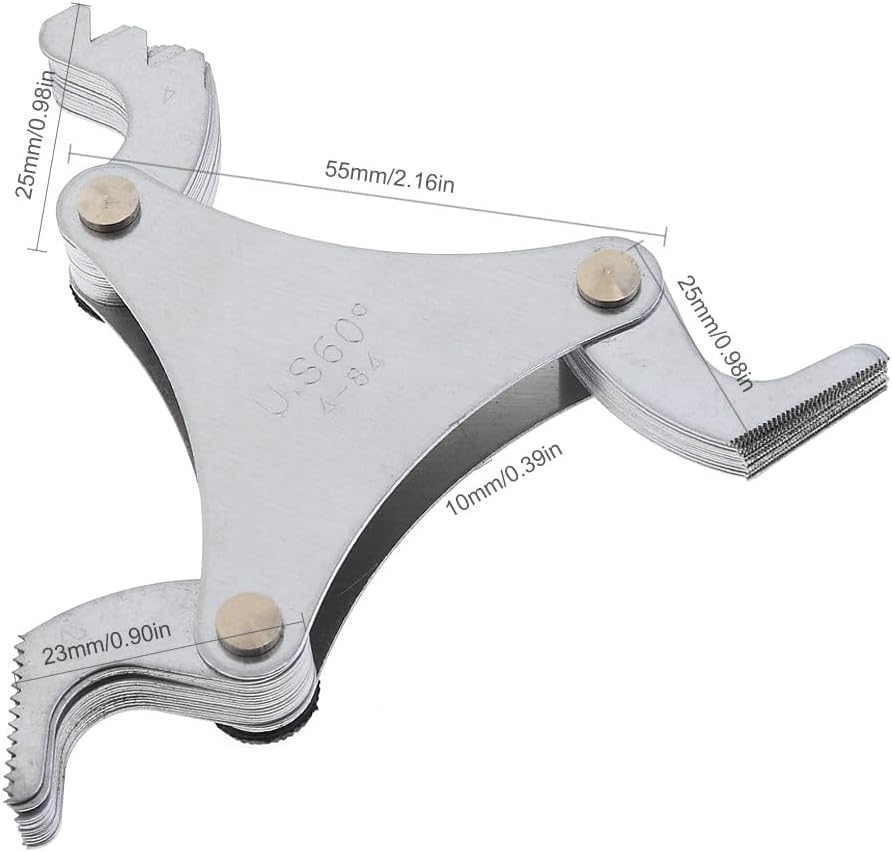

51PCS America SAE Screw Gauge Specifications:

Features:
- Light weight, easy to use, easy to carry.
- It is most useful for checking tool angle while cutting threads in metal turning lathes.
- The angles on the thread cutting tool is checked on the V slots in the gauge.
- It is 60 Degree Thread / Screw Pitch Gauge gage with lock up device.
- Measuring Range: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84

Type: Thread Gauge
Material: Stainless steel
Color: Silver
Specification: US
Blade Quantity: 51pcs Blade
Thickness: 0.5cm

3PCS Center Gauge Specifications:

Features:
- Stainless steel, durable.
- The scale is clear, accurate and easy to read.
- Use to grind and position thread cutting tool on a lathe.

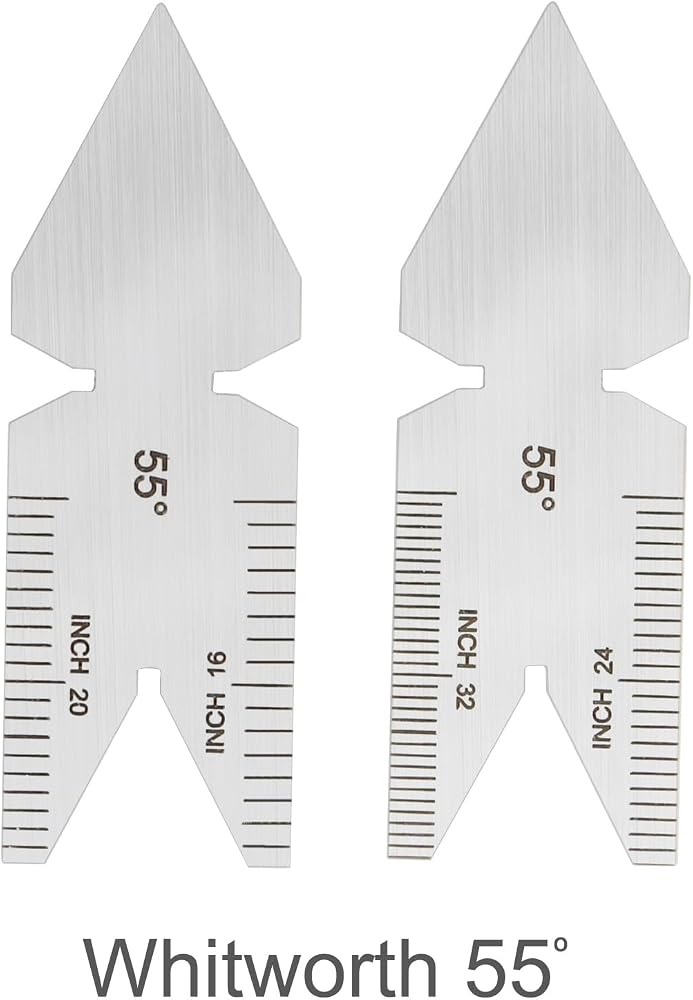

- Whitworth 55: Front measure increment (in Inch): 1/14inch and 1/20inch; Back measure increment (in Inch): 1/24inch and 1/32inch.

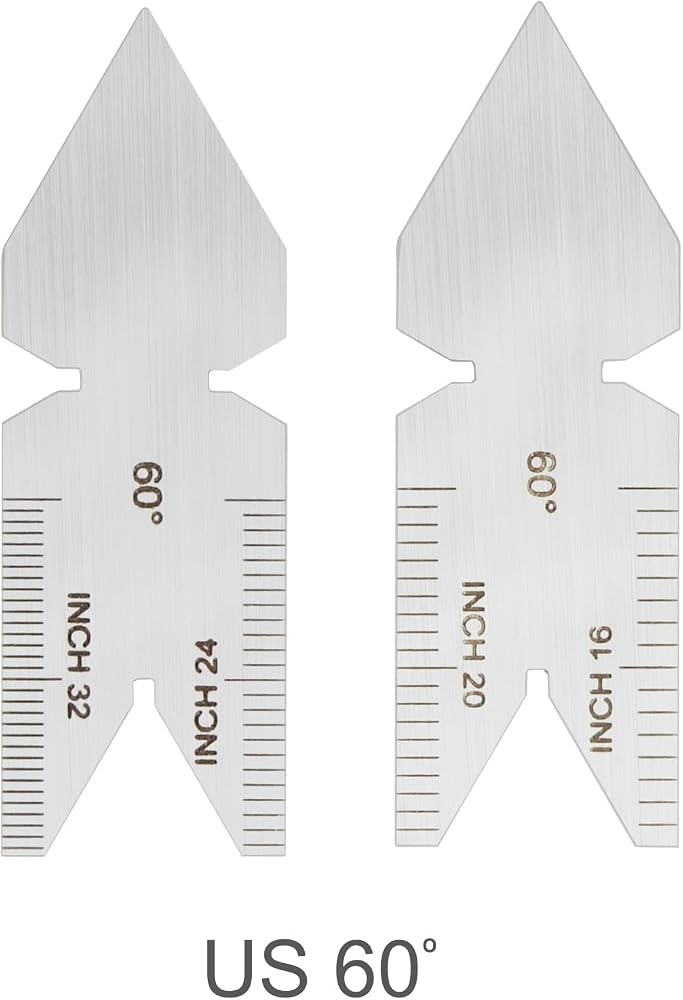

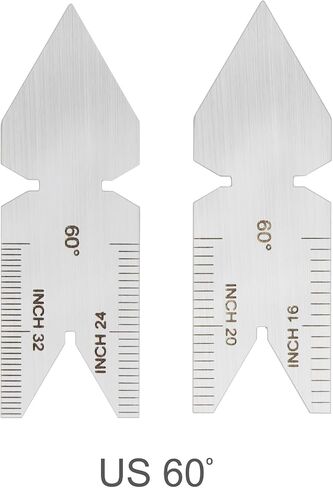

- US 60: Front measure increment (in Inch): 1/14inch and 1/20inch; Back measure increment (in Inch): 1/24inch and 1/32inch.

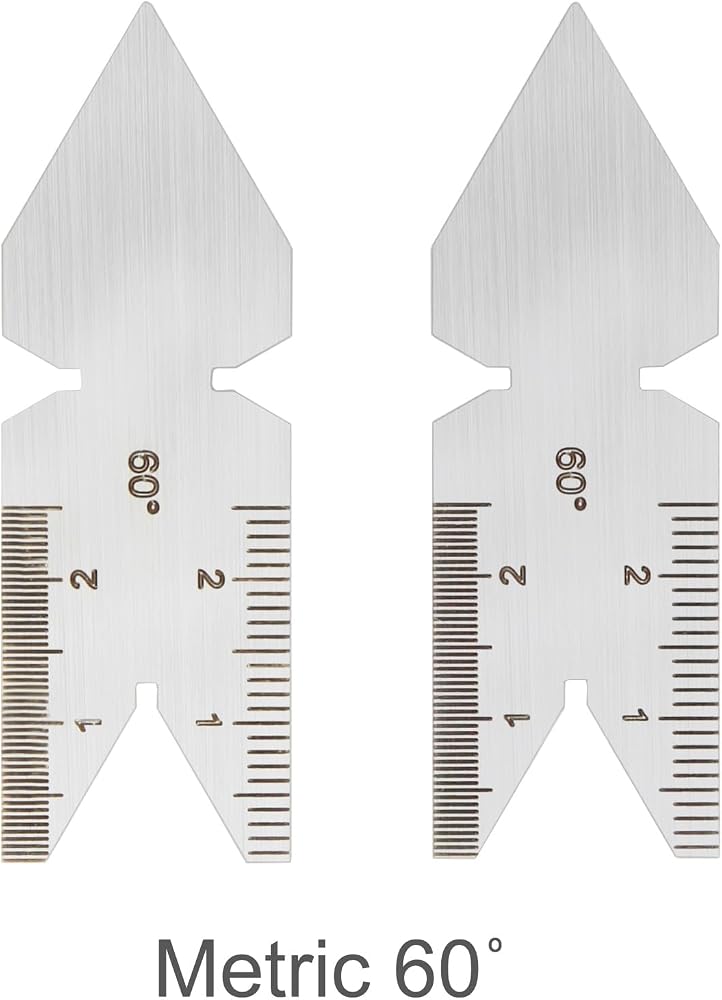

- Metric 60: Measure increment (in Metric): 0.5mm and 1mm.

Material: Stainless Steel
Standards: Metric & Whitworth & US

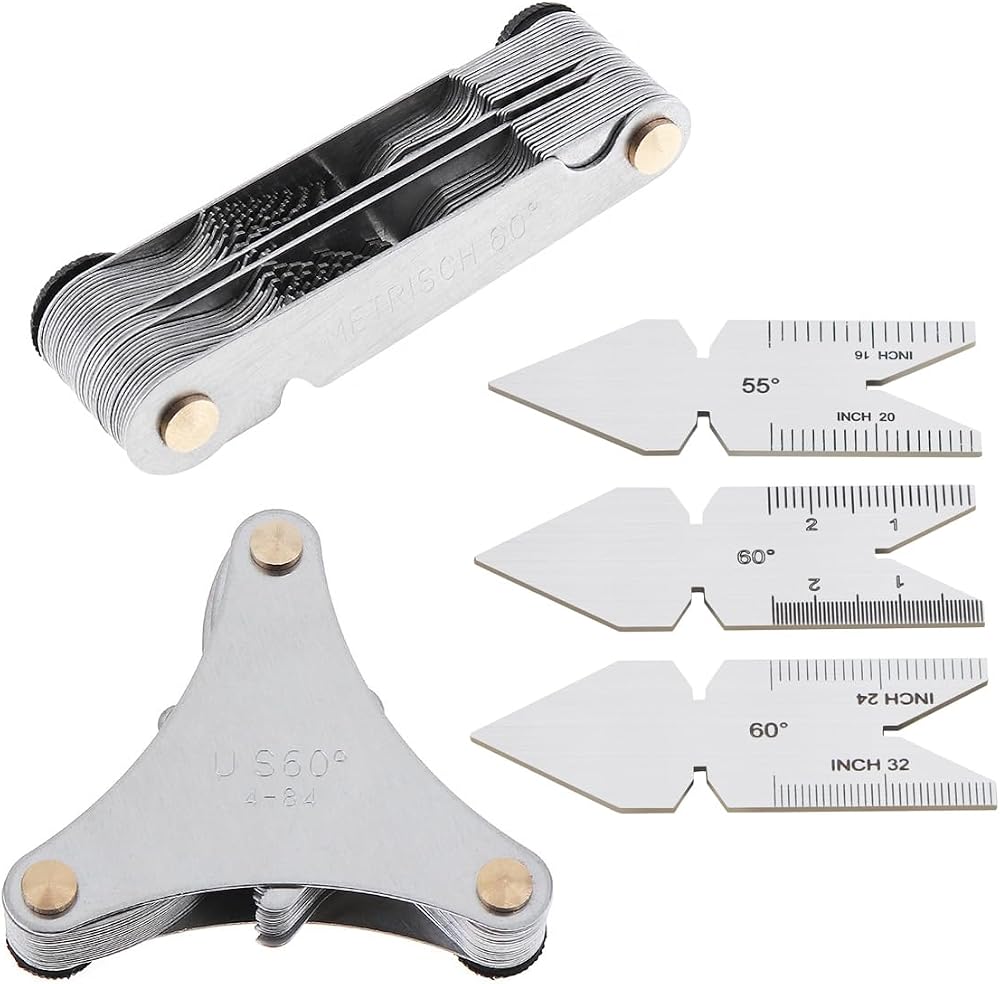

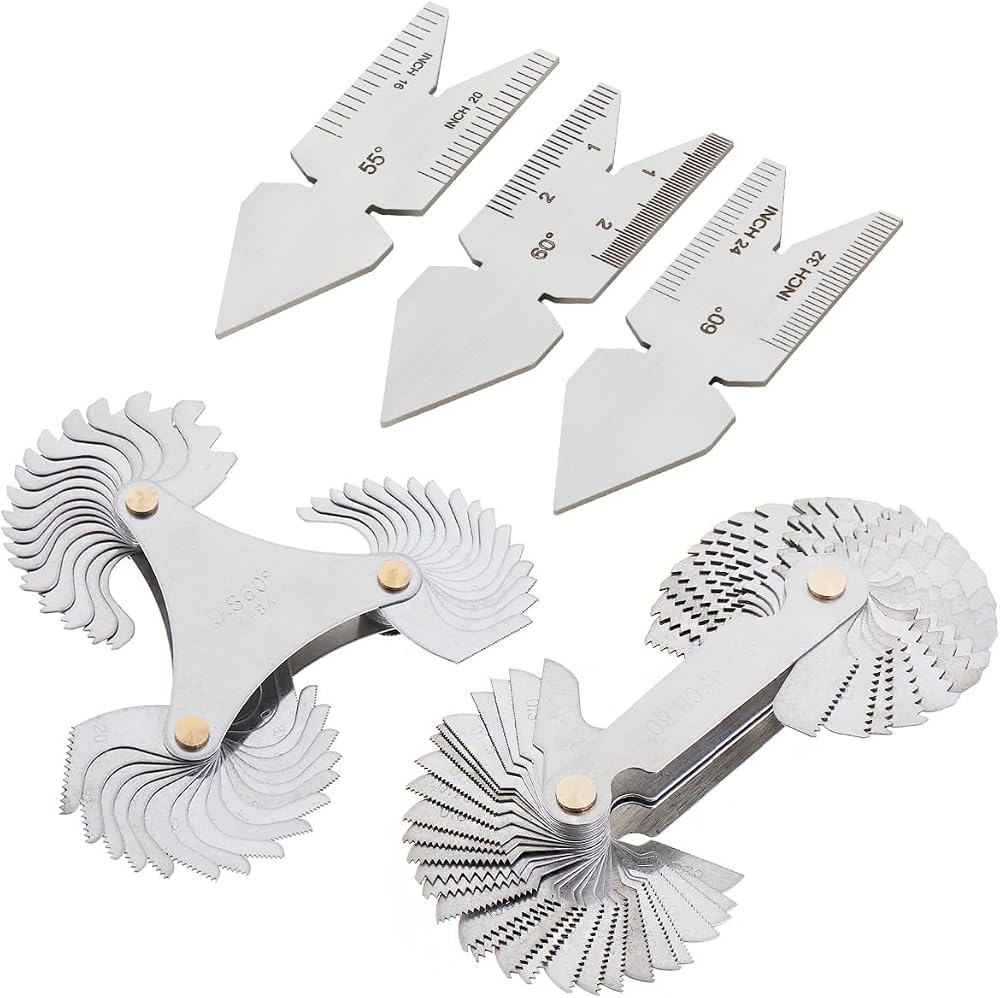

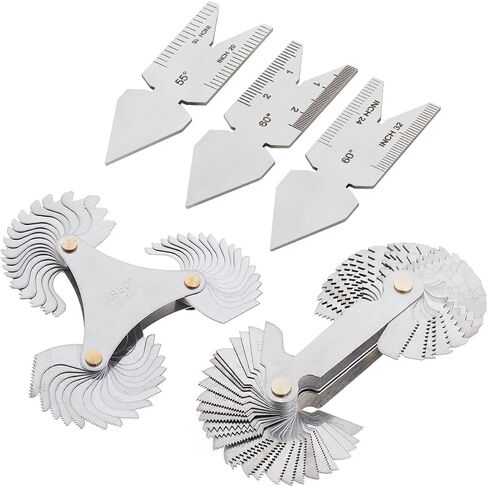

Package Include:

1 x Screw Gauge Set
1 x US 60 Thread Gauge
1 x Center Gauge US 60
1 x Center Gauge Metric 60
1 x Center Gauge Whitworth 55
