Description

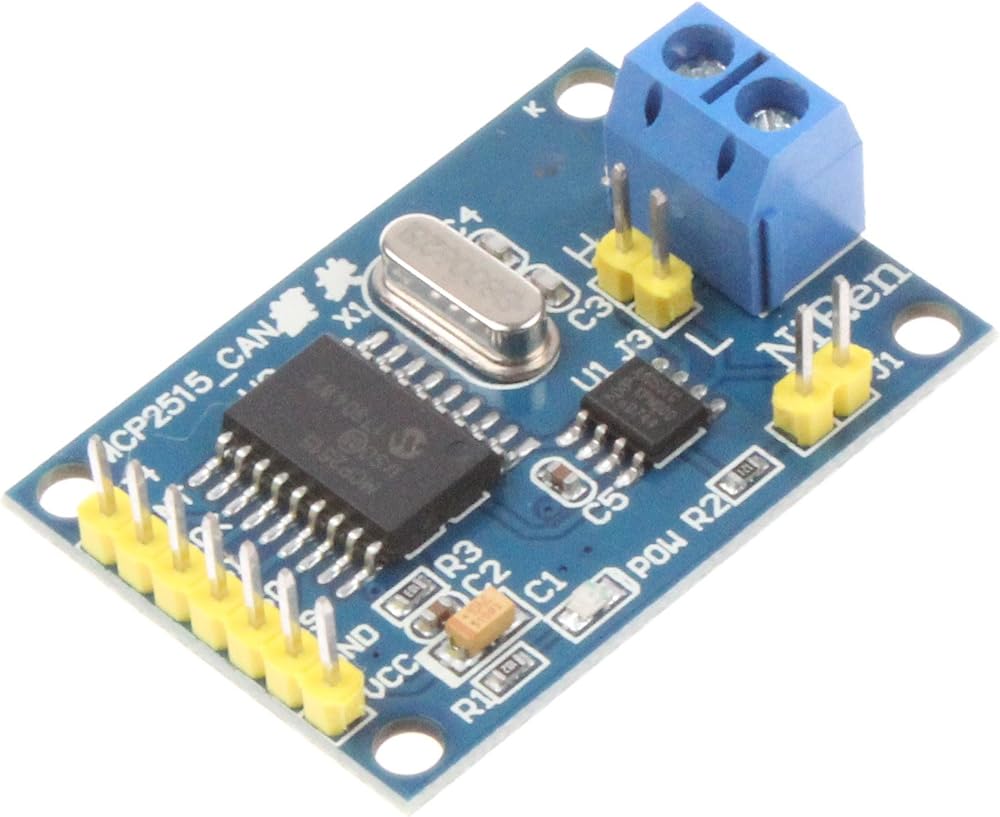

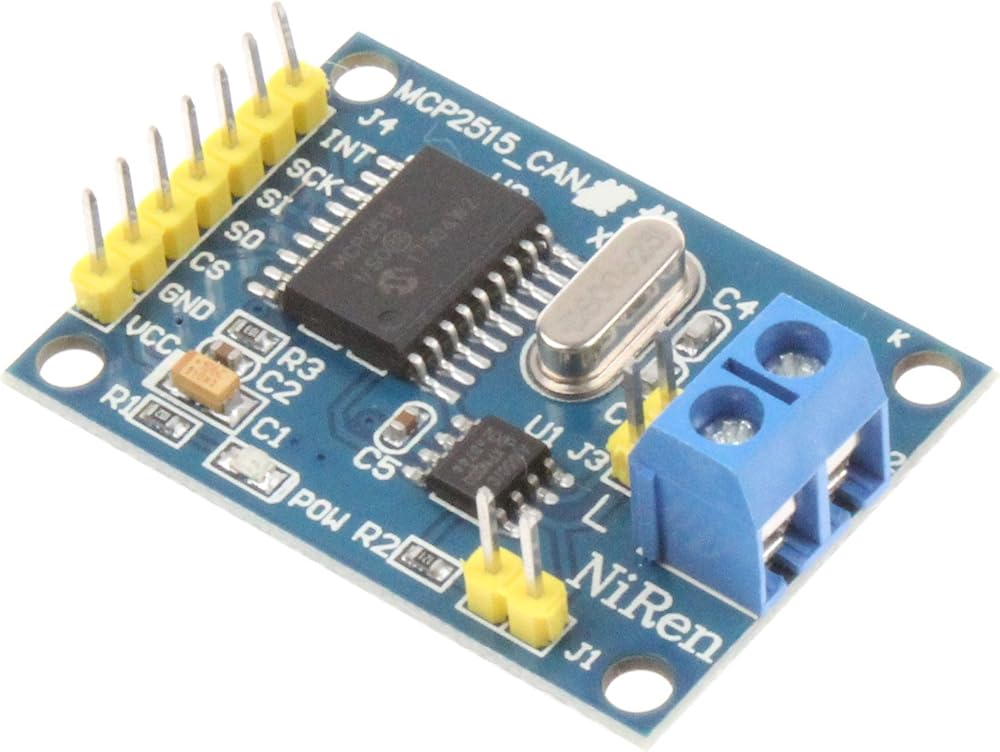

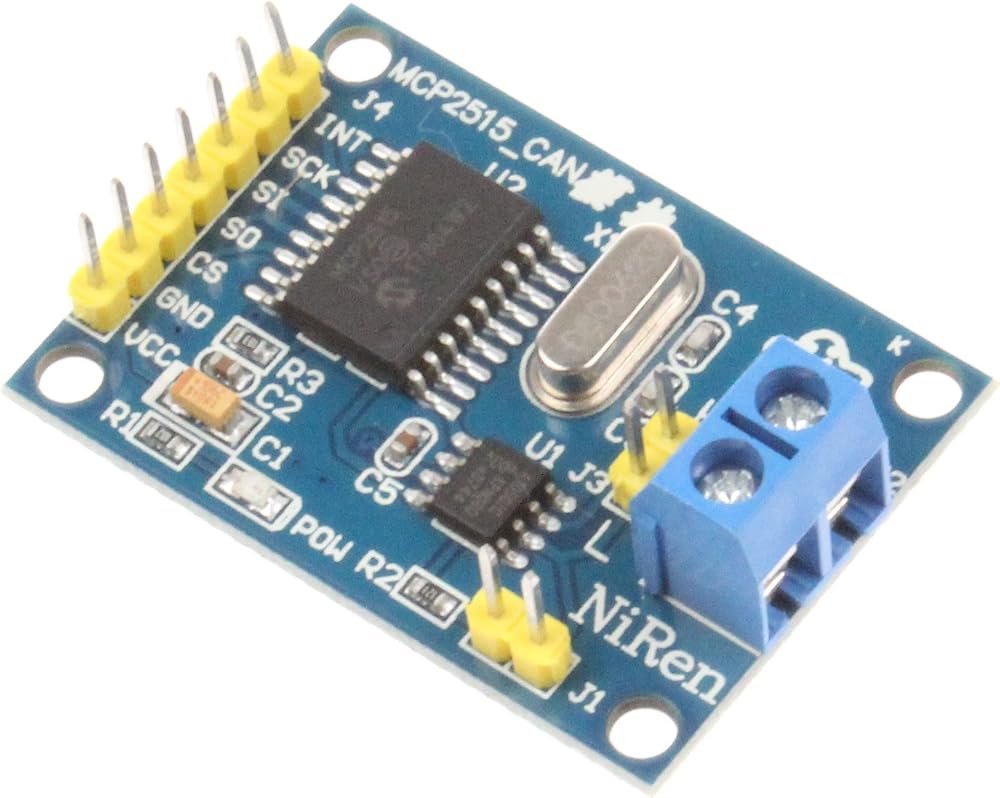

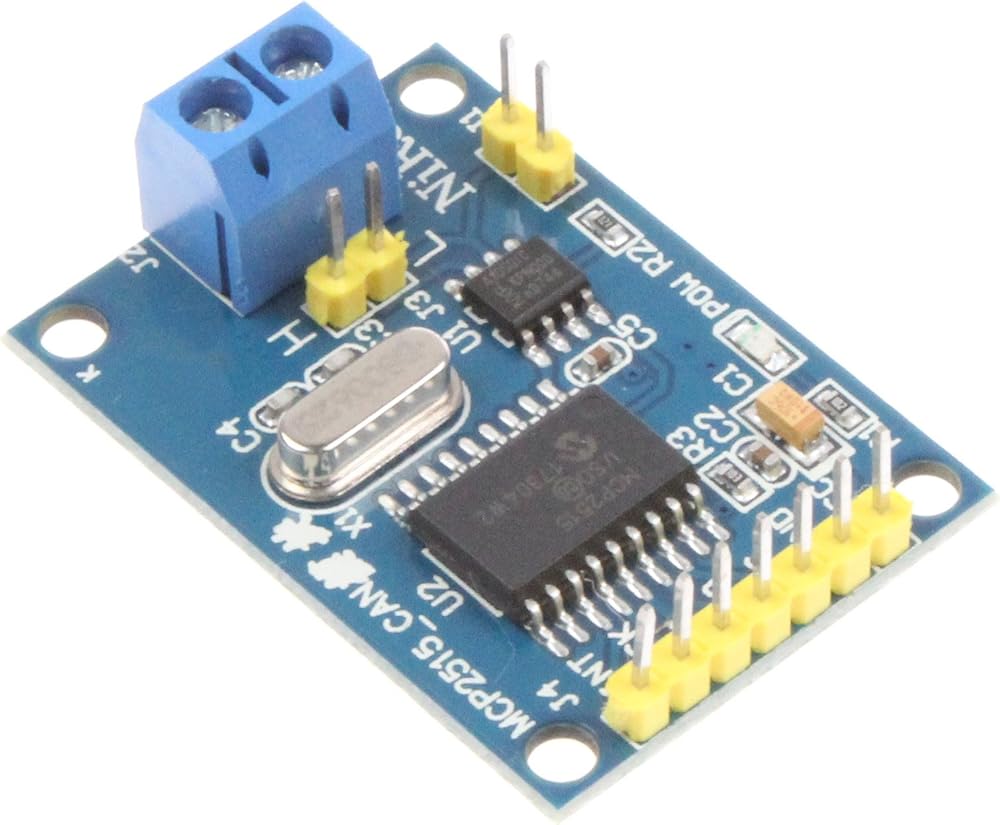

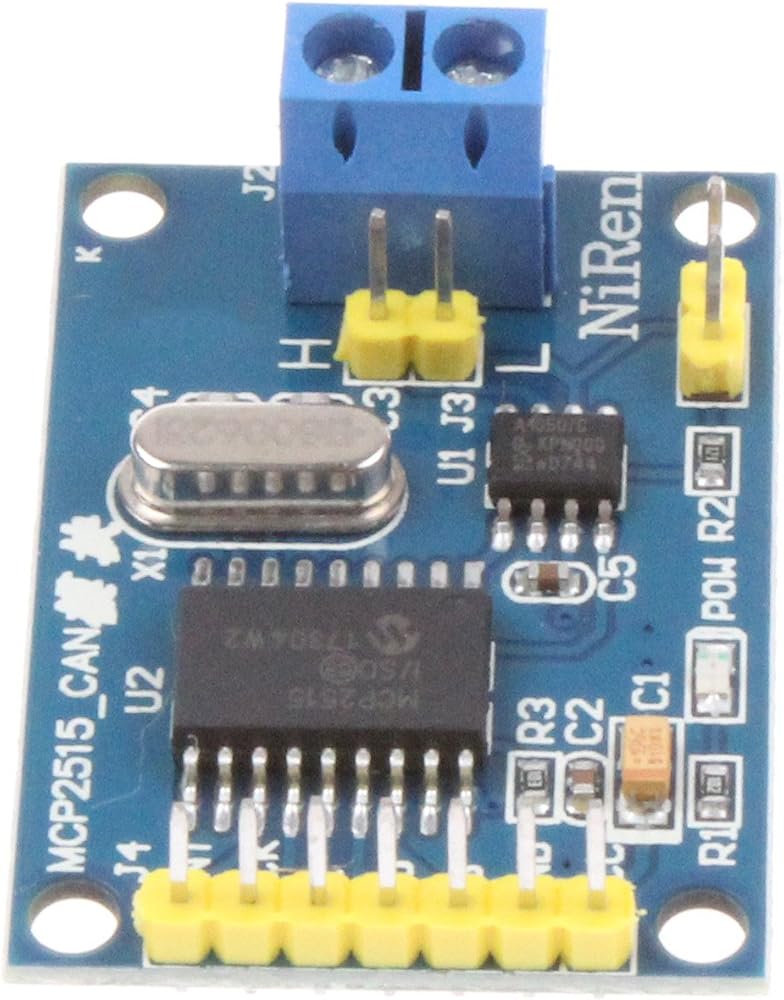

The MCP2515_CAN module is a CAN bus module based on the MCP2515 CAN controller and the TJA1050 CAN transceiver.The module is powered by a 5V DC power supply.

Module Parameters:
Support CANV2.0B technical specifications, communication rate is 1Mb/S;
0~8 bytes long data field;
Standard frames, extended frames and remote frames
Module 5VDC power supply, SPI protocol control;
120 ohm terminating resistor, shorted by short-circuit cap J1 selection;
Module size: 4*2.8CM.
Operating current: 5mA. Standby current 1μA.
Operating temperature: -40°C - +85°C.

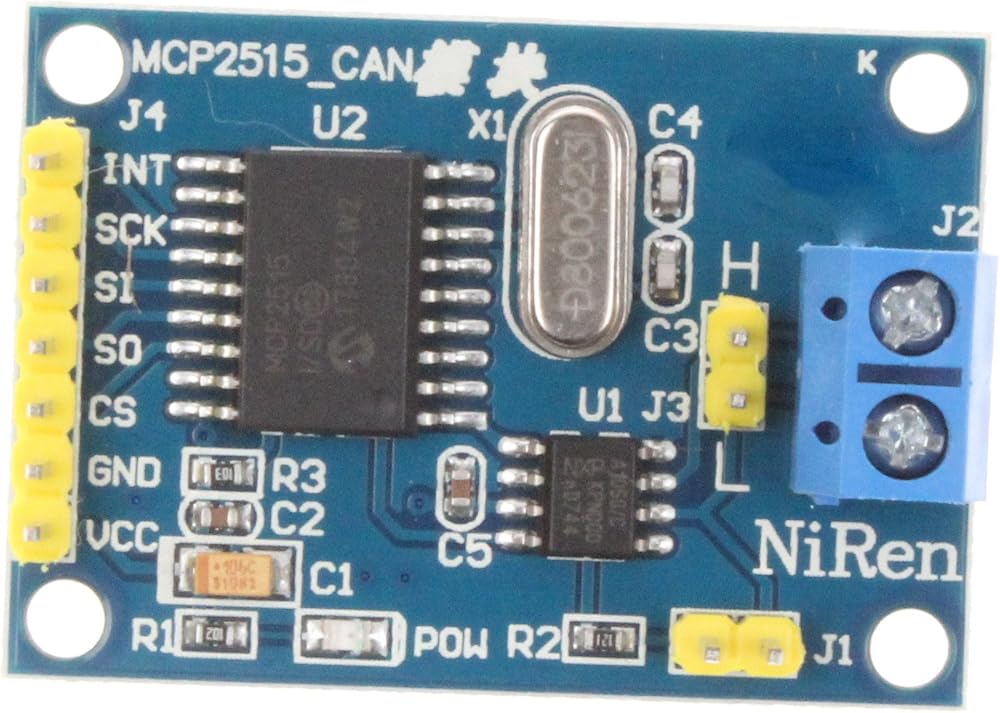

Module pin description:
VCC: 5V power input pin;
GND: power ground pin;
CS: SPI SLAVE select pin (active low)
SO : SPI master input slave output pin;
SI : SPI master output slave input pin;
SCLK: SPI clock pin;
INT : MCP2515 Interrupt Pin;
J1:120R resistance terminal selection;
J2: CANH, CANL KF301-2P block output;
J3: CANH, CANL pin output;

Package Included:
1pcs MCP2515 Controller Bus Module
