4 Wire Battery Tester, Lithium Battery Internal Resistance Meter, NiMH Lead-Acid Alkaline Voltage & IR Tester, Battery Pack Cell Analyzer with Probes, Battery Holder, mΩ/Ω (YR1035+)

Sorry, this product is not available

Special Features

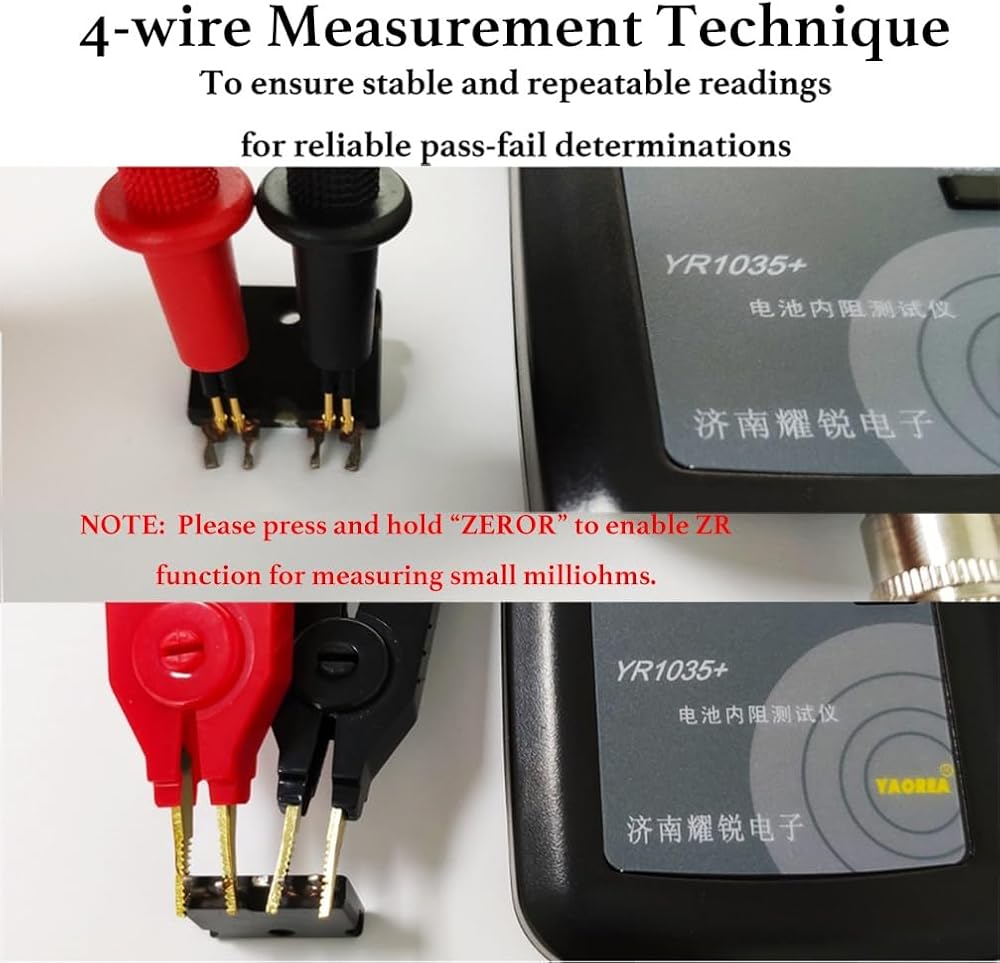

  • Battery tester adopts 4-wire measurement technique to ensure stable and repeatable readings for reliable pass-fail determinations
  • Battery tester can test individual NiMH, lead-acid, li-ion, li-po, alkaline battery and more, or a cell in pack, IR test range of up to 200Ω, resolution between 0.01-5mΩ , equipped with zero reset function to self calibrate to measure IR as low as 0.3-0.5mΩ

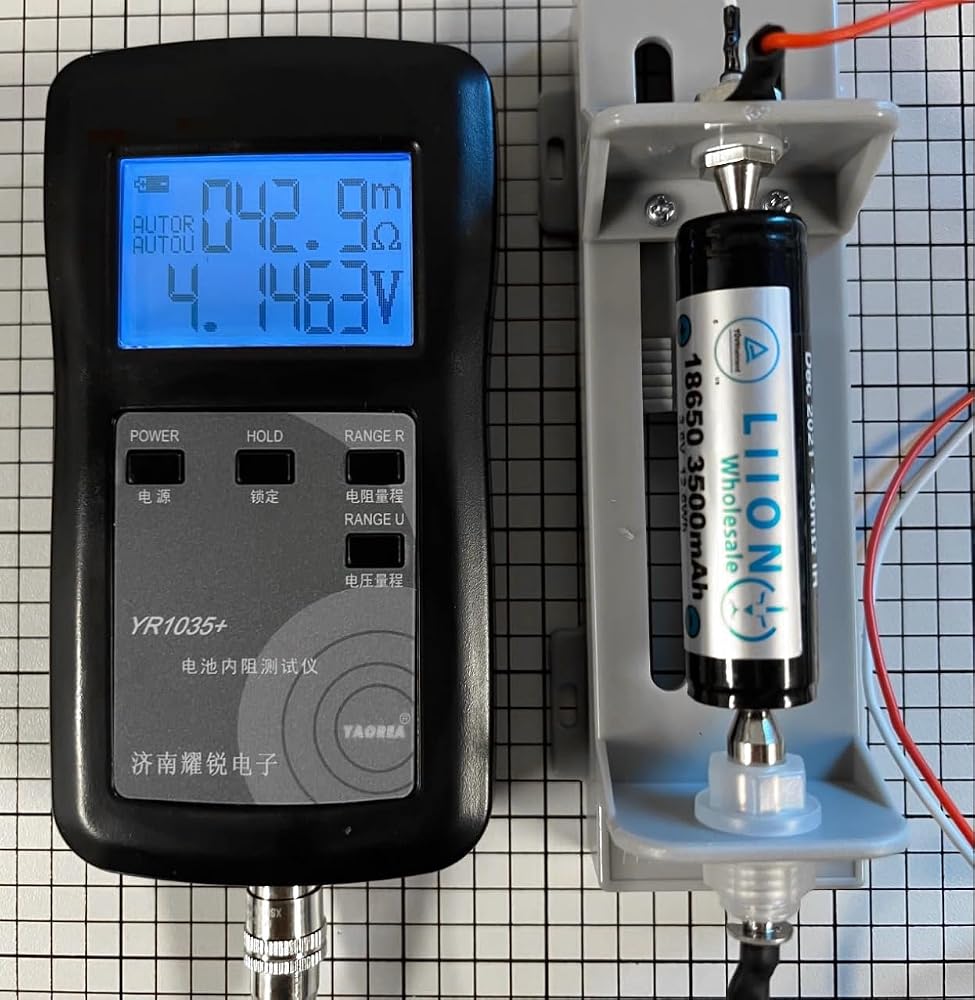

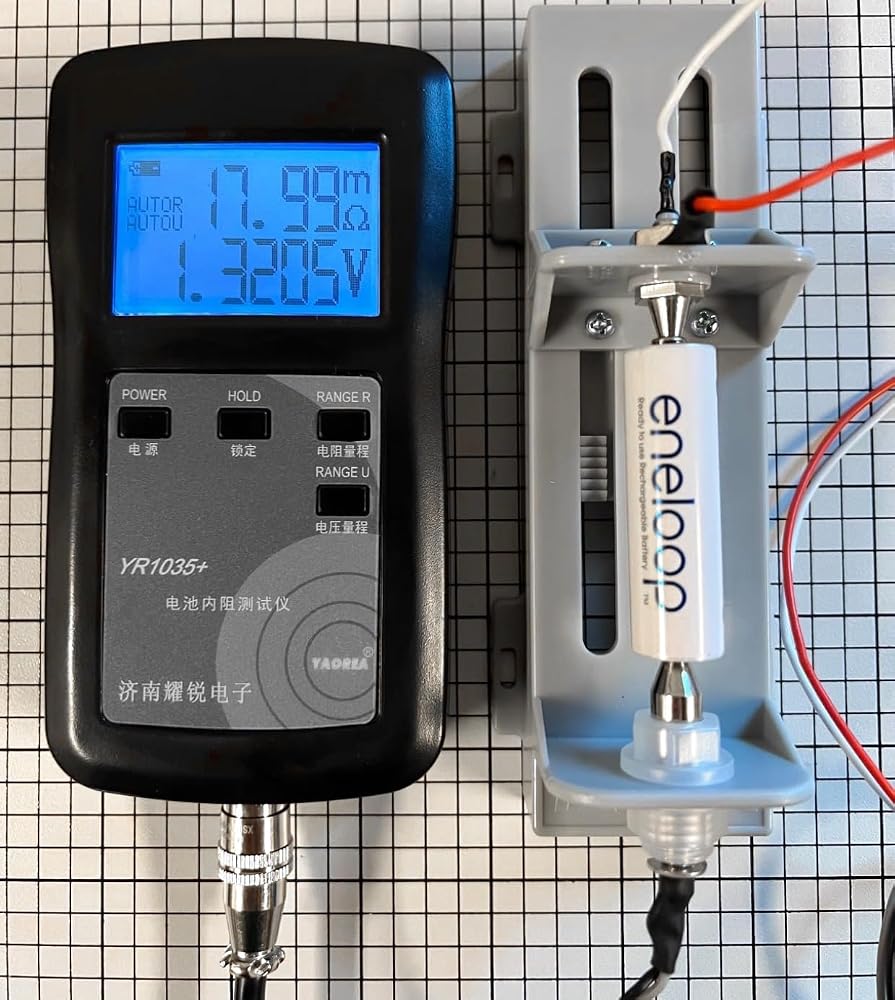

  • Battery tester features an LCD display with adjustable backlight to display internal resistance and voltage, easy to switch between milliohms and ohms, adjustable auto-off time for added convenience

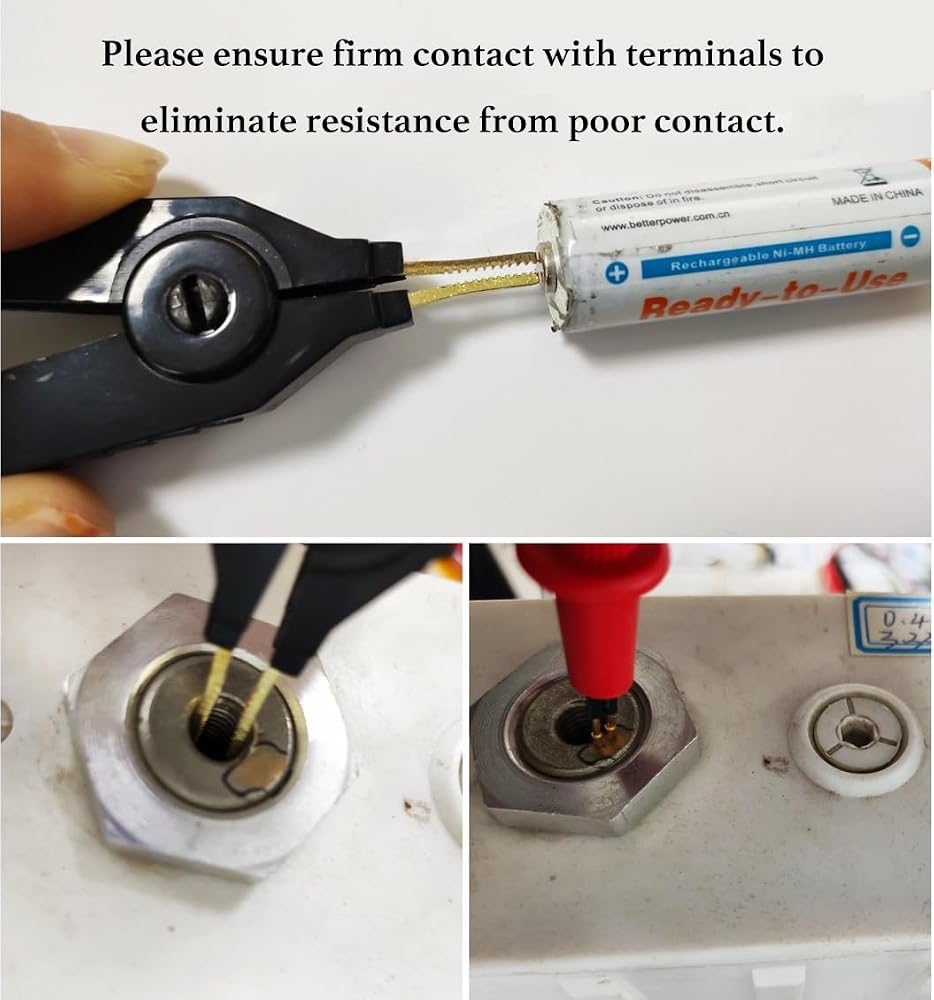

  • Battery tester comes with standard and clamp probes for secure contact on terminals, and also includes a battery test holder for easier testing (ensure firm contact with terminals to eliminate resistance from poor contact)
  • Battery tester offers auto-range, pre-set range, sorting mode and grading set, adjusting for optimal accuracy

Description

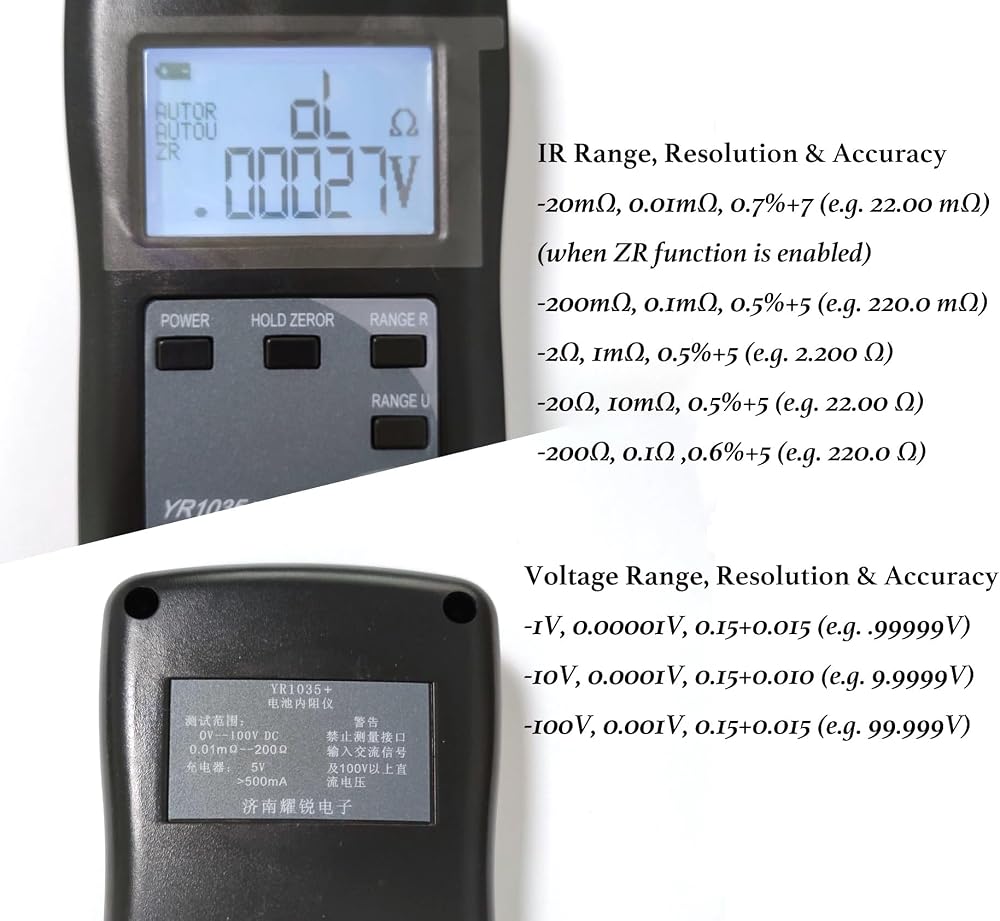

IR Range, Resolution & Accuracy
-20mΩ, 0.01mΩ, 0.7%+7 (e.g. 22.00 mΩ) (when ZR function is enabled)
-200mΩ, 0.1mΩ, 0.5%+5 (e.g. 220.0 mΩ)
-2Ω, 1mΩ, 0.5%+5 (e.g. 2.200 Ω)
-20Ω, 10mΩ, 0.5%+5 (e.g. 22.00 Ω)
-200Ω, 0.1Ω ,0.6%+5 (e.g. 220.0 Ω)
Voltage Range, Resolution & Accuracy
-1V, 0.00001V, 0.15+0.015 (e.g. .99999V)
-10V, 0.0001V, 0.15+0.010 (e.g. 9.9999V)
-100V, 0.001V, 0.15+0.015 (e.g. 99.999V)

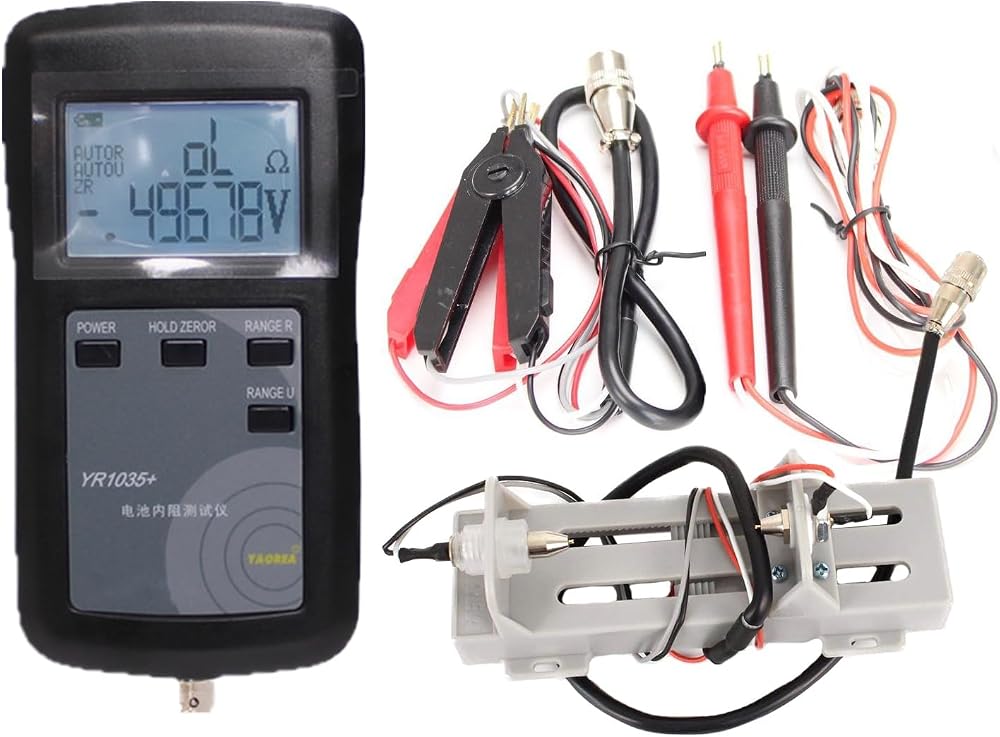

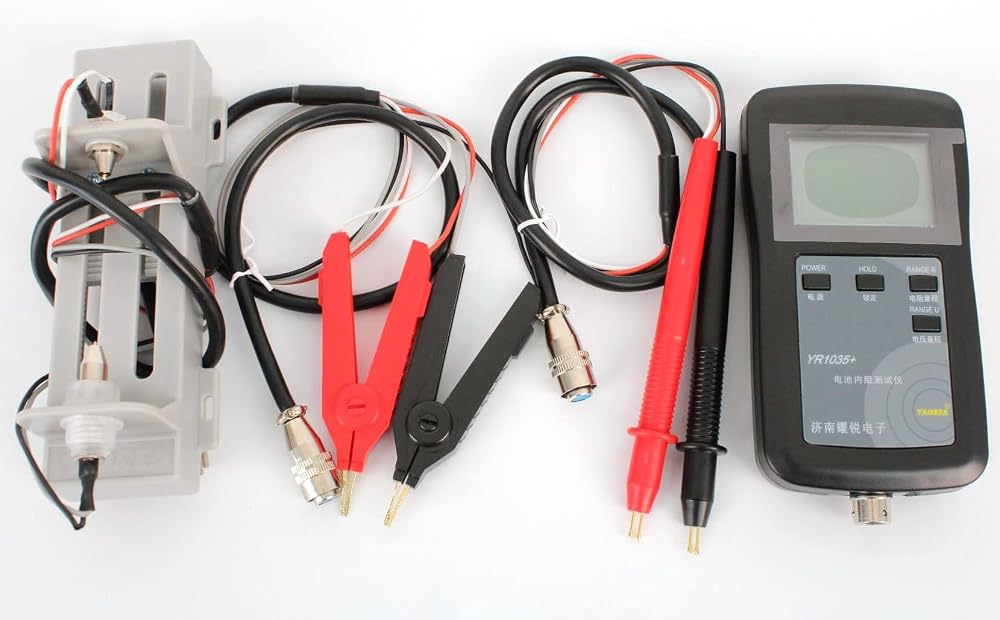

PACKAGE
-1 x Battery Tester
-1 x Standard Probes
-1 x Kelvin Clips
-1 x Battery Test Holder
