Square D QOU235 QOU Miniature Circuit Breaker, 35A, 2P, 120/240V, 10kA in Saudi Arabia Square D QOU235 QOU Miniature Circuit Breaker, 35A, 2P, 120/240V, 10kA in Saudi Arabia Square D QOU235 QOU Miniature Circuit Breaker, 35A, 2P, 120/240V, 10kA in Saudi Arabia

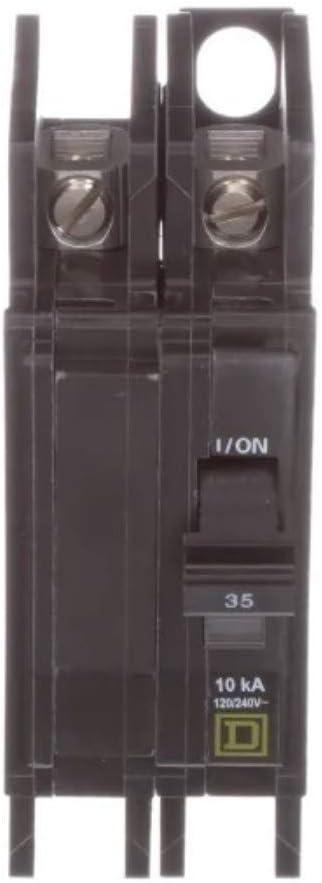

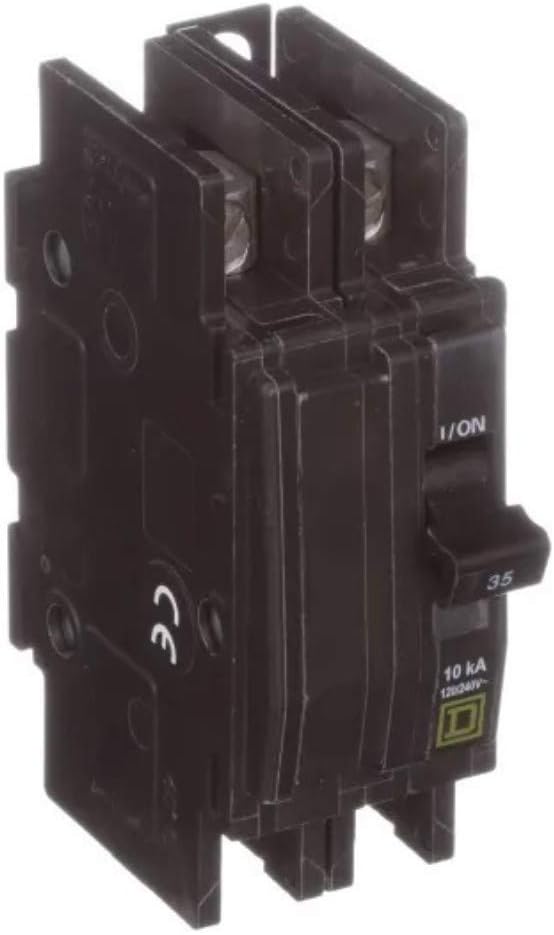

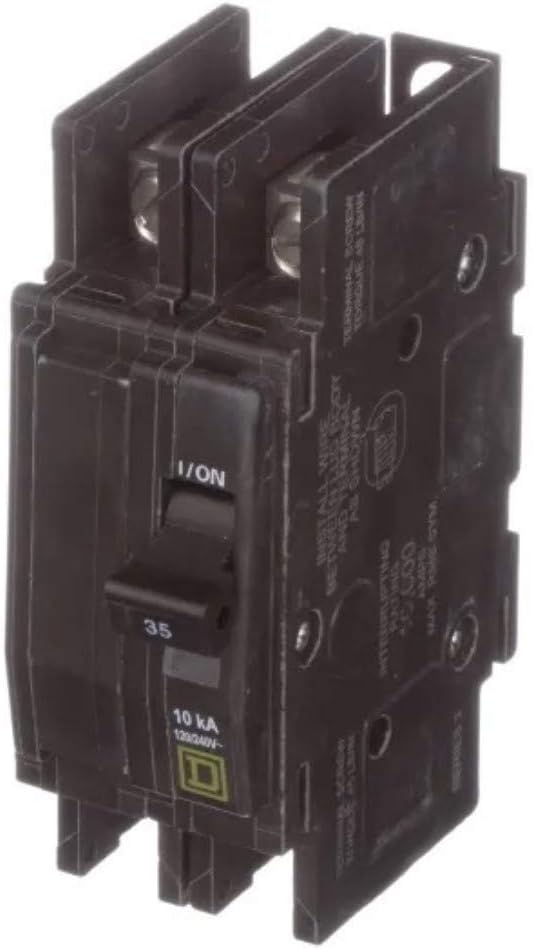

Square D QOU235 QOU Miniature Circuit Breaker, 35A, 2P, 120/240V, 10kA

SAR 606
Brand
Square D
– 1 +

Special Features

  • Can Be Flush-, Surface-, or DIN Rail-Mounted. Automatically Open a Circuit Under Overload or Short Circuit Conditions
  • Feature Common Tripping of All Poles. Have a Visi-Trip Trip Indicator
  • Has Lugs at Both Ends (Cable-In/Cable-Out Construction). Operate in Any Position
  • Are Fully Tested, UL Listed, and CSA Certified for Reverse Connection without Restrictive Line/Load Markings
  • Provide a Means to Manually Open a Circuit

Description

Specifications Terminal Lug Wire Size 1- #14 - #2 AWG Cu or Al Reversible Line and Load Lugs for Convenient Flush or Surface Mount Wiring DIN Mounted (Symmetrical Rail 35 × 7.5 DIN/EN 50 022) UL Listed as HACR Type -- 15 A to 70 A Field Installable Quick Connectors Single Handle with Internal Common Trip UL Listed 48 VDC (5,000 AIR) Constructed with Special Corrosion Resistant Current Path Passed ASTM 500 Hour Salt Spray Test UL 489 EN60947-2 and CSA C22.2 No.5-02 Certifications
