Barrier Terminal Block Power Distribution Module (2x6 Position, DIN Rail Mount)

Sorry, this product is not available
Brand
OONO

Special Features

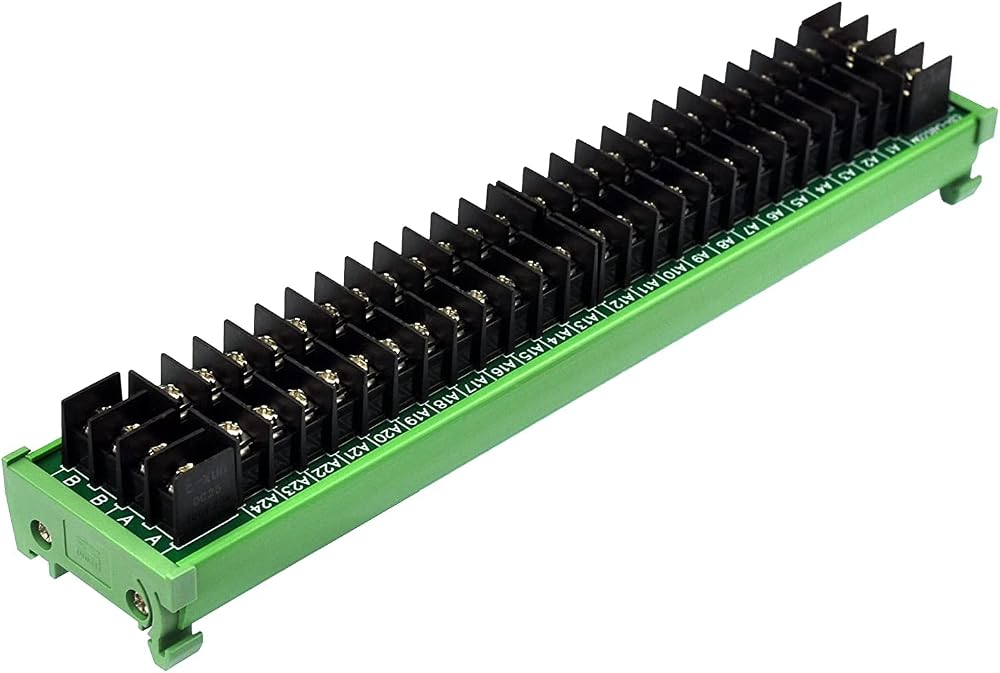

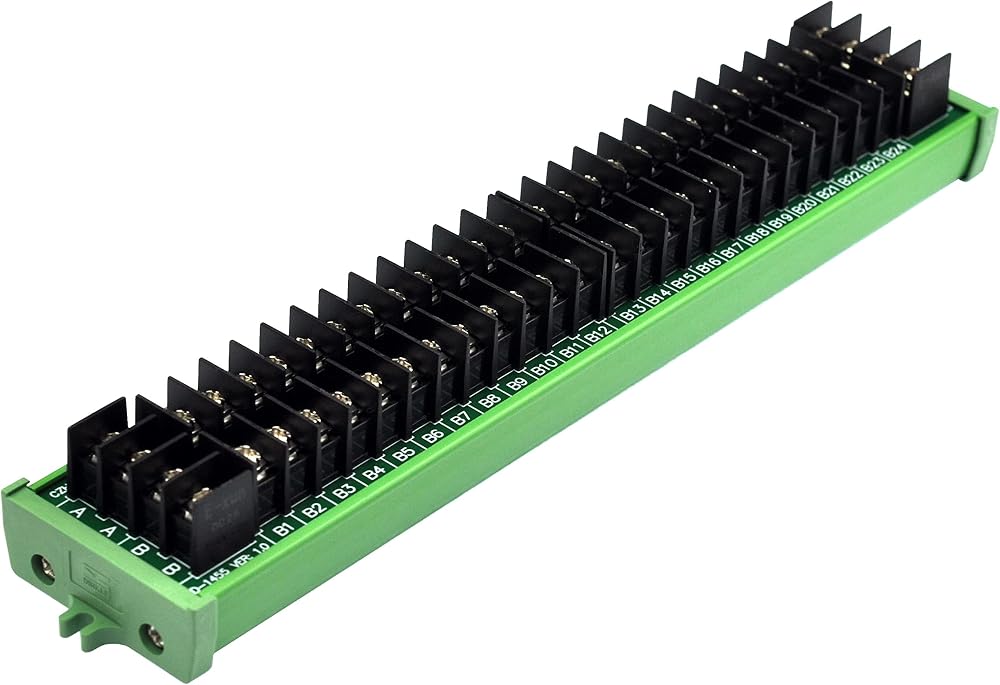

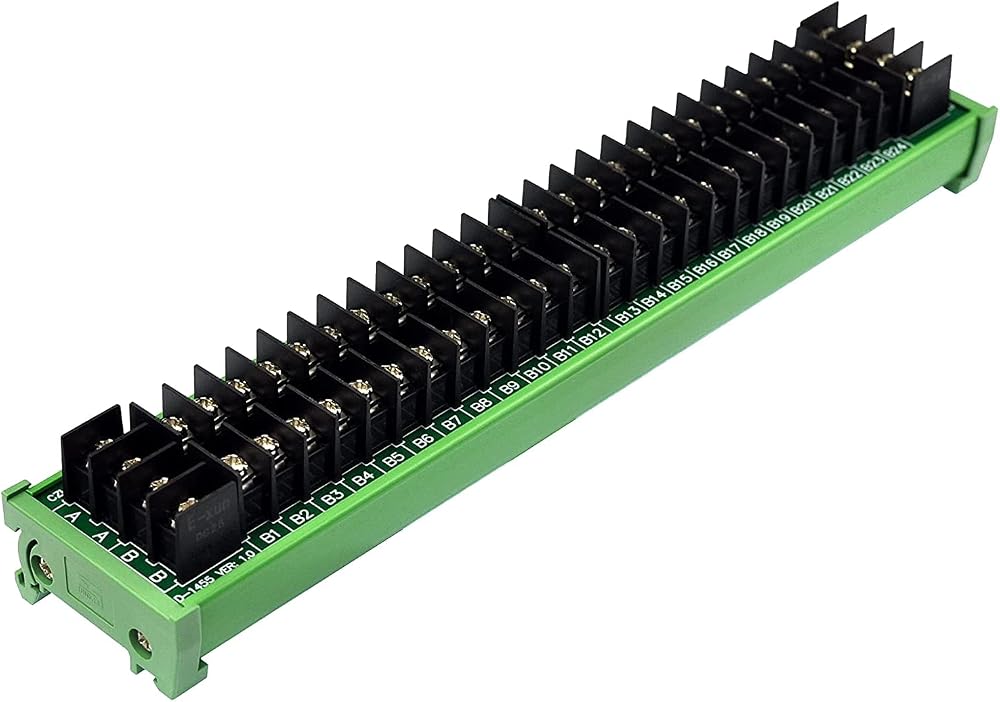

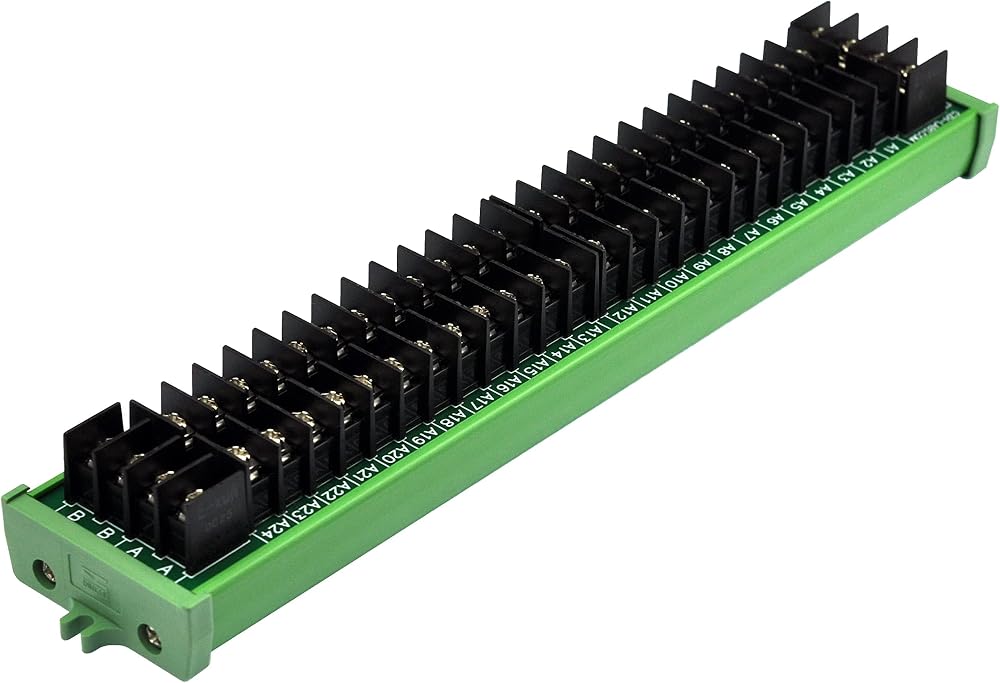

  • 20Amp 2x24 position barrier terminal block power distribution module. Screw mount version, included two M3 x 10mm wood screws, you can easily mount it on a wooden board.

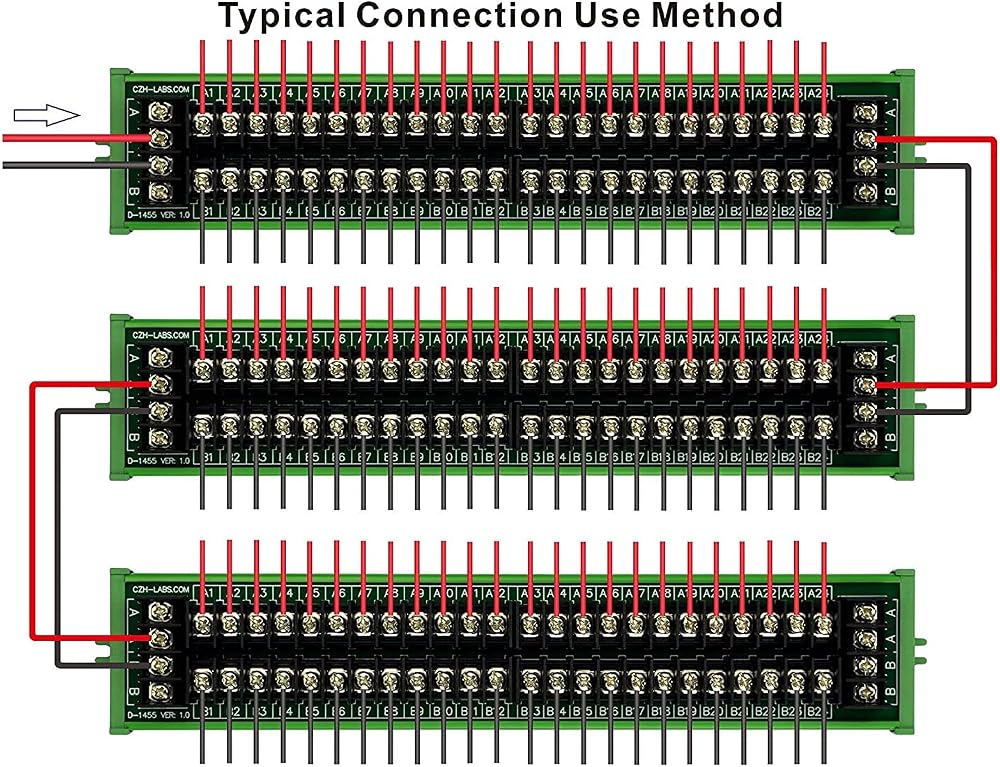

  • Maximum input voltage 300V, maximum total input current 30A(one position maximum current 20A). Maximum total output current 30A(one position maximum current 20A). Support power supply expansion connect to other modules.

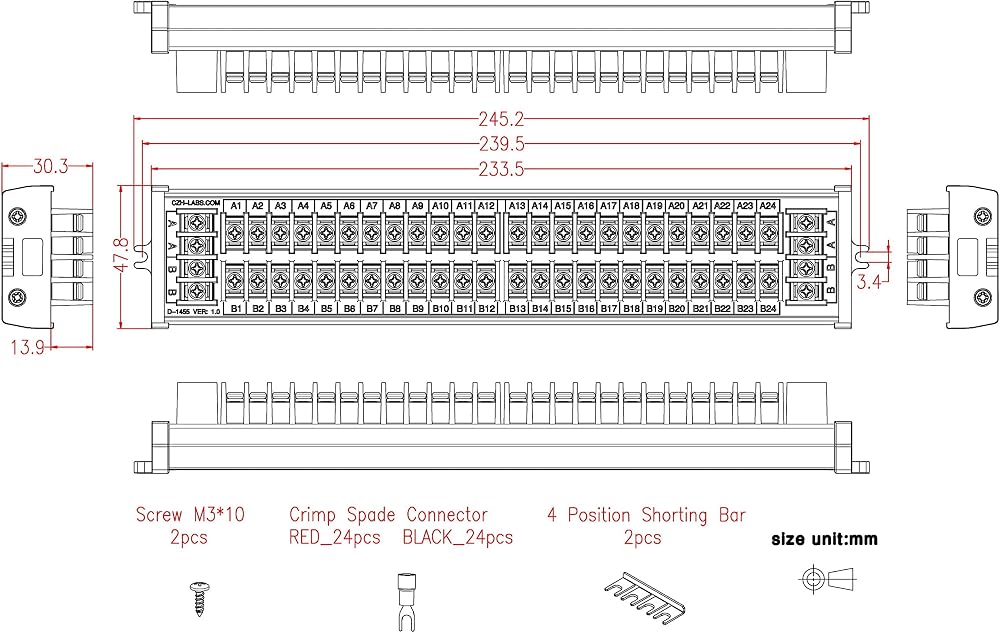

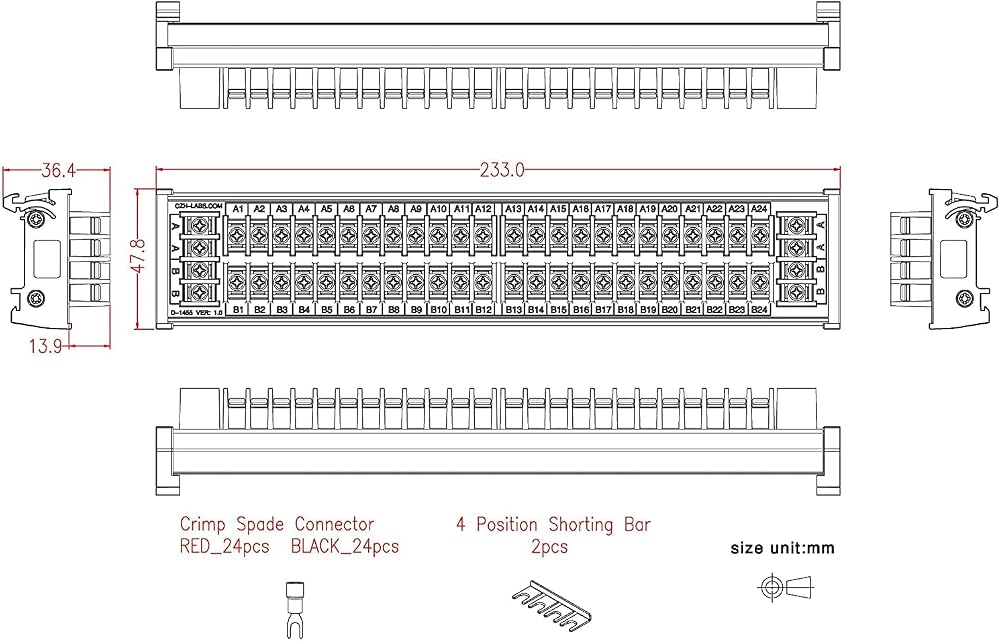

  • Barrier terminal blocks: pitch 7.62mm / 0.3 inch, screw Metric M3(thread diameter 3mm).
  • Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). FR-4 glass fiber PCB.

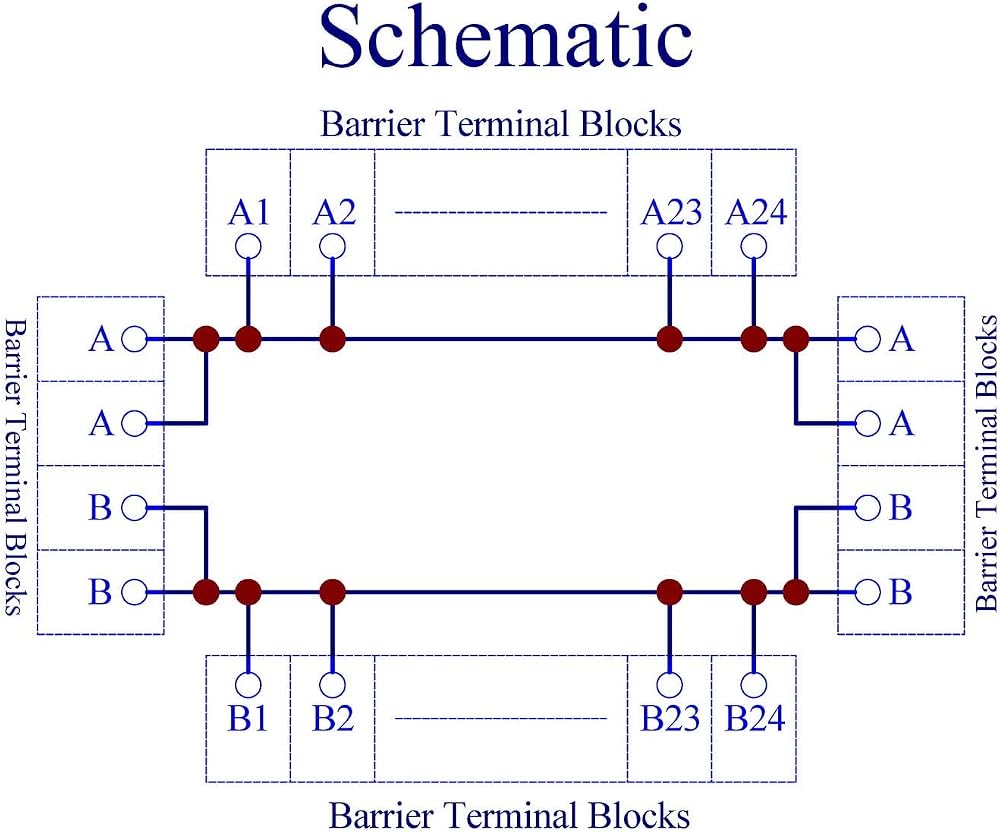

  • Packing list: 1x Barrier terminal block module. 2x M3 x 10mm wood screws. 24x Red crimp spade connectors(26AWG ~ 12AWG / 2.5mm square). 24x Black crimp spade connectors(26AWG ~ 12AWG / 2.5mm square). 2x 4-Position shorting bars(It is convenient for you to flexibly short-circuit the wiring. For example, short-circuit the A to B positions).

Description

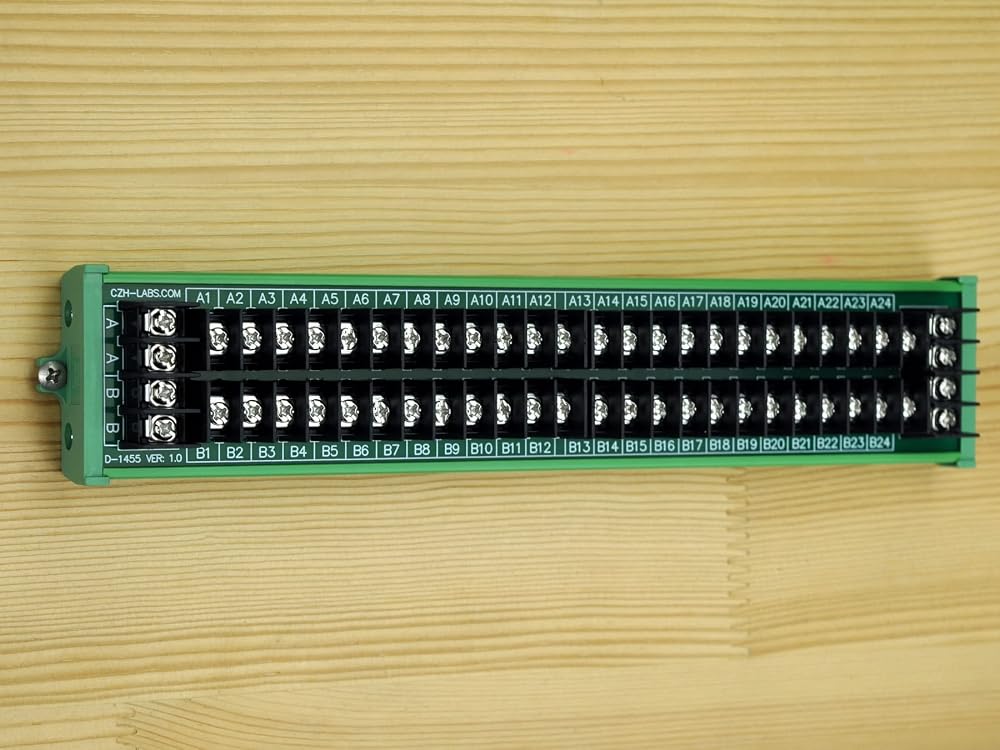

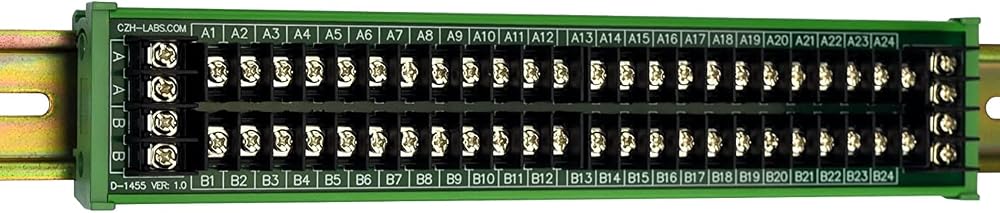

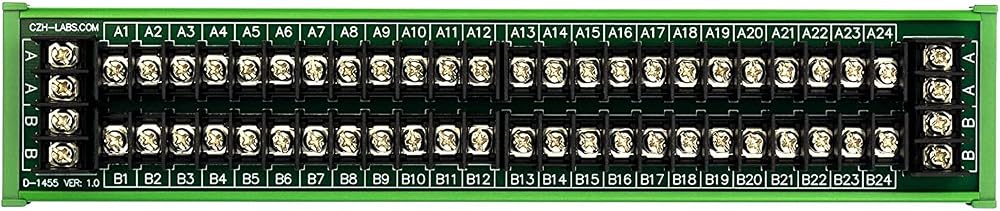

1, 20Amp 2x24 position barrier terminal block power distribution module. Screw mount version, included two M3 x 10mm wood screws, you can easily mount it on a wooden board.

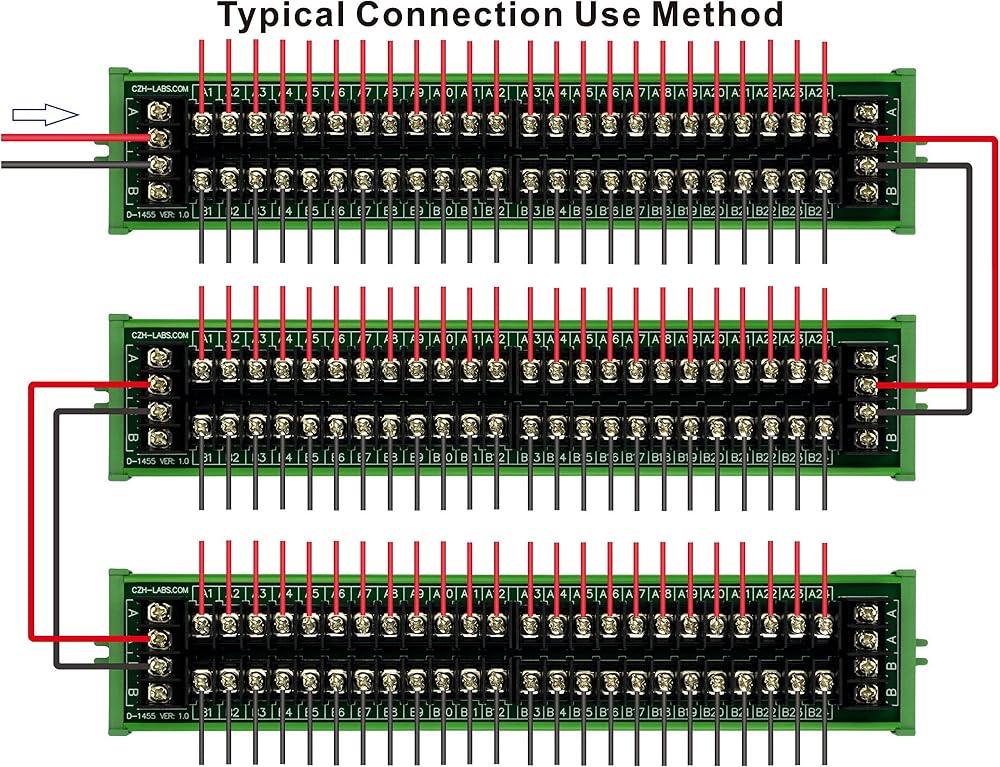

2, Maximum input voltage 300V, maximum total input current 30A(one position maximum current 20A). Maximum total output current 30A(one position maximum current 20A). Support power supply expansion connect to other modules.

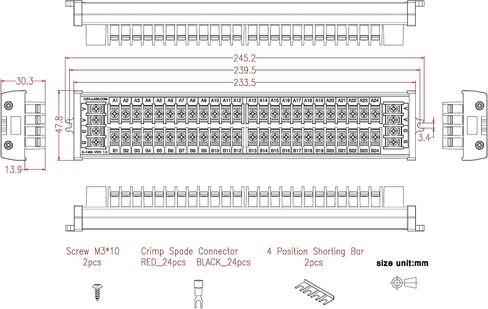

3, Barrier terminal blocks: pitch 7.62mm / 0.3 inch, screw Metric M3(thread diameter 3mm).
4, Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). FR-4 glass fiber PCB.

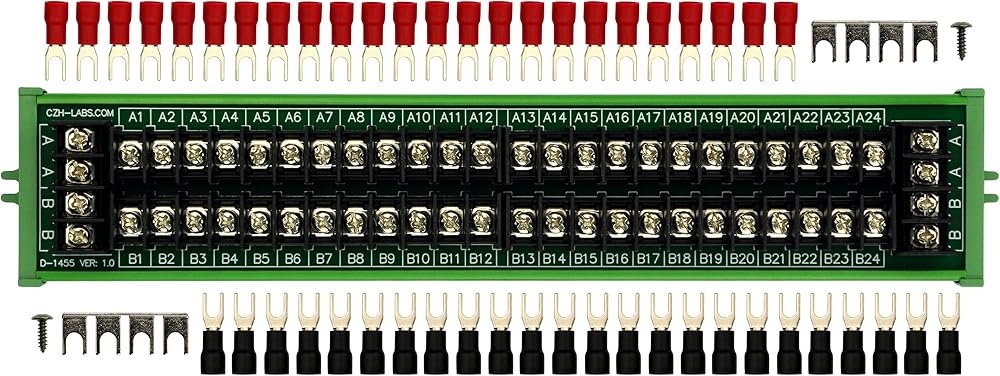

5, Packing list:
1x Barrier terminal block module.
2x M3 x 10mm wood screws.
24x Red crimp spade connectors(26AWG ~ 12AWG / 2.5mm square).
24x Black crimp spade connectors(26AWG ~ 12AWG / 2.5mm square).
2x 4-Position shorting bars(It is convenient for you to flexibly short-circuit the wiring. For example, short-circuit the A to B positions).
