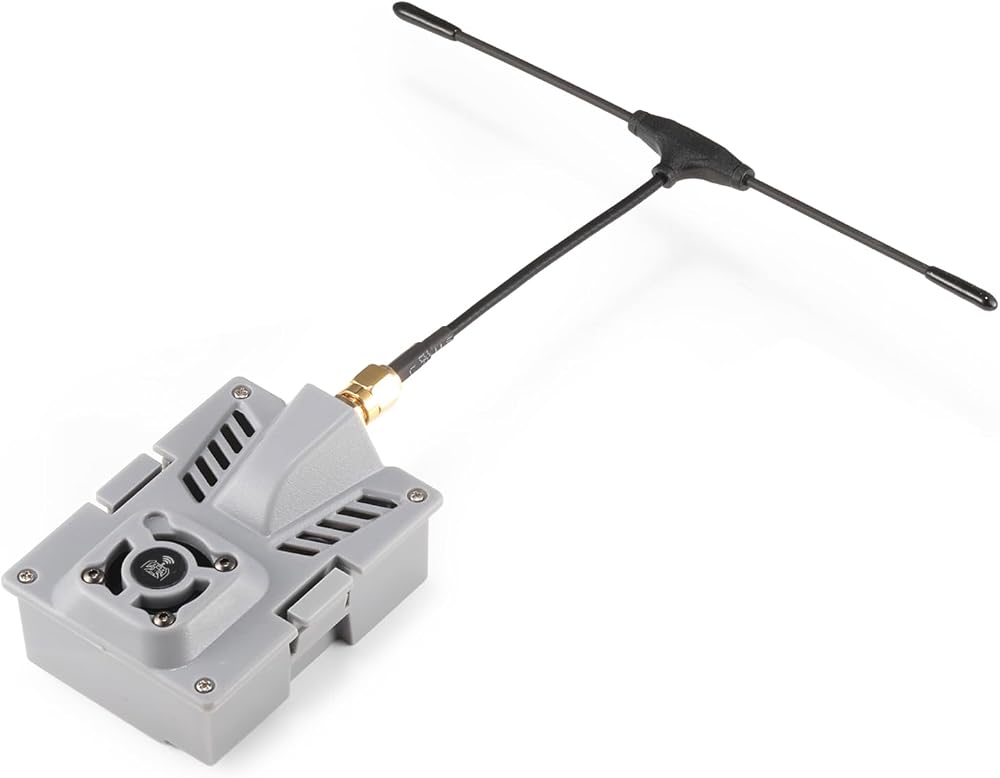

HAPPYMODEL ExpressLRS ES900TX Micro TX Module ELRS OpenTX Long Range for Opentx Remote Controllers Radiomaster TX16S Jumper T12 T18, Long Range TX Module for Toothpick Whoop, Replace ES915TX(915MHz)

Sorry, this product is not available

Special Features

  • HappyModel ELRS Module 915MHz ES900TX module compatible with most OpenTX remote controllers, especially suitable for Radiomaster TX16S and Jumper T12 T16 T18 series remote controllers, basically plug and play.

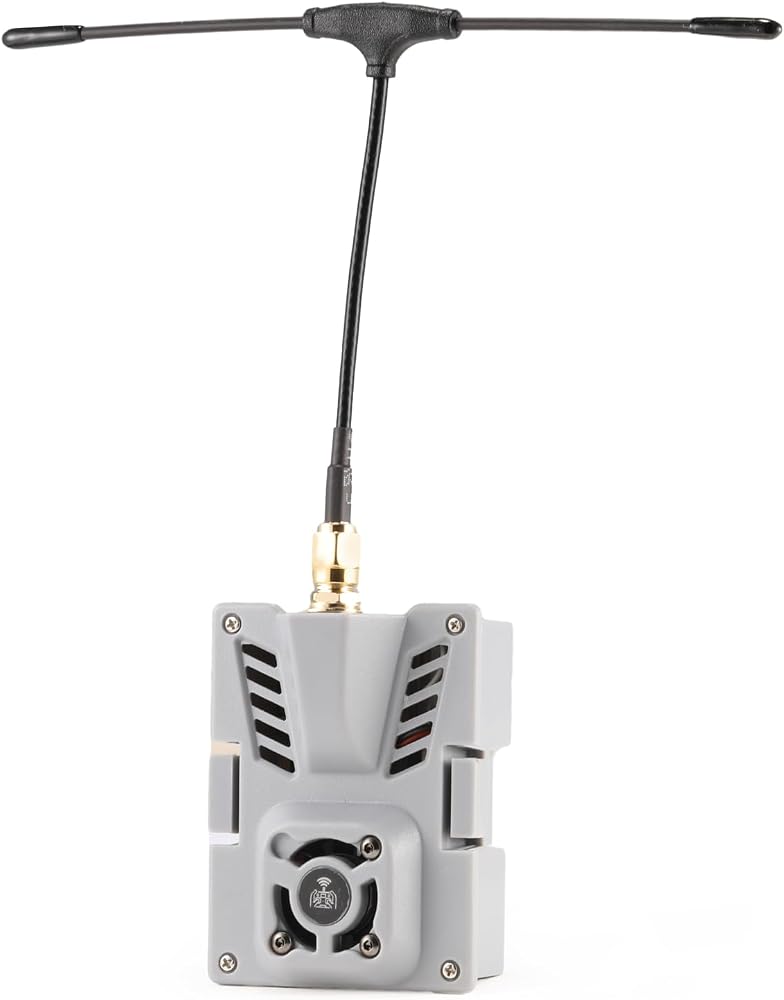

  • The ES900TX module is equipped with 2006 Cooling Fan heat sink, which can help the transmitter module to operate stably under high power conditions. The fan is plug and play, and automatically operates when the power of the transmission module is set to 250mw

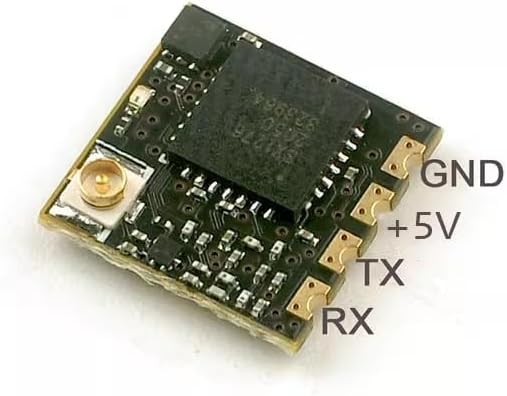

  • Bind procedure: 1.Supply power to the ES900RX, wait until the red LED on the ES900RX are off, immediately turn off the power, and then repeat again the above steps. When the ES900RX is powered on for the third time, the red LED light will start to double flash quickly, which means that the ES900RX enters the binding mode
  • 2.Insert the ES900TX or ES915TX module to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems, Enter into ELRS and press [Bind], the Red LED on the ES900RX module will turning off then start blinking slowly and finally getting to be solid , this means bind successfully.
  • Wifi update firmware function for ES900TX would be available in a short time.RC7 Firmware for ES900RX download:ExpressLRS RC7 firmware for ES900 RX 915MHz and 868MHz [update by wifi]

Description

Specifications:

Source on GitHub: https://github.com/ExpressLRS/ExpressLRS

ExpressLRS community:ExpressLRS ? High Performance Radio Control Link

Configurator https://github.com/ExpressLRS/ExpressLRS-Configurator/releases

Firmware https://github.com/ExpressLRS/ExpressLRS/releases

The module is compatible with most Opentx remote controllers, especially suitable for Radiomaster TX16S and Jumper T12 T16 T18 series remote controllers, basically plug and play.

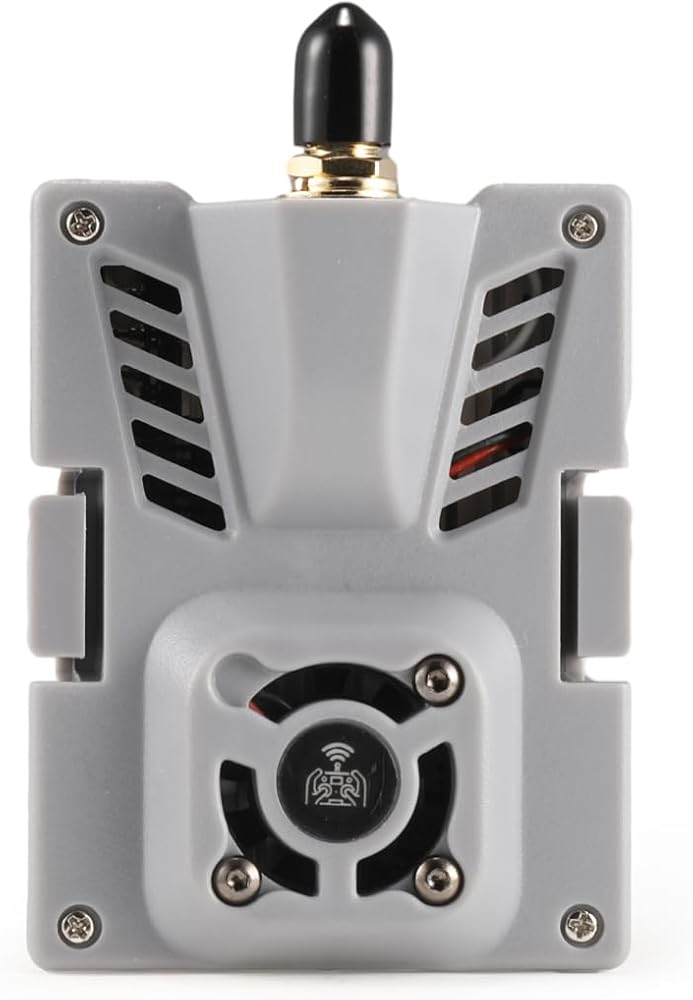

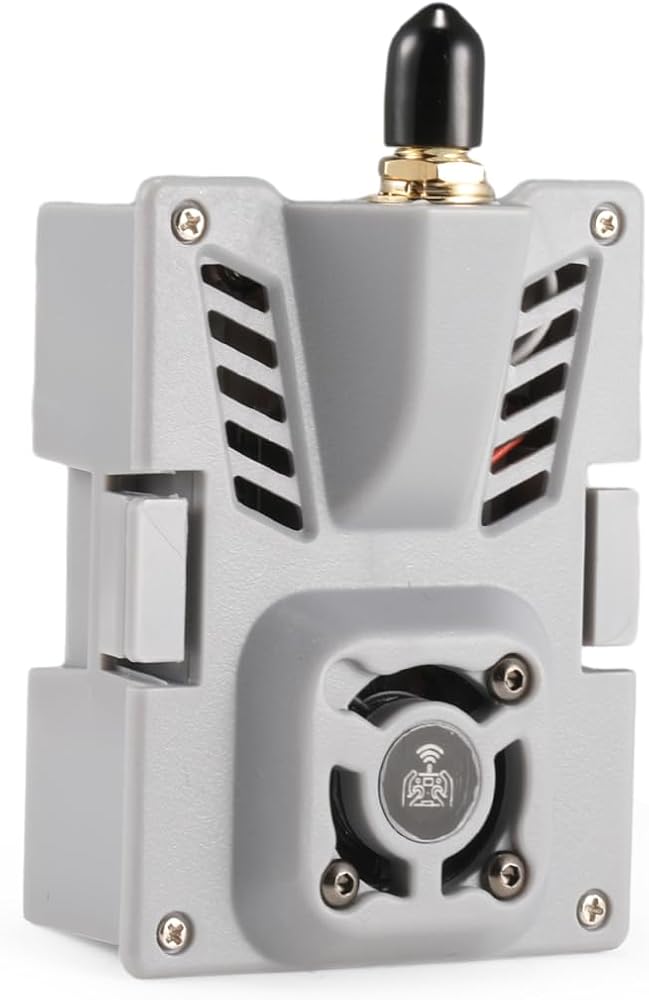

The ES900TX module is equipped with 2006 Cooling Fan heat sink, which can help the transmitter module to operate stably under high power conditions.

Wifi update firmware function for ES900TX would be available in a short time.RC7 Firmware for ES900RX download:ExpressLRS RC7 firmware for ES900 RX 915MHz and 868MHz [update by wifi]

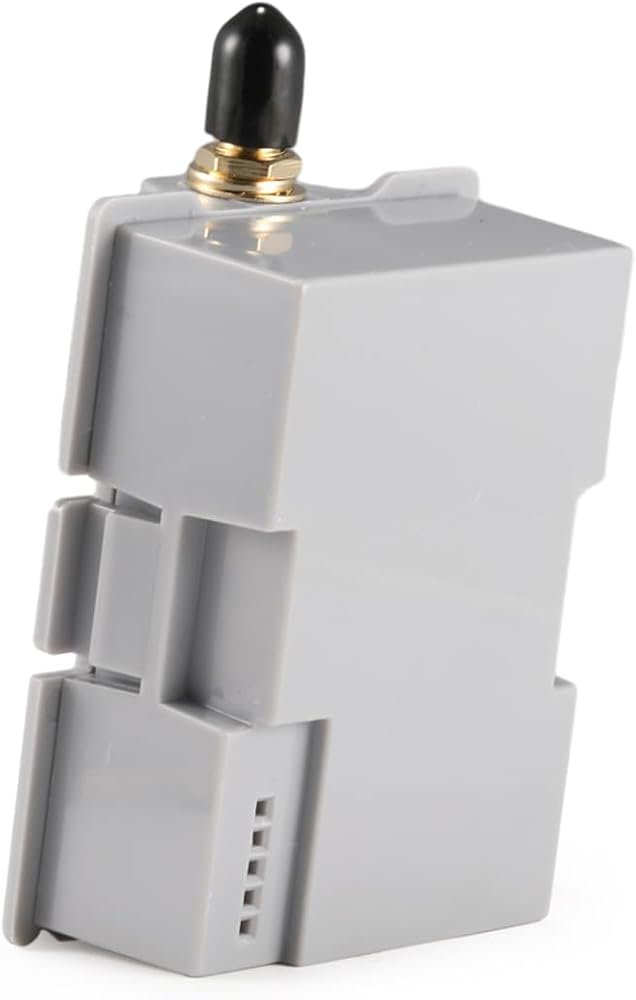

ES900TX:

MCU:ESP32+ESP8285

Dimension: 55*39*11mm

Weight: 9.2g(only the TX module)

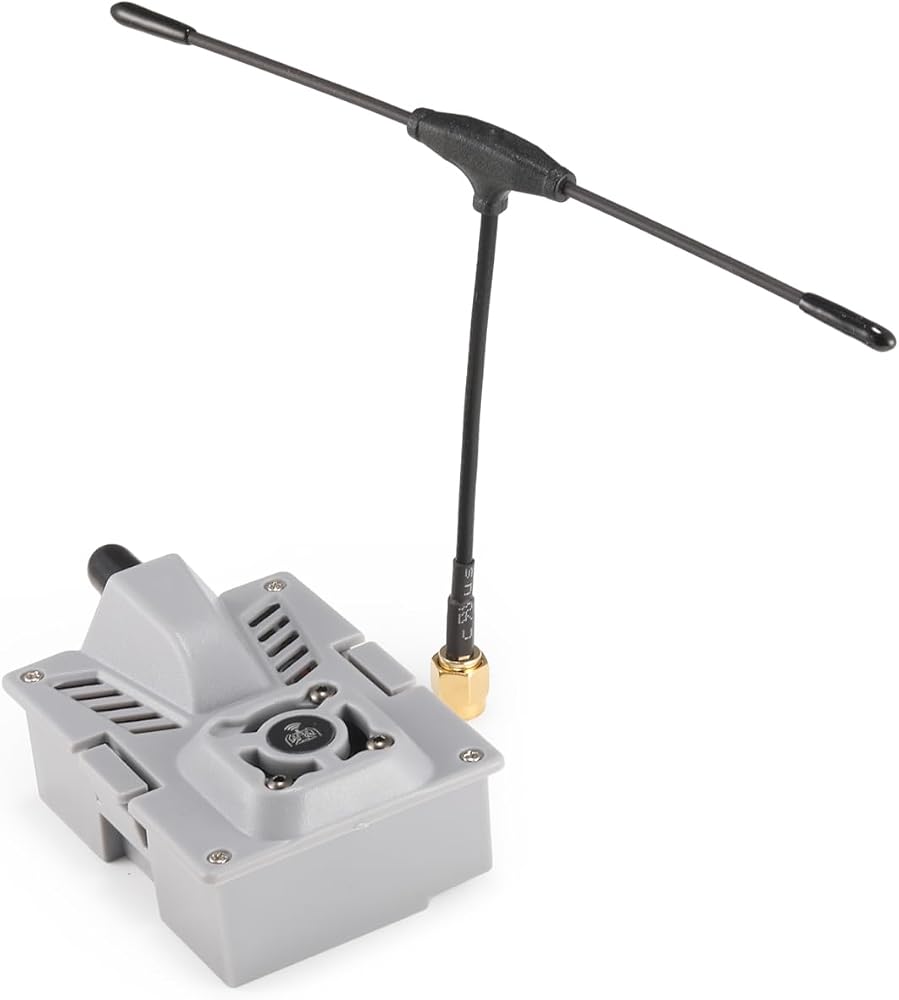

Antenna connector: SMA

VCC input: 5~13v, Recommend 5v~9v

Max Output Power: 27dBm operation, fan recommend)

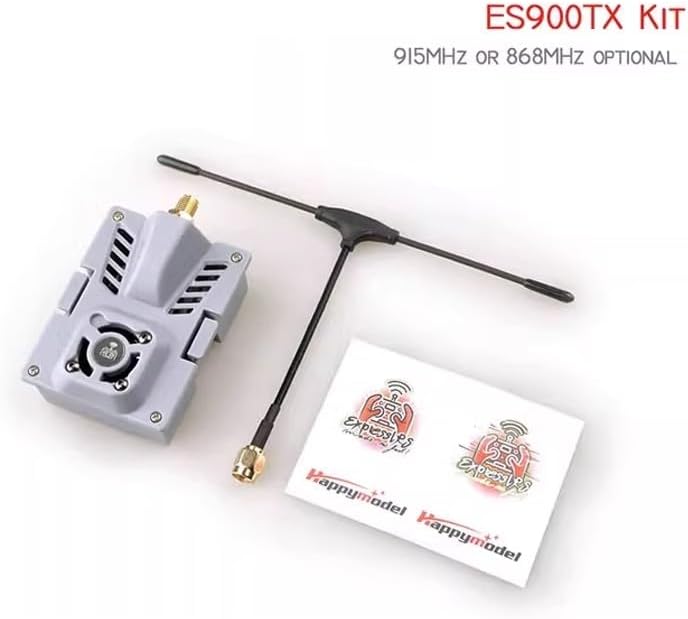

Pack( 915MHz ):

ES900TX

ES900 TX module x1

TX antenna x1

Bind procedure:

1.Supply power to the ES900RX, wait until the red LED on the ES900RX are off, immediately turn off the power, and then repeat again the above steps.

When the ES900RX is powered on for the third time, the red LED light will start to double flash quickly, which means that the ES900RX enters the binding mode.

2.Insert the ES900TX or ES915TX module to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems, Enter into ELRS and press [Bind], the Red LED on the ES900RX module will turning off then start blinking slowly and finally getting to be solid , this means bind successfully.
