lnstallation:
–Install both the roller and the roller retainers in both shoes.
– Install the return spring pins if required.
– Install the top shoe - insure that the cam is rotated to seat the roller in the lowest position.
– Hang the anchor springs from the top shoe.
– Attach the lower shoe, with the anchor springs, and then rotate the lower shoe into position.
– Install the retum spring on the lower shoe with the upper spring opening facing the roller.

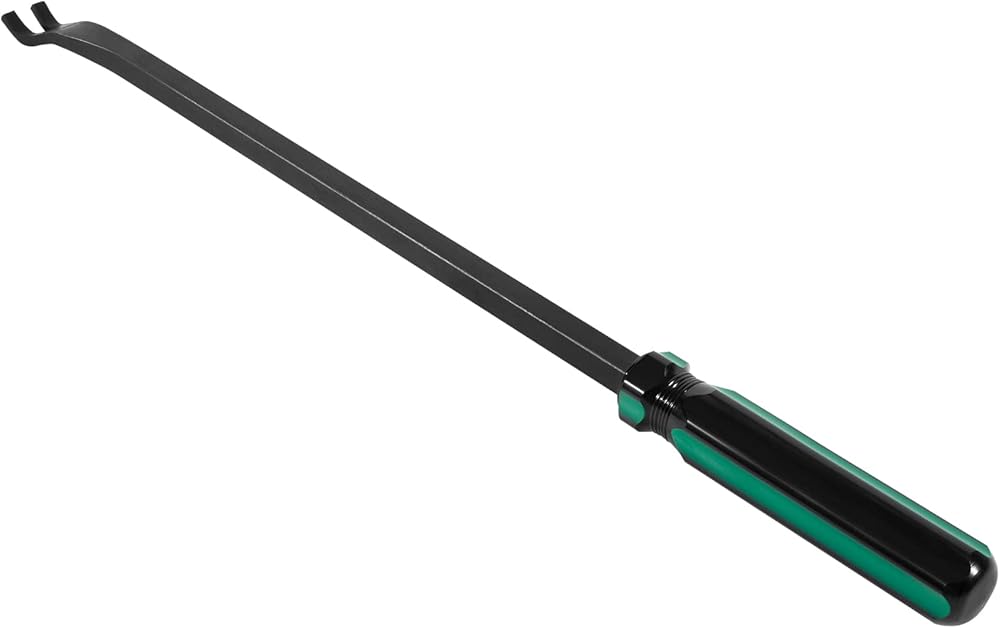

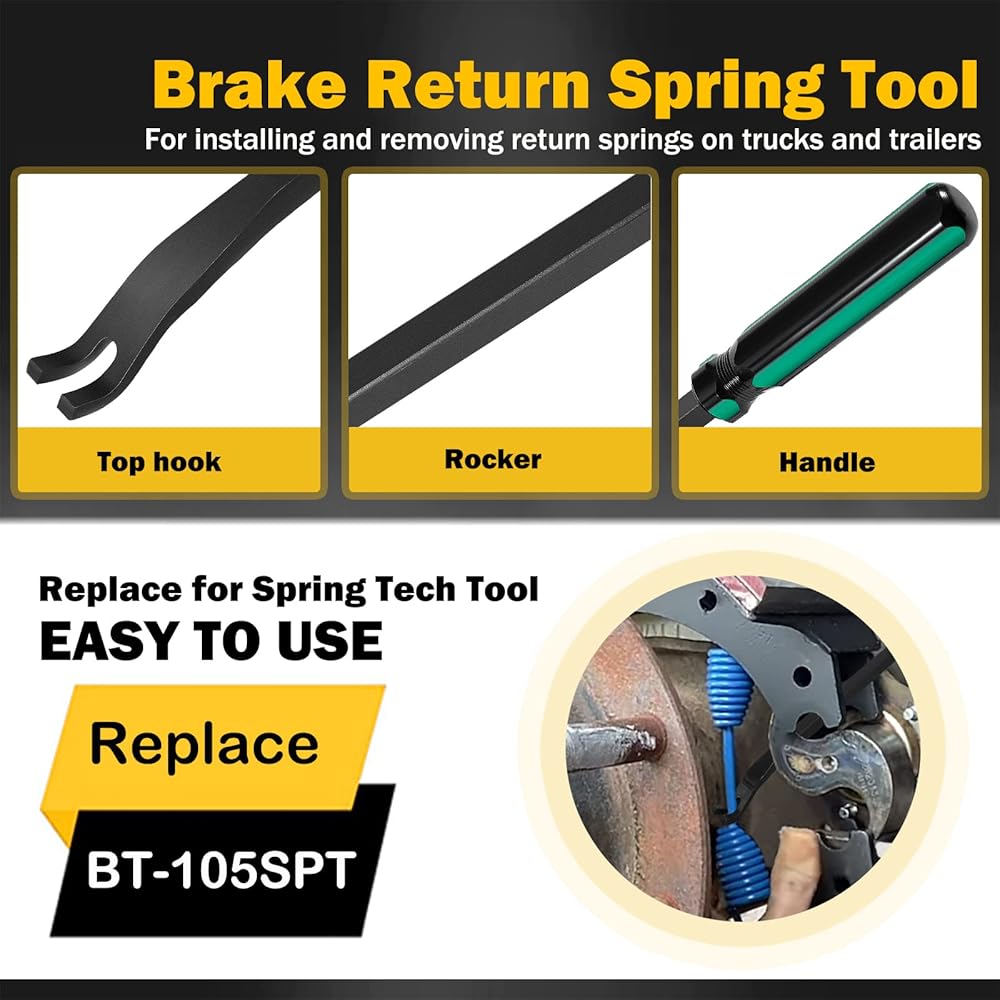

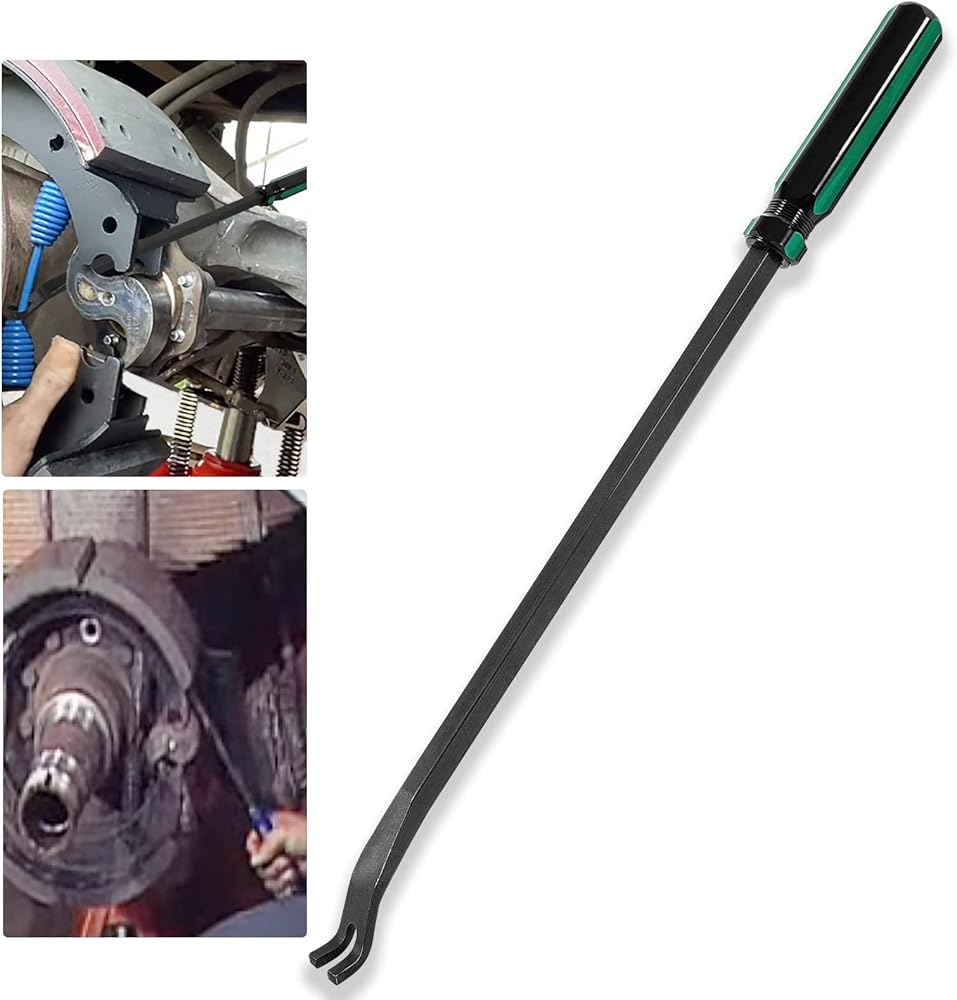

– Slide the Brake Return Spring Tool between the shoe webs over the top roller and hook the top of the return spring below the upper coil.

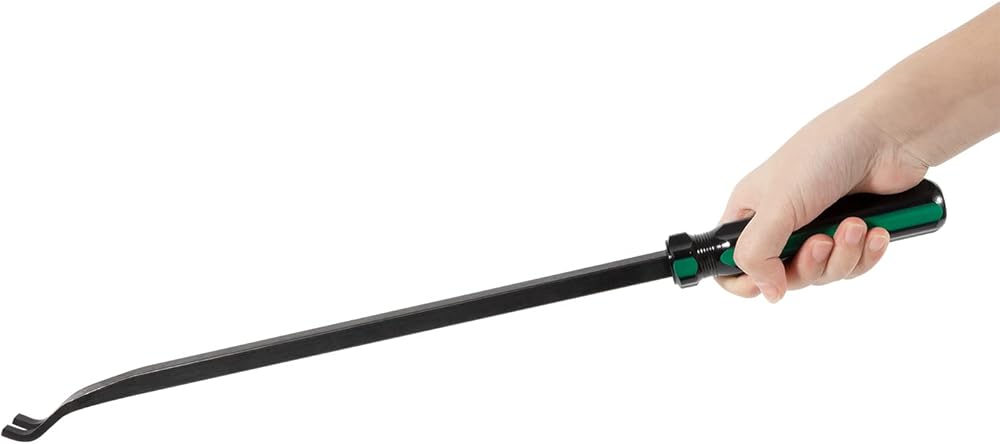

– Push down on the handle and hook the spring over the pin by pulling back on the handle.
