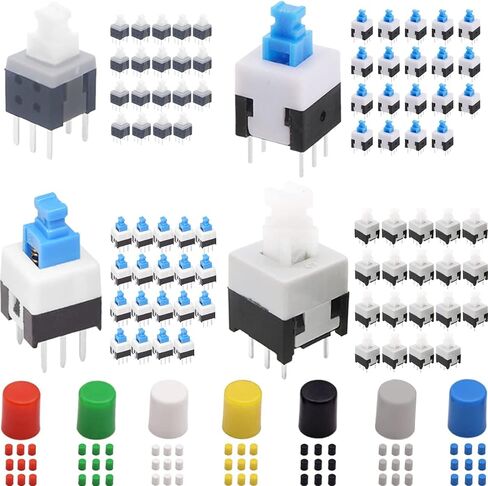

80Pcs Self Locking Mini Button DPDT Button Switch Kit(8.5x8.5mm 8X8mm 7X7mm 5.8X5.8mm) Self-Locking Power Micro Push Button, with Switch Cap in Saudi Arabia 80Pcs Self Locking Mini Button DPDT Button Switch Kit(8.5x8.5mm 8X8mm 7X7mm 5.8X5.8mm) Self-Locking Power Micro Push Button, with Switch Cap in Saudi Arabia 80Pcs Self Locking Mini Button DPDT Button Switch Kit(8.5x8.5mm 8X8mm 7X7mm 5.8X5.8mm) Self-Locking Power Micro Push Button, with Switch Cap in Saudi Arabia 80Pcs Self Locking Mini Button DPDT Button Switch Kit(8.5x8.5mm 8X8mm 7X7mm 5.8X5.8mm) Self-Locking Power Micro Push Button, with Switch Cap in Saudi Arabia 80Pcs Self Locking Mini Button DPDT Button Switch Kit(8.5x8.5mm 8X8mm 7X7mm 5.8X5.8mm) Self-Locking Power Micro Push Button, with Switch Cap in Saudi Arabia 80Pcs Self Locking Mini Button DPDT Button Switch Kit(8.5x8.5mm 8X8mm 7X7mm 5.8X5.8mm) Self-Locking Power Micro Push Button, with Switch Cap in Saudi Arabia 80Pcs Self Locking Mini Button DPDT Button Switch Kit(8.5x8.5mm 8X8mm 7X7mm 5.8X5.8mm) Self-Locking Power Micro Push Button, with Switch Cap in Saudi Arabia

80Pcs Self Locking Mini Button DPDT Button Switch Kit(8.5x8.5mm 8X8mm 7X7mm 5.8X5.8mm) Self-Locking Power Micro Push Button, with Switch Cap

SAR 47
SAR 51
Brand
DAOKAI
Weight
50 g
– 1 +

Special Features

  • 🔘[Describe] The self-locking switch generally refers to the switch with its own mechanical locking function. After pressing it, the button will not jump up completely after letting go. It is in a locked state and needs to be pressed again to unlock it and jump up completely.

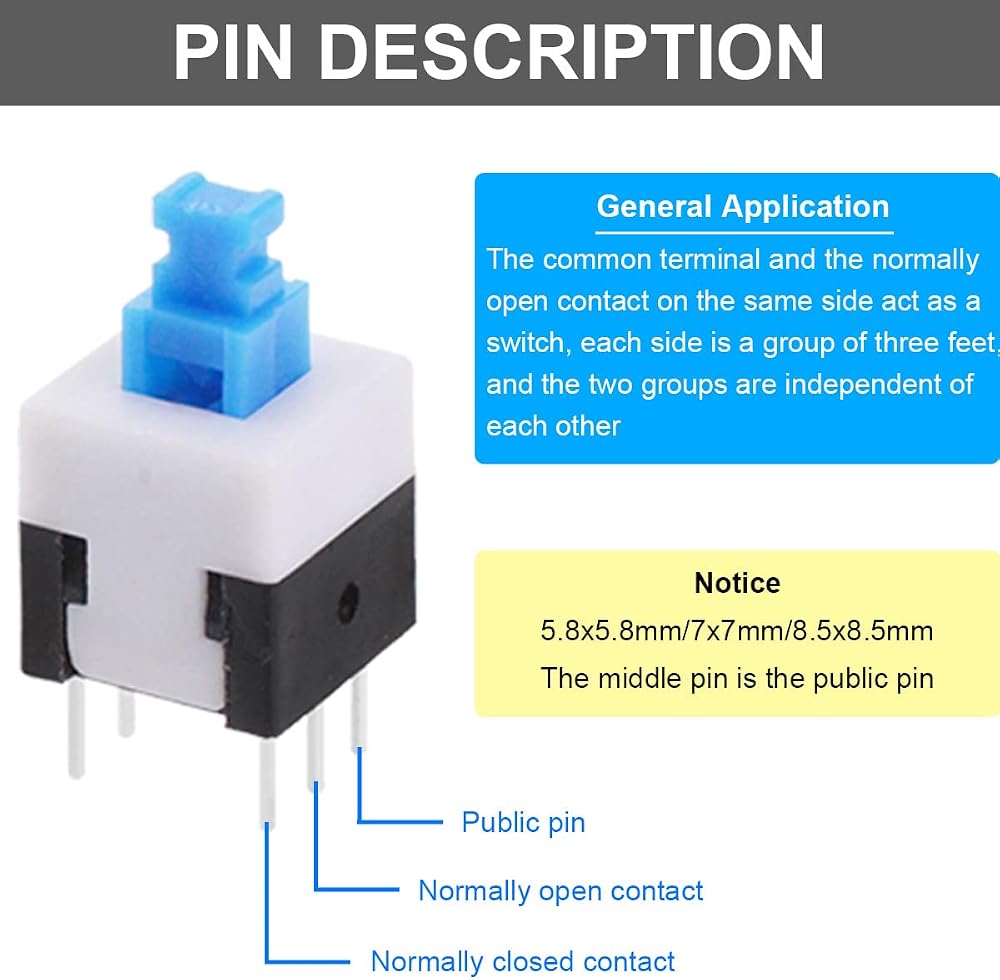

  • 🔘[Specification] Product Name: Push Button Switch, Contact Type: Self-locking, Pin Number: 6 pin, High precision mechanism design offers acute operation and long service life.
  • 🔘[Four sizes] There are four sizes of self-locking switches in the kit, which are 5.8 x 5.8mm / 7 x 7mm / 8 x 8mm / 8.5 x 8.5mm(2.28 x 2.28in / 2.75 x 2.75in / 3.15 x 3.15in / 3.35 x 3.35in).
  • 🔘[Wide range of applications] Audio-visual equipment, video recorders, video cameras, computers, game consoles, fax machines, walkie-talkies, machine tool controls, copiers, printers, electronic instruments, meters and other household appliances.
  • 🔘[Package includes] You will get 20 x Self Locking Switch 5.8x5.8mm, 20 x Self Locking Switch 7x7mm, 20 x Self Locking Switch 8x8mm, 20 x Self Locking Switch 8.5x8.5mm, 70 x Self Locking Switch Cap(10 of each color).

Description

Introduction:

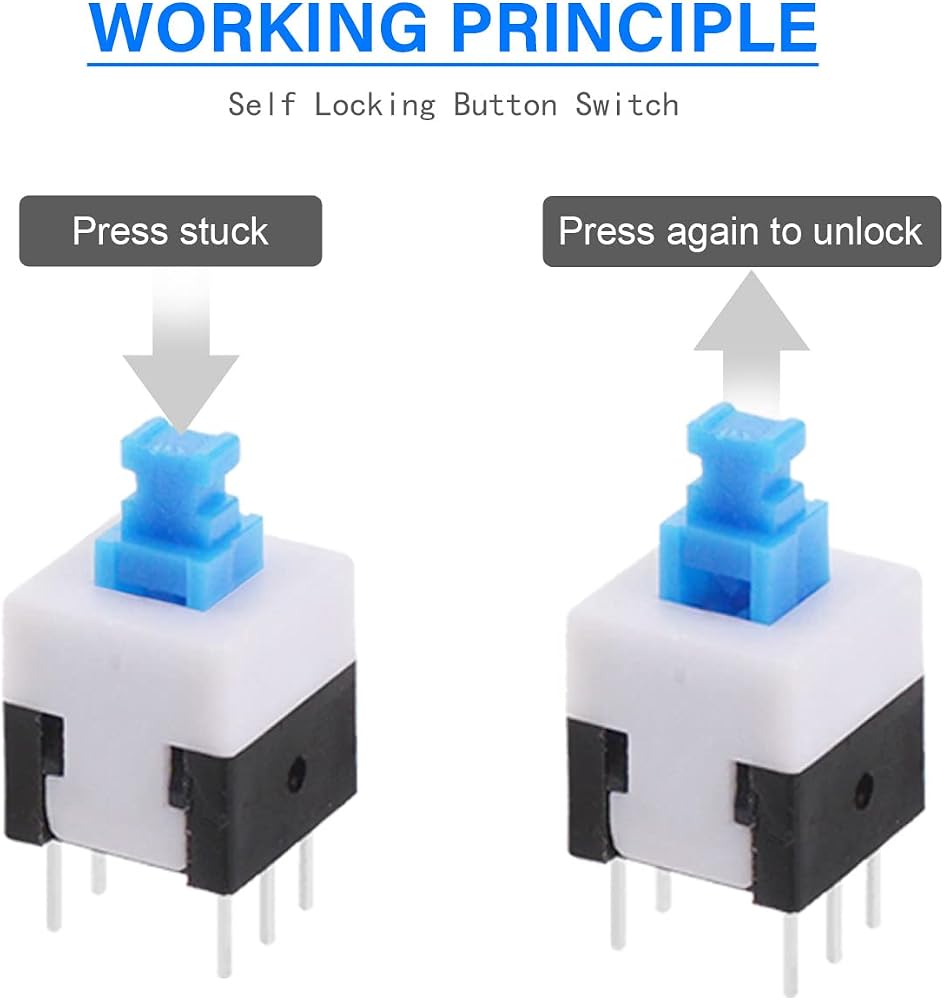

The self-locking switch generally refers to the switch with its own mechanical locking function. After pressing it, the button will not jump up completely after letting go. It is in a locked state and needs to be pressed again to unlock it and jump up completely.

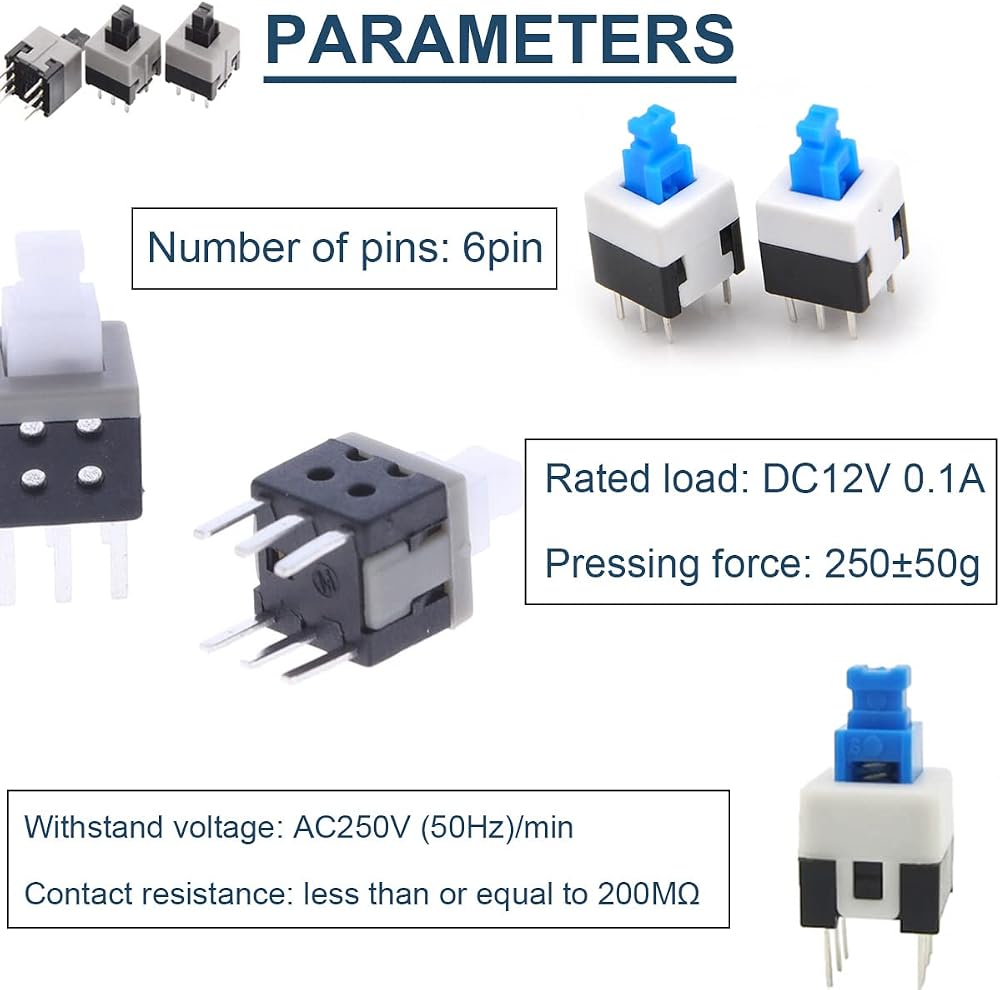

Product parameters：
Operating temperature range: -40℃~70℃
Rated load: DC12V 0.1A
Contact resistance: less than or equal to 200MΩ
Withstand voltage: AC250V (50Hz)/min
Pressing force: 250±50g
Insulated electronics: greater than or equal to 100MΩ
Service life: 10000 times (times)
Pin Pitch: 4.5x1mm/0.2 x 0.04in(LxW)
Pin Length: 3.5mm/0.14in
Contact Type: Self-locking
Material: Plastic, Metal

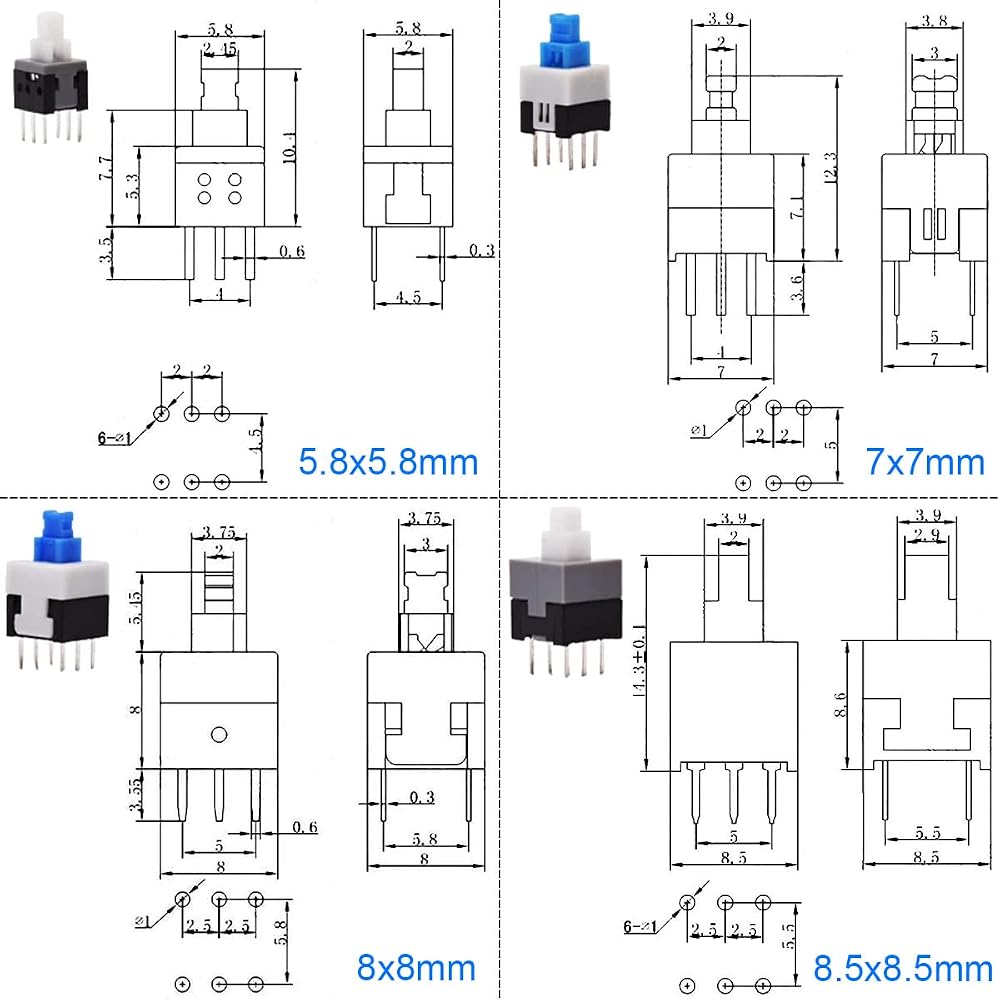

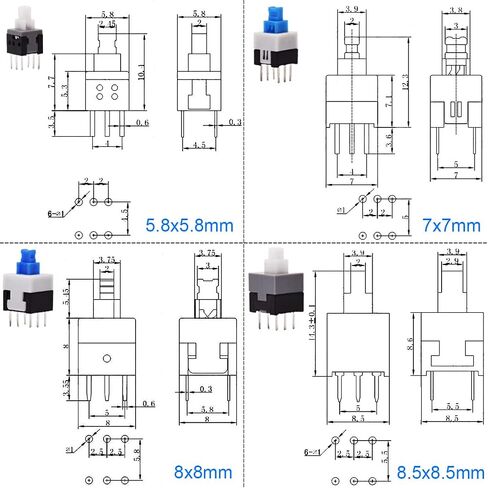

Switch Size: 5.8x5.8mm / 7x7mm / 8x8mm / 8.5x8.5mm

Feature:
Compact size, small contact spacing, short stroke action, bigger torque, small pressing force, quick connect or disconnect, high precision mechanism design offering acute operation and long service life.

Main use:
Audio-visual equipment, video recorders, video cameras, computers, game consoles, fax machines, walkie-talkies, machine tool controls, copiers, printers, electronic instruments, meters and other household appliances.

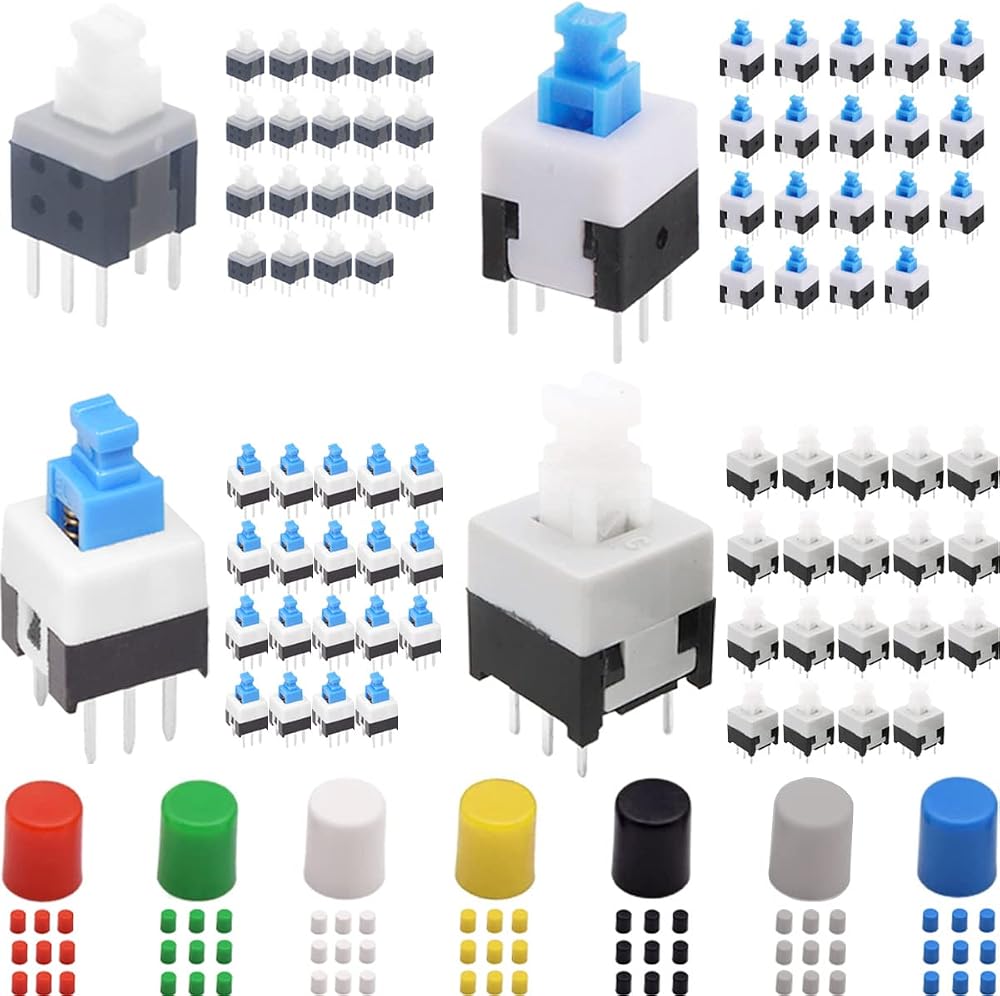

Package includes:
20xSelf Locking Switch 5.8x5.8mm
20xSelf Locking Switch 7x7mm
20xSelf Locking Switch 8x8mm
20xSelf Locking Switch 8.5x8.5mm
70xSelf Locking Switch Cap(10 of each color)
