Working voltage： DC8V - 36V
Quiescent condition： Less than 8mA
Working frequency： 433mhz

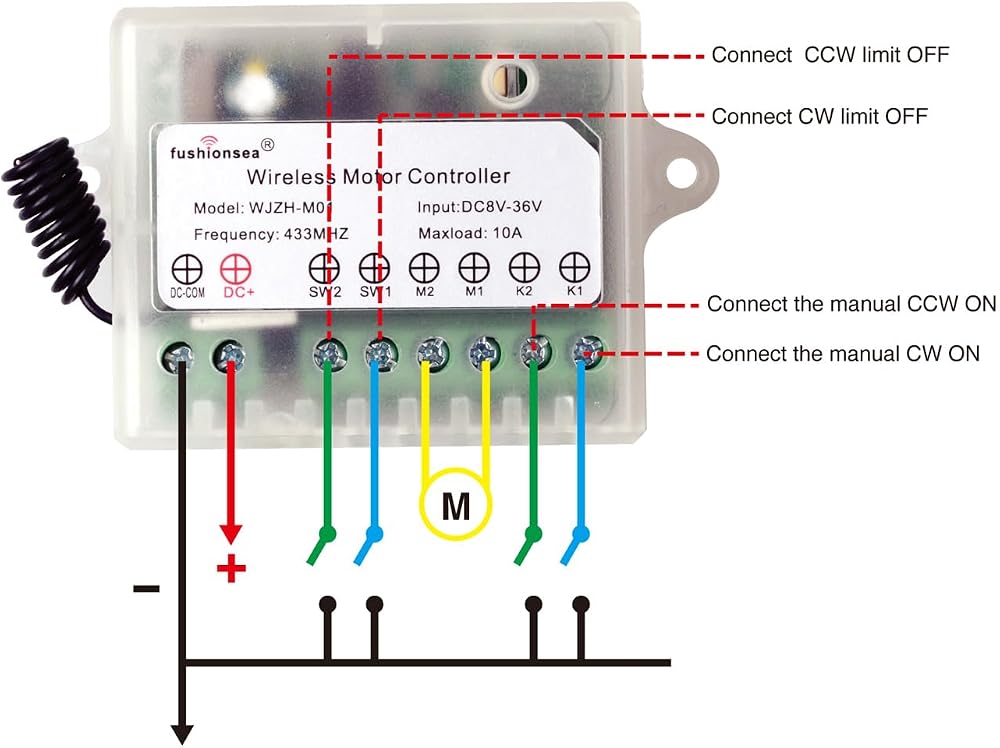

Function Limit & Wire External Button
If travel switch is needed, please use normally open type switch
Max load： 10A （suggest motor load less than 5A）

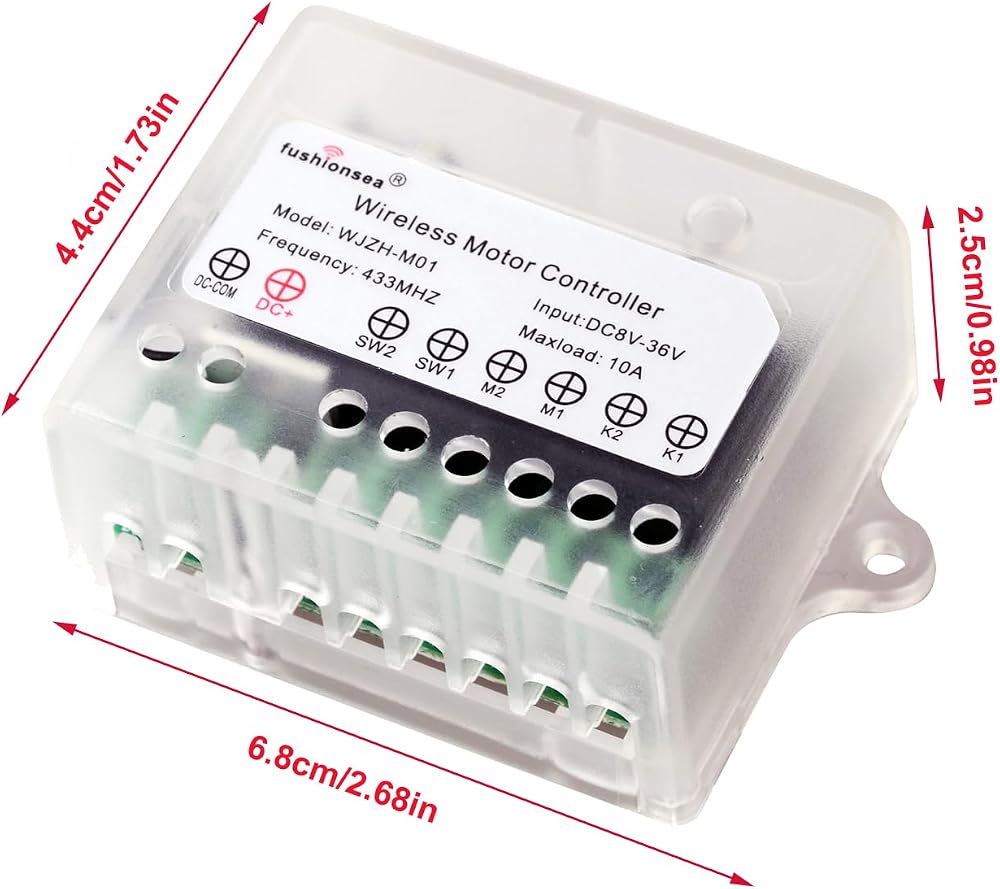

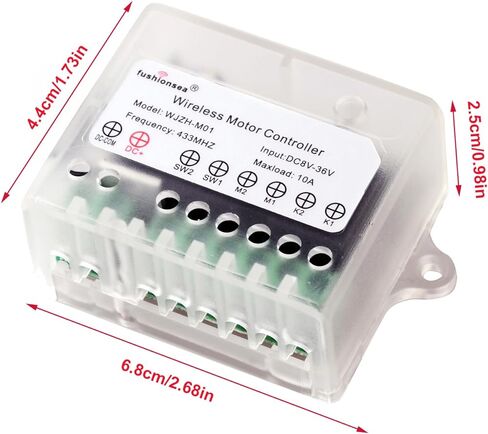

Size：68 x 44 x 25mm

Working Model：
Latched：press the transmitter button up once,motor forward, press the transmitter button stop,motor stop. press the transmitter button down once, motor reverse, press the transmitter button stop,motor stop.

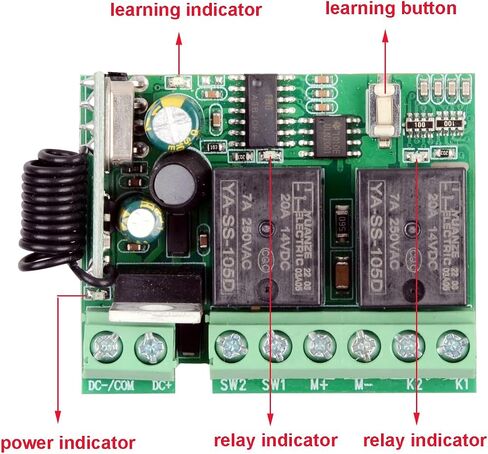

Learning and clearing code：

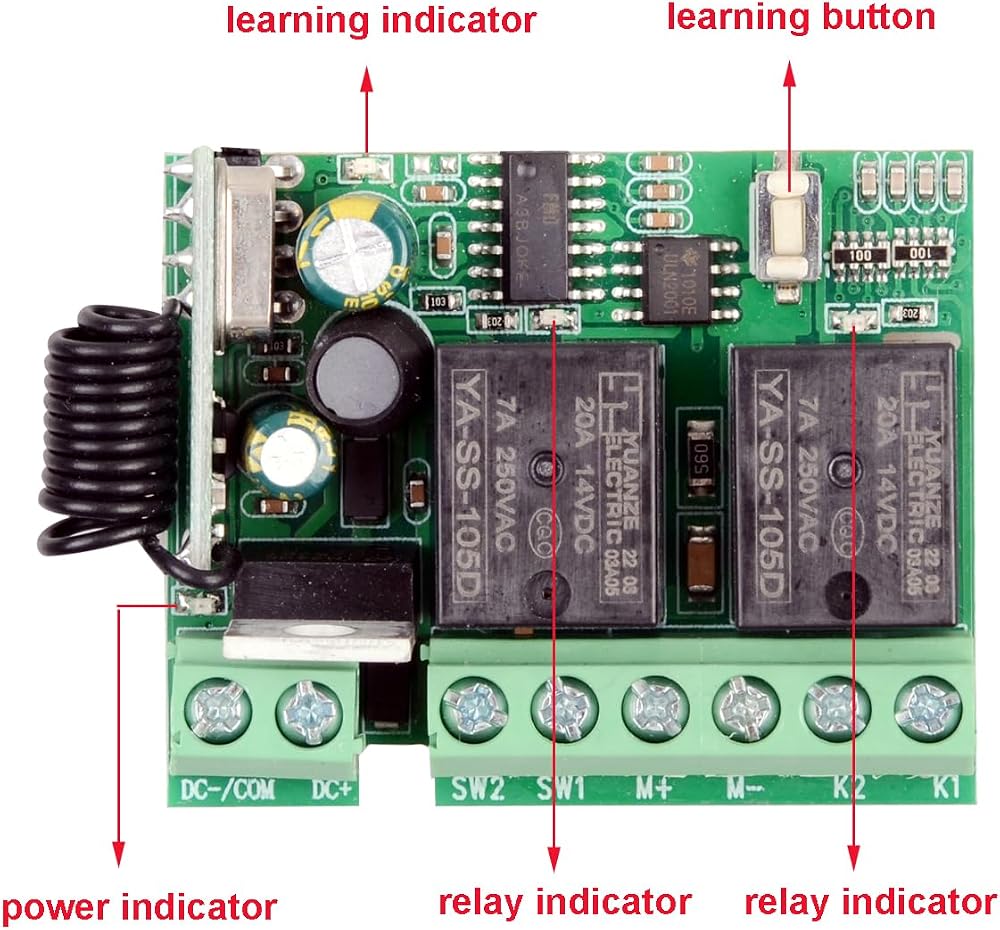

Latched: Press learning button 2 times, the indicator flash 2 times and ON , Then press the transmitter button up, the learning indicator flash 3 times and ON, Then press the transmitter button stop, the learning indicator flash 3 times and ON again, Then press the transmitter button down, the learning indicator flash 3 times and OFF, It mean the Latched model learning Successfully

Clearning：Press learning button 3 times, the learning indicator will flash 5 times and OFF , It mean all the transmitter code in the receiver have been cleared.

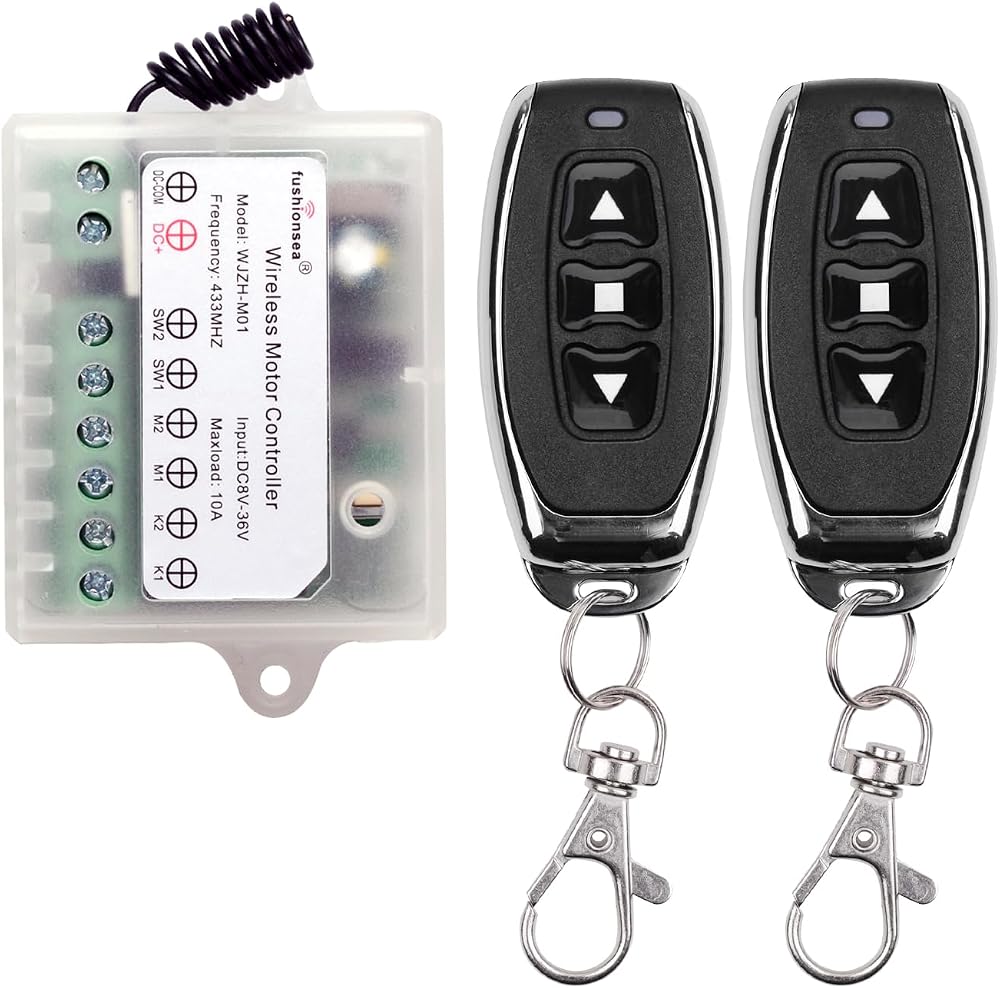

Package Include:
1 x Receiver
2x Transmitter
