APPLICATION:
-Linear ball bearings are commonly used in industrial and commercial applications that require precision linear motion, such as CNC machines, packaging equipment, robotics, and 3D printers.
-They offer several advantages over other types of linear bearings, including high load capacity, low friction, and reduced noise and vibration.
-Additionally, they are relatively easy to install and maintain, and can be configured to meet specific application requirements.

ABOUT THIS PRODUCT:

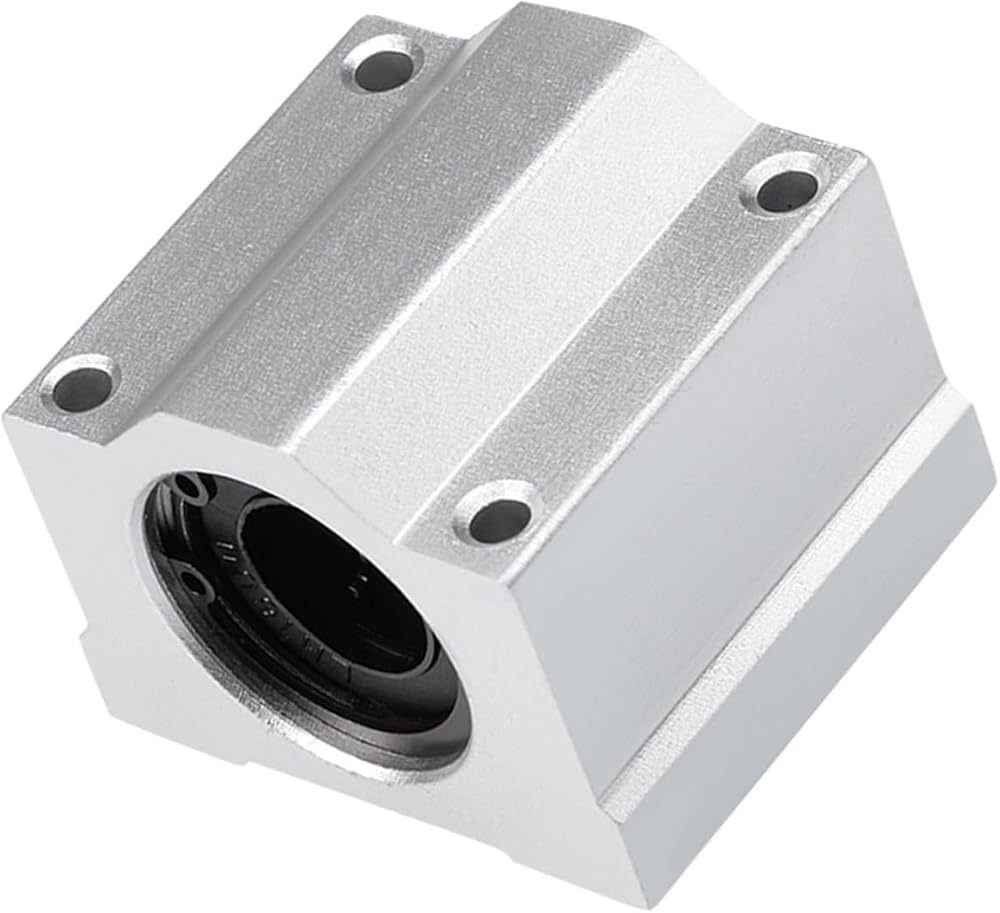

-Linear ball bearings are mechanical devices that allow for smooth linear motion along a track or guide rail.
-They consist of an outer sleeve, which serves as a housing, and an inner ball retainer, which contains a series of steel balls that roll between the inner and outer surfaces. As the bearing moves along the rail, the balls rotate and provide low-friction movement with minimal wear.

SPECIFICATION:
Model: SCS16UU
Bearing Ball Material: Chrome Steel
Housing Material: Aluminum Alloy
Cage Material: Nylon

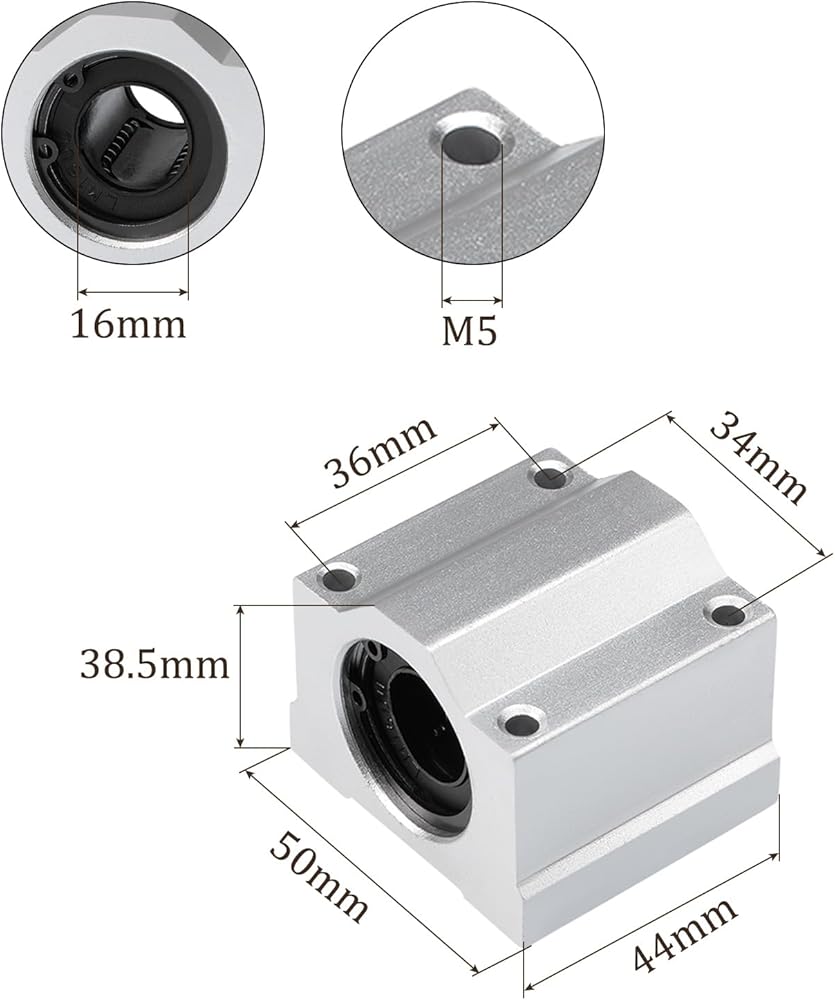

Inner Diameter: 16mm
Total Width: 50mm
Total Height: 38.5mm
Total Length: 44mm
Mounting Hole Size: M5
Mounting Hole Distance: 36 x 34mm(L*W)
Dynamic Load Capacity (Cr): 1180N
Static Load Capacity (Cor): 1180N

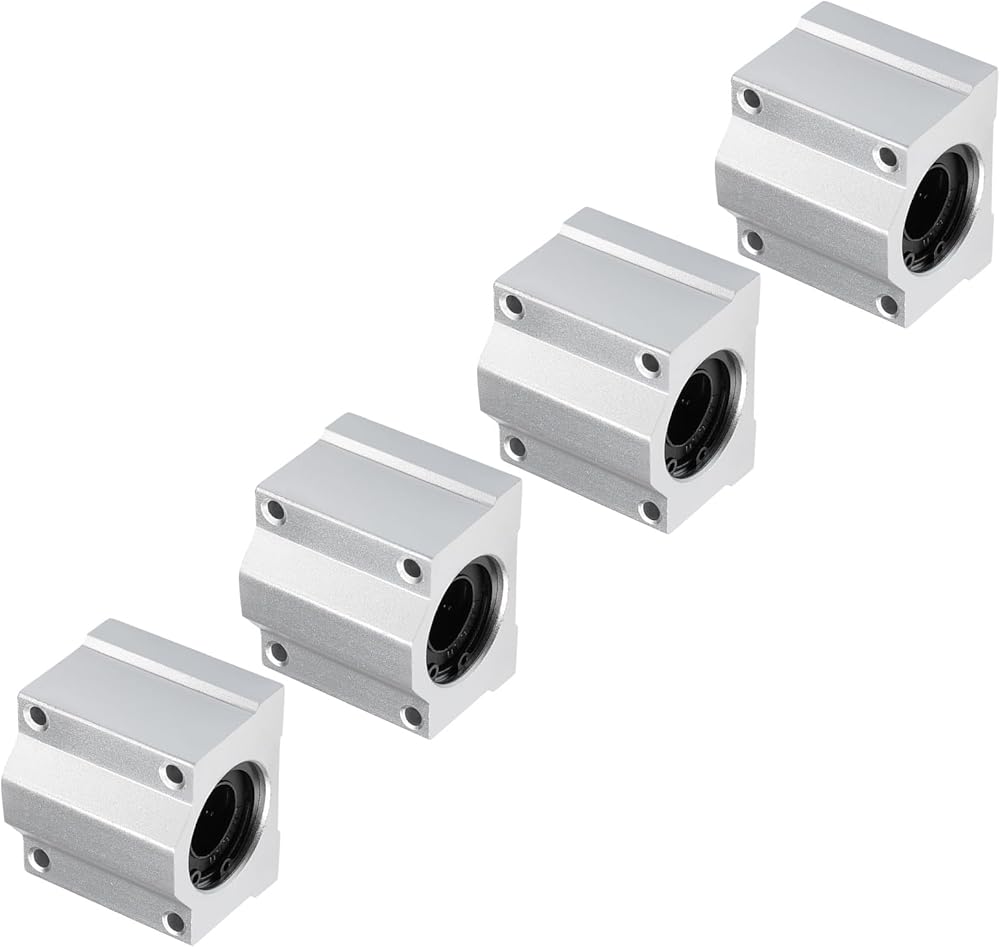

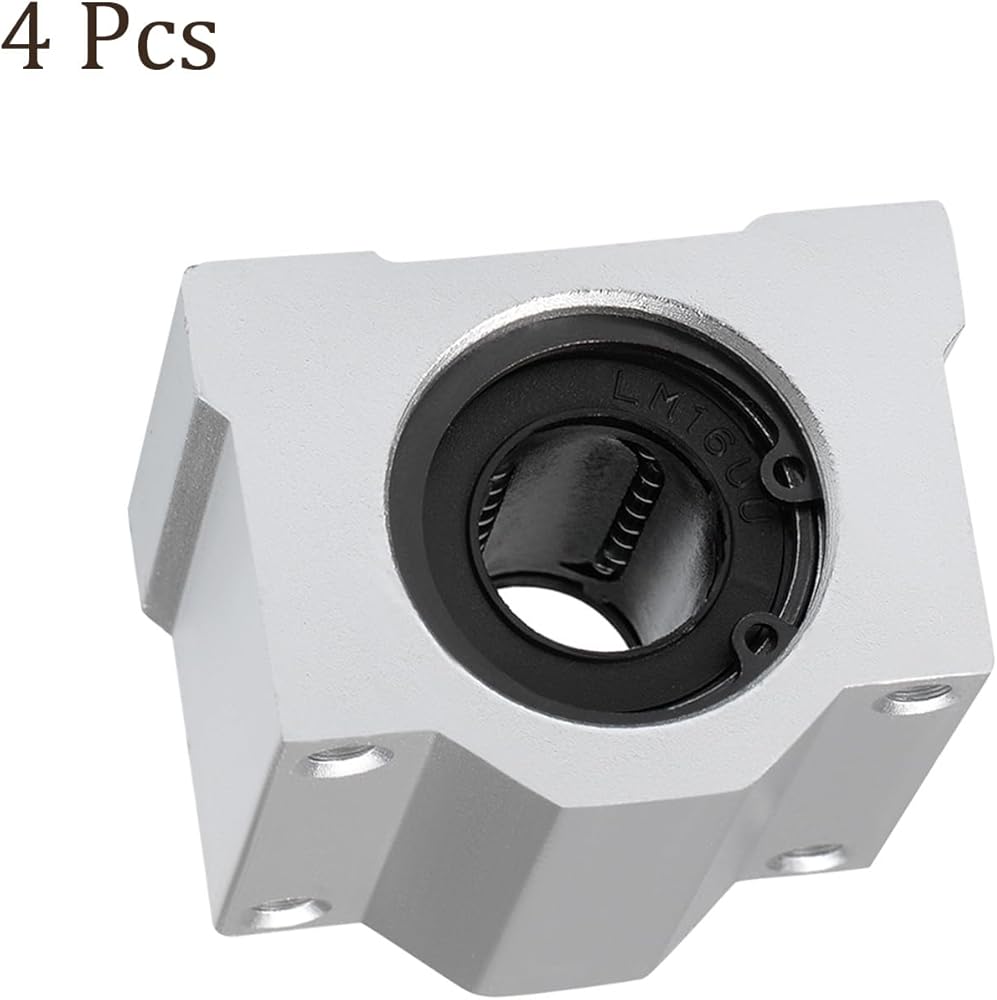

package content: 4pcs

TAKE NOTICE OF/TIPS:
-Load capacity: It is important to choose a bearing with a load capacity that matches the requirements of the application.
-Lubrication: Regular lubrication is necessary to reduce friction and prevent wear.
