مميزات خاصة

1:Load bearing: 1 / 1200 LB, 2 / 2400 LB
2:Scope of application： P1000, P1001 , P5000, P5001, P5500, P5501 and All 1-5/8" or Taller Strut Channel

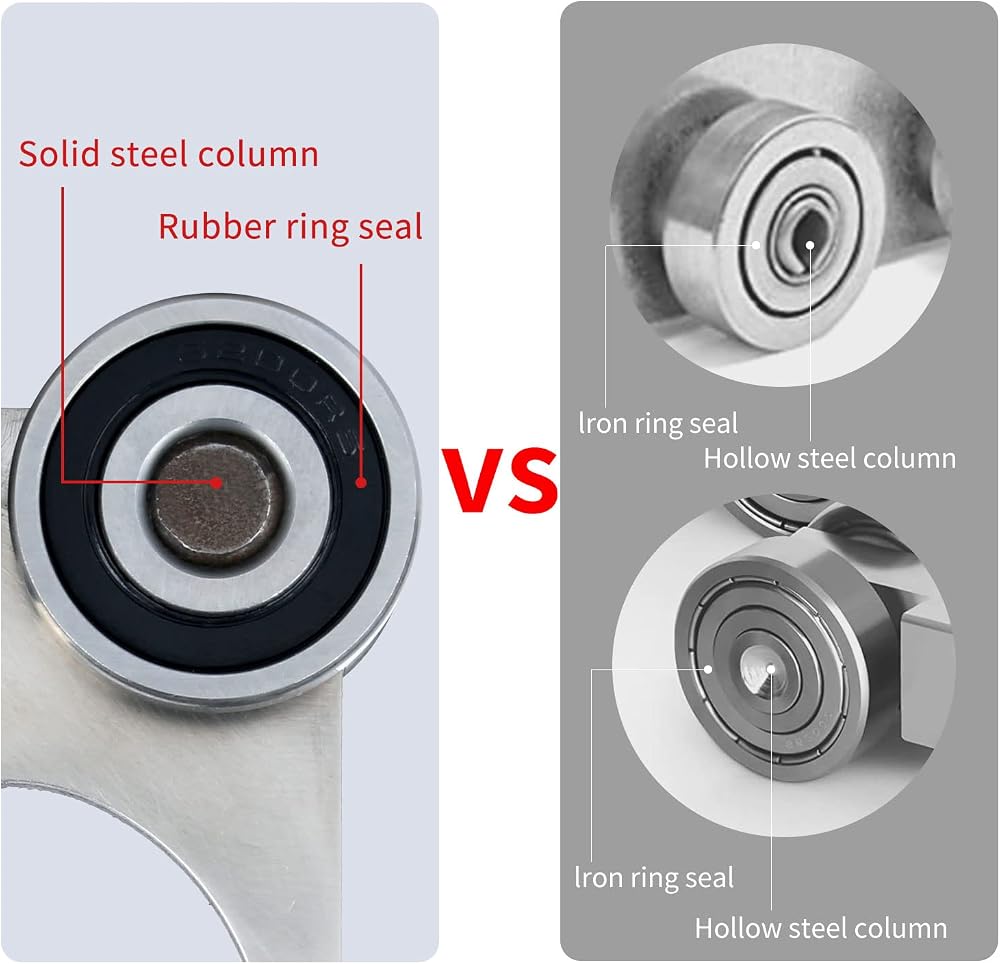

3:Material: Made of Stainless Steel, the strength is 3 times that of ordinary Steel. The Bearing is a pressure-Bearing silent maintainable Bearing with a service life twice that of the steel ring sealed Bearing (open the black side cover and add lubricating oil). The Bearing material is high-quality Bearing steel.

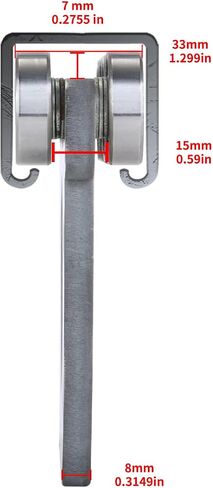

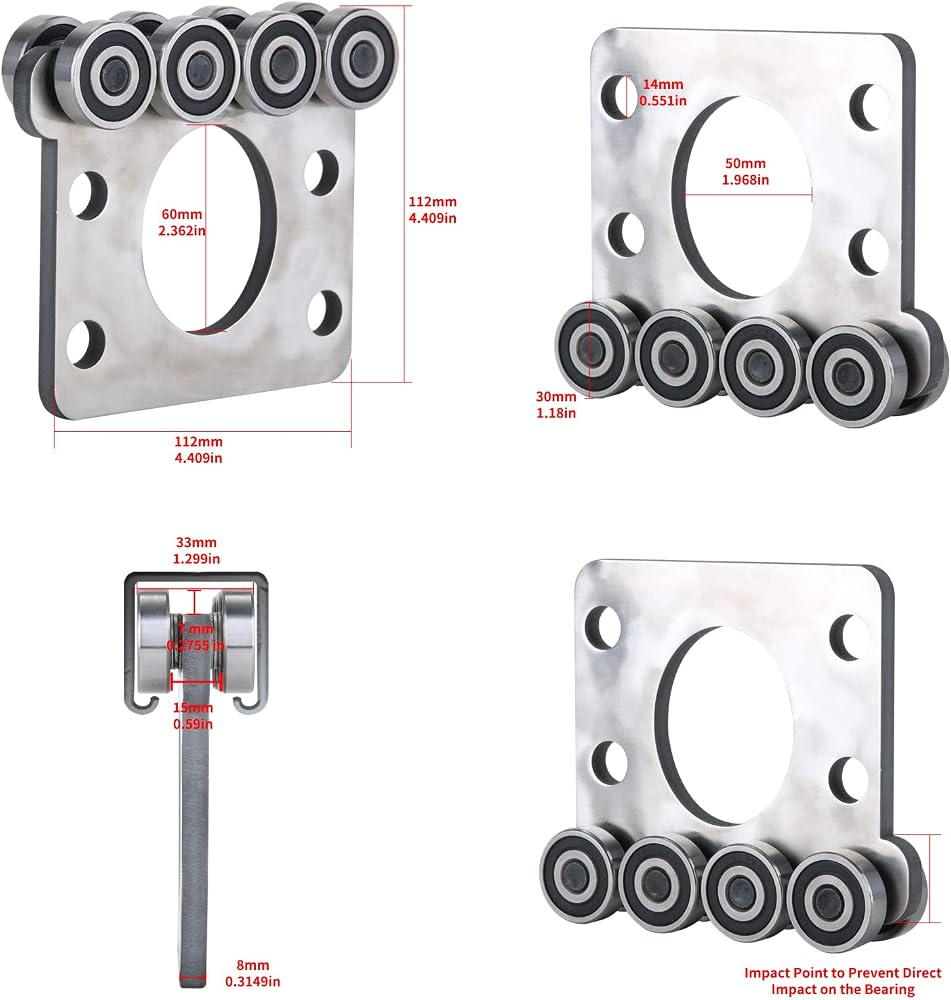

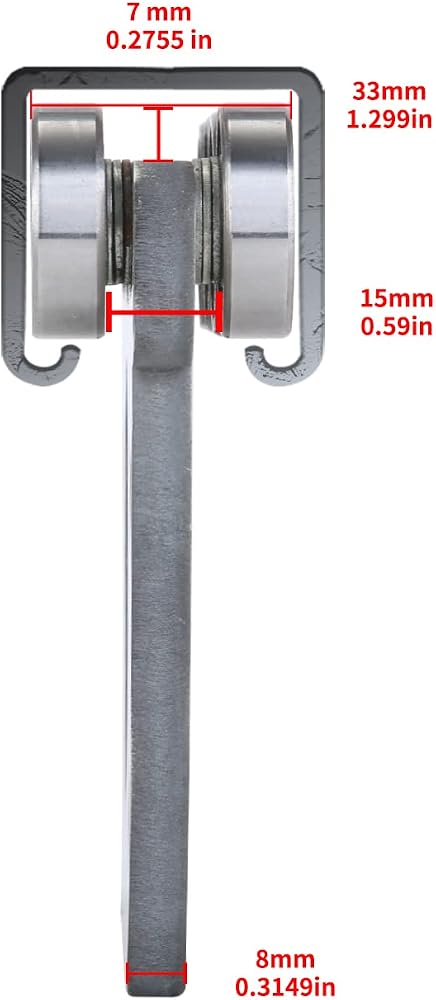

4:About the fixing screw of Strut Channel: There is a distance of 7mm(0.2756in) from the top of the center of the two bearings to the top of the bearing. Screws within 7mm(0.2756in) can be selected, which will not hinder the forward and backward sliding

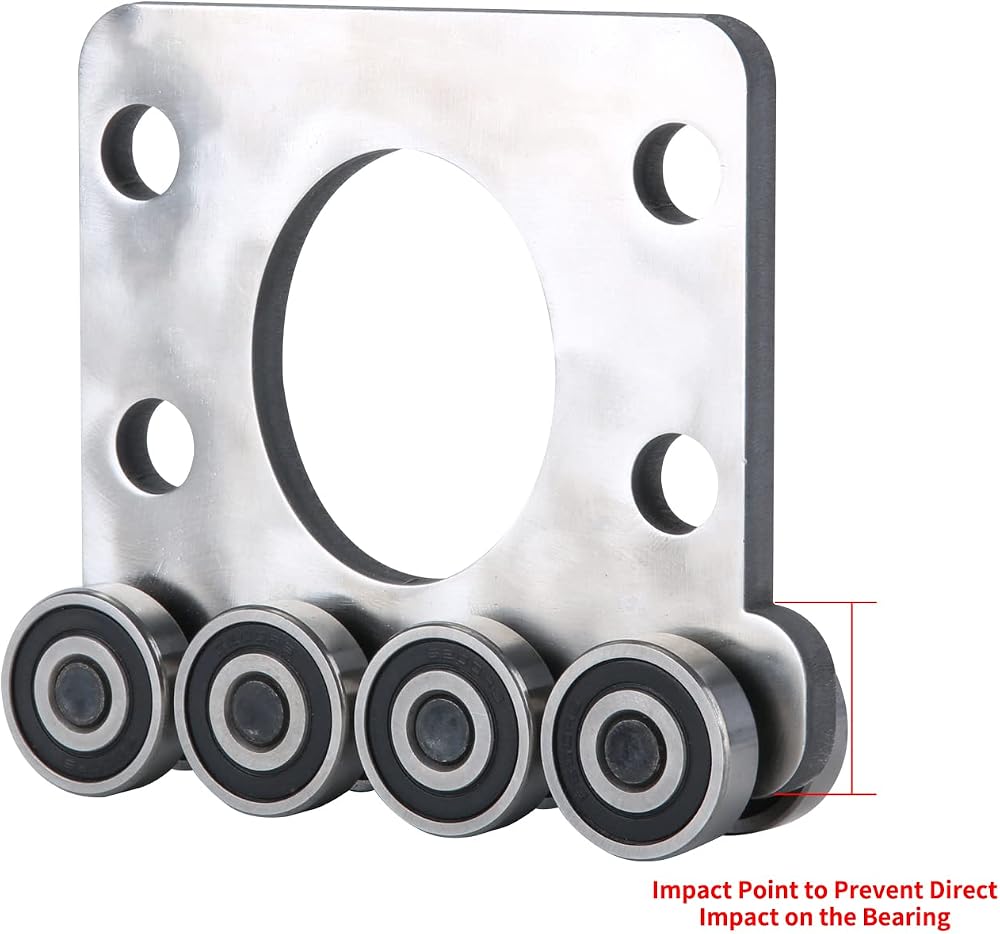

5：The front end of the trolley assembly has a raised anti-collision protection device, which can avoid the damage to the bearing caused by the impact after sliding to the end

وصف

1：Can used upside down
The bearing can run stably in the guide rail, and the iron plate pulley can be used upside down without interference.

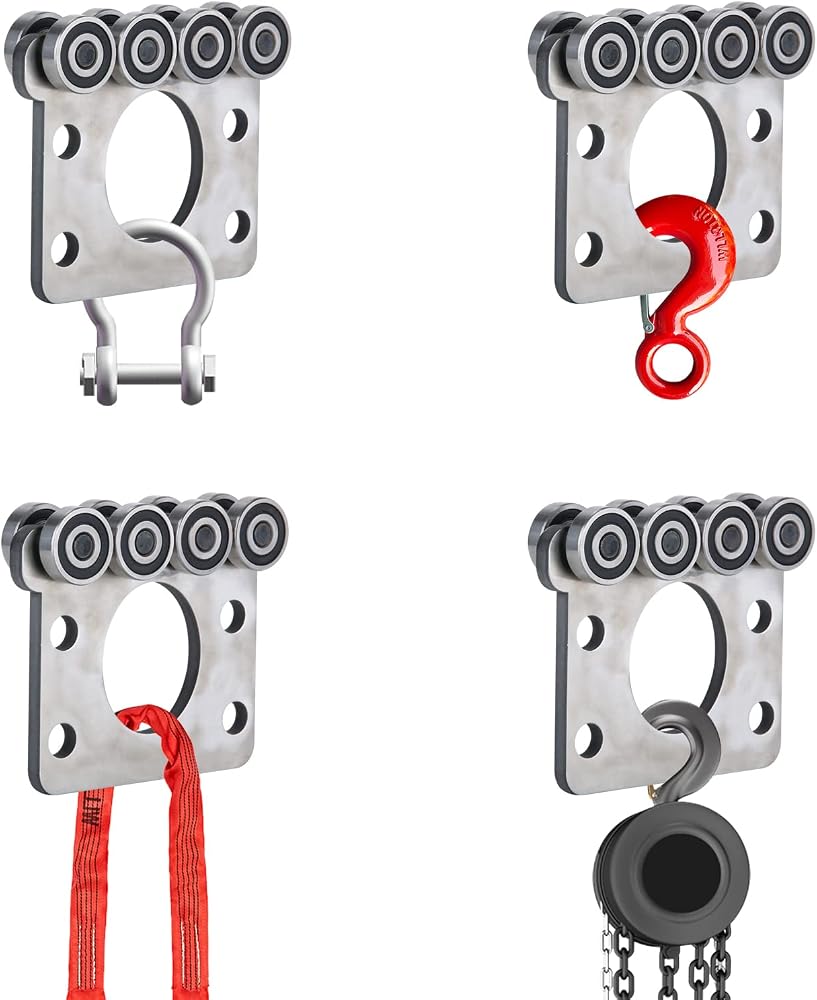

2：Can be used with Strut Channel, you can set 2 directions of movement to make the hoist work in different positions.
3:Intermediate pin of solid steel, high strength, impact resistance.Galvanized Zinc, rust protection
【Bearing Parameters】
Material material: high quality bearing steel
Seal: plastic sealing cover
Lubrication: Na grease lubrication
Static load: 2390 n
Dynamic load: 520 kgf
Limit speed: 24000 1 / min
【Material Parameters】
Tensile strength: 520 mpa
Yield strength: 275 mpa
Elongation: 55 to 60%
Modulus of elasticity: 29000000 PSI
Hardness: HRB ≤ 100.
Density: 280lbs/cubic inch
Break strength: 8010 lbs
