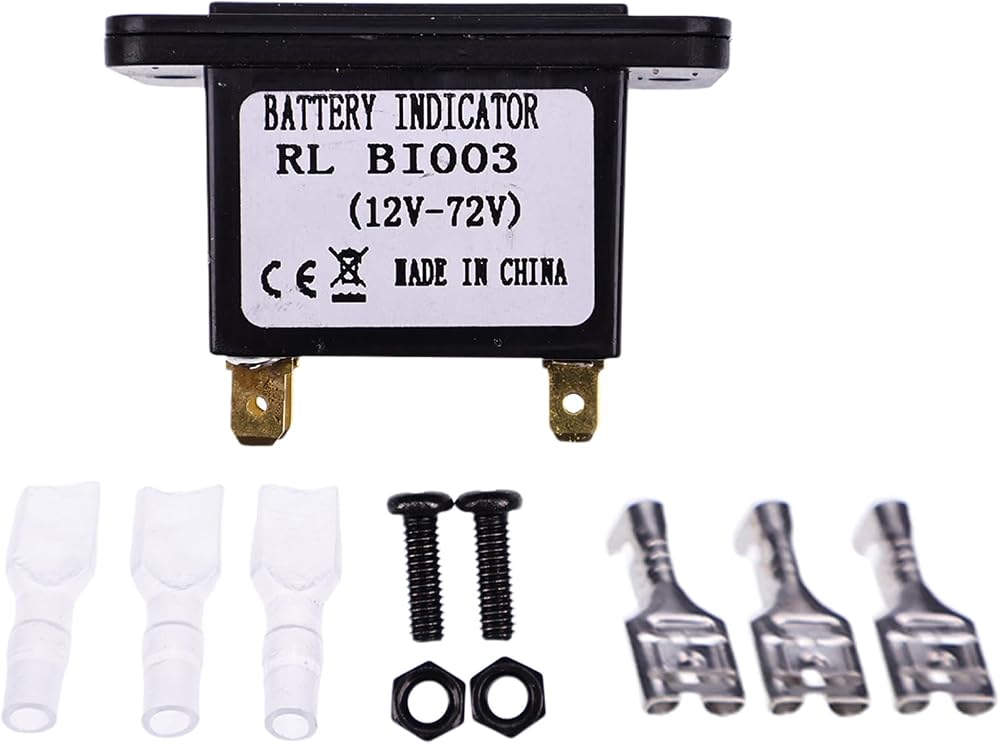

Part Number: AABM1224
Color: Black
Water Resistant;
Operating Voltage: 12 Volt
Dimensions: Outside Measurements: Width 2 1/16" ; Height 1 1/4"; Hole cutout needed on dash - 1 3/8" by 7/8"
Battery Indicator Levels Explained: The battery indicator has 10 colored LED's that will display the batteries voltage charge.
Only 1 LED will be illuminated at a time to converse the power draw. When your batteries are fully charged, the far left LED will illuminate green.
As the batteries voltage drops from use, the LEDS in the 4 thru 9 position will illuminate. All of the 9th-4th LED's are Green as shown the the flashing graphic in the text above.
Once the batteries voltage drops significantly the battery indicator switches to a Yellow LED cautioning there is approximately 30% of the batteries voltage left, This should be your warning for low voltage.
When the batteries voltage is discharged to around 20% remaining, the 2nd LED from the left will illuminate as a flashing Yellow LED.
Finally, hen the battery voltage drops to 10% or less, the 1st and 2nd LED will start to flash Red and Yellow LED.
