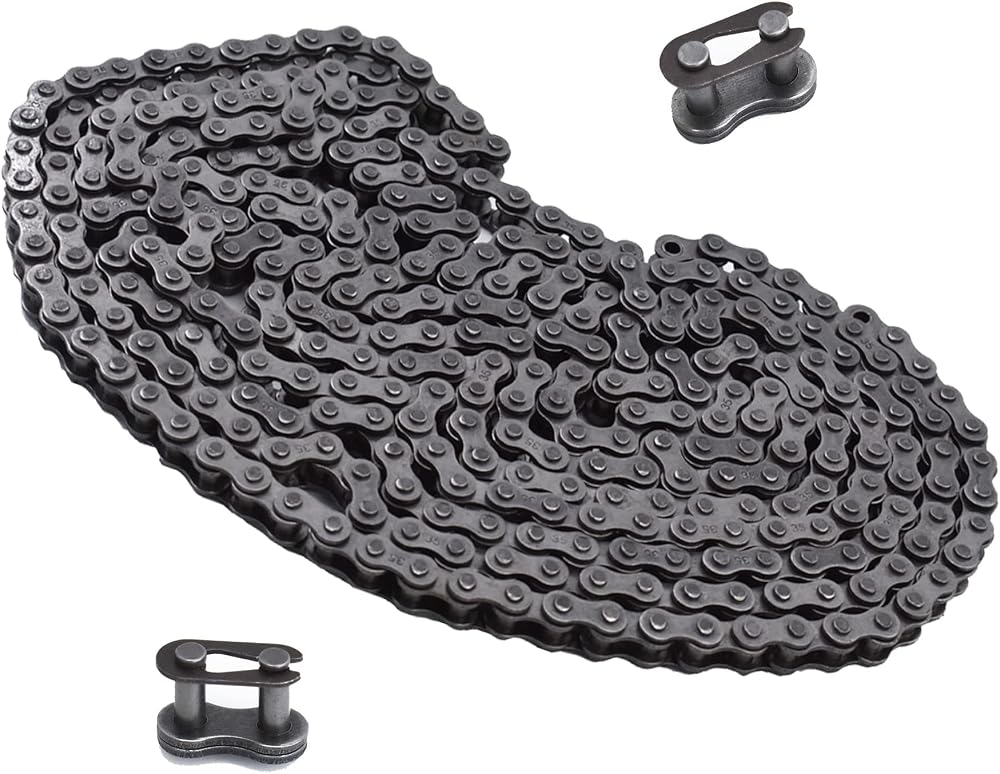

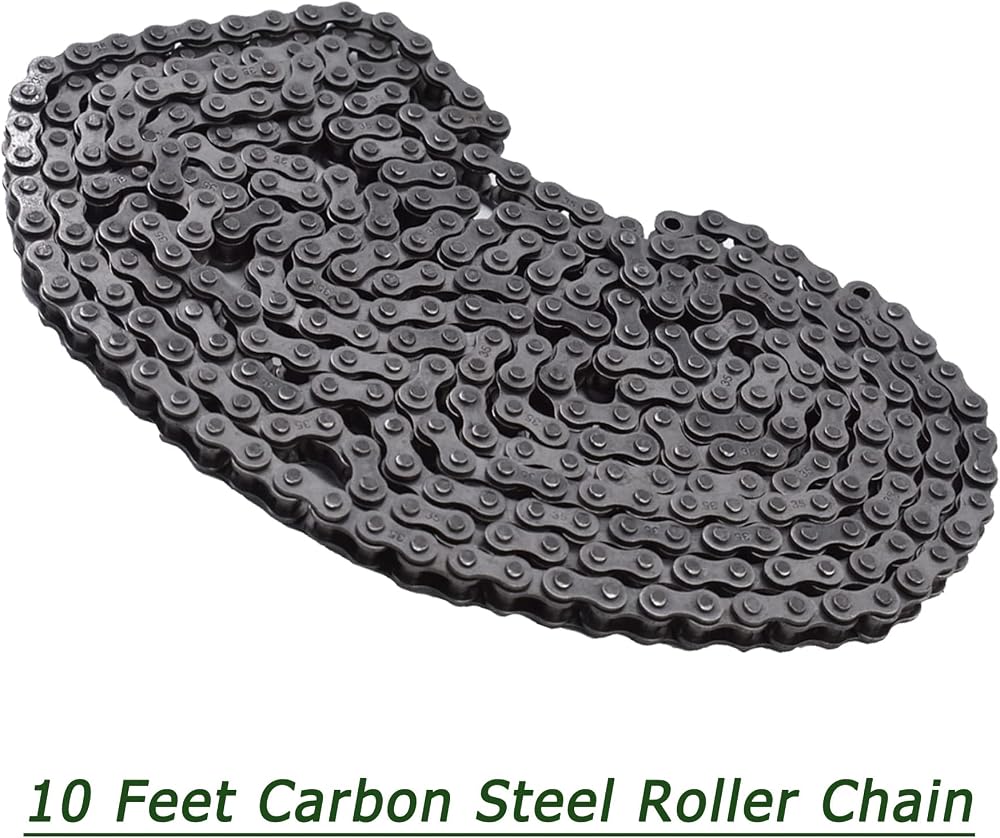

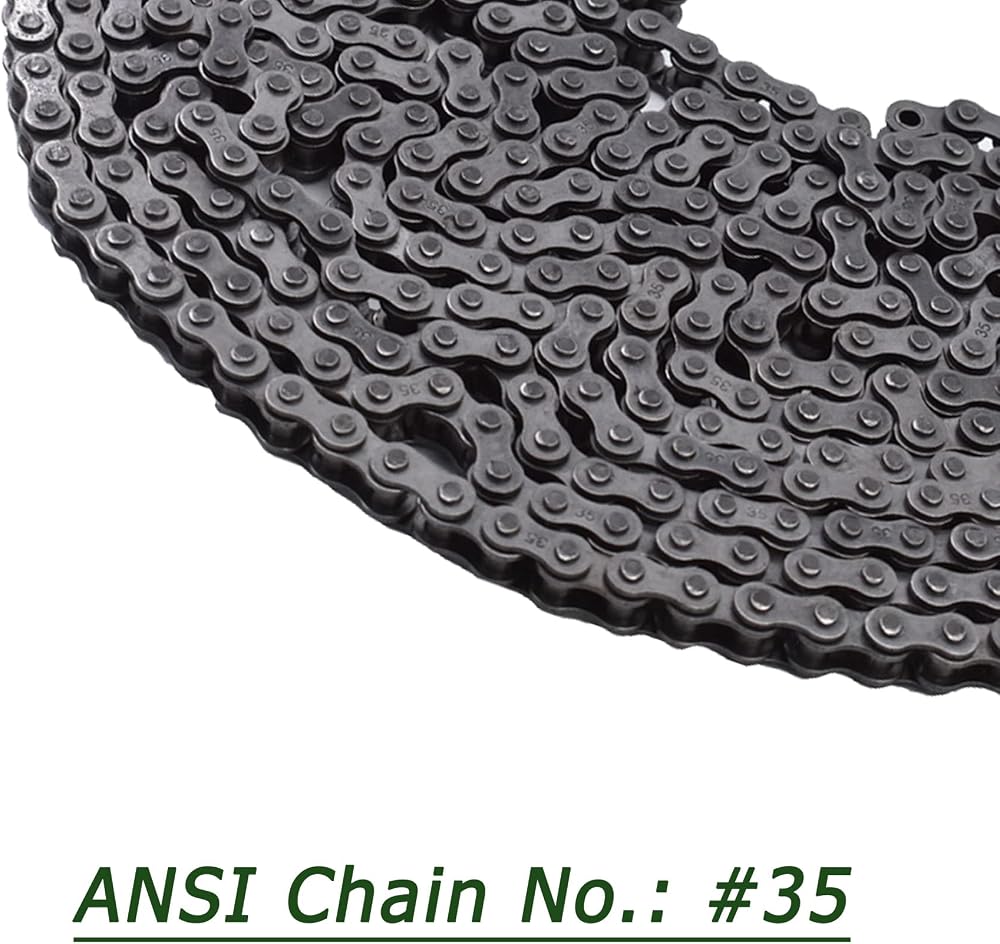

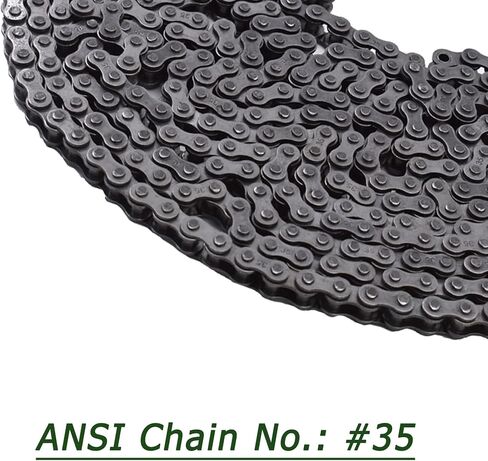

35 10 Feet Carbon Steel Roller Chain 320 Links + 2 Connecting Links

Specification:
Length: 10 Feet

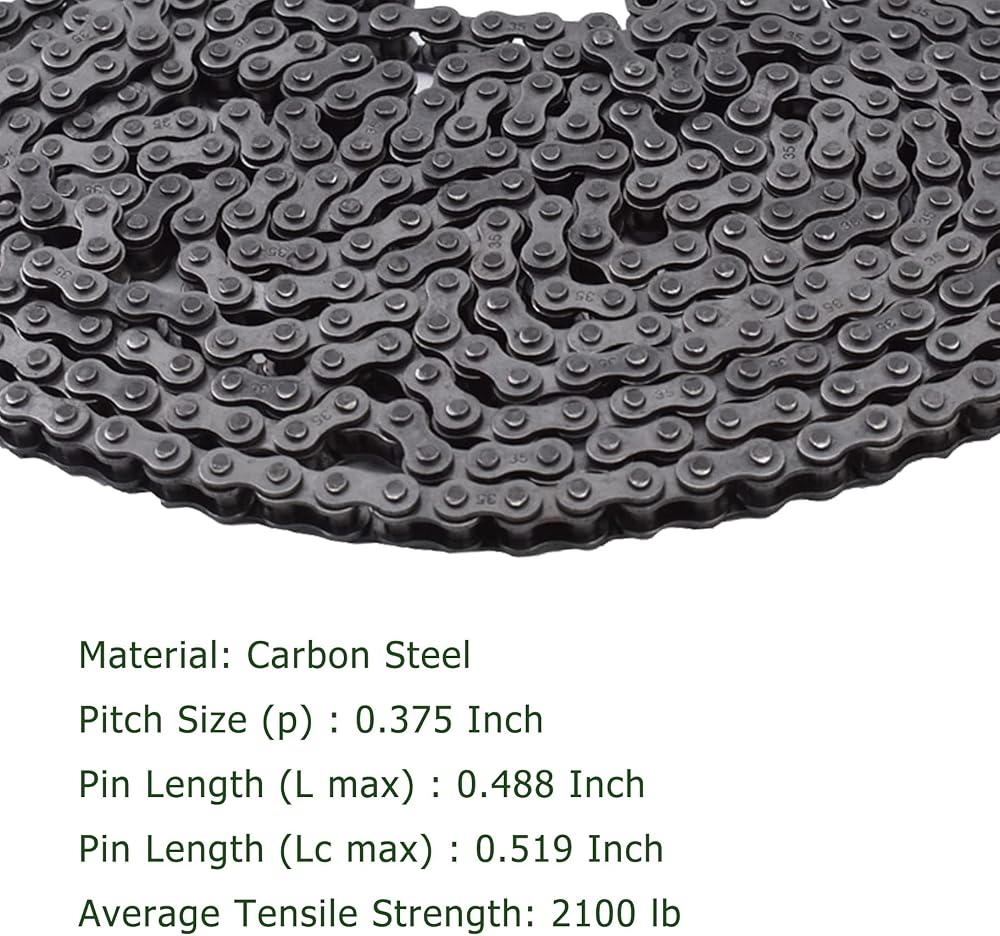

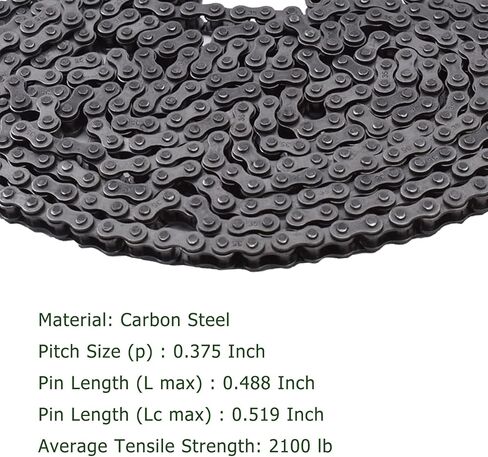

Material: Carbon Steel
Pitch Size (p) : 0.375 Inch
Pin Length (L max) : 0.488 Inch
Pin Length (Lc max) : 0.519 Inch
Average Tensile Strength: 2100 lb

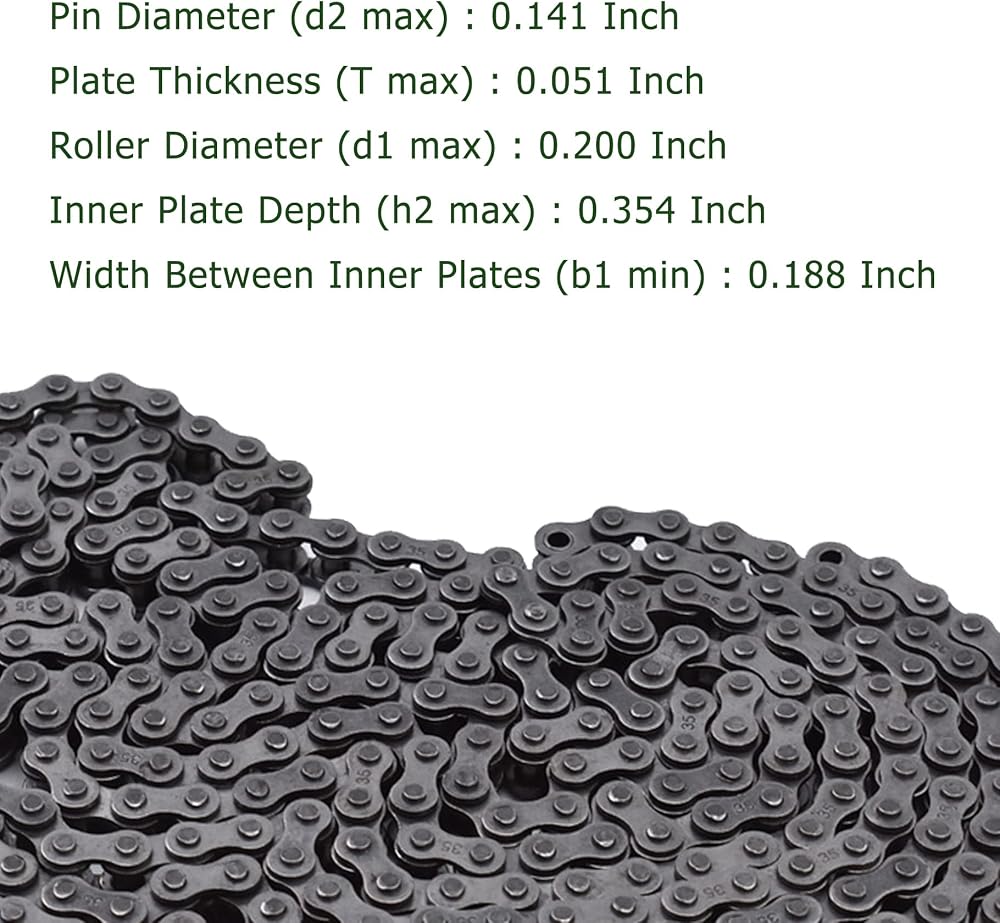

Pin Diameter (d2 max) : 0.141 Inch
Plate Thickness (T max) : 0.051 Inch
Roller Diameter (d1 max) : 0.200 Inch
Inner Plate Depth (h2 max) : 0.354 Inch
Width Between Inner Plates (b1 min) : 0.188 Inch

Features:
Carbon steel chain has excellent wear ability, heat treatment to ensure optimum service life and toughness of all components

Technical Support:
Prestressed operation firmly fastens chain components, evenly distributes workload, accurately determines chain length, and prevents rapid elongation during initial running-in

Note:
The tightness of the chain should be appropriate. Too tight will increase power consumption and the bearing will wear out easily. If the chain is too loose, it is easy to bounce and loosen the chain
The old chain can not be mixed with the new chain, otherwise it is easy to create an impact in the gearbox and pull the chain

Package Includes:
1 x 35 Carbon Steel Roller Chain

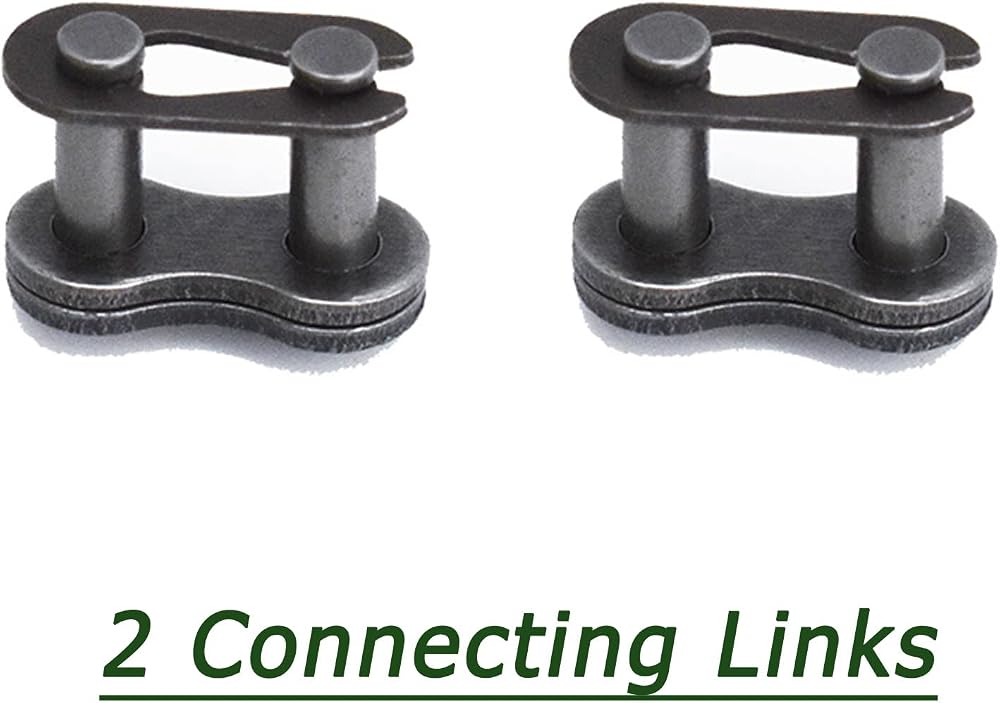

2 x Connecting Links
