5 قطع TC4420 TC4420CPA ​​محرك الطاقة MOSFET عالي السرعة، 6A، 8 دبابيس. in Saudi Arabia

5 قطع TC4420 TC4420CPA ​​محرك الطاقة MOSFET عالي السرعة، 6A، 8 دبابيس.

SAR 45
ماركة
Bridgold
وزن
49 g
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Logic Input Will Withstand Negative Swing Up to 5V.
  • High Peak Output Current 6A
  • Wide Operating Range 4.5V to18V.
  • Low Output impedance
  • NOTE:Exposure to absolute maximum rating conditions for extended periods may affect device reliability. We do not provide technical support, please familiarize yourself with the parameters and performance of the purchased products in advance. Sincerely apologize for you.

وصف

The TC4420 is 6A(peak), single output MOSFET drivers. TC4420 is a non-inverting driver. These drivers are fabricated in CMOS for lower power, more efficient operation versus bipolar drivers.
Which can be driven as high as VDD + 0.3V or as low as - 5V without upset or damage to the device. This eliminates the need for external level shifting circuitry and its associated cost and size.
The output swing is rail-to-rail ensuring better drive voltage margin, especially during power up/power down sequencing. Propagational delay time is only 55nsec (typ.)and the output rise and fall times are only 25nsec (typ.) into 2500pF across the usable power supply range.
Package Including:

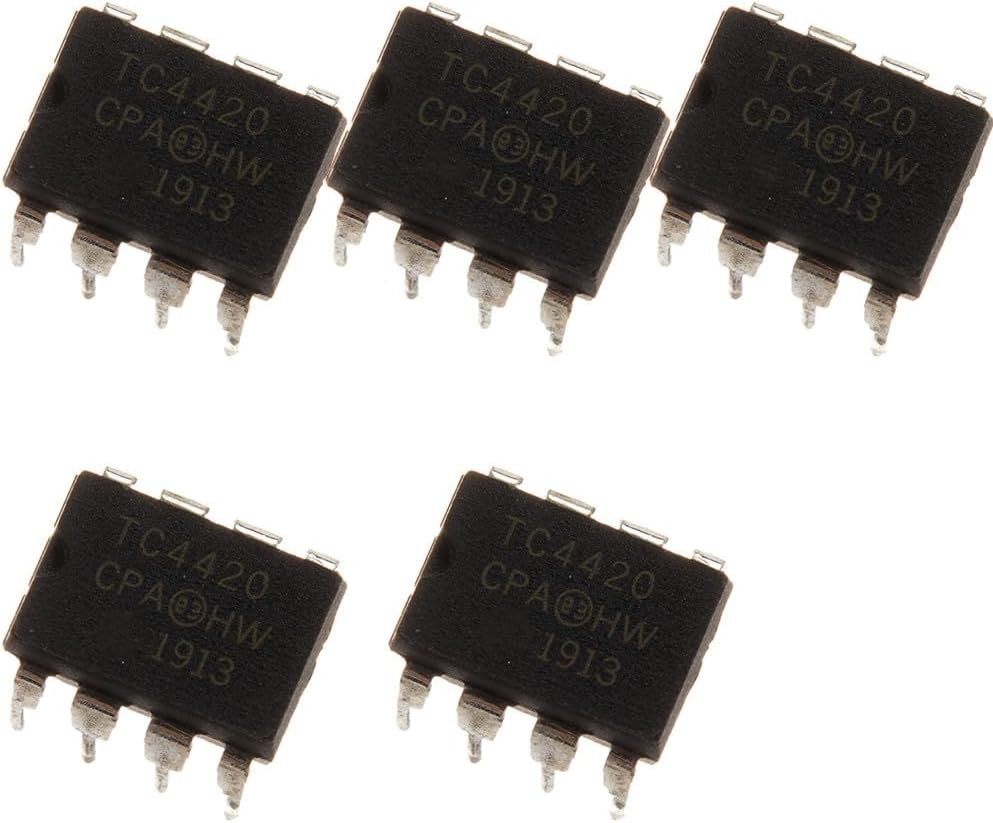

5pcs*TC4420
