NOTE
-The built-in electricity meter calculates the remaining electricity according to the voltage, so the displayed value is often too high, which is not accurate actually. Therefore, please replace the built-in electricity meter.
TECHNICAL PARAMETER
-Sampling Method: copper shunts, rate: 1 time/s

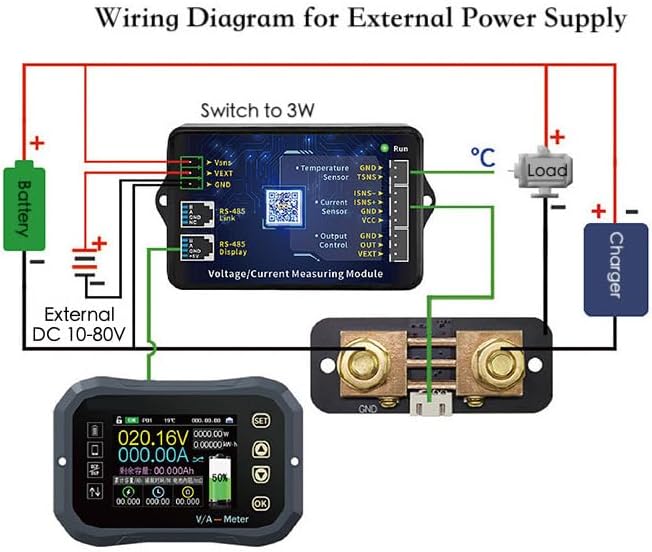

-Voltage Measring Range (external power supply): 0-120V

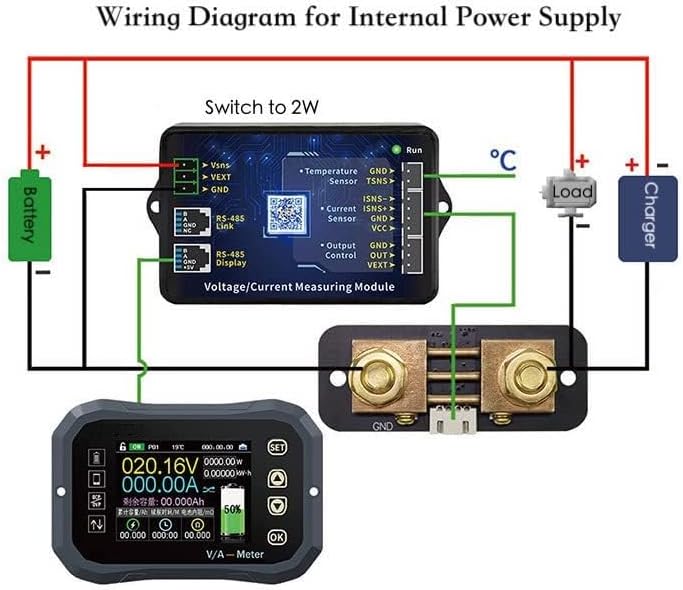

-Voltage Measring Range (internal power supply): 10-120V
-Voltage Resolution: 0.01V
-Voltage Accuracy: ±2%+3
-Current Measuring Range: 0-100A, Resolution: 0.01A, Accuracy: ±5%+10
-Temp Measuring Range: -20℃~120℃
-Capacitance Display Range: 0-100%
-Power Measuring Range: 0-72kW, Resolution: 0.01W
-Amp-Hr Measuring Range: 0-9999.99AH, Resolution: 0.001AH
-Time Measuring Range: 0-999:59:59s, Resolution: 1s

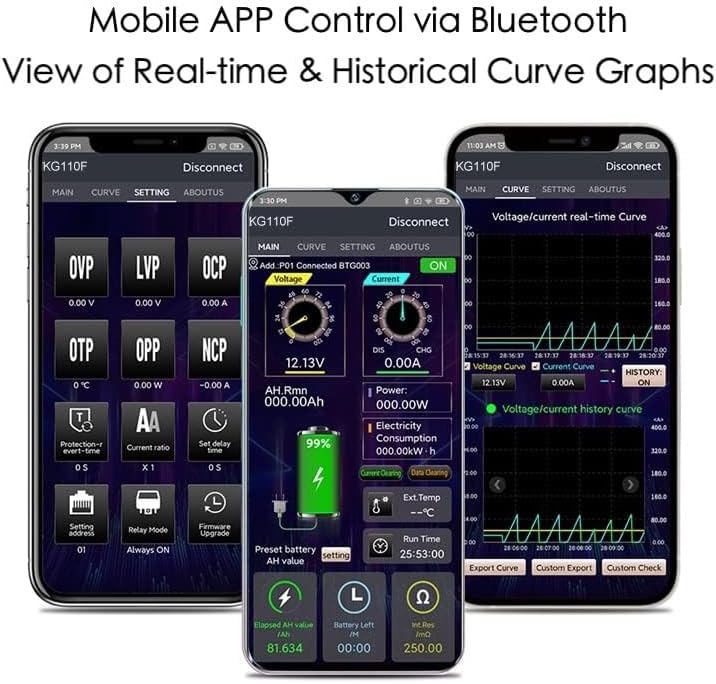

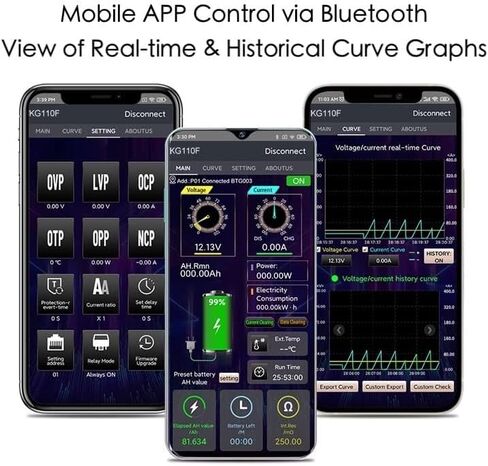

-Bluetooth Connection Distance: 33ft in open area
-Power Consumption: approx. 0.4W + 0.5W
-Over-power Protection: 0-99999.99W
-Over-current Protection: 100A
-Over- /Under-voltage Protection: 0-120V
-Over-temp Protection: 0℃~120℃
-Recovery Time: 0-99s

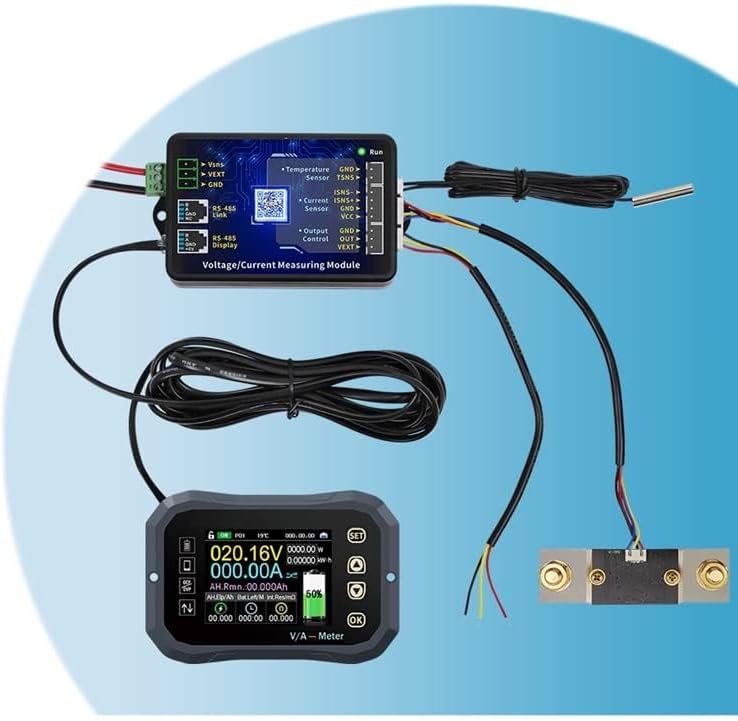

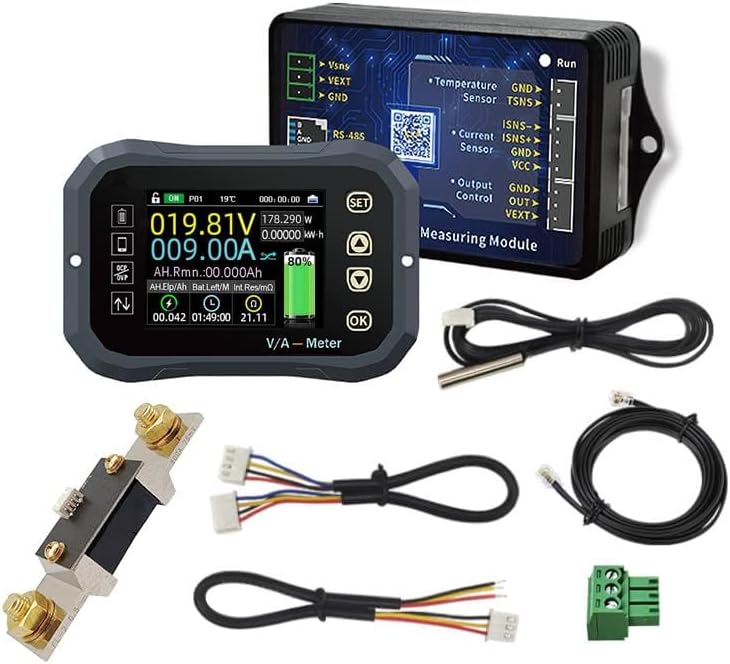

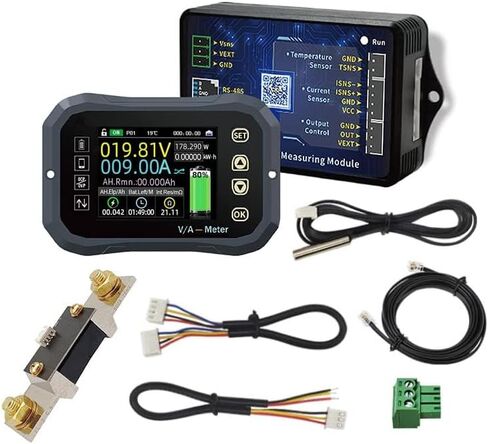

PACKAGE

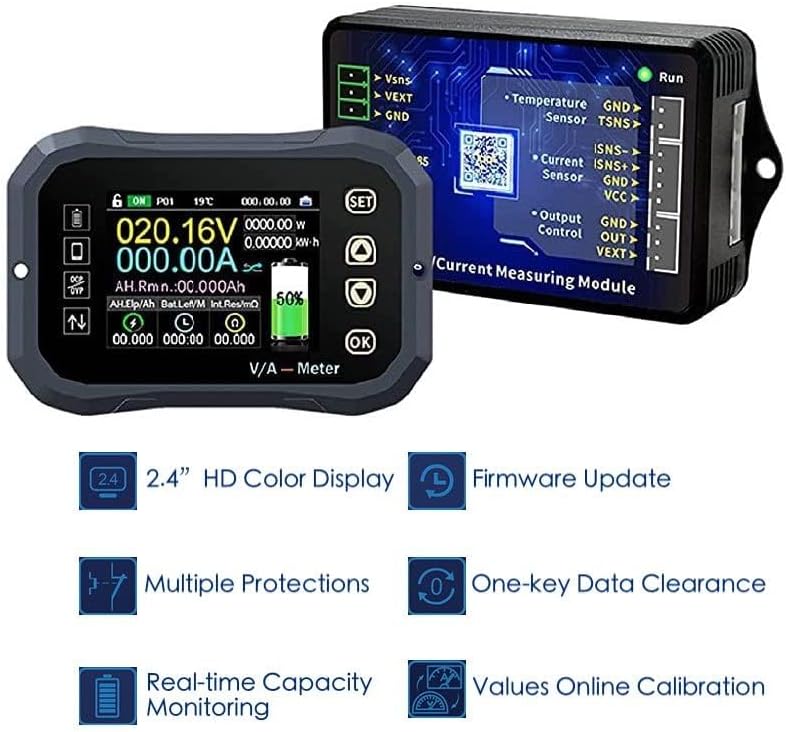

-1 x Color Display
-1 x Test Module

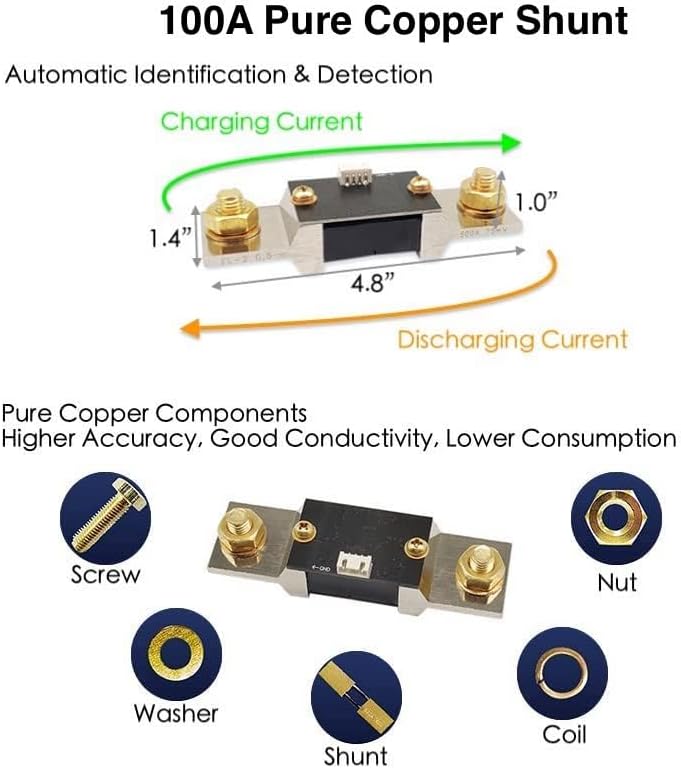

-1 x 100A Copper Shunt
-3 x Data Cable
-1 x Temp Sensor
-1 x Terminal
-1 x Manual
