5PCS IR Infrared Slotted Optical Optocoupler Speed Measuring Sensor Module 3.3-5V for Arduino Also for Smart Robot Car Speed Measurement with Dupont Wire

SAR 45
Brand
DAOKAI
Weight
31 g
StyleSpeed Measuring Sensor Module
– 1 +

Special Features

  • 🚗[Module]Speed Measuring Sensor Infrared detection, eliminating the interferences of external stray light, Schmitt trigger, stable wave form and signals
  • 🚗[Parameters]Operating Voltage: 3.3V to 5V, Output form: digital switch OUT output (0 and 1)
  • 🚗[LED]Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)

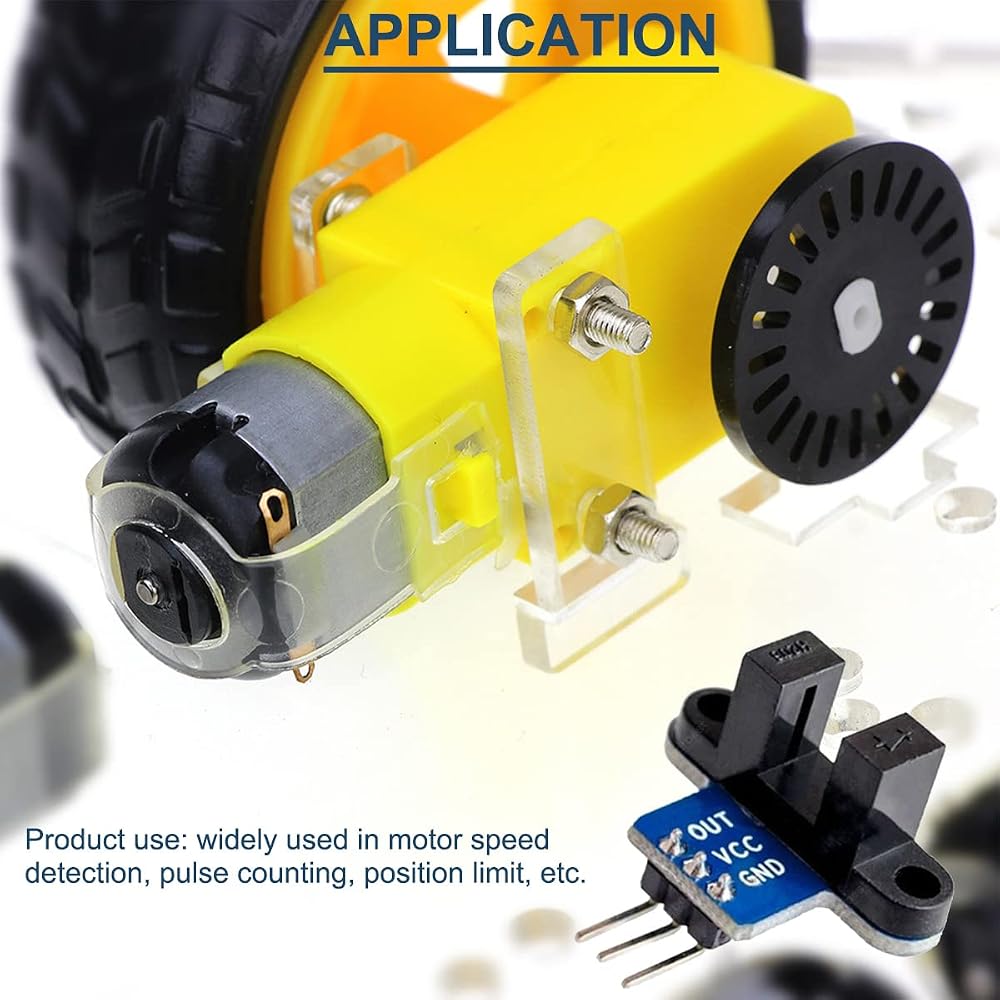

  • 🚗[Application]Speed measuring sensor IR infrared slotted optical optocoupler module widely used in motor speed detection, pulse counting, position limit, etc
  • 🚗[Package included]You will get 5 x Speed Measuring Sensor, 5 xEncoders, 1 x 15pin Female to Male Dupont Wire, 1 x 15Pin Female to Female Dupont Wire

Description

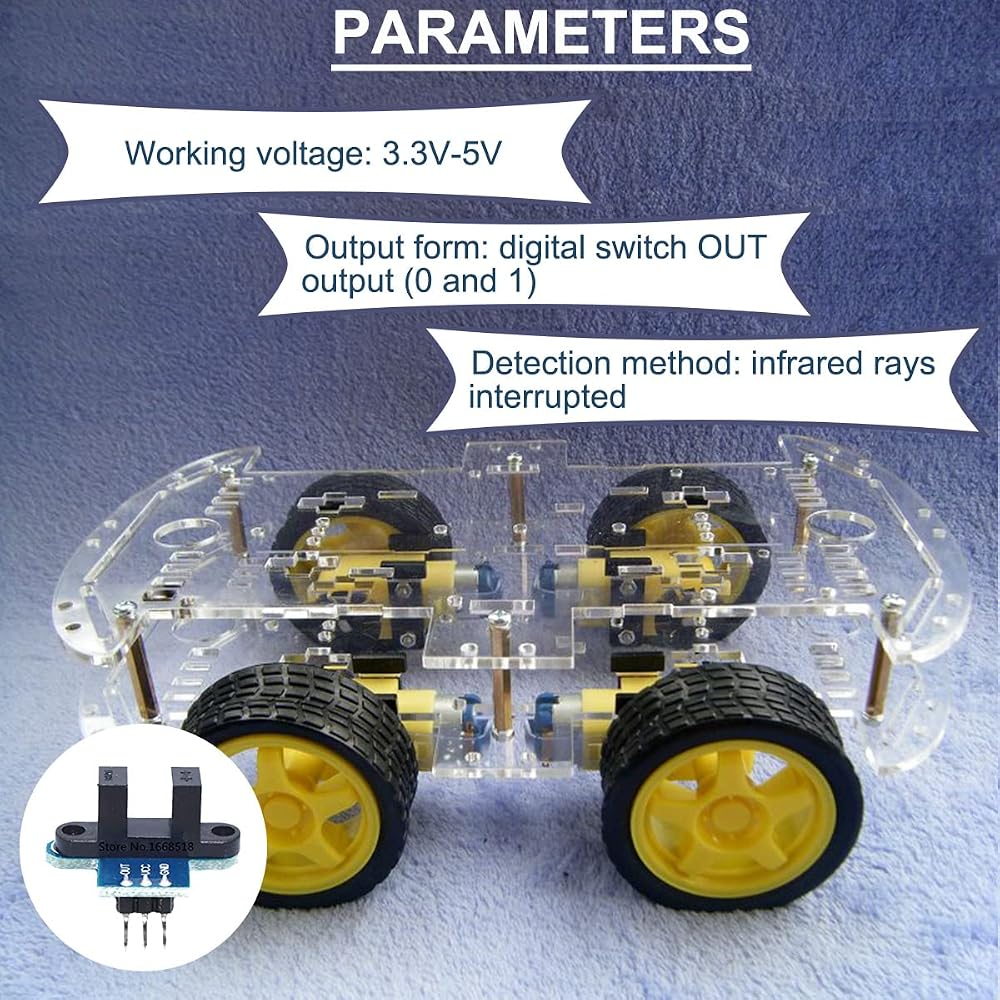

Parameters：
Working voltage: 3.3V-5V
Output mode: digital signal (pulse signal)
Detection method: infrared rays interrupted
Detection signal: high level when an obstacle is detected, low level output when there is no obstacle or beyond the detection range
LED: Two-way Status indicator, the ray interruption indicator is off, and the ray continuity indicator is on

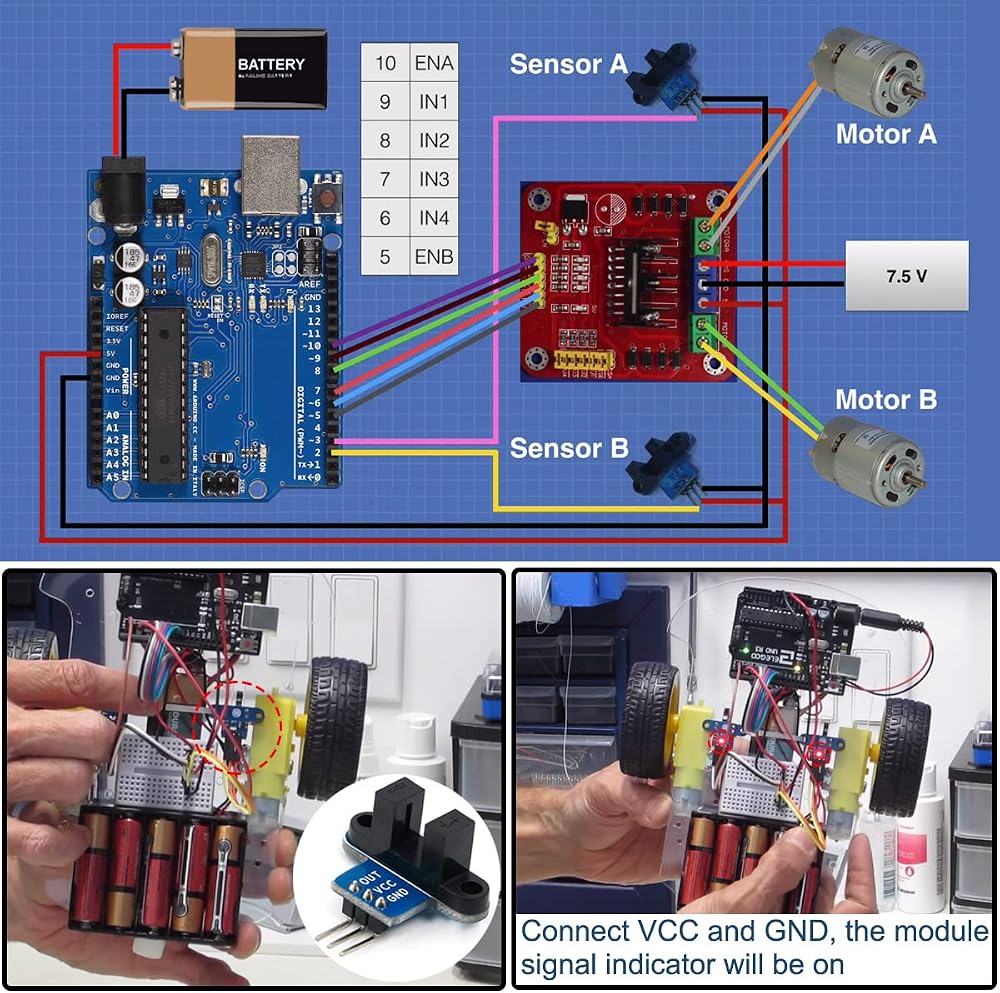

Wiring:
1.+5
+5 is the positive input port of the power supply, which can be connected to a voltage of 3.3V~5V
2.GND
GND is the negative input port of the power supply
3.OUT

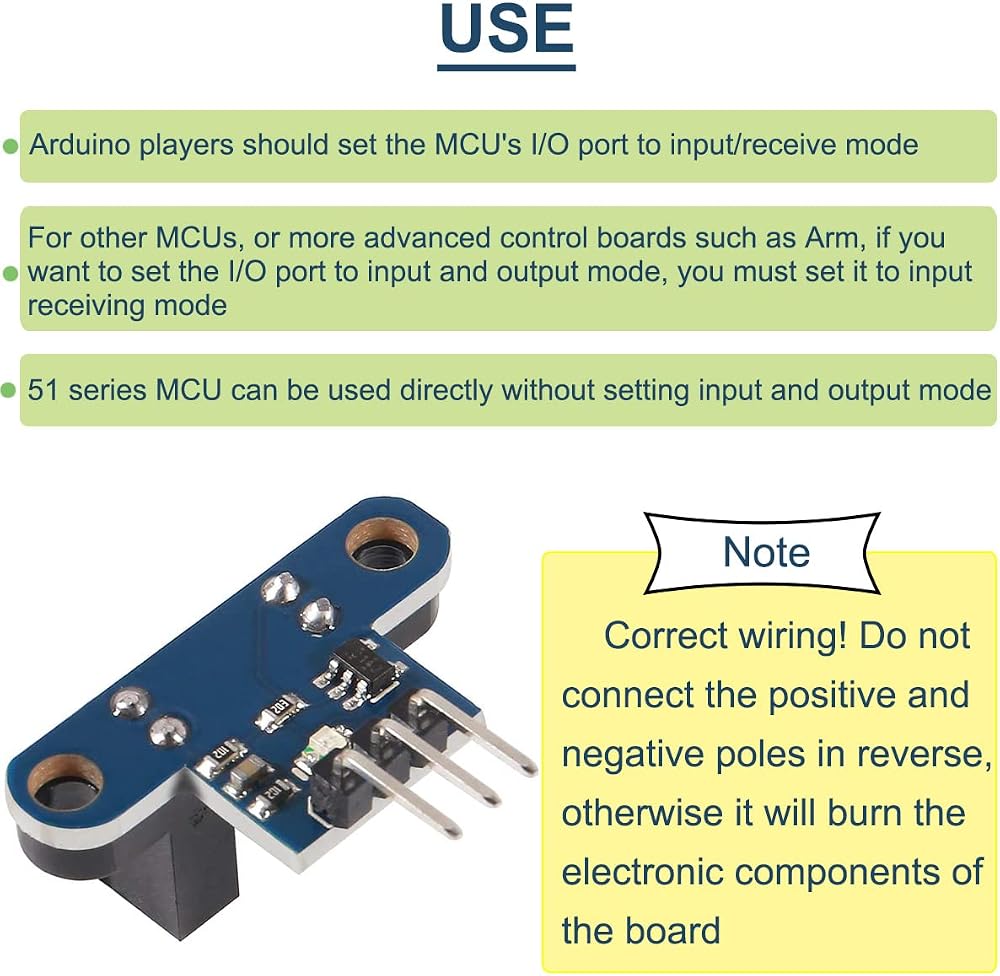

OUT is the signal output port, which is connected to the I/O port of the MCU, generally connected to external interrupts

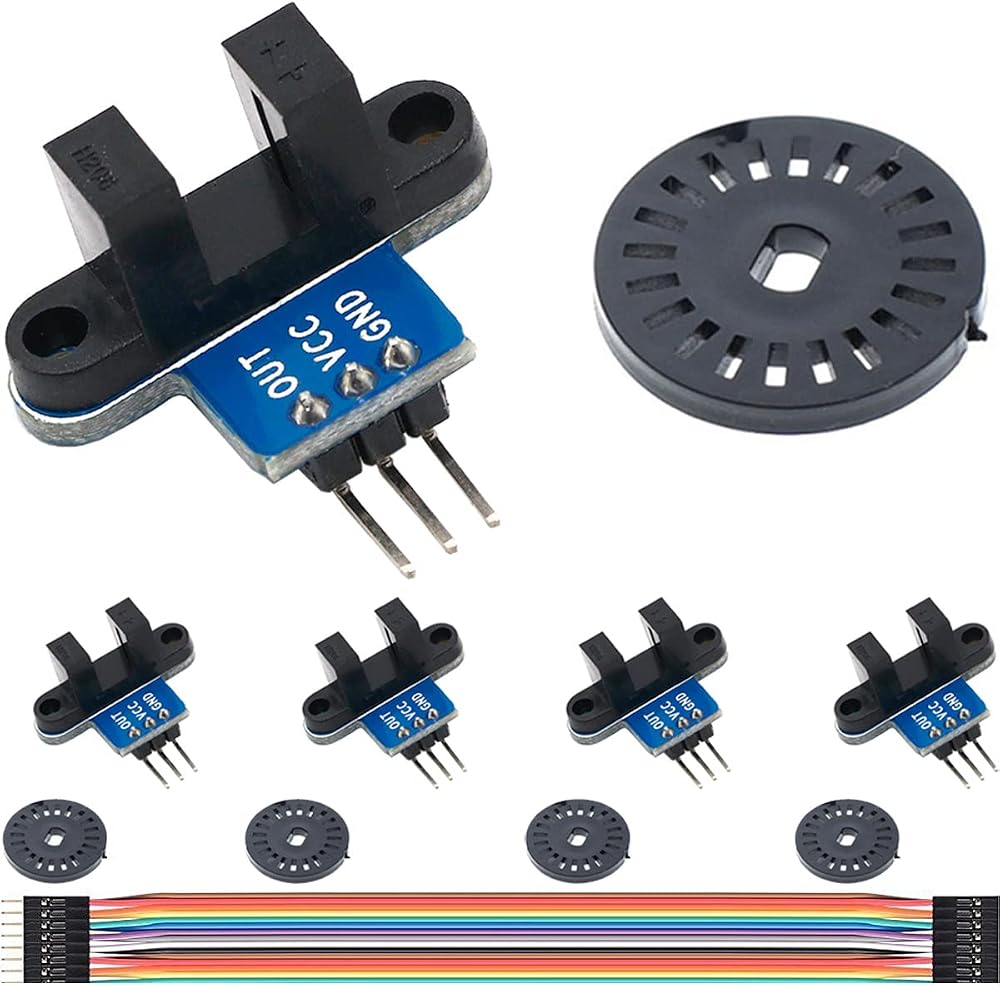

Package included:
5 x Speed Measuring Sensor
5 x Encoders
1 x 15pin Female to Male Dupont Wire
1 x 15Pin Female to Female Dupont Wire
