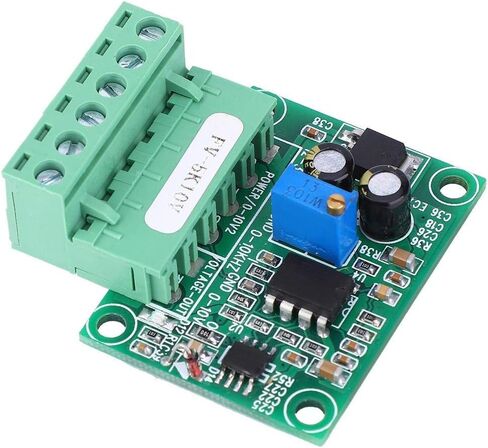

0~5Khz to 0~10V Frequency Voltage Converter Module，Digital to Analog Module Conversion Module

SAR 59
Brand
Jectse
– 1 +

Special Features

  • The module is to convert frequency pulse of 0-5 KHz into an analog voltage of 0-10V.
  • The input pulse level of 5V 12V 24V and can be directly input without string resistor. But the input frequency should be maintained for more than 0.5 seconds, and the output current is 5mA.

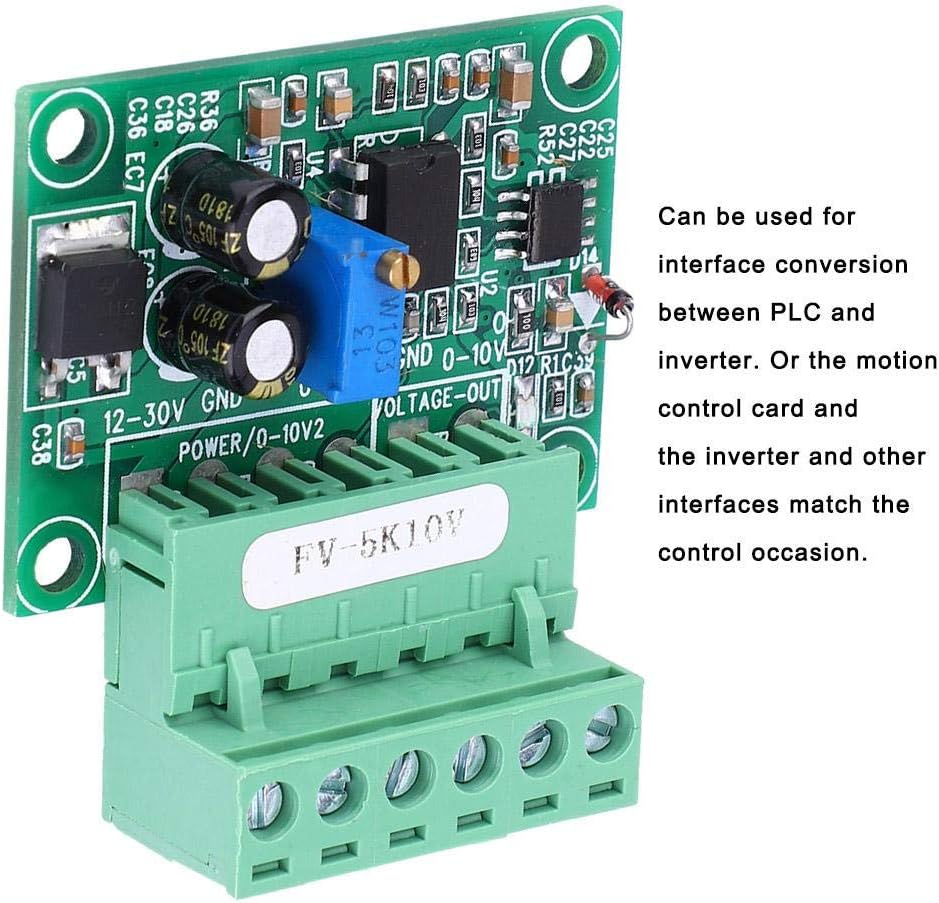

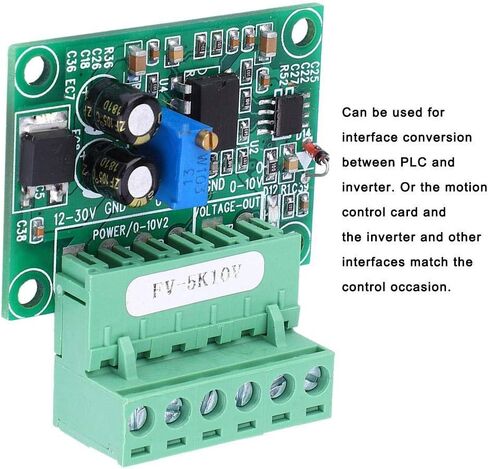

  • The converter can be used for interface conversion between PLC and inverter or interface matching control between motion control card and inverter.

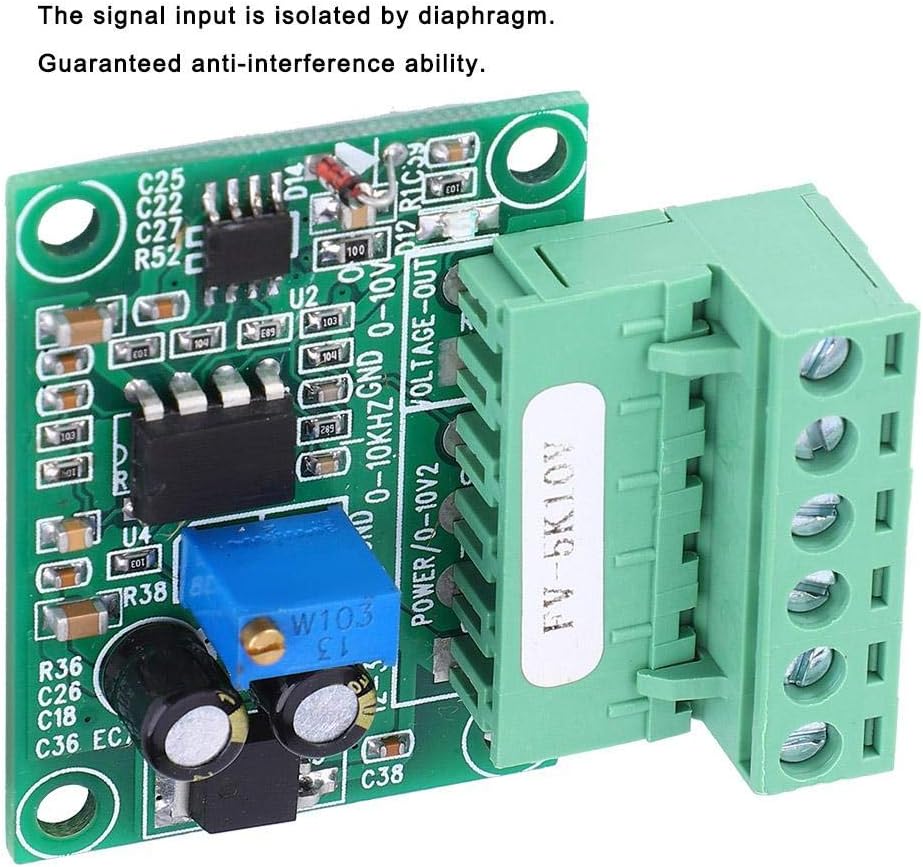

  • The optical isolate is used in the input end of the to ensure the anti-interference ability.
  • The multi-coil potentiometer on the board is used to calibrate the corresponding relationship between frequency and voltage.

Description

Features:
The module is to convert frequency pulse of 0-5 KHz into an analog voltage of 0-10V. The converter can be used for interface conversion between PLC and inverter or interface matching control between motion control card and inverter. The input pulse level of 5V 12V 24V and can be directly input without string resistor. But the input frequency should be maintained for more than 0.5 seconds, and the output current is 5mA. The optical isolate is used in the input end of the to ensure the anti-interference ability. The multi-coil potentiometer on the board is used to calibrate the corresponding relationship between frequency and voltage.
Specification:
Item Type:Frequency to Voltage Converter Module

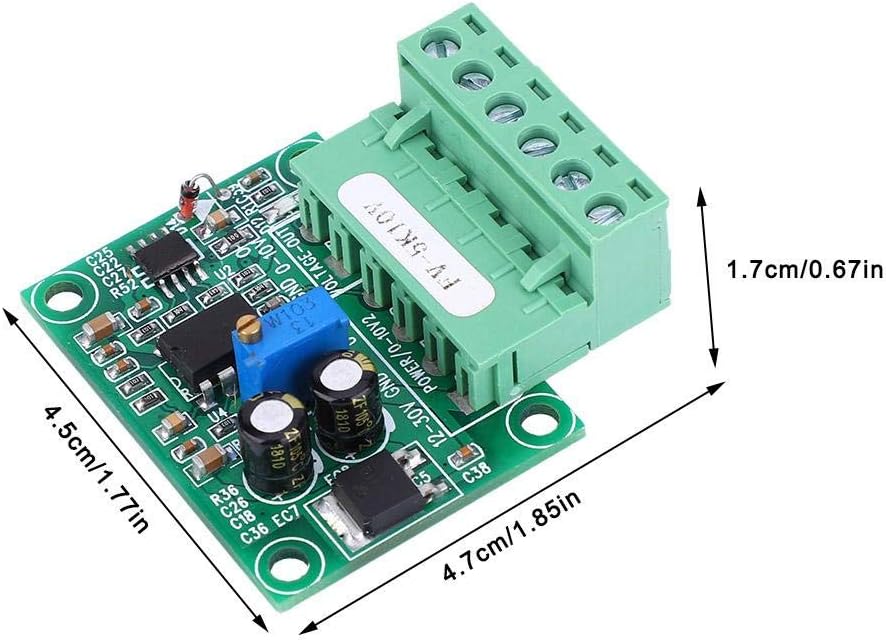

Size:4.5 x 4.7 x 1.7cm / 1.77 x 1.85 x 0.67in
Relationship,Linearity:
500Hz to 1V
2.5Khz to 5V
5Khz to 10V

Package List:
1 x FV-5KHz10V Frequency to Voltage Converter Module
