Specification:

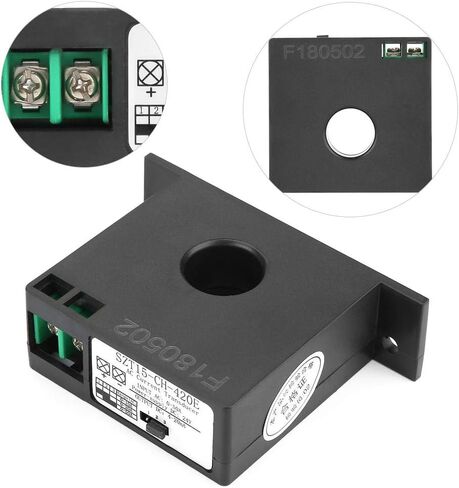

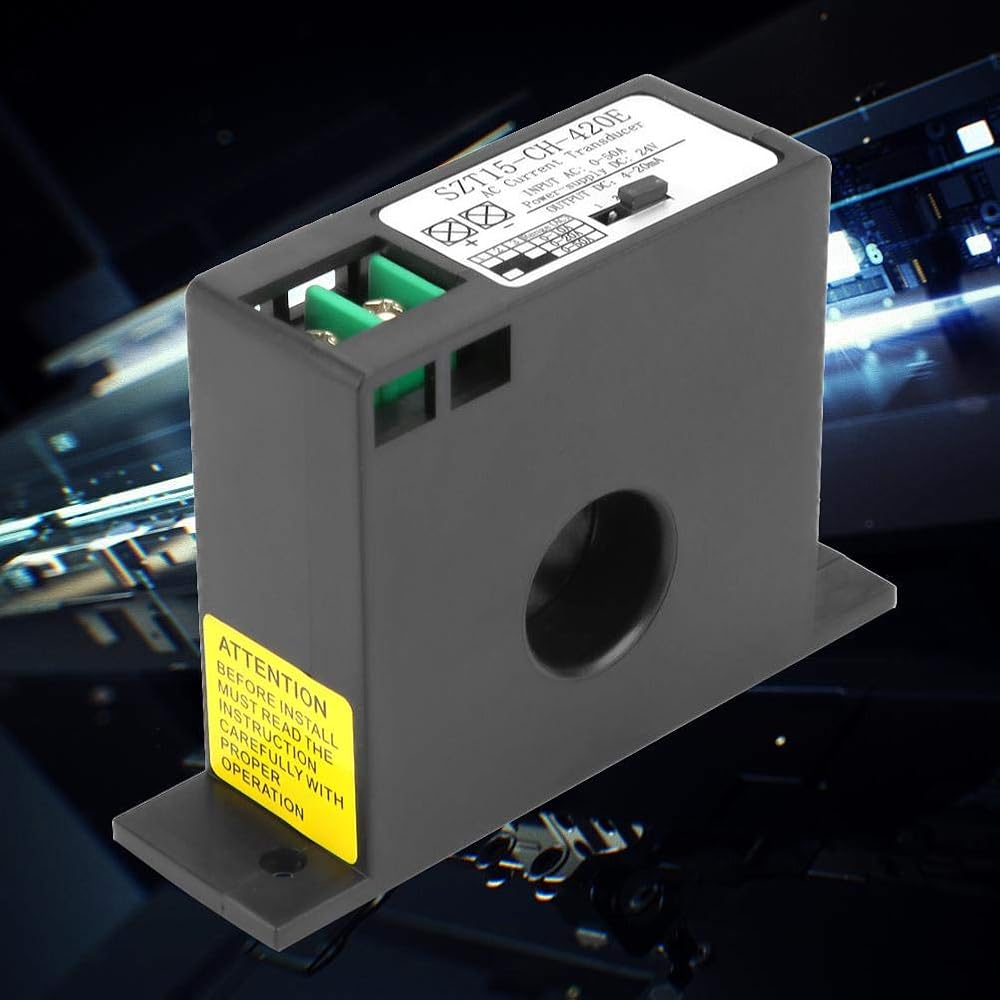

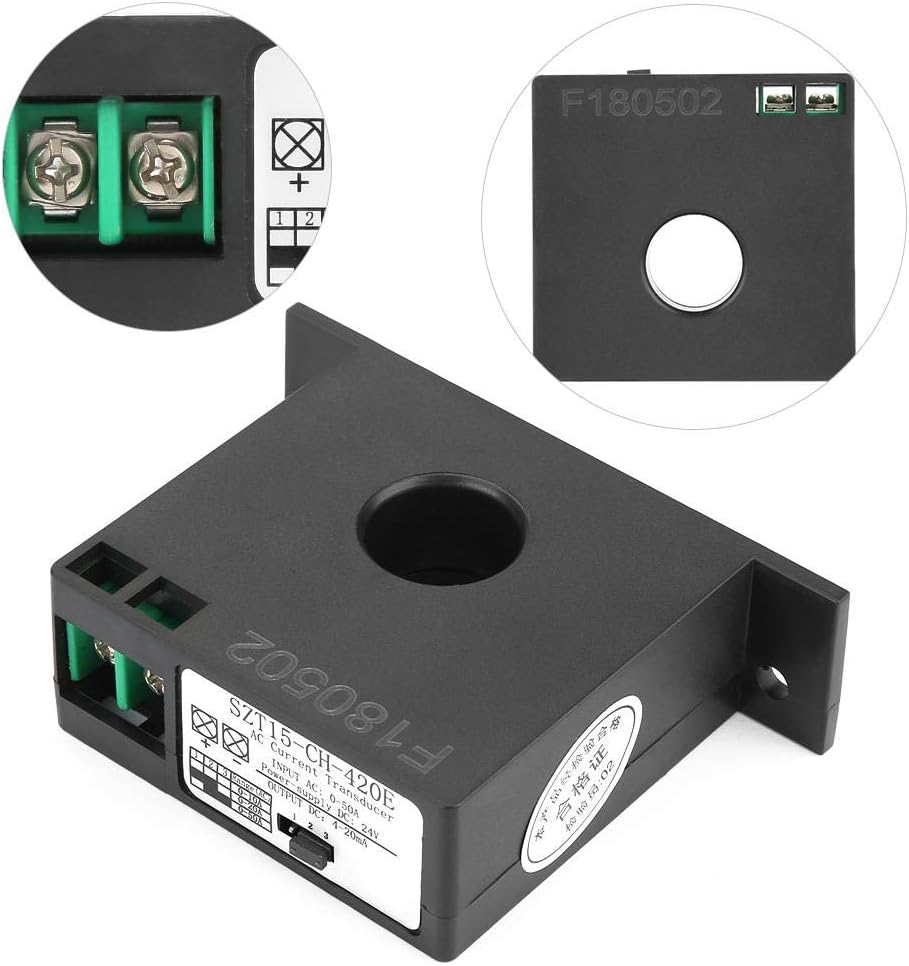

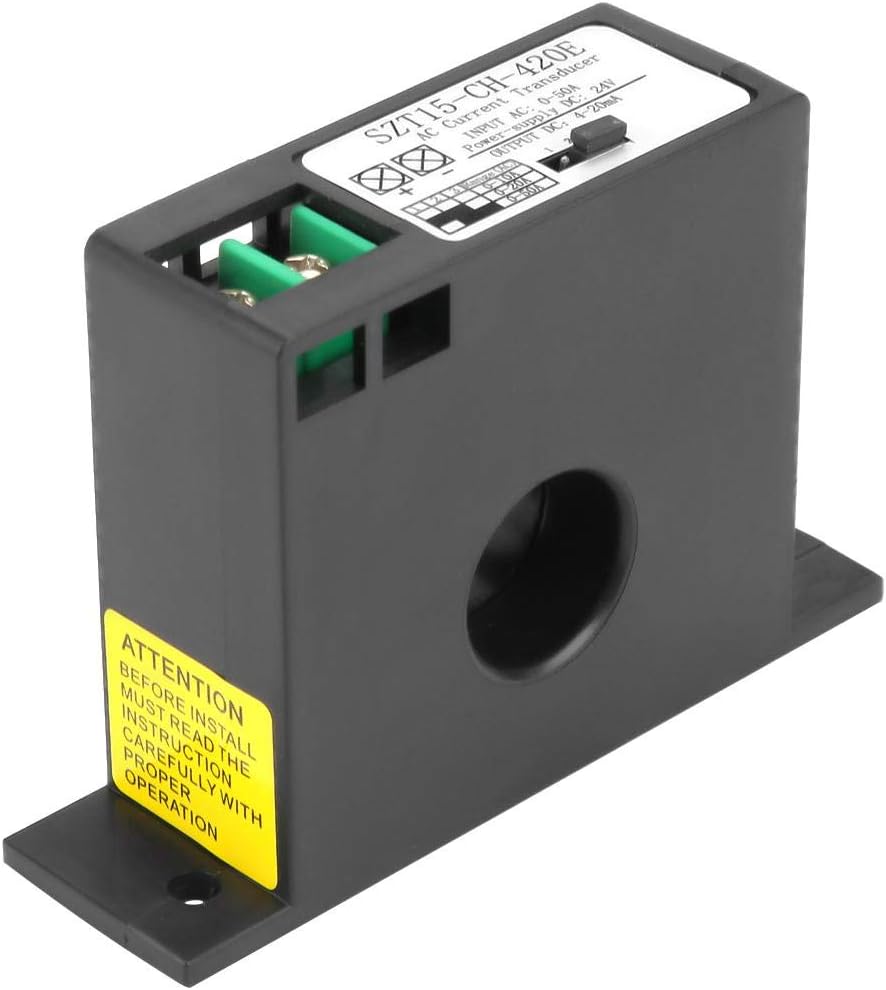

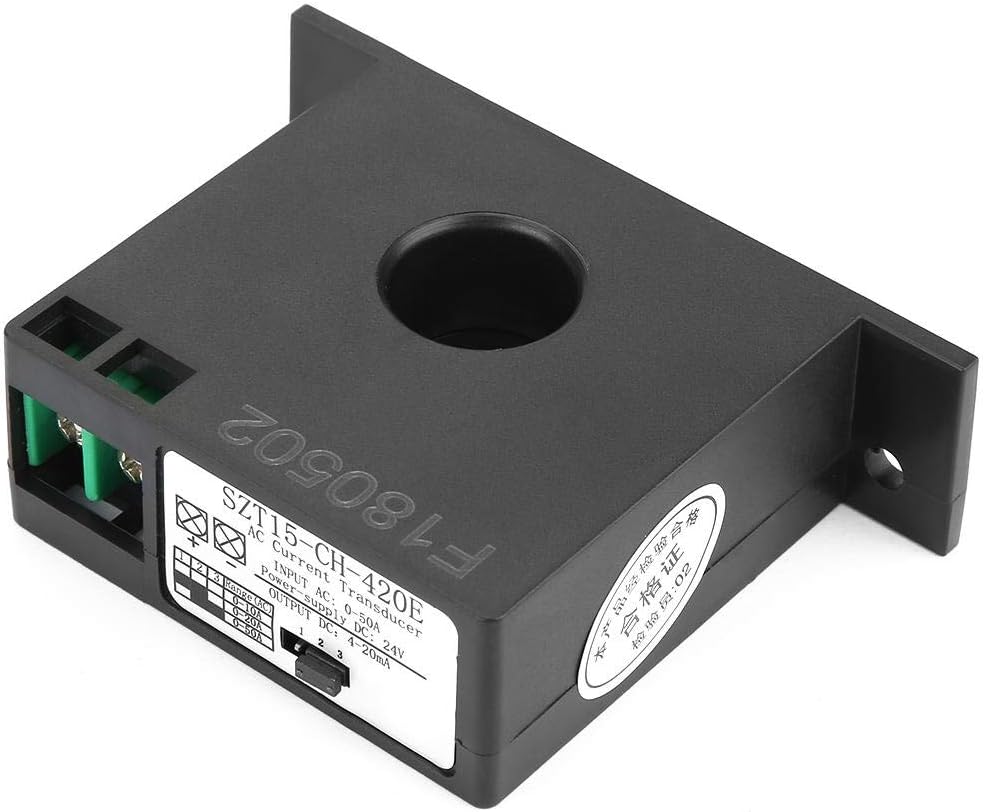

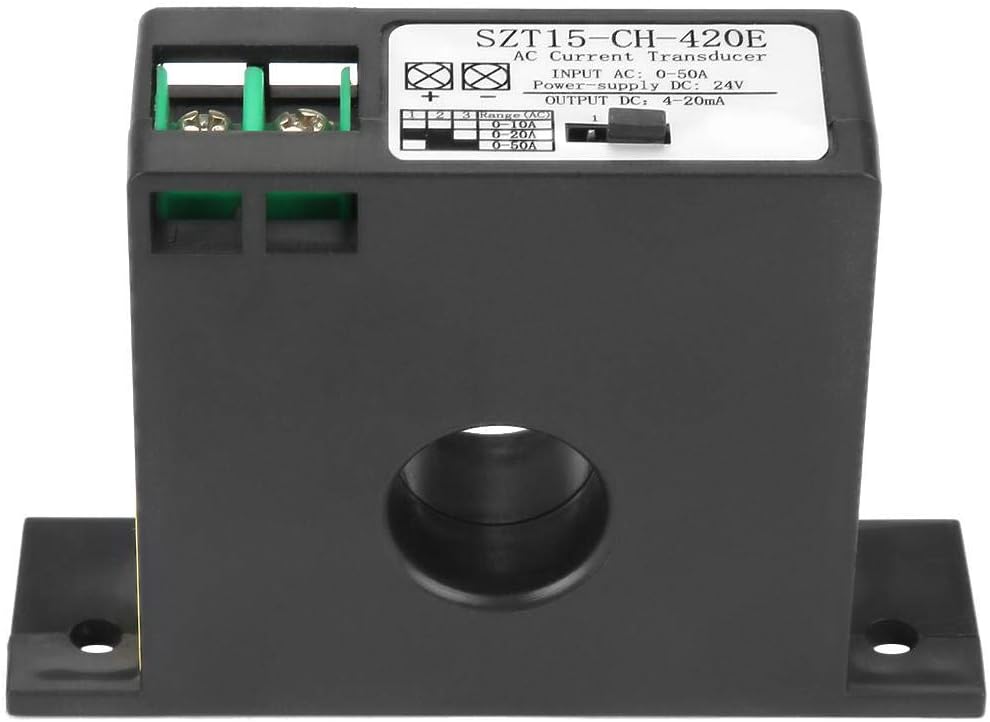

Product Name: AC Current Transmitter
Model: SZT15-CH-420E
Power supply:
Voltage output type, self-power supply does not require external current.
Current output type requires external DC: 24V ± 10%
Input feedthrough current (AC):

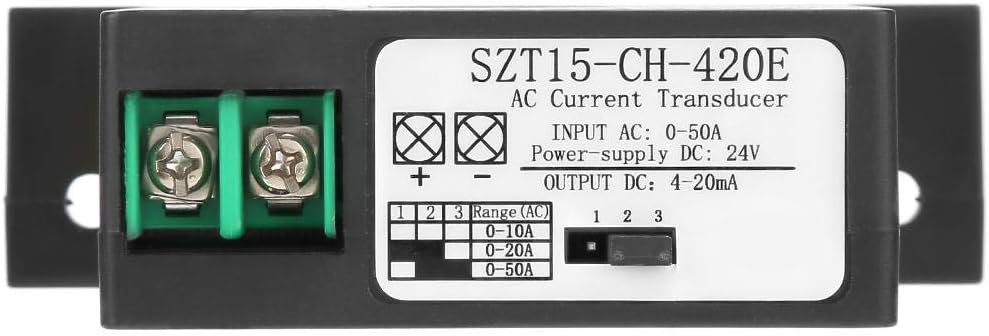

0-10A / 20A / 50A (SZT15 series)
0-100A / 150A / 200A (SZT20 series)
Output Type (DC):
Voltage output type: 0-5V/10V
Current output type: 4-20mA
Switch on minimum:
0.5±0.2A (round type)
1.5±0.2A (clamp type)
Maximum current through current: 200%, the feed current cannot exceed 200% of the rated value
Power consumption: ≤1W
Tape: ≤1%
Accuracy: ±1%
Maximum leakage current: ≤0.1mA
Linearity: 10%-100%
Response time: ≤200ms
Through the heart wire diameter: 0.35-20mm
Working temperature: -20-60 °C
Working humidity: 5-95% (no condensation)
Housing material: self-extinguishing material ABS (Cycolac 94v-0)
Insulation withstand voltage: 2000VAC 50/60Hz 1min

Package list:
1 * AC Current Transducer

Working principle:
1. Based on electromagnetic induction, inductive current will be generated when the current in the circuit changes. Transform large current into standard small current through transformer,
2. Through relevant processing circuit and output control circuit, the dc current of 0-5/10v or 4-20ma can be output and transmitted to the next level system.
