DIN Rail Mount 6 Channel Paddle Switch AC 115V 230V Power Distribution Strip Module

SAR 168
Brand
OONO
StylePaddle Switch, DIN Rail Mount
– 1 +

Special Features

  • Working voltage AC 70 to 250V. Maximum total input current 30 Amps. 6 Channels output, each channel maximum output current 10 Amps.
  • Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
  • Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
  • Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.

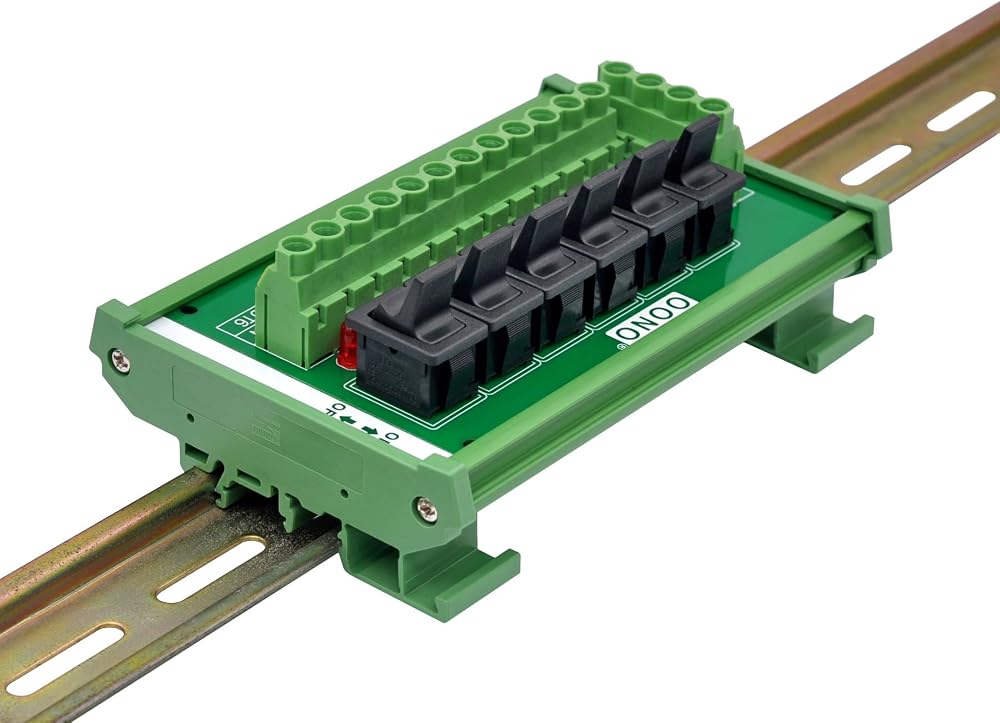

  • High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.

Description

1, Working voltage AC 70 to 250V. Maximum total input current 30 Amps. 6 Channels output, each channel maximum output current 10 Amps.

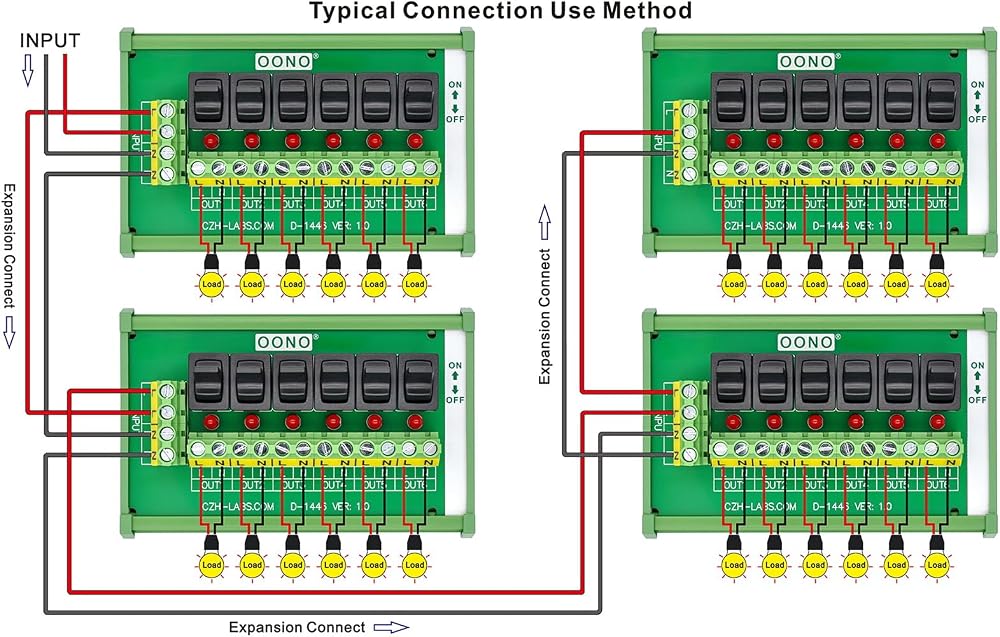

2, Input terminals pitch 7.62mm/0.3 inch, maximum current 30 Amps for per position, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
3, Output terminals pitch 7.62mm/0.3 inch, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw.
4, Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
