مميزات خاصة

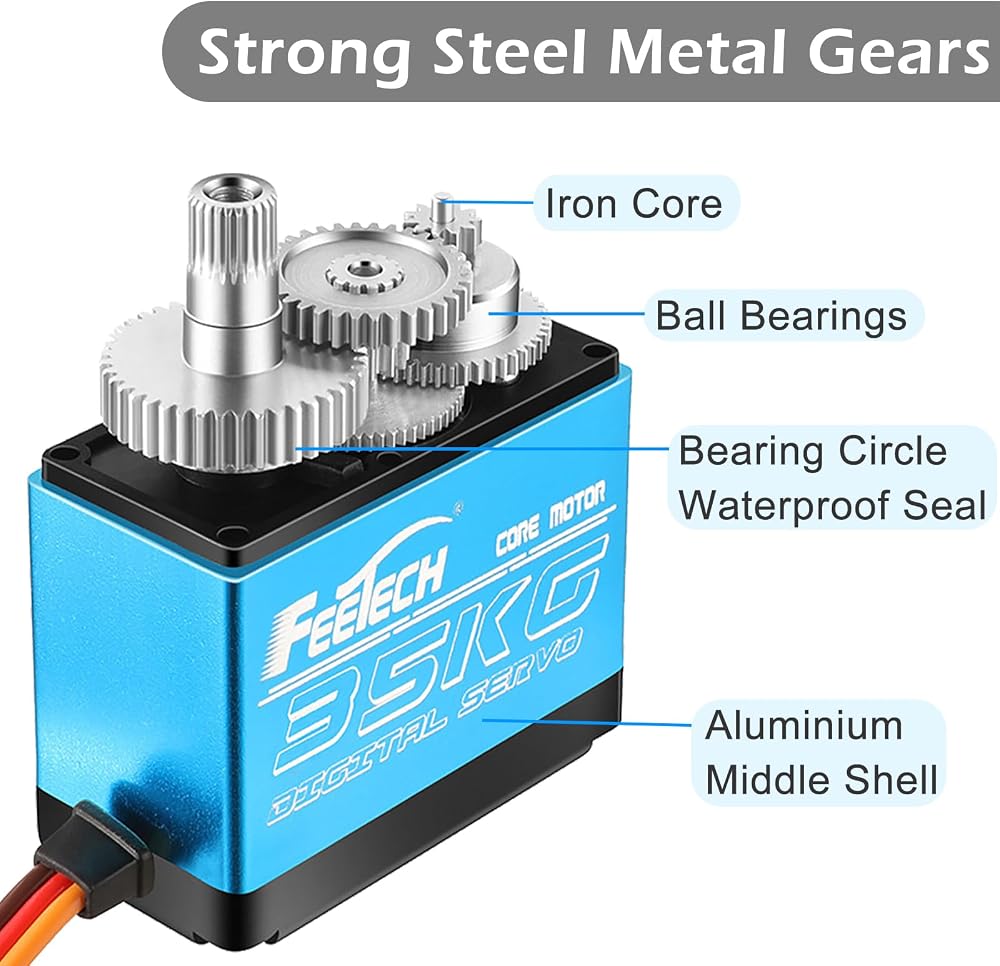

High quality: FT5330M is equipped with sturdy PA aluminum intermediate shell, strong steel metal gears and hard iron axle, which makes it more stable and longer-lasting.
Rich application scenarios: suitable for 1/8 and 1/10 scale trucks, off-road vehicles, RC robotic arms and so on.
Protection mechanism: When the output torque exceeds the overload torque for 8S or the temperature exceeds 70℃, the steering gear will stop output torque automatically. The overload torque can be modified.
Parameters: Rotation angle of 180 degrees (500~2500μsec )
Please feel free to ask us any questions and we will do our best to help you solve the problem.

وصف

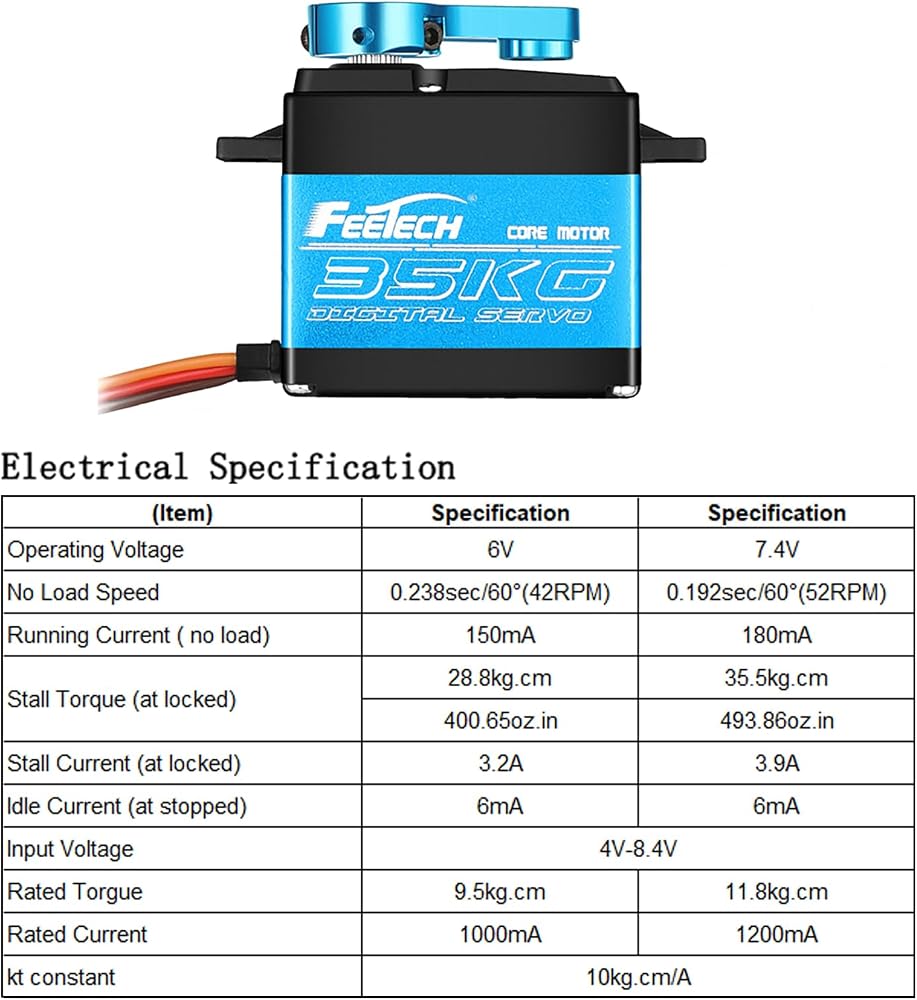

Electrical Specification
No Load Speed: 0.238sec/60°(42PPM) @6V / 0.192sec/60°(52RPM) @7. 4V
Runnine Current ( no load): 1 50mA @6V / 180mA @7. 4V
Stall Torque (at locked): 28.8kg. cm 400. 65oz. in @6V / 35. 5kg. cm 493.86oz. in @7. 4V
Stall Current (at locked): 3.2A @6V / 3.9A @7. 4V
Idle Current (at stopped): 6mA @6V / 6mA @7. 4V
Rated Torgue: 9.5kg. cm . @6V / 11.8kg. cm @7. 4V
Rated Current: 1000mA @6V / 1200mA @7. 4V
Input Vol tage : 4V-8.4V
KT: 10kg. cm/A

Mechanical Specification:
Operating Temperature Range -20°C~60°C

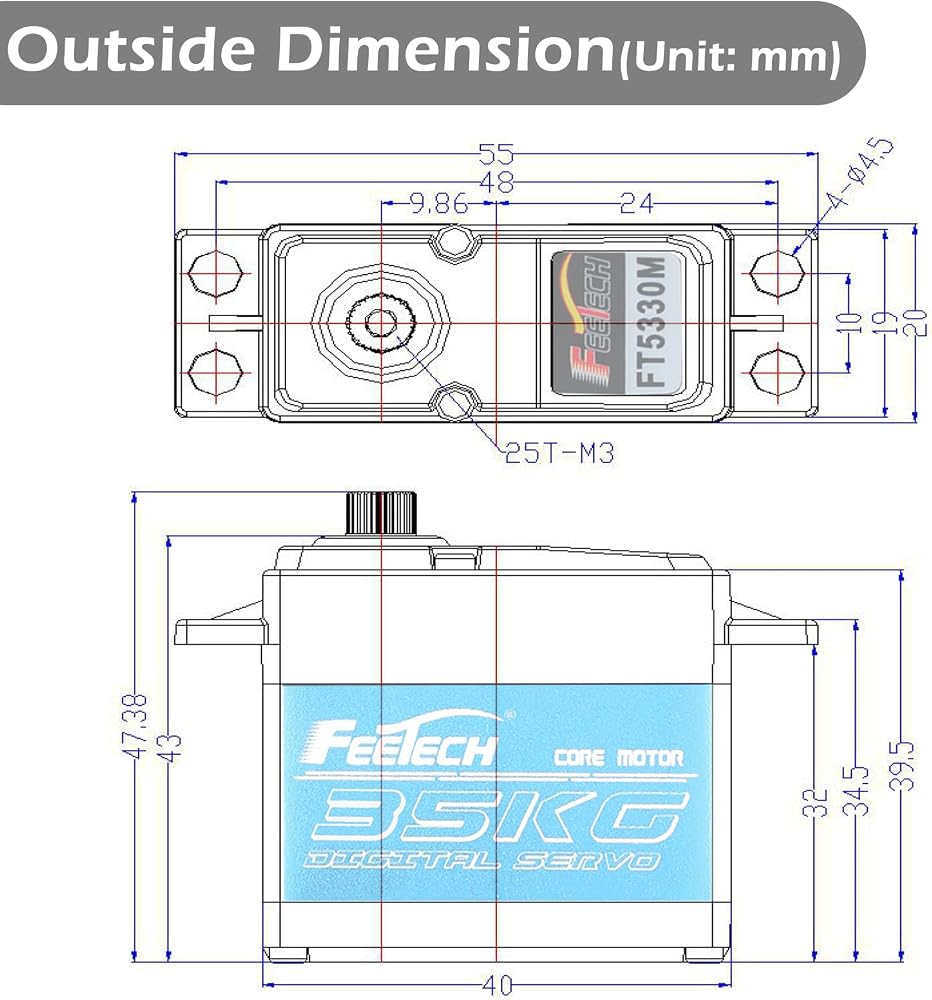

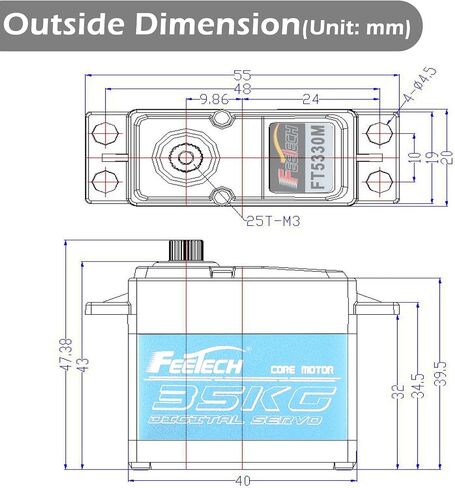

Size: 55X20X43mm

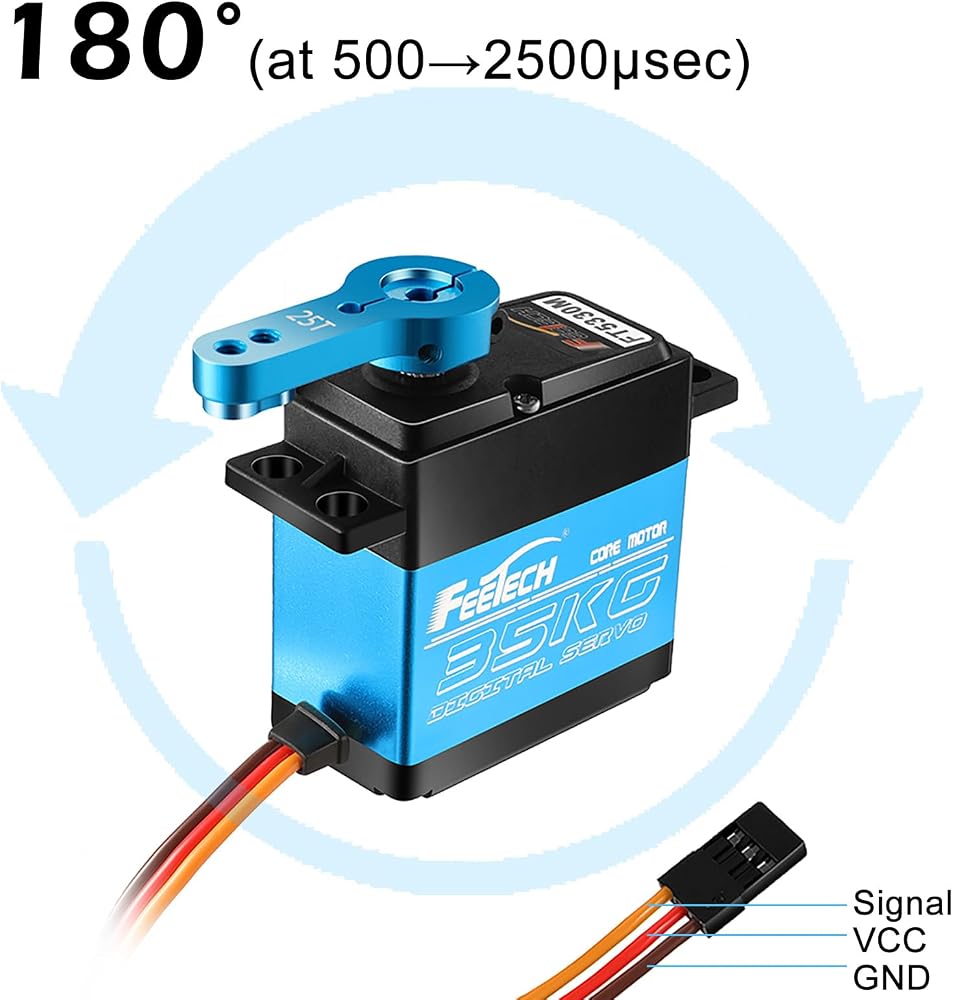

Operating Travel: 180°(at 500→2500μsec)
Neutral Position: 1500 μsec
Pulse Width Range: 500→2500 μsec

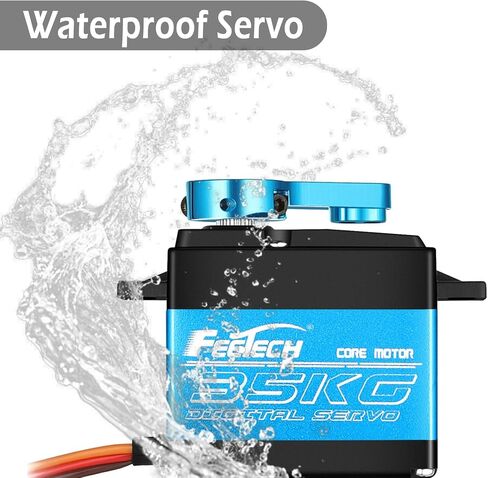

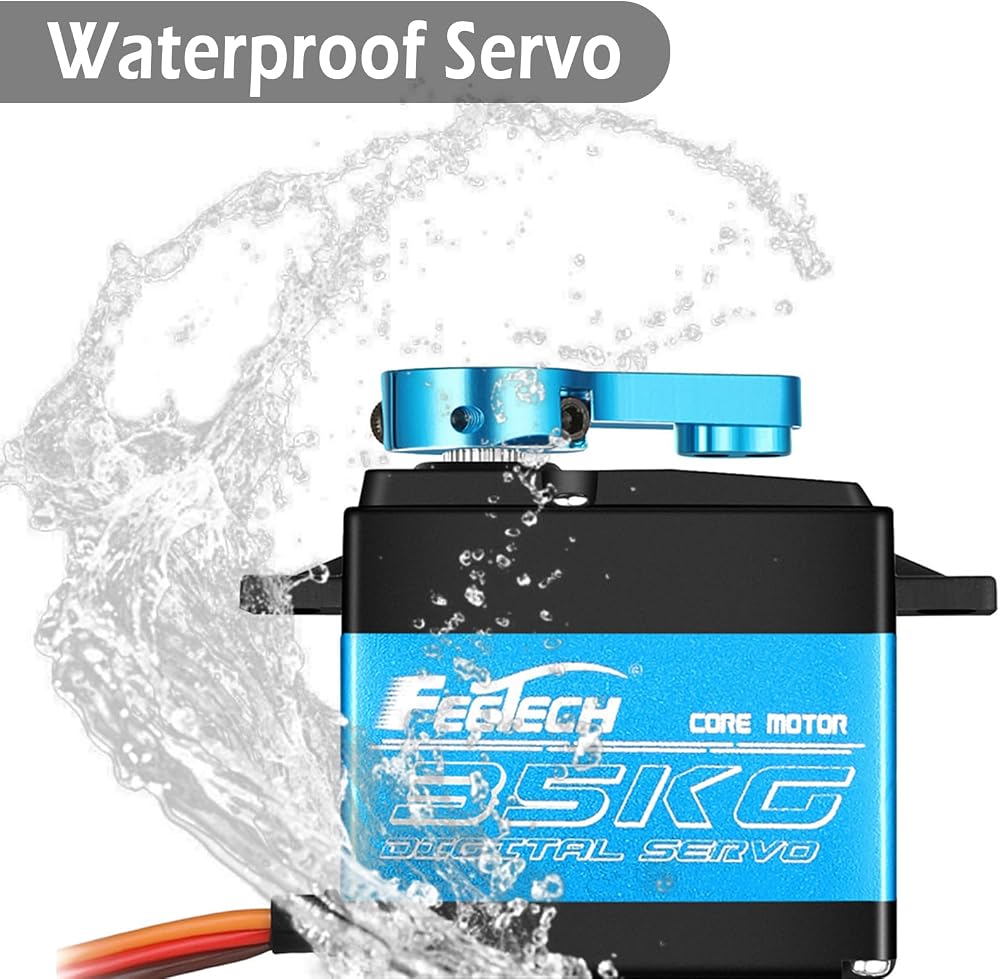

Waterproof performance: IP54
Limit Angle: No limit
Case material: PA+Aluminum
Gear material: Steel
Bearing type: Ball bearings
Angle sensor: Carbon-Film Potentiometer
Life:1000000Cycles Min
Connector and Cable: JR
Material: PVC
Length: 30cm
Horn Type: 25T/5.9mm
Gear Ratio: 1/356
Back Lash: ≦0.5 degree
Rocker phantom: 0 degree
Rocker screw: M3*6
Motor: Core Motor

Pin Definition: Yellow-Signal, Red-Vcc, Brown-GND

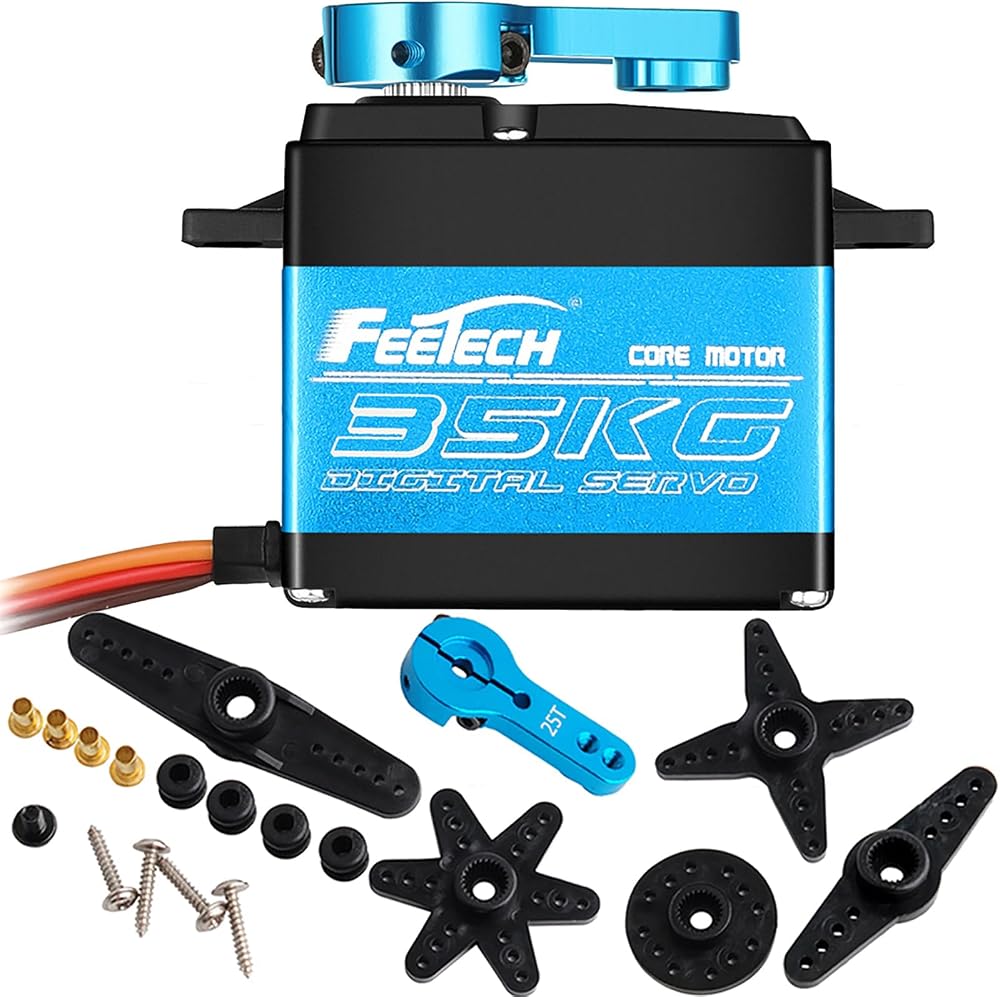

Package Includes:
1 X FT5330M 35KG Digital Servo
1 X 25T Arm
1 X Servo Accessories
