【High Quality】The waterproof toggle switch is made of metal and bakelite.The shaft, bracket and terminal of the switch are made of copper and nickel plating material. The main body of the switch is made of bakelite material.
【Function】 Waterproof toggle switch with 2 pin SPST design (single pole single throw), easy to turn ON OFF. The rating of this heavy duty toggle switch is 30A 12VDC; 15A 250VAC; 20A 125VAC.
【Mounting Hole Size】 ON/OFF Toggle Switch Mounting hole size is 0.48 inches (12.2MM). Each of the terminals has a machine screw for quick connections, The thickness of Terminals is 0.8mm.
【Application】Waterproof toggle switch is widely applied to various additional electric equipment inside and outside Automotive Car Marine Boat, such as lights, chassis lamp, fog lamps, dome light, etc.
【Package and Warranty】8Pcs Waterproof Toggle Switch 12V DC 30A Heavy Duty 2 Pin ON Off SPST Switch. If you have any question about the Switch,please contact us.

وصف

Waterproof Toggle Switch Specification：
DC Rating：30A 12V; 15A 24V
AC Rating：20A 125V; 15A 250V
Waterproof Degree：IP65
Other protection Weatherproof：Dustproof
Terminals：2 Pin Screw Terminal
Function：SPST ON OFF 2 Position

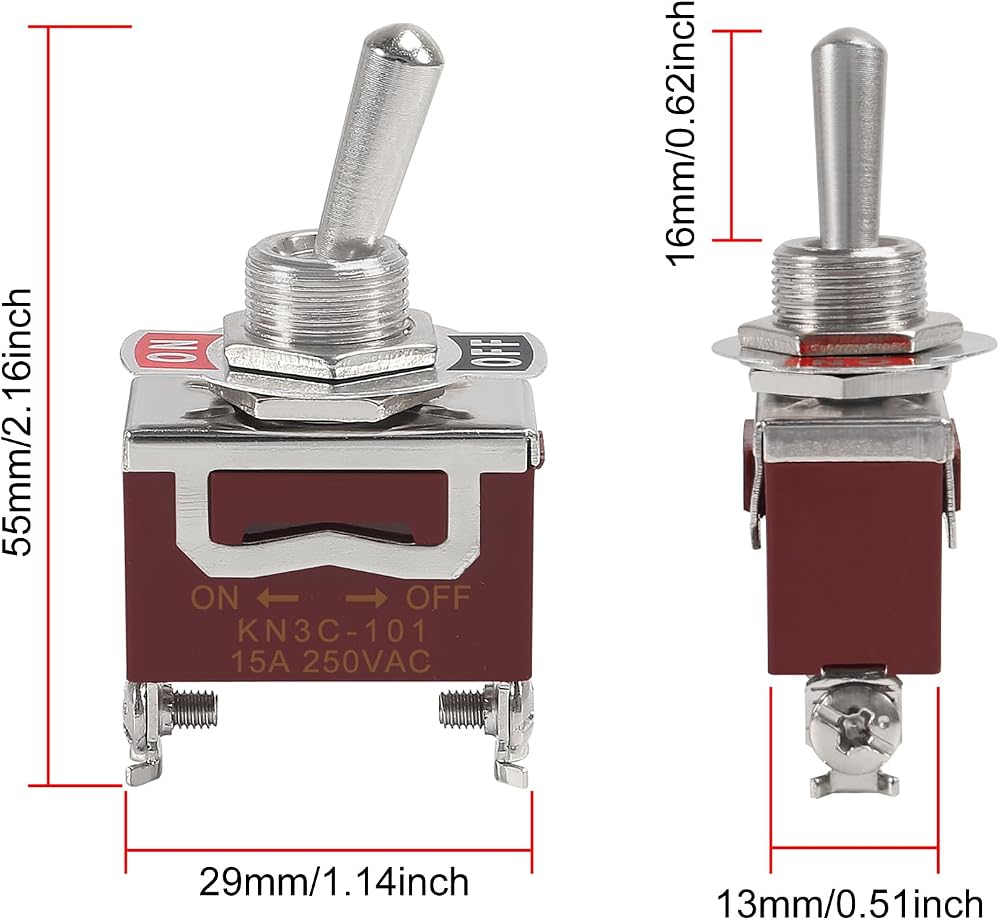

Mounting Hole Size：12MM (about 0.472")
Feature：Heavy Duty
Contact R : 50 mΩ max
Insulation R : 500V DC 1000MΩ min
Dielectric Strength : 1 Minute 1500V AC
Operating Temperature : -25℃ ~ +85℃
Electrical Life : ≥10,000 Cycles

ON OFF Toggle Switch SPST feature：

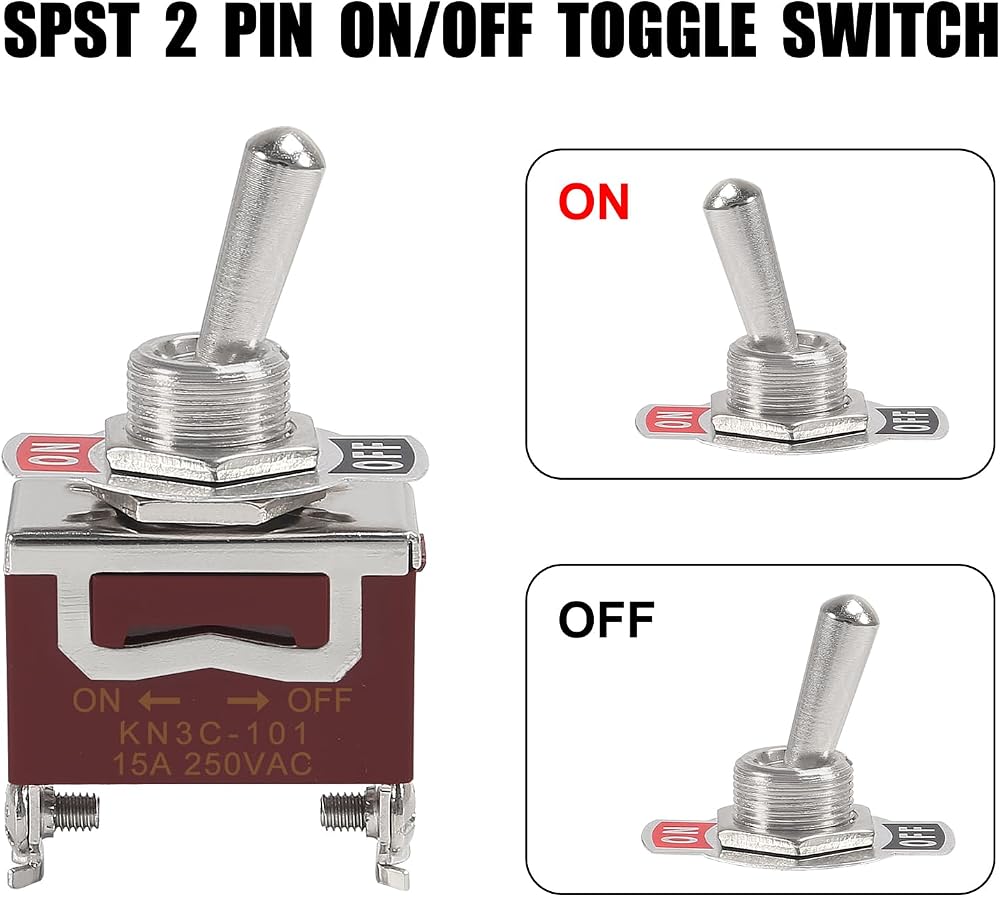

This 12v toggle switch is a 2 pin toggle switch, on off 2 position function. When you turn on the switch, it will stay at on position until you manually switch it off.
Waterproof toggles switch 12v marine is widely applied to various additional electric equipment inside and outside Auto Car Marine Boat, such as lights, chassis lamp, fog lamps, dome light, etc.

What is included in Package:

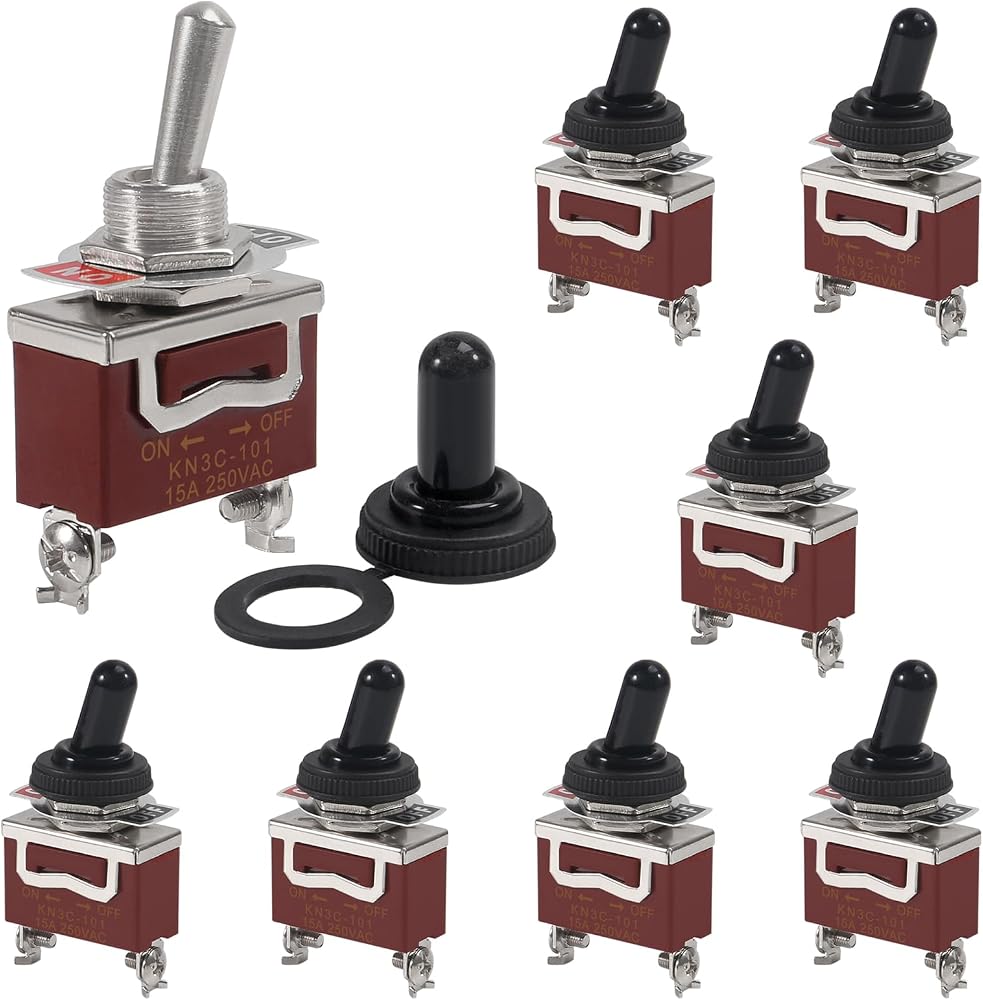

8 x ON OFF Toggle Switch

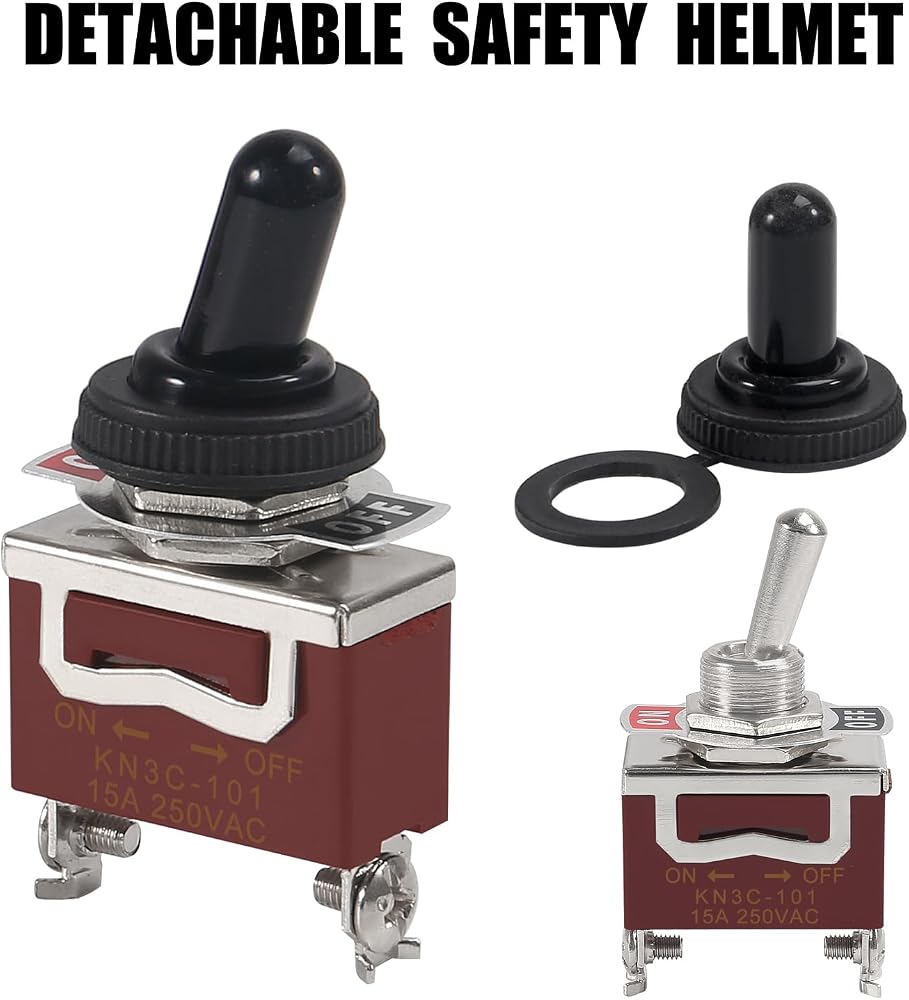

8 x Weatherproof Toggle Switch Cover
