H11/ H8/ H9/ 880/ 881 Fog Light Wiring Harness Kit

Specification:
Wire gauge: 16AWG
Wire core material: bare copper
Wire cover material: corrugated tube

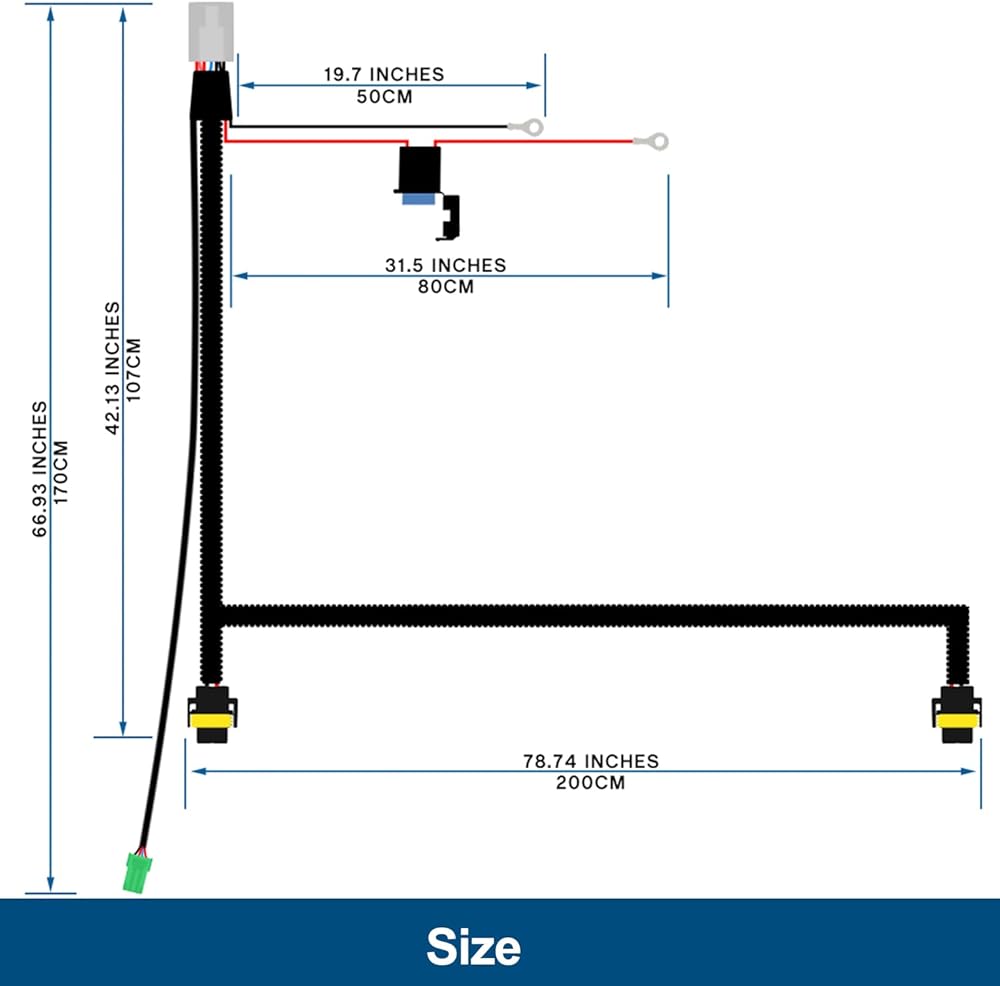

Wire length: 12ft (3.7m)
Switch operation: On-Off
Size of button switch: 22mm X 22mm
Button switch rated current & voltage: 3A 12V
Fuse spec: 15A ATO regular Bladder-type
Relay spec: 40A 12V SPST make and break

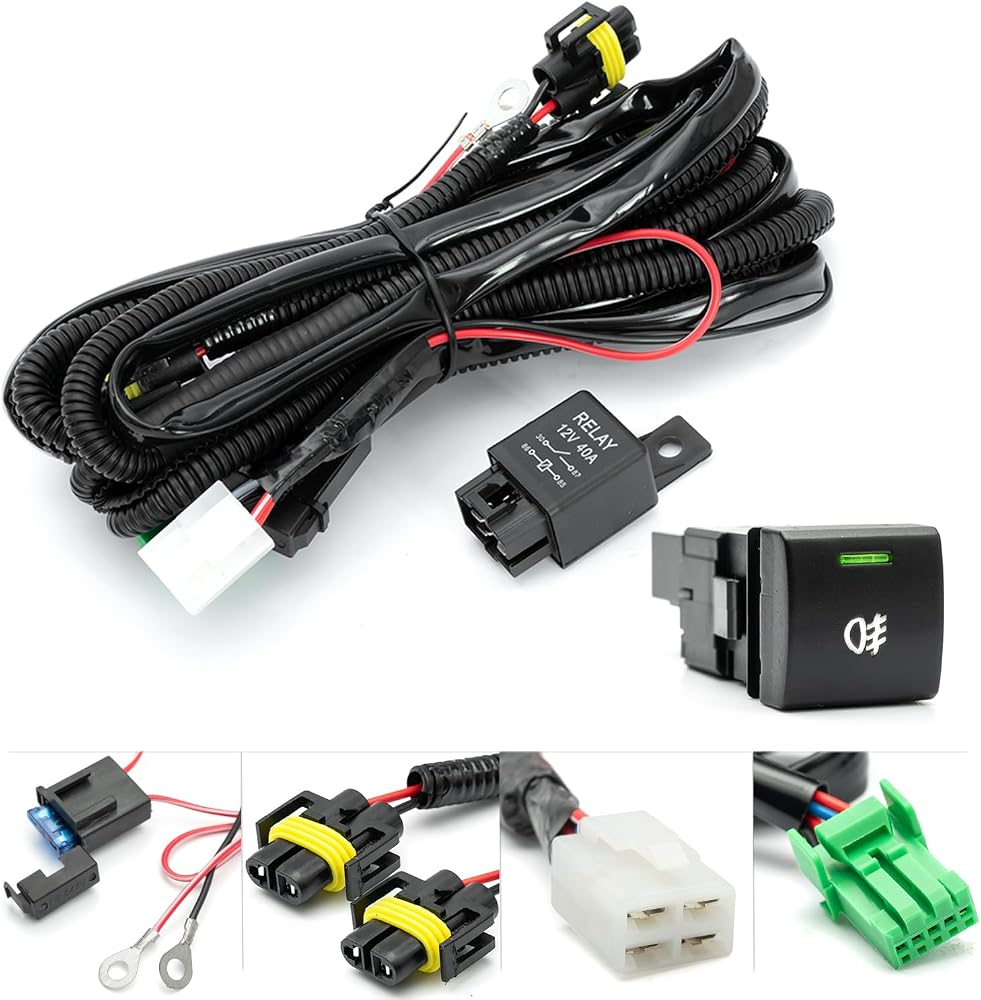

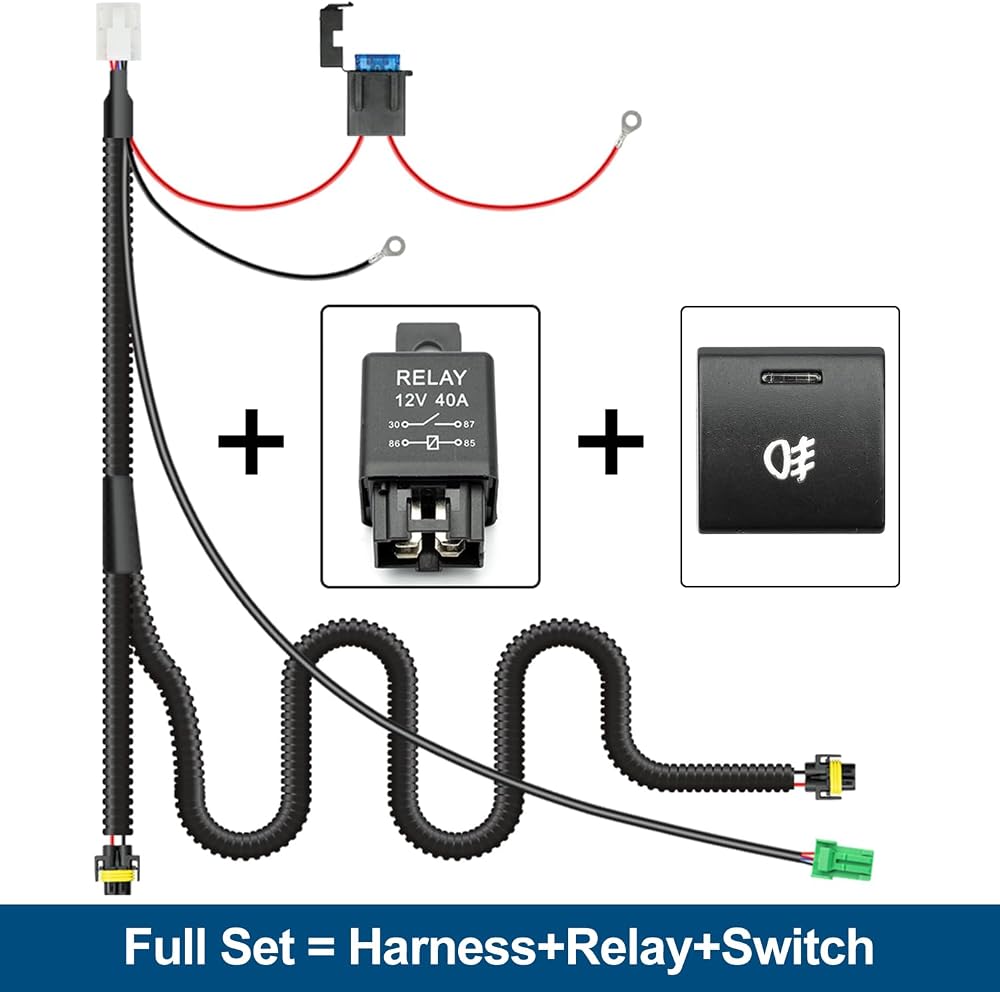

Package:

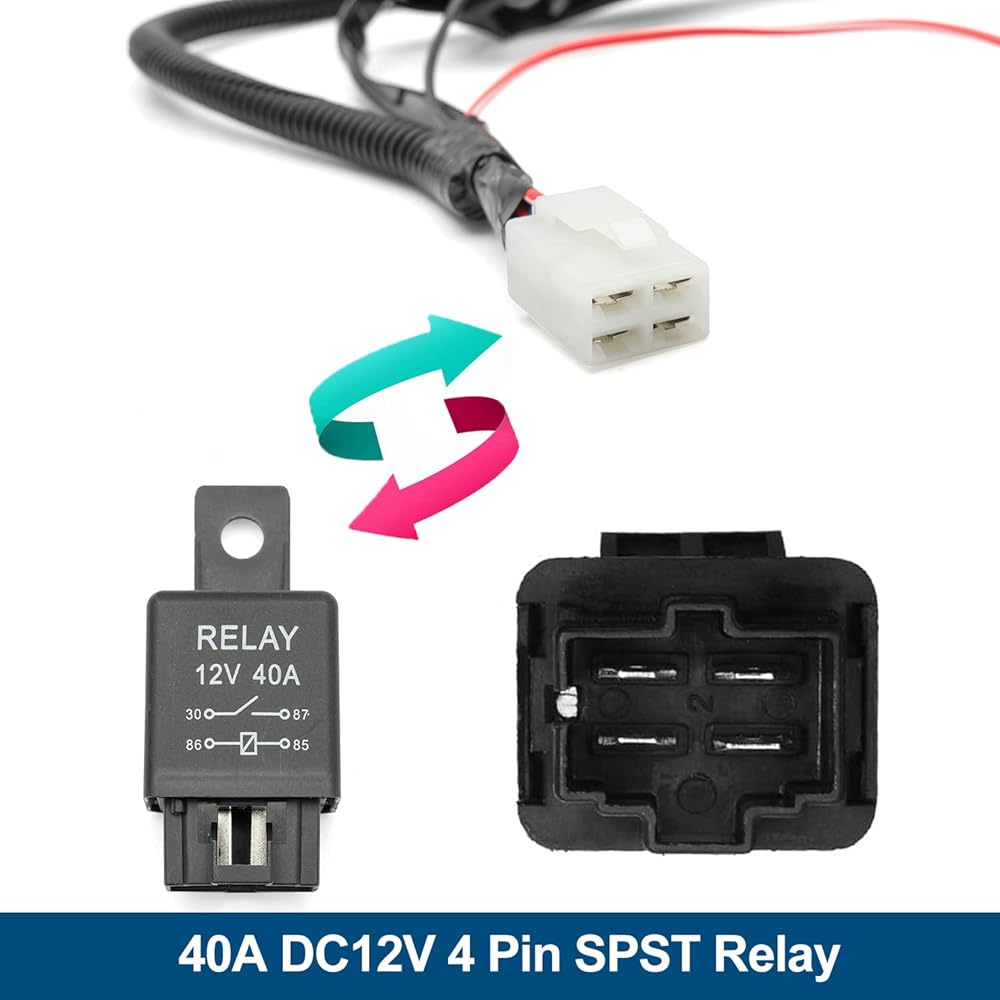

1X 40A 4 Pin SPST relay
1X 15A ATO regular blade-type safety fuse
1X Fog light wire harness kit for JK (fog light is NOT included)

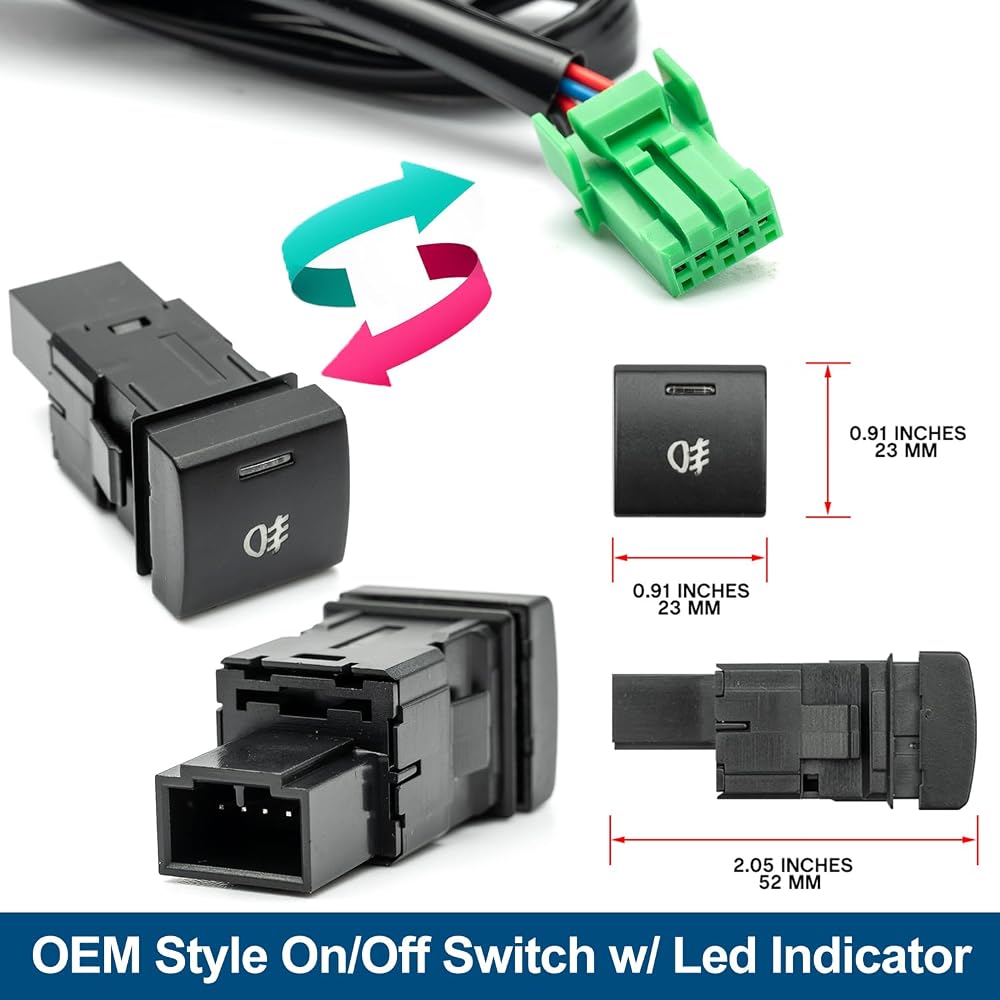

1X Factory Style Push Button Switch w/LED Background Indicator Lights (22mmX22mm Size)

Fitment:

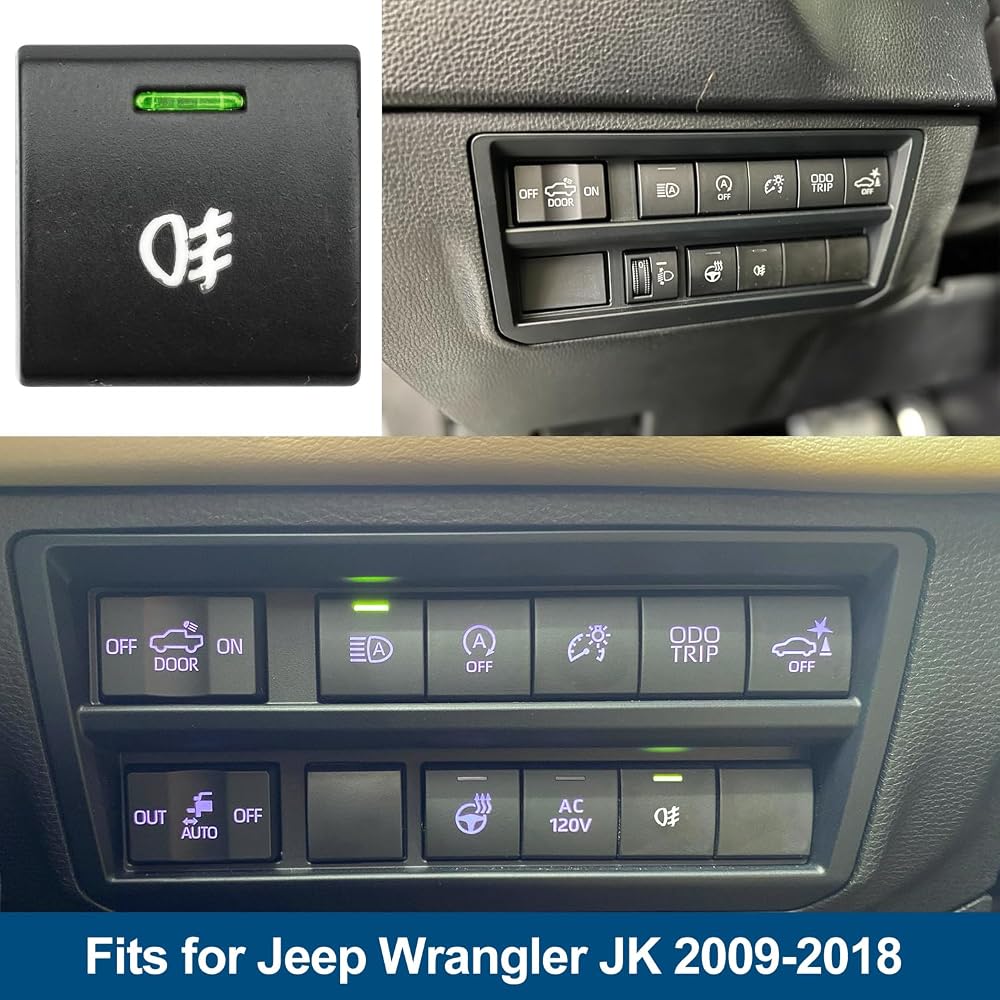

2009-2018 J-eep Wrangler JK

Feature:
Support up to 2 fog lights;
Stable characteristics, high reliability;
Professional installation is highly recommended.
Works with H8 H9 H11 880 881 lighting applications w/ easy installation process.
Good for any system between 9V-16V & under 130W.

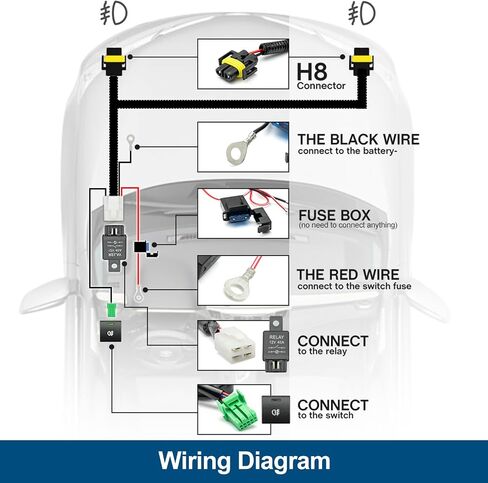

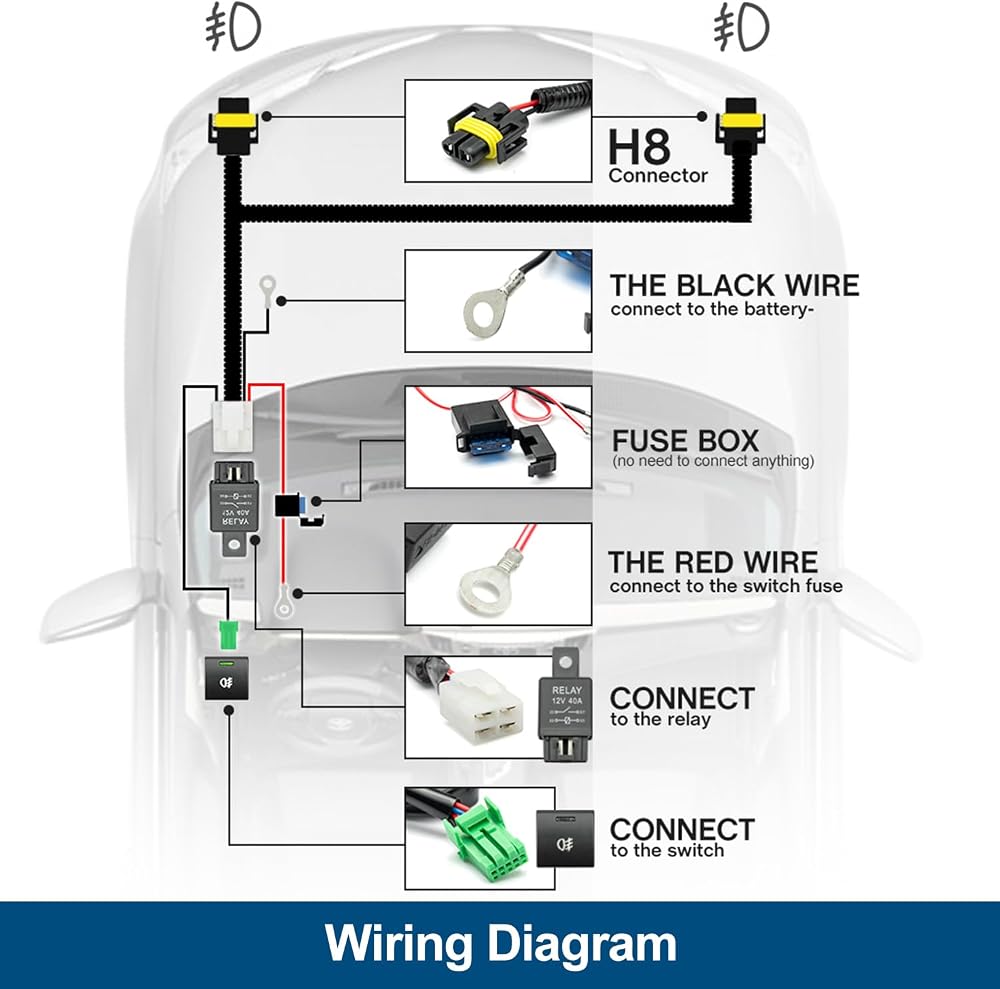

Come with relay module box, wiring harness w/ adapters, safety fuse box and LED indicator on/off switch.

Application:
-Fog lights replacement or add-on: This h11 fog light harness kit allows you to add fog lights by yourself. Good for replacement fog lamps, add-on fog lights, daytime running lights, driving lamps, work light, off-road lighting kit, etc.
-Independent control of fog lamps by switch: The h11 h8 fog lamp wiring harness enables you to independently control the turning on or off of the fog lamp by using the factory OEM style light switch, rather than turning on the fog lamp only after turning on the headlamp.
-Simultaneous lighting w/ headlight: Solve the problem that the fog lights automatically turn off when the high beam is on, both can be on at the same time.
-Solve voltage drop effectively: 16AWG is coarser to bypass higher effective voltage, greatly alleviate the voltage drop & achieve the fog lamp brightening effect.
