مميزات خاصة

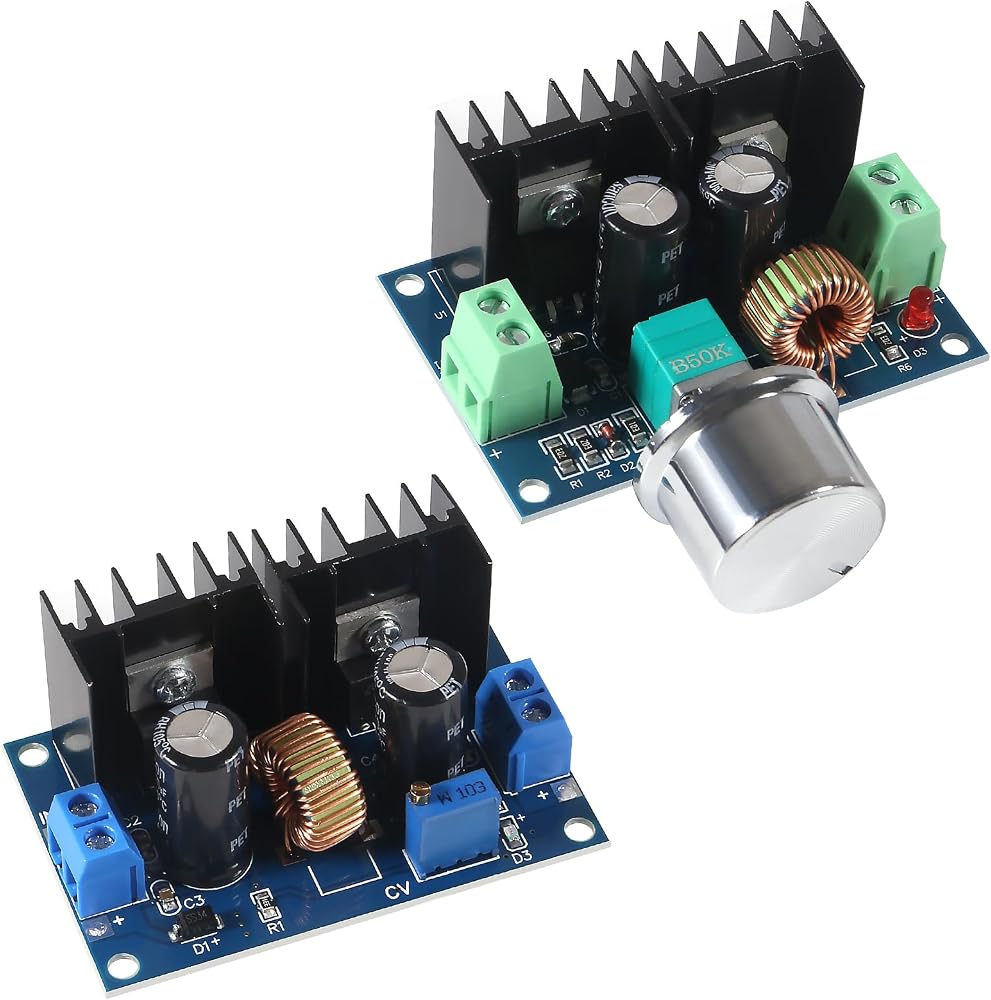

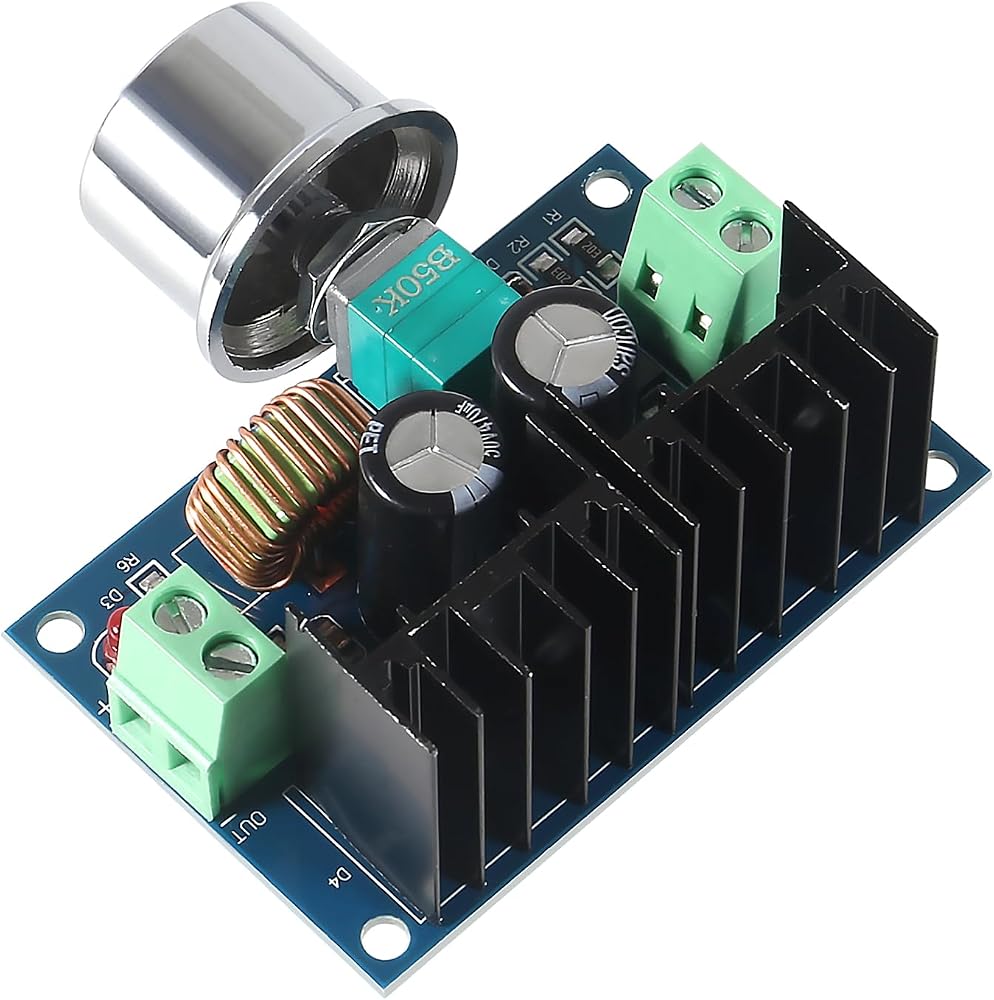

★Uses the XL4016 switch type voltage regulator chip, with MBR10200 double rectifier, the maximum input up to 1.25-36V, the output 40V continuously adjustable.
★Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection.
★Built-in protection devices, such as short-circuit protection or overheating protection, the greater during use.
★Without additional cooling, currents of up to 5A can be recovered.
★This value can be increased to 8A if a fan or similar is used for cooling.

وصف

Specifications:
Voltage Regulating Mode: PWM Modulation

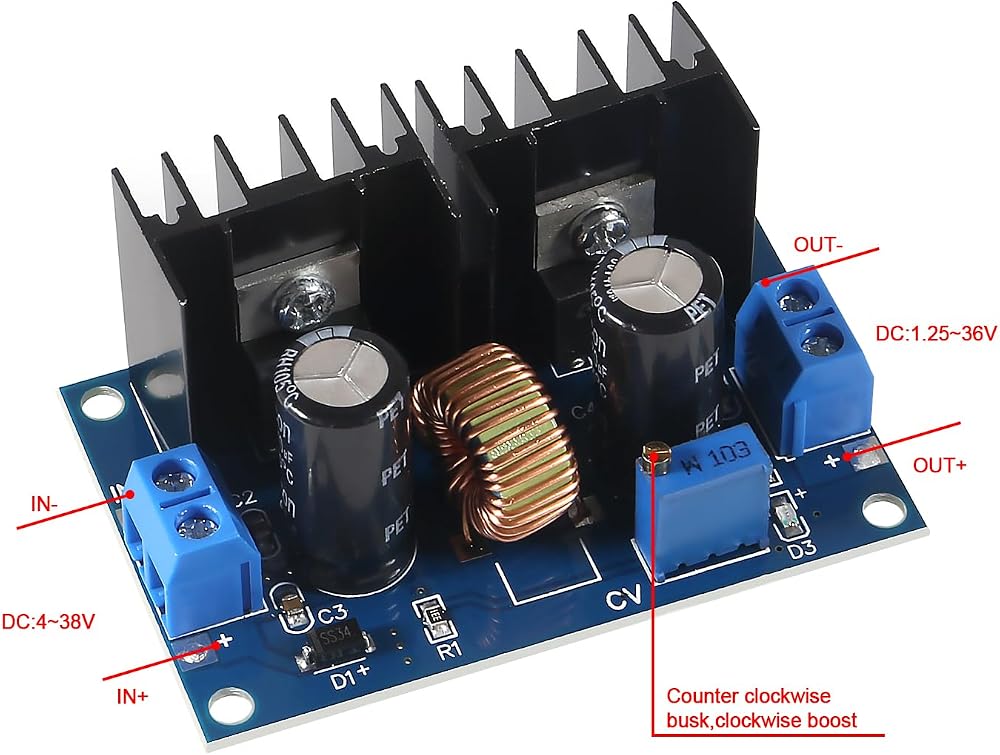

Input Voltage: DC 4-40V
Output Voltage: DC 1.25-36V
Max Output Current: 8A (more than 5A for long time use,need Fan if over 5A)
Max Power: 200W
Conversion Efficiency: 94%
Switching Frequency: 180KHZ

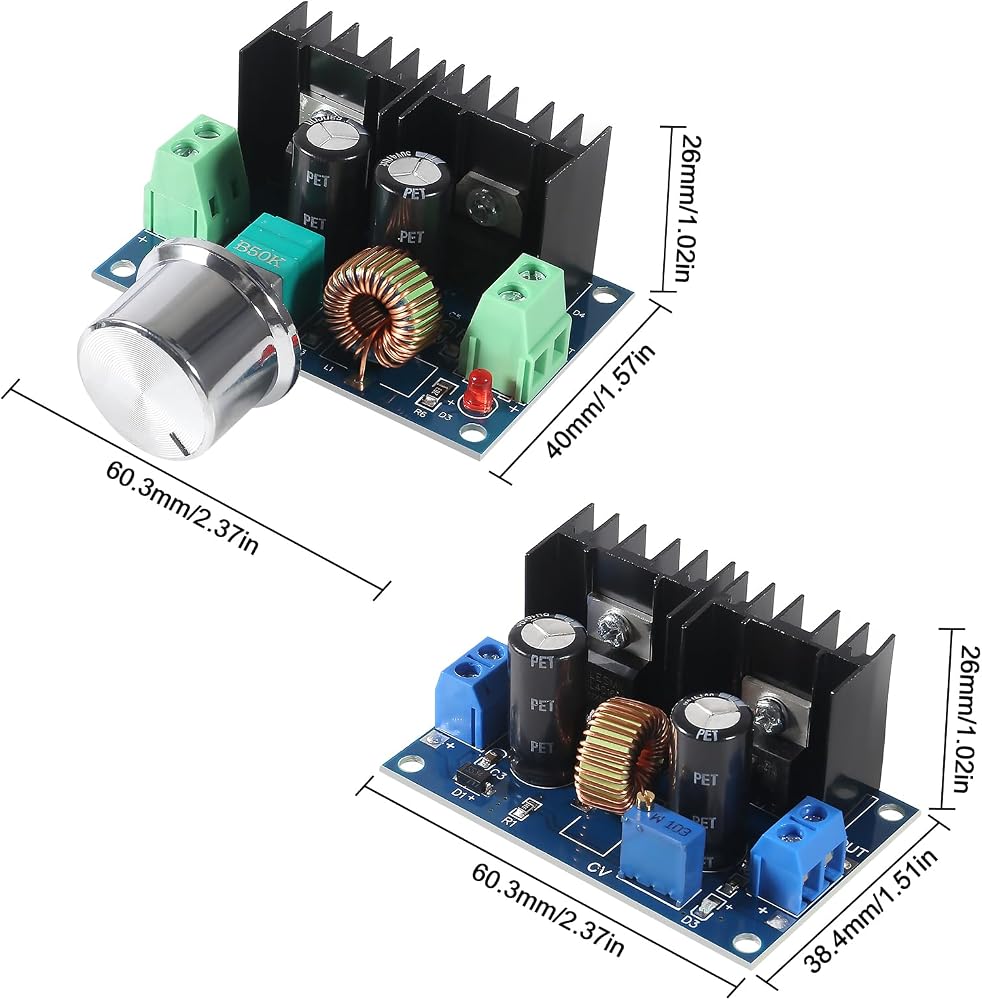

Dimensions: 61*41*27mm

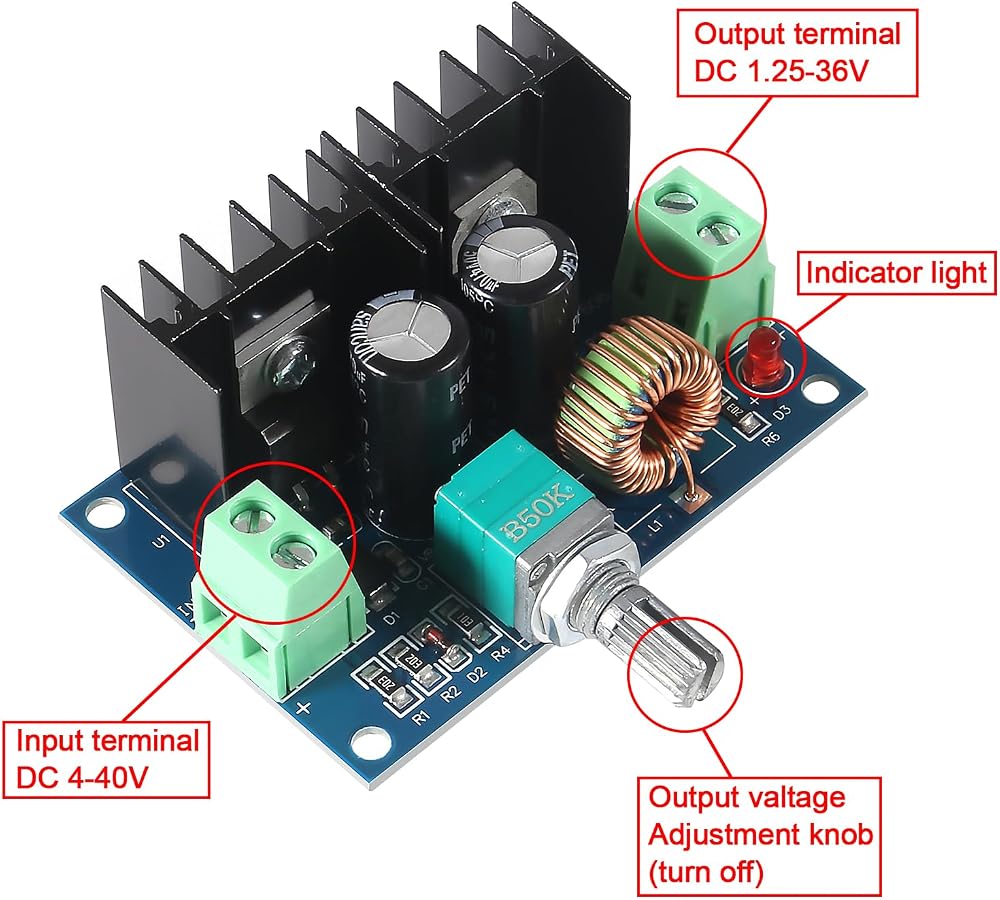

Panel Mounting:
1. Drill holes in the Panel 7mm
2. Extended potentiometer handle
3. Lock screw sleeve upper knob

Notes:
1. Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection.
2. When reach maximum output current 8A, need to add fan. Long term work recommended about 5A.

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

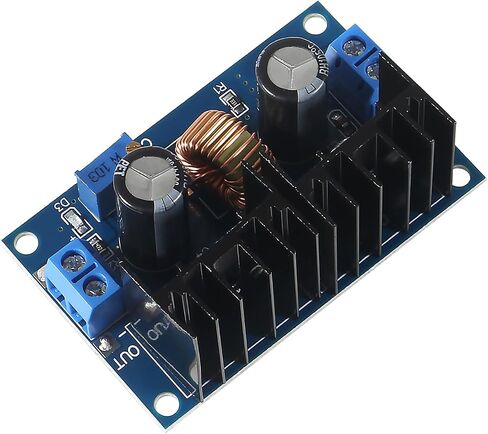

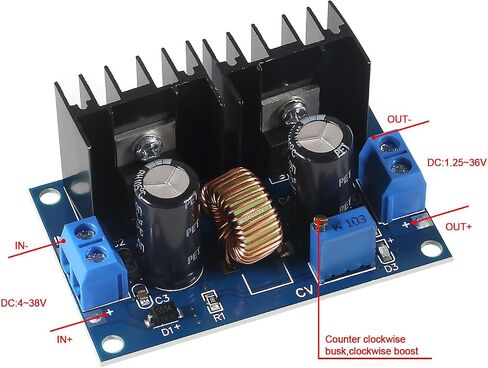

XH-M401 XL4016E1 8A 200 واط PWM قابل للتعديل 4-40 فولت إلى 1.25-36 فولت تيار مستمر تنحى محول فرق الجهد وحدة الطاقة (مجموعة 1 + 1 قطعة)
