ISURE MARINRE 4 Steps Pontoon Boat Ladder Folding Telescoping Rear Entry Inboard Stainless Steel Swim Deck Ladder
Specification :
Condition : 100% Brand New
Item Type : Boat Folding Ladder
Color : Sliver.
Material : 316 Stainless Steel
Mounting Holes: 7
Hole Diameter: 1/4"
Handle Height: 17"

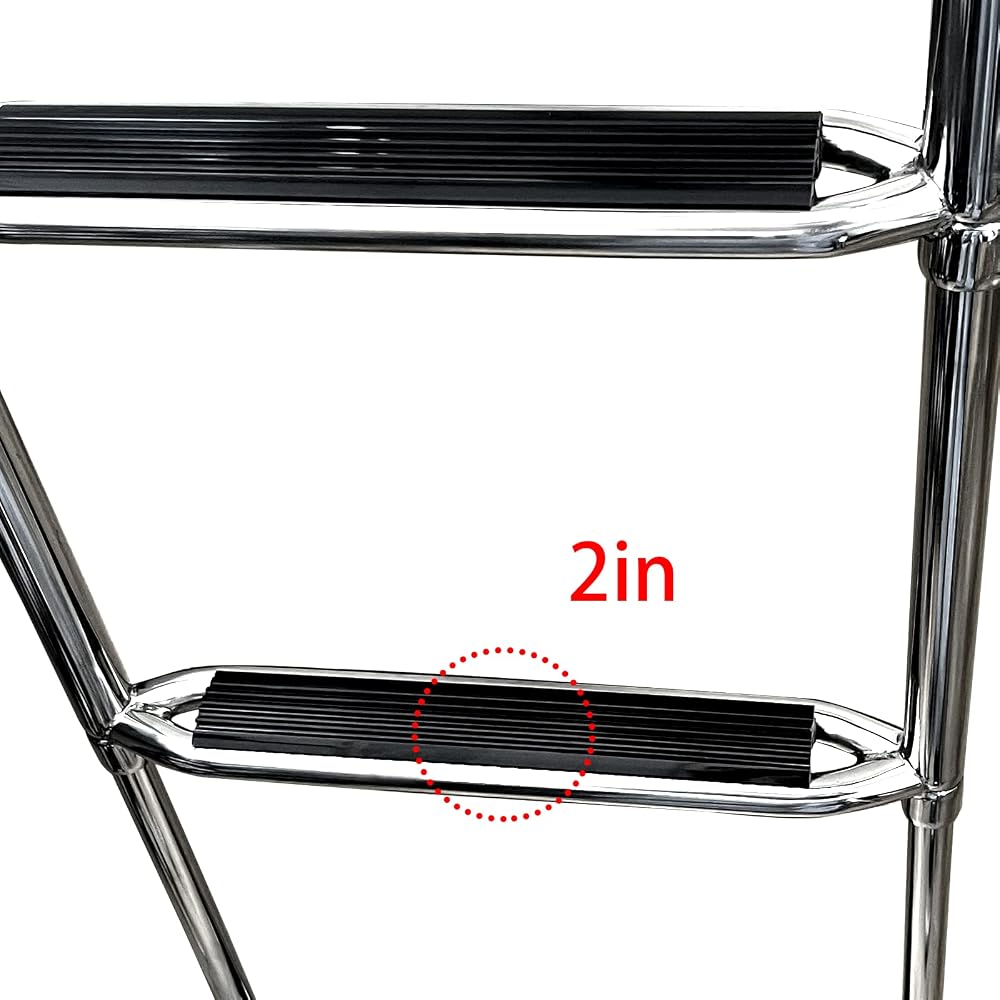

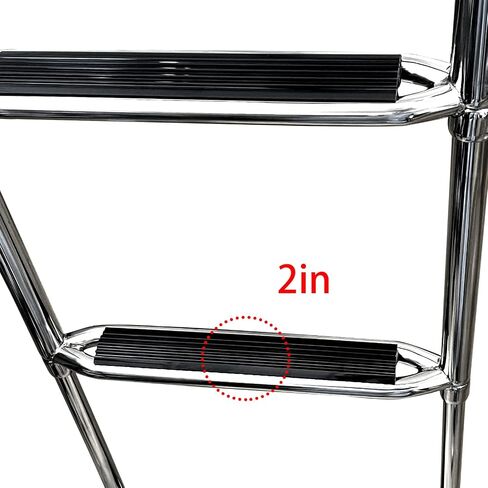

Comfortable 2" Wide steps.

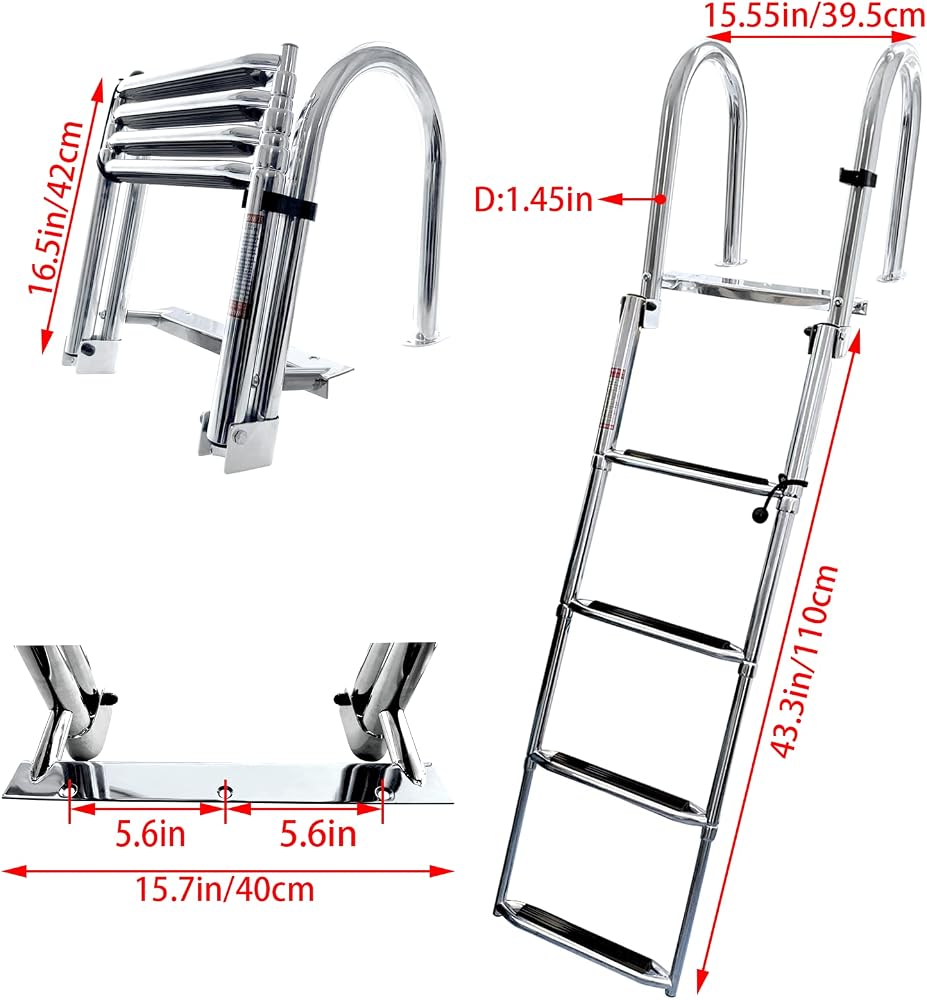

Overall Ladder Width: 16.25"
Distance to first step: 10.5"
Distance Between Steps: 10"
Ladder Length (extended): 41.375"
Ladder is constructed of 1.5" diameter thick,316 stainless steel tubing.
Feature:
Telescopic length 445mm (min) to 1066mm (max)
600-lb. Max weight capacity.
This telescopic boat ladder is made to be bolted to a horizontal platform such a the boat floor or side railings depending on the installation.
The design of this platform ladder makes it possible to be used as on a pontoon boat.

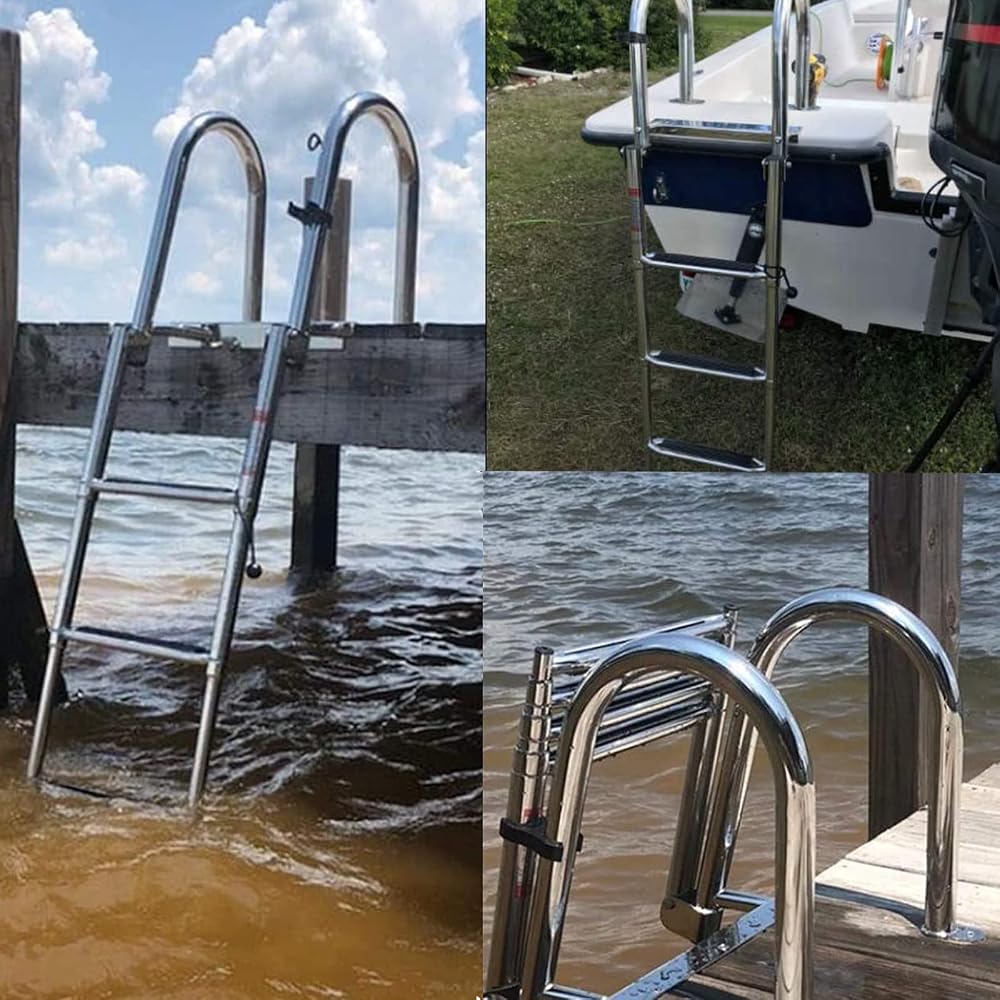

Some of customers have also used this as a low profile dock ladder.
Installation Step 1
Use M8*40 self-tapping screw to fixl-shaped plate to your platform.
Installation Step 2
Fix handrail to L-shaped plate with M8*50 bolts, and then fix the front end of handrail to the platform with M8*40 self-tapping screw.
Installation Step 3
Finally use nuts and M8*60 bolts and nylon spacer to fix the steps to handrail. And cover PP caps onto both the head of nuts & hexagon bolts.
After the installation is successful, please slowly lower the ladder.
Wide Application :
This telescopic boat ladder is made to be bolted to a horizontal platform such a the boat floor or side railings depending on the installation.
The design of this platform ladder makes it possible to be used as on a pontoon boat.
Some of customers have also used this as a low profile dock ladder.
Package Includes:
1* Boat Folding Ladder
