Please verify that the connector you see in the picture matches the receptacle on your golf cart
Transform the household AC power to DC power for golf cart battery
Fully automatic battery charging(completes the charge cycle and goes to "float" charge)
Designed not to overcharge or undercharge your golf cart battery
Floating charge helps extend your battery life and help out for better performance
With short circuit,over voltage,over temperature,reverse backup,over heat protection(when inside temperature over 75 degree Celsius,it stop charge for about 10 seconds and then recover automatically)

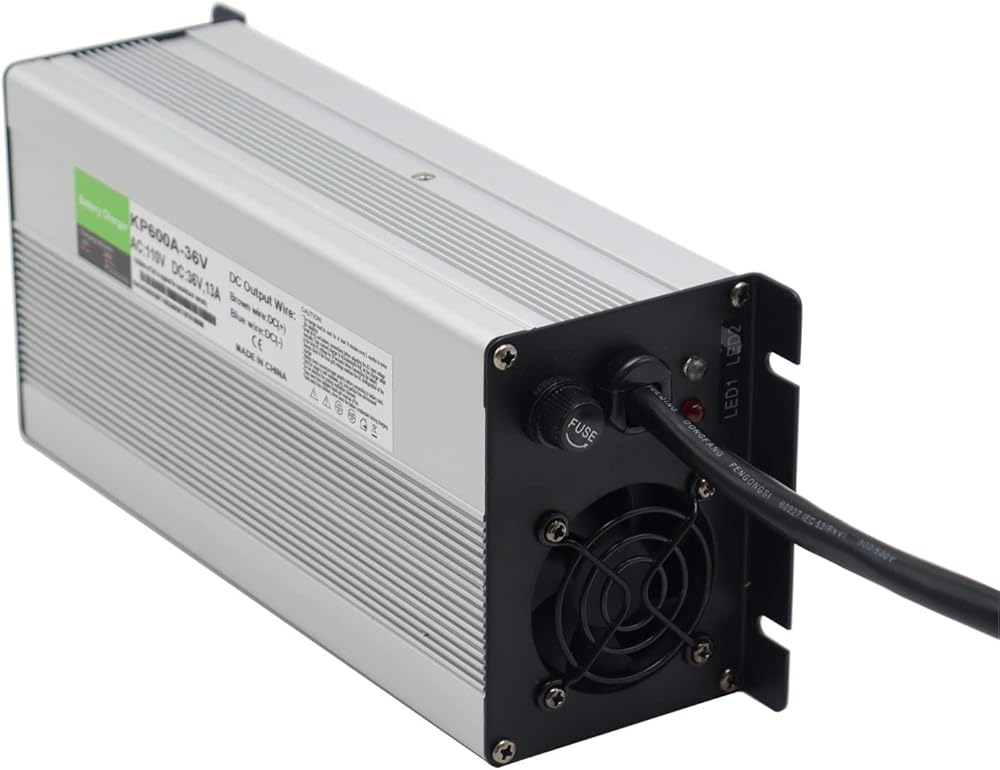

Built-in automatic fan forced ventilation(fan runs when inside temperature over 40 degree Celsius,and it stop below 40 degree Celsius)

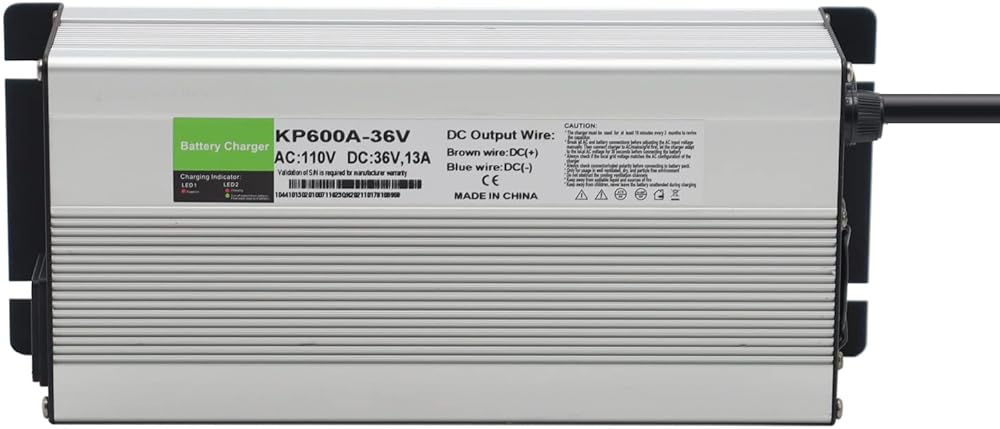

Technical Specification
Input Voltage: AC 110V
Output Voltage: DC 36V 13A
10-14 hours Recharge Time

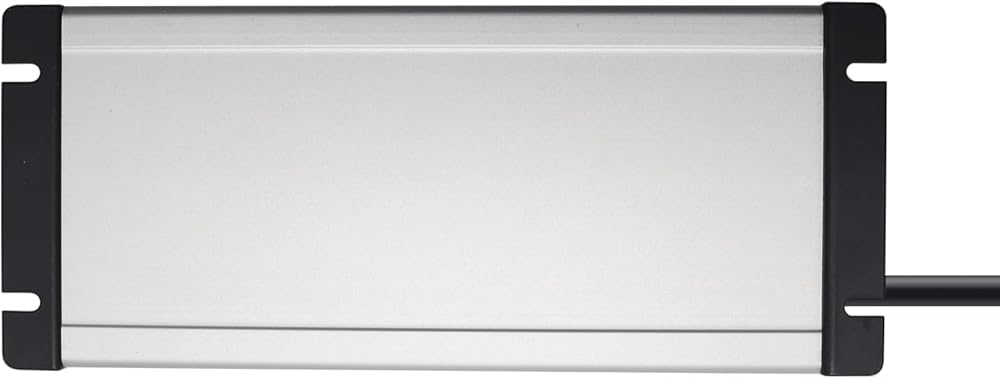

Silver Aluminum with fins design as heat sink

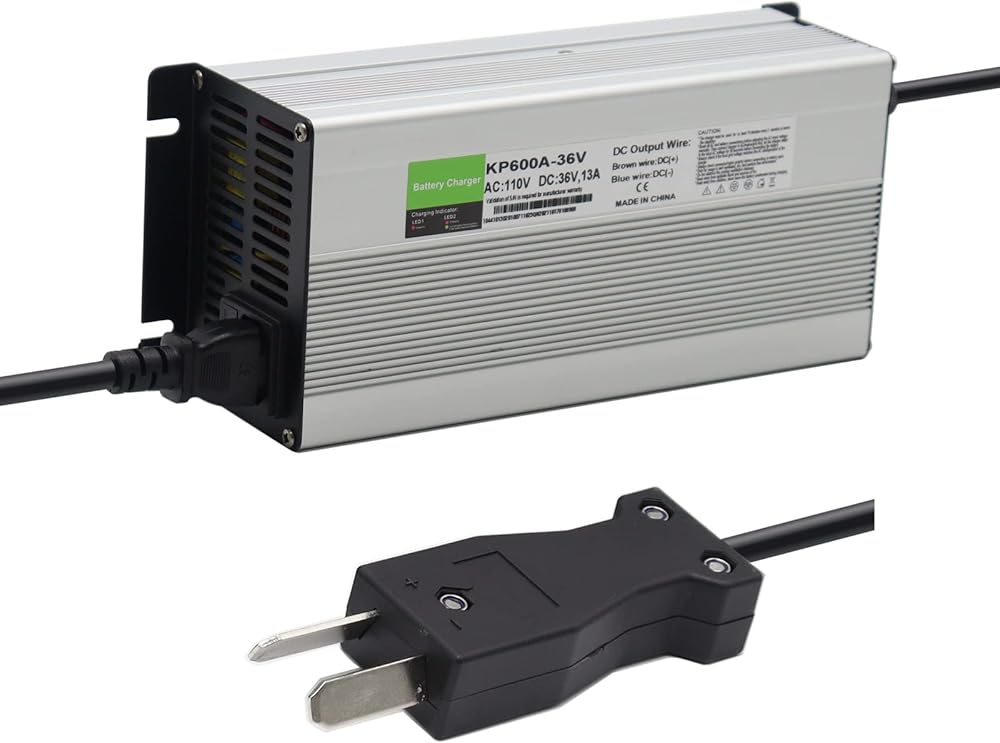

Plug Standard: Crows Foot Style Plug
Equipped with 2 LED Lights as indicators to show charging status
LED 1: Red--- AC power on
LED 2: Red---charging;Green---fully charged
100% full load burnt-in test

Note: This charger with a Relay for Reverse Polarity Protection, it doesn't have output voltage and current when charger AC power on but disconnecting with the battery. It will have voltage and current output when it connects with battery.

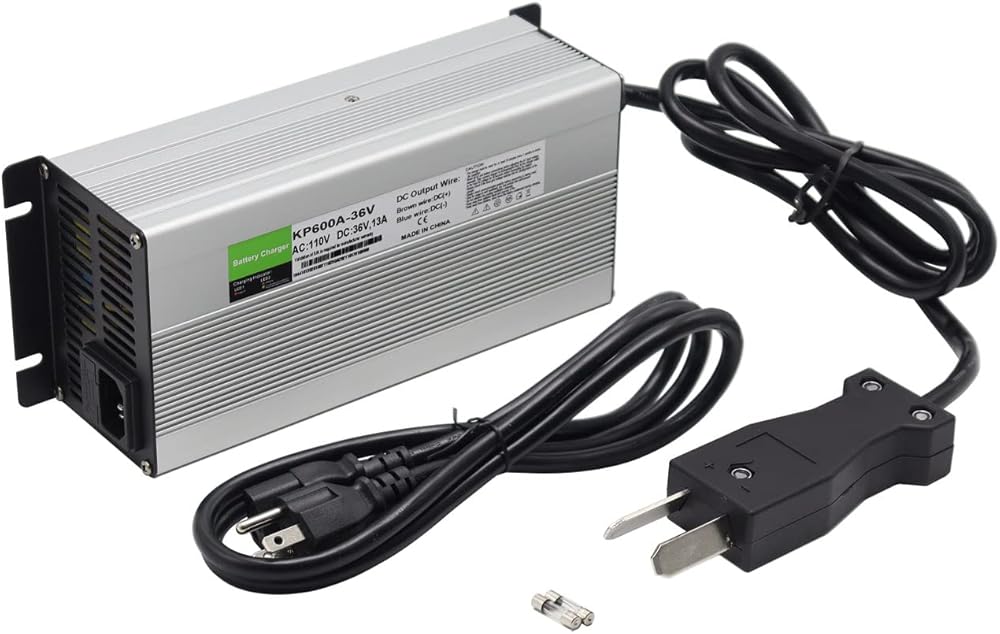

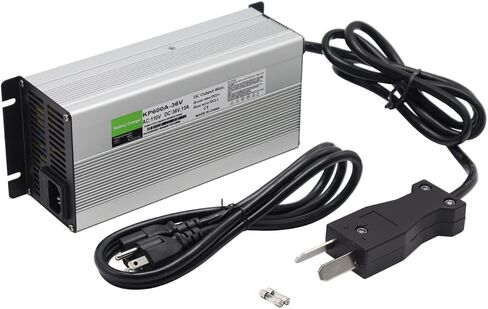

Package Included:
1x 36V 13A automatic golf cart battery charger
1x AC power cord (Crows Foot Style Plug)
