Technical Specifications
Voltage: 12 VDC
Dimensions: 8.25" X 5.30" X 6.0"
Inlet / Outlet: 1/2″-14 MNPT
Flow Rate: 3.0 GPM
Amps: 6.0 (12.0 Max. Amps)
Shut-off Pressure: 70 PSI
Weight: 6.1 lbs
Features:

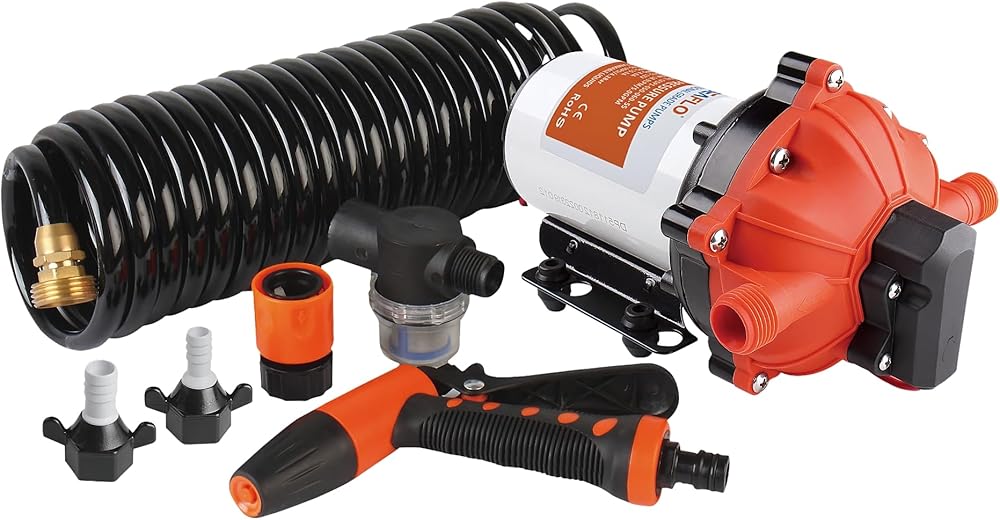

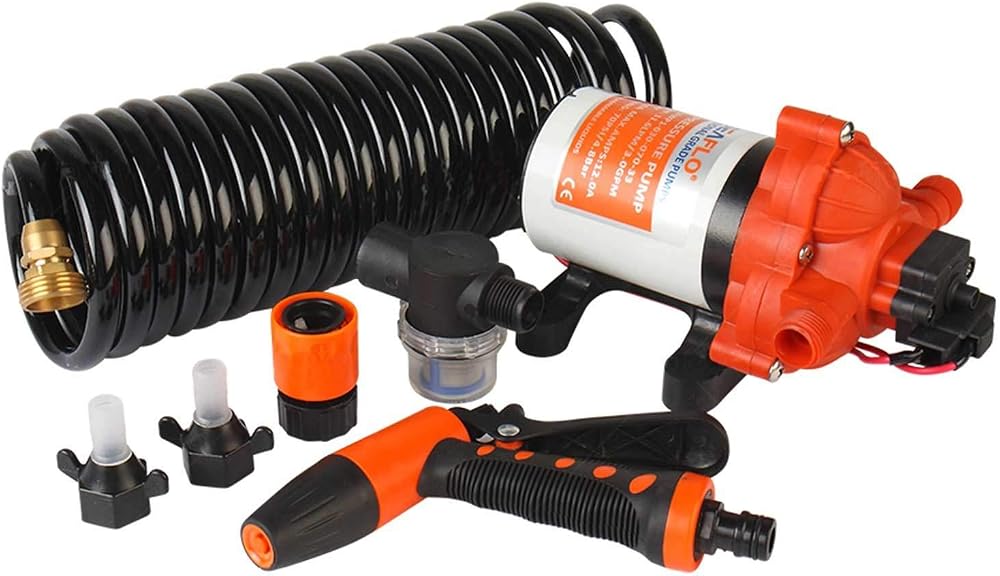

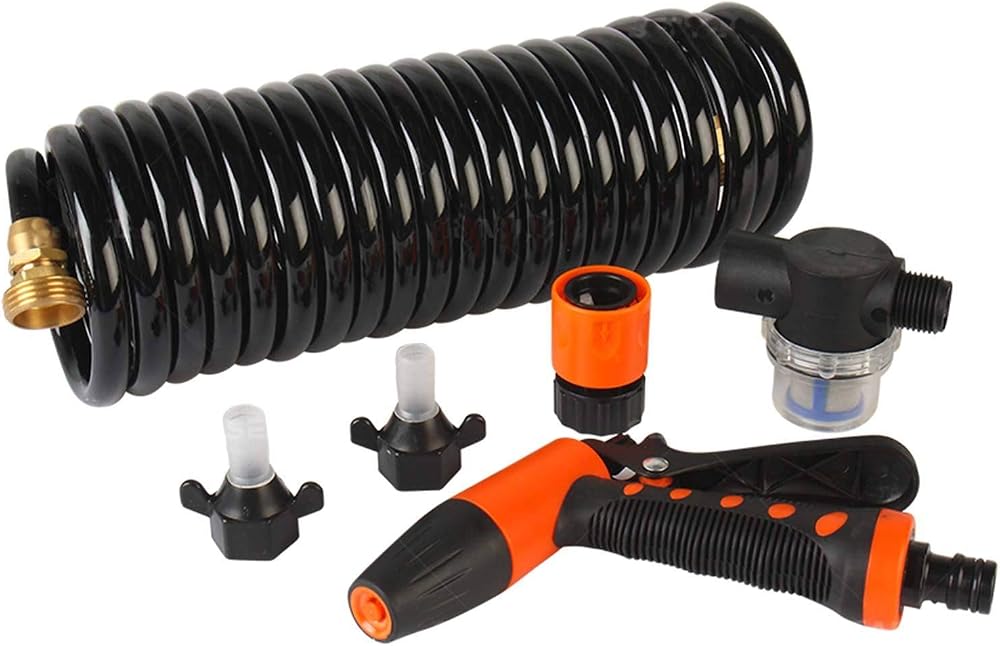

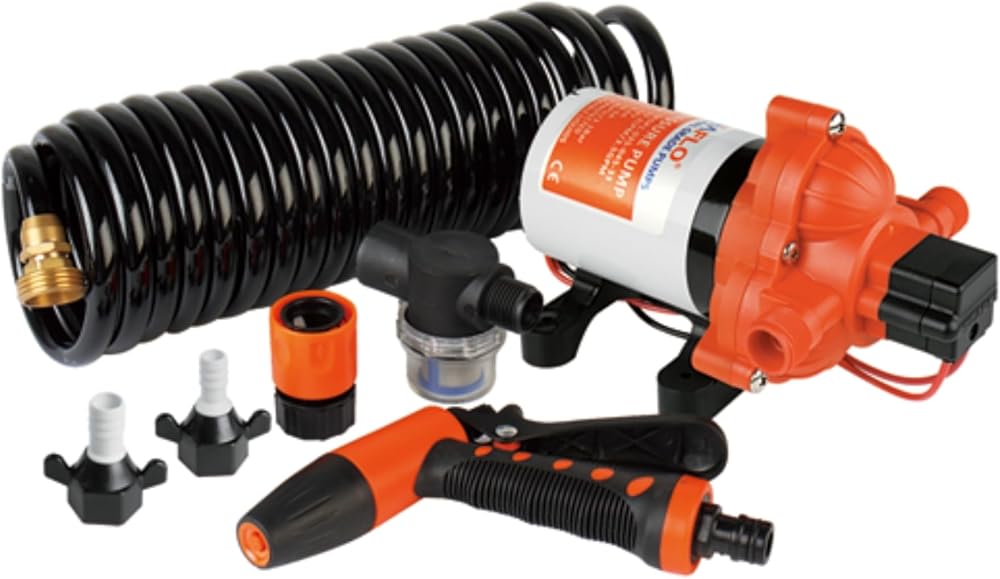

Complete washdown pump kit with spray nozzle and coiled hose

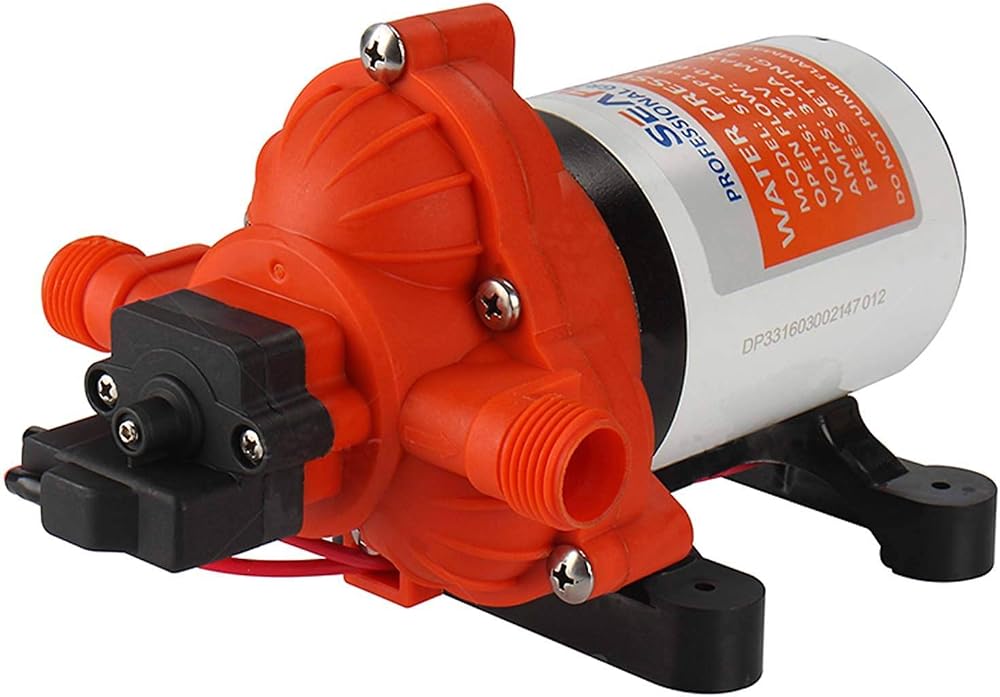

Powerful 5-chamber positive displacement diaphragm pump, for smooth and quiet flow
Professional grade pump - Ideal for cleaning boats, fish boxes, anchor wells, dinghies and caravans
Multi-step corrosion protection and seamless motor body for enhanced protection
Rubber mounting feet for corrosion protection and noise reduction
Santorprene diaphragm - Can run dry without damage
Thermal overload and ignition protection
Easy connecting system

PUMP:

Type: 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Mode: Demand Liquid Temperature:140°F (60°C) Max.
Priming Capabilities: 6 feet (1.8 m) suction lift.
Inlet/Outlet Ports: 1/2" -14MNPT.
Wire Connections: 2-Pin/Leads.
Weight: 8.2 lbs(3.72 kg).
Voltage:12V.
Current:18A
Valves: EPDM.
Diaphragm: Santoprene.

MOTOR:

Temperature Limits:140°F (60°C) Max.
Duty Cycle: Intermittent.
Leads: 16 AWG, 4.5" long.

Application:

Marine.
General Industrial.
Automotive.
RV
