Product Description:
24VDC 30/40AMP waterproof relay external motor with wiring harness.
5-pin SPDT relay
High quality, direct replacement. Durable and stable
Easy to install without modification.
Installation method:

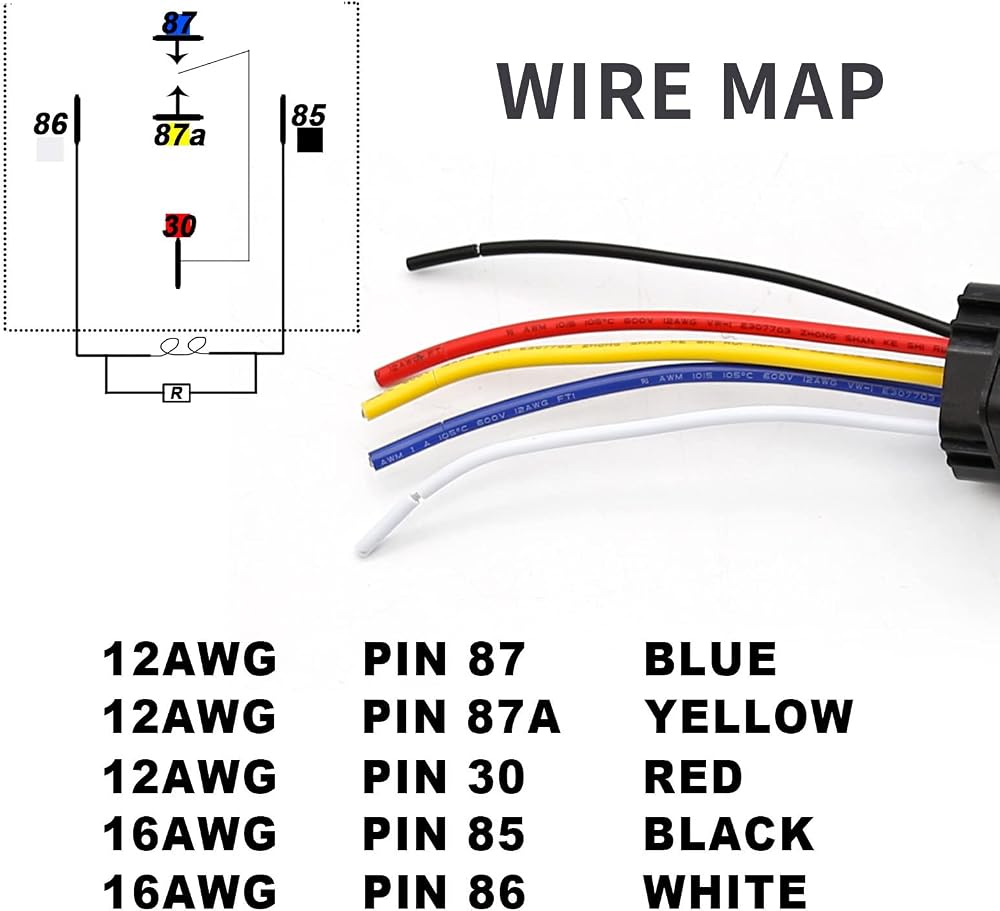

85 Coil, Ground BLACK
86 Coil, Trigger WHITE
30 Common connection to NO & NC terminals RED
87 Normally Open (N/O) BLUE
87a Normally Closed (N/C) YELLOW
Reminder?
Two circuits (terminals 87 and 87a ) have a common terminal (30). When the relay is at rest 87a is connected to 30, and when the relay is energized 87 becomes connected to 30 (but never both at the same time)
Features?

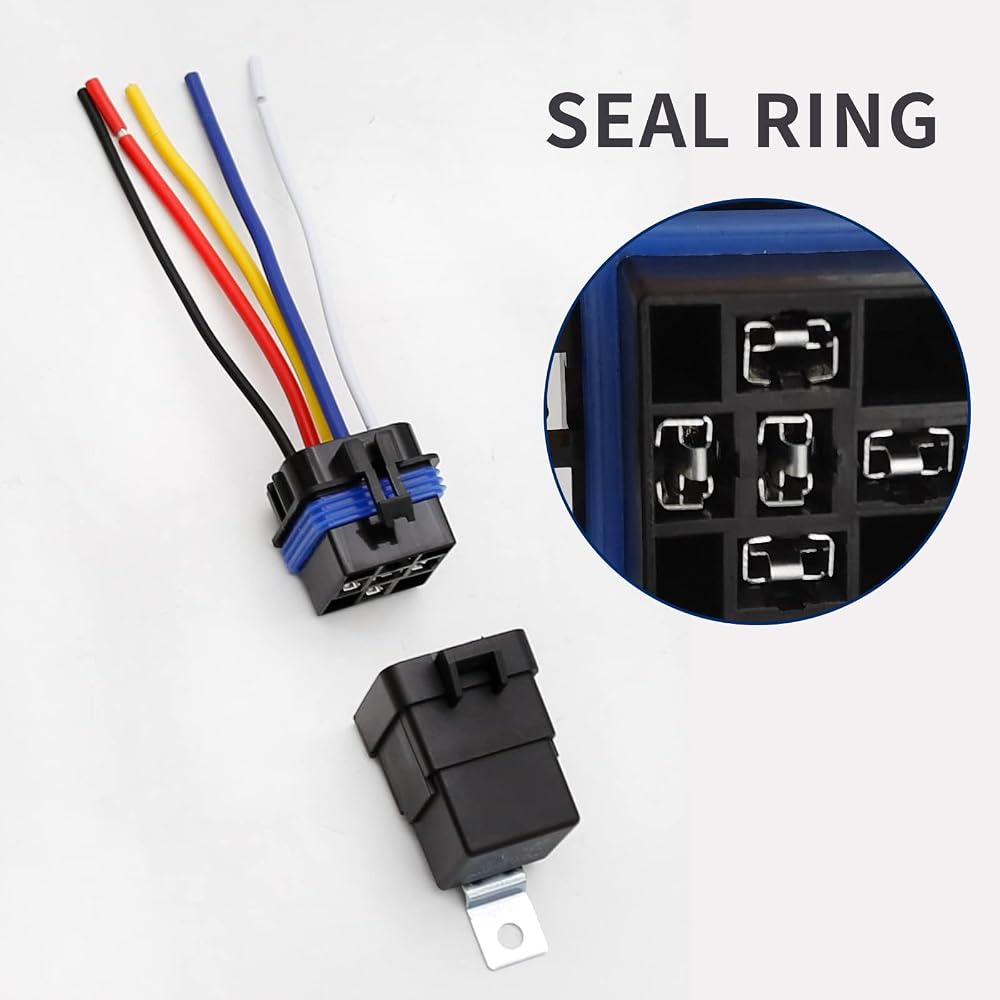

The 5 terminals of the relay have been sealed, which will bring more stable performance.
Product parameters:

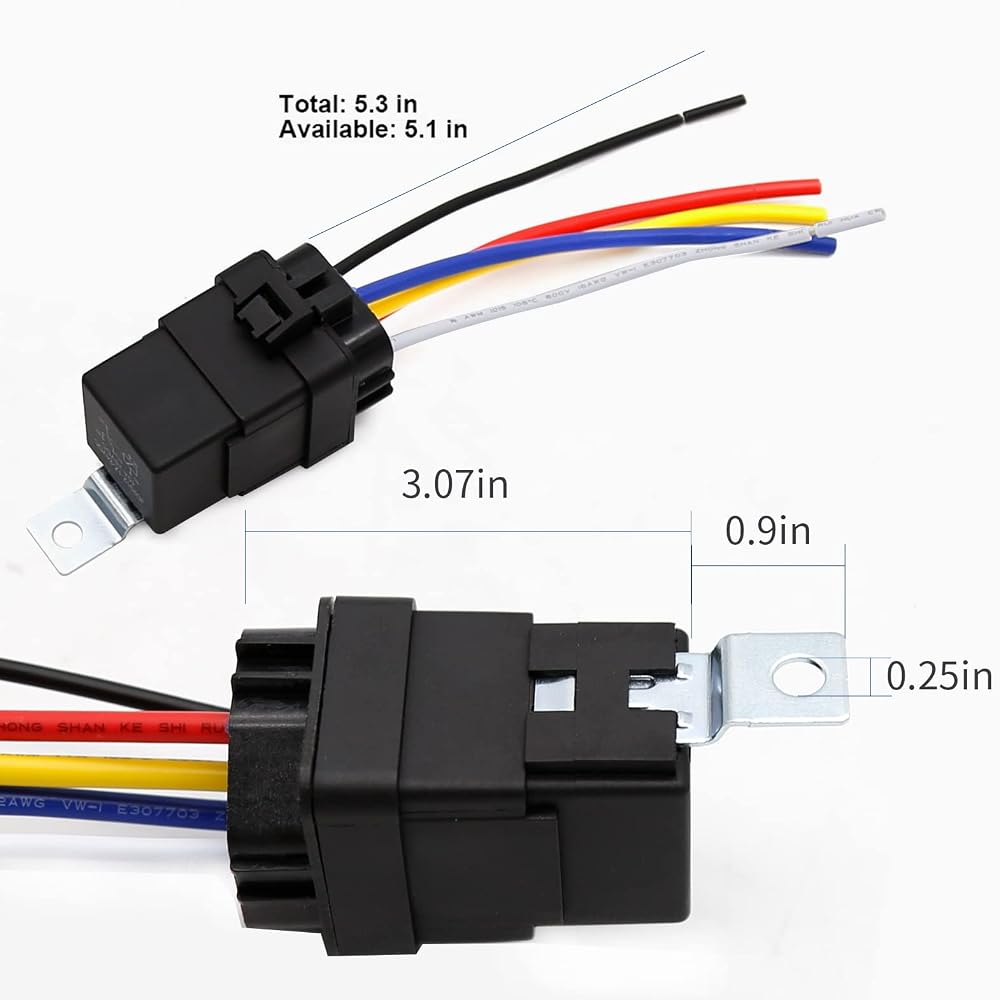

1.21(lb)?
Length: 7.87(inch)
Width: 1.57(inch)
Height: 1.57(inch)
Package delivery includes:

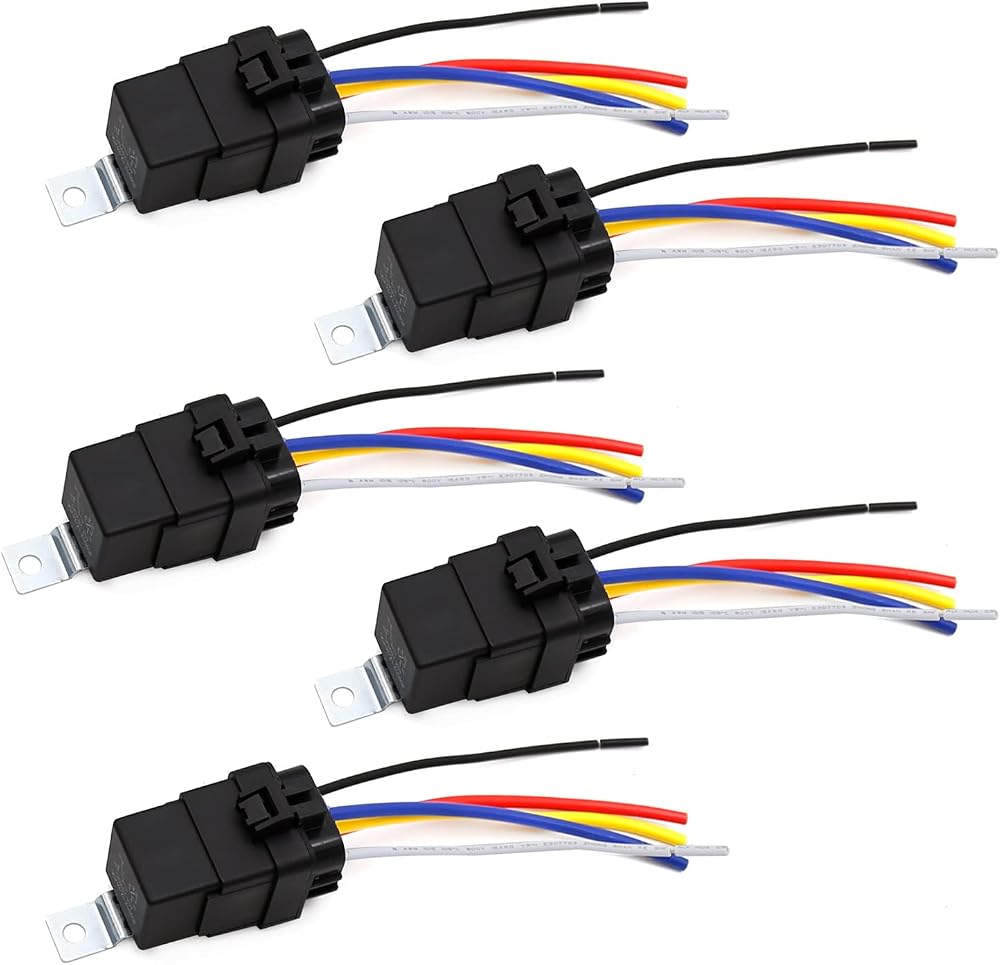

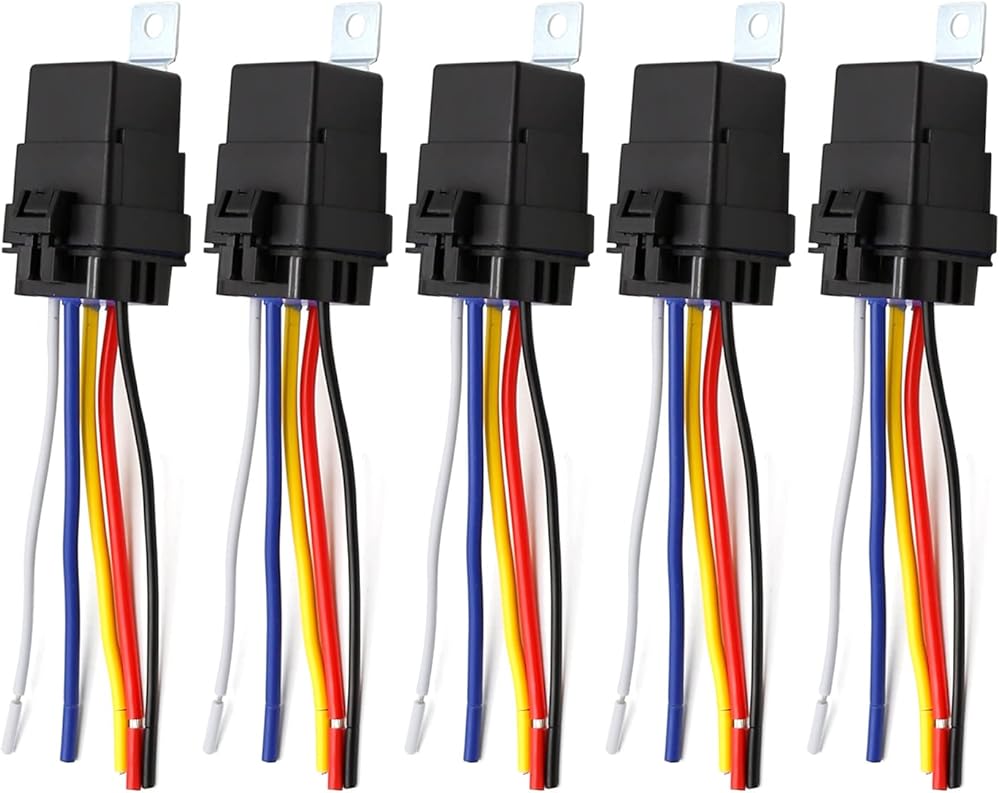

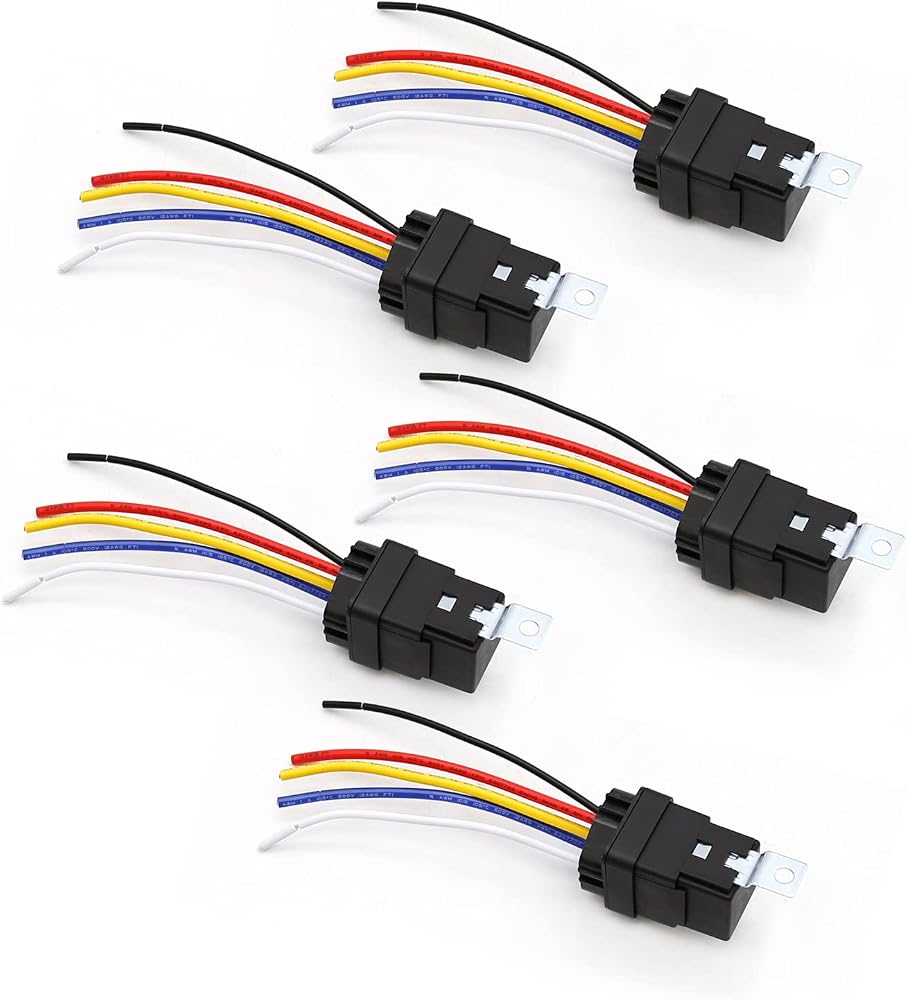

Pack of 5 24VDC 30/40AMP Waterproof Relays
