Technical Parameter:
Voltage Measure Range: DC 0.00-33.00V
Current Measure Range: DC 0.000-3.000A
Time Measure Range: 0-99h59 min
Power Measure Range : 0-99.00W
Temperature Measure Range: -15°C~60℃
Capacity Measure Range: 0-99.999Ah
Energy Measure Range: 0-999.99Wh
Voltage Measure Accuracy: ± (0.3% + 2 digit)
Current Measure Accuracy: ± (0.8% + 3 digit)

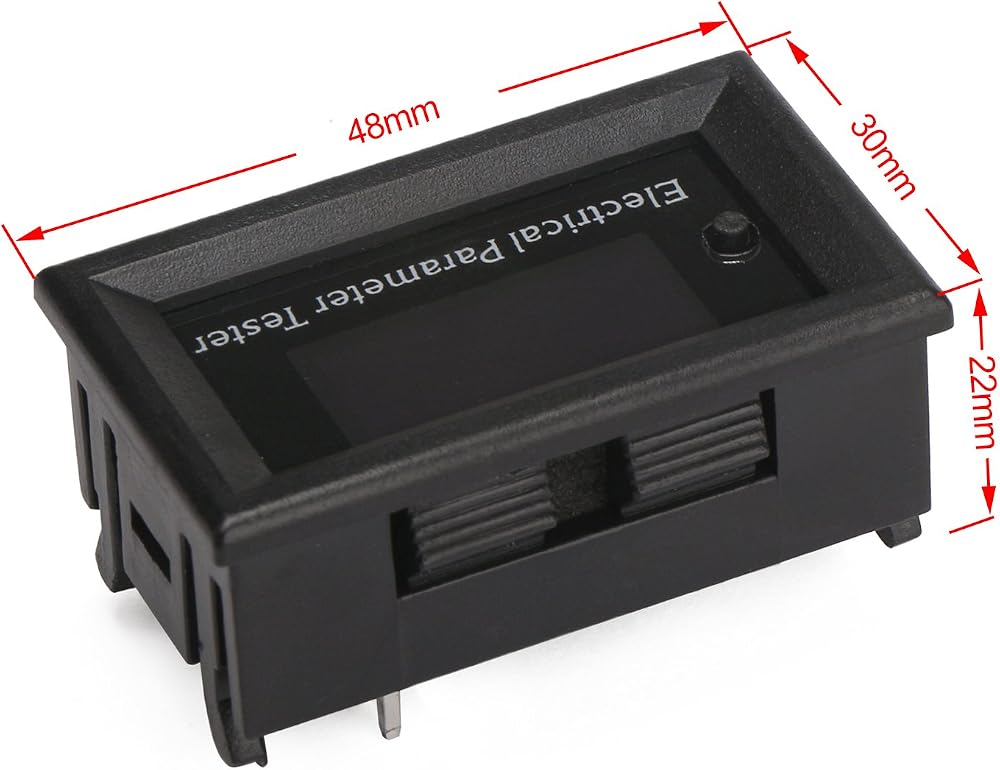

Product Size: 48 × 29 × 22 mm

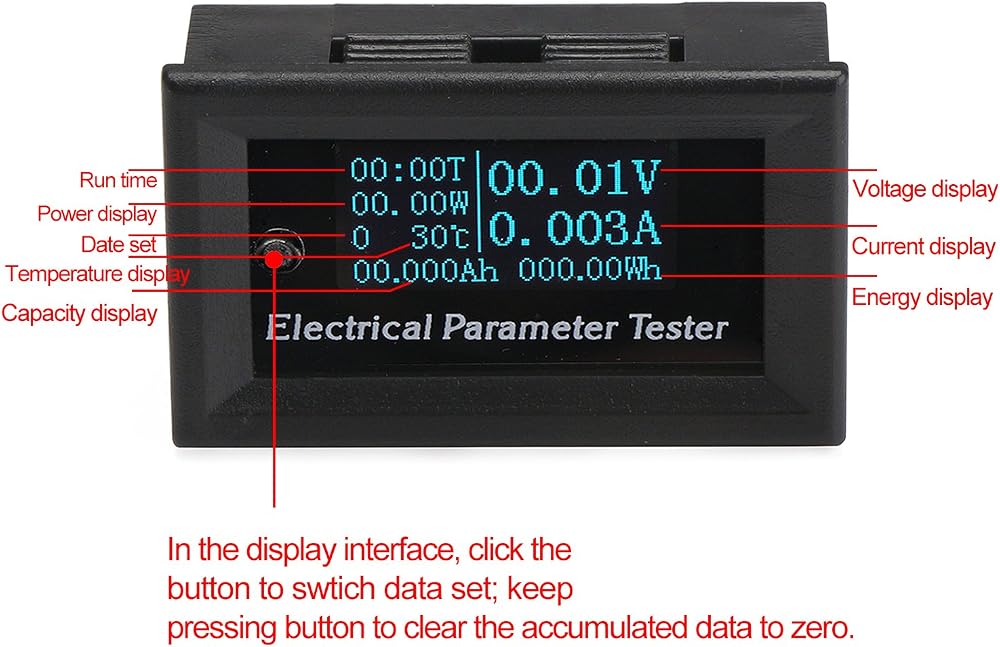

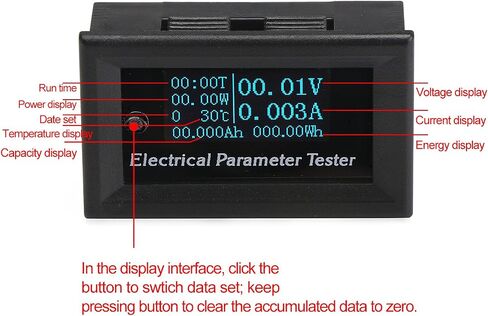

Button Function Instruction
In the display interface, press the button to switch data set; long press button to clear the accumulated data to zero.

Note:
1. The component aging and temperature variation after long-term use may appear tiny error when measuring small current. To avoid this error, you can unplug the current wire socket and then long press the button to power it until the screen display “AAA”, then loose button.

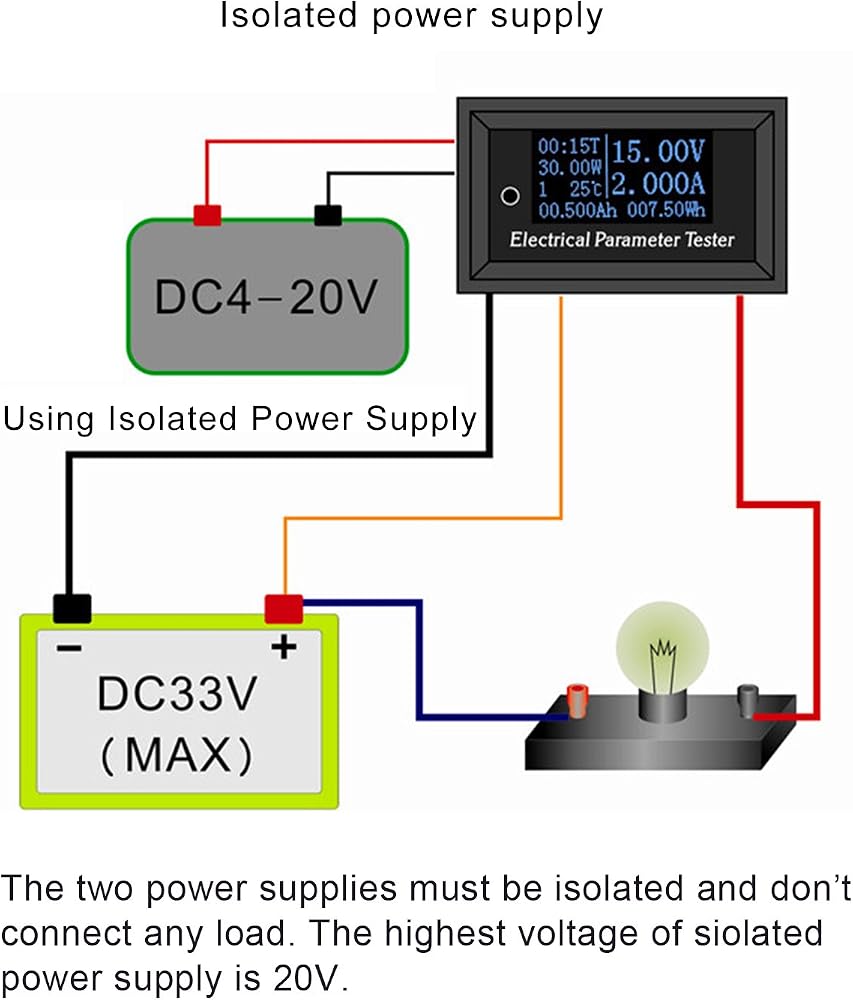

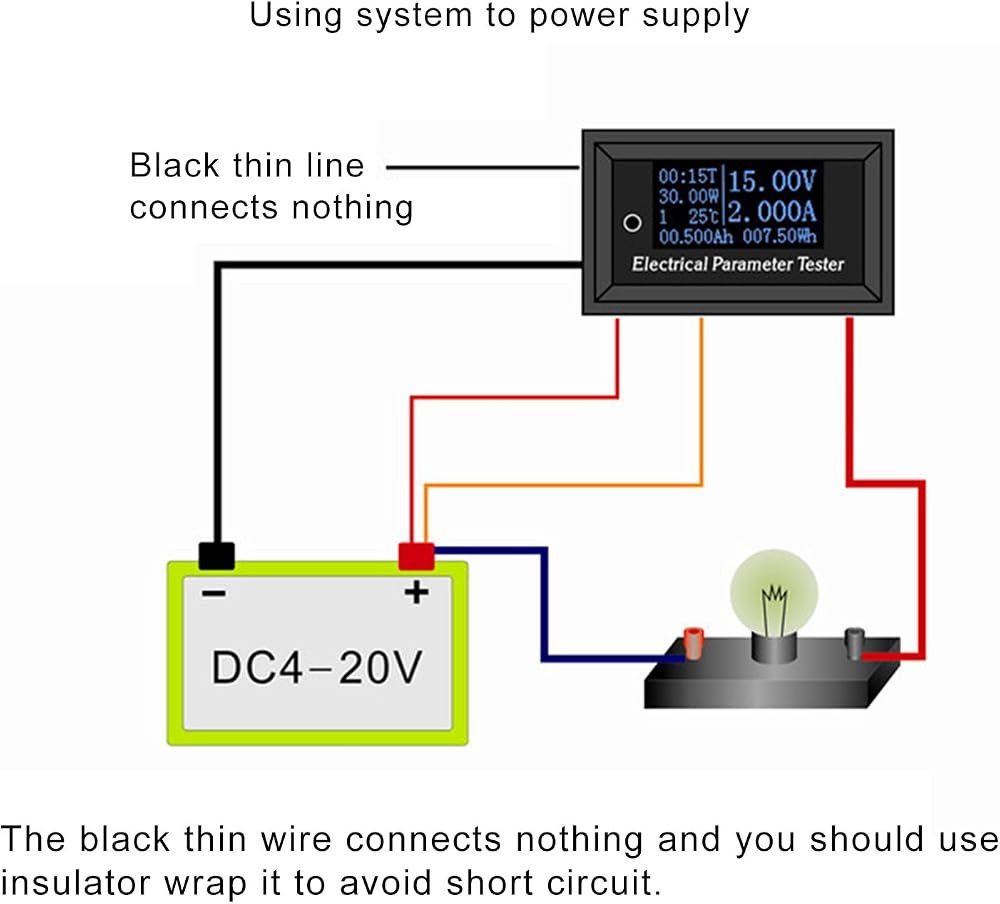

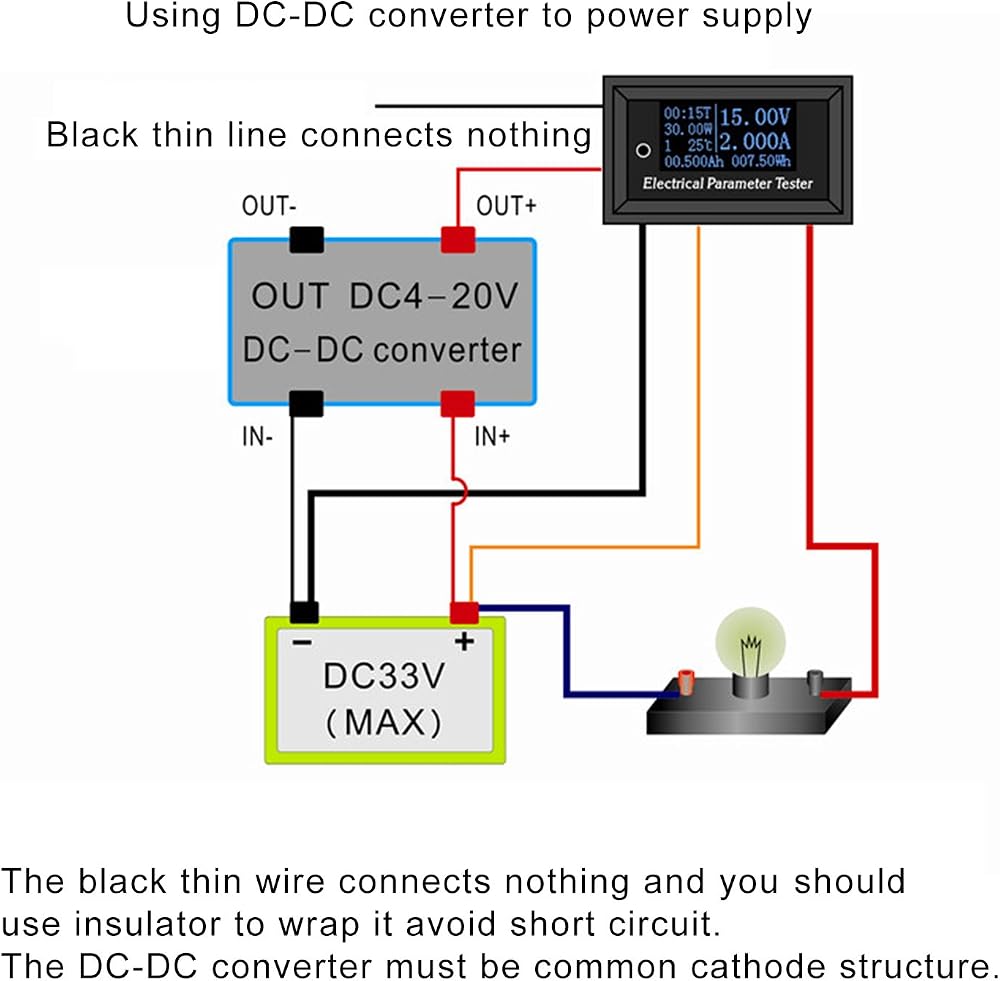

2. Please ensure proper wiring in strict accordance with the wiring diagram.

Package Includes:

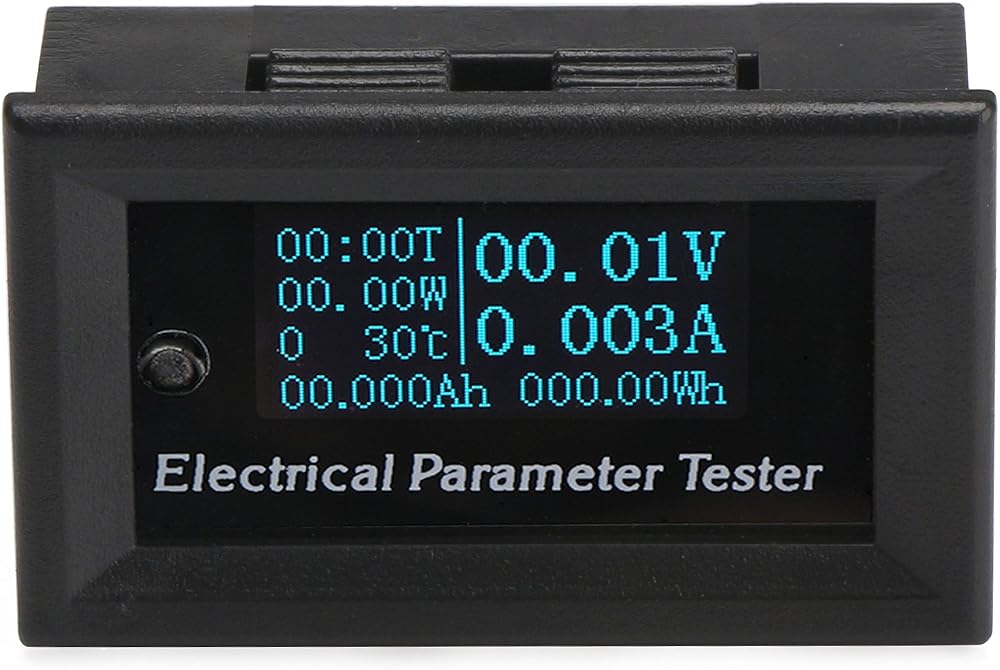

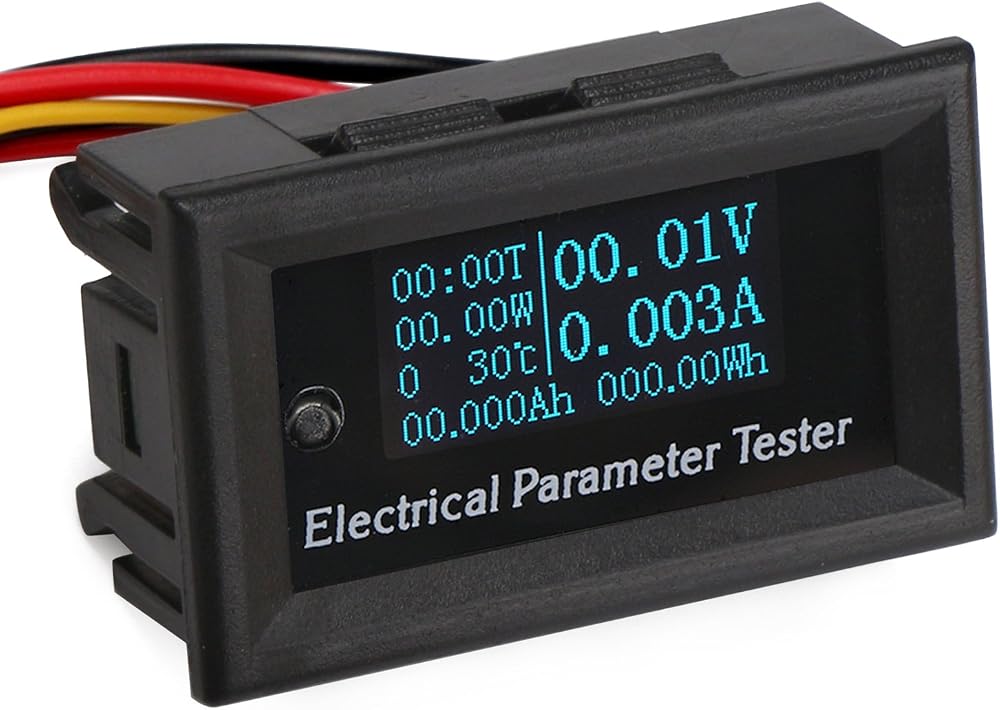

1 x OLED Multimeter
