Home / DB Electrical / Replacement Parts

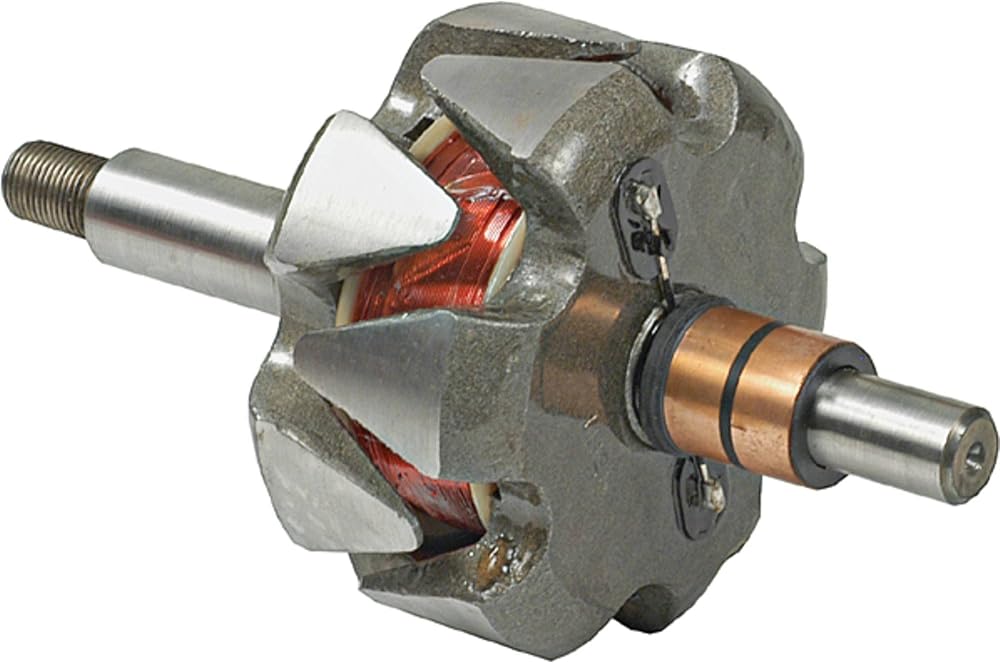

DB Electrical 303-12042 Rotor Compatible with/Replacement for Delco 10483839, J&N Electrical Products 303-12042R Tractors in Saudi Arabia

DB Electrical 303-12042 Rotor Compatible With/Replacement For Delco 10483839, J&N Electrical Products 303-12042R Tractors

SAR 314
Weight
3.1 kg
– 1 +

Special Features

  • Specs: Rotor, Volt: 24, High Amps: 70, Low Amps: 70, Body OD: 107.700mm/4.240", Shaft Bearing OD: 0.984"/25mm, Shaft Sre OD: 0.669"/17mm, Slip Ring ID: 0.669"/17mm, Slip Ring OD: 1.024"/26mm, Length: 210 mm/8.268", Poles Thickness: 2.252"/57.200mm, Shaft Pulley OD: 0.874"/22.200mm, Shaft: 5/8-18, Note: 2.4A Draw
  • Replaces OEM Numbers: Arrowhead: 303-12042, Delco: 10483839, J&N Electrical Products: 303-12042R, Lester: 2999
  • 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
  • 100% New Aftermarket Rotor built to meet OEM specifications

Description

**Verify the part fits before purchasing**

Specs:

Description: Rotor
Volt: 24
High Amps: 70
Low Amps: 70
Body OD: 107.700mm/4.240"
Shaft Bearing OD: 0.984"/25mm
Shaft Sre OD: 0.669"/17mm
Slip Ring ID: 0.669"/17mm
Slip Ring OD: 1.024"/26mm
Length: 210 mm/8.268"
Poles Thickness: 2.252"/57.200mm
Shaft Pulley OD: 0.874"/22.200mm
Shaft: 5/8-18
Note: 2.4A Draw

Replaces OEM Numbers:

Arrowhead: 303-12042
Delco: 10483839
J&N Electrical Products: 303-12042R
Lester: 2999
