مميزات خاصة

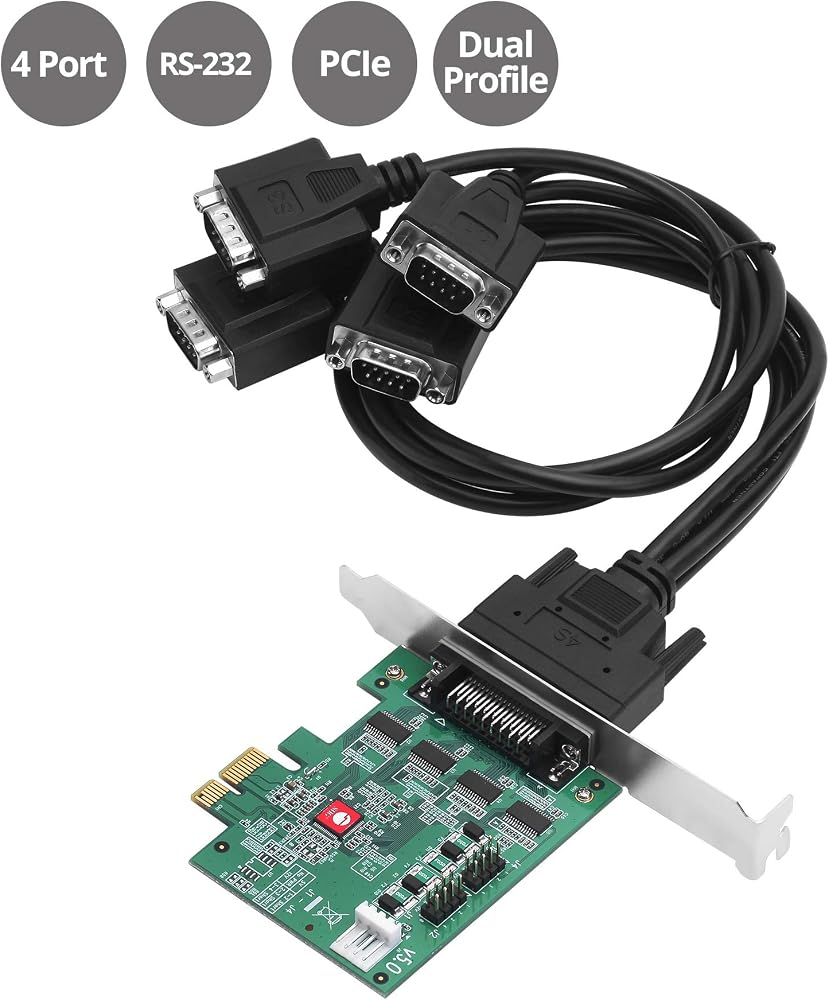

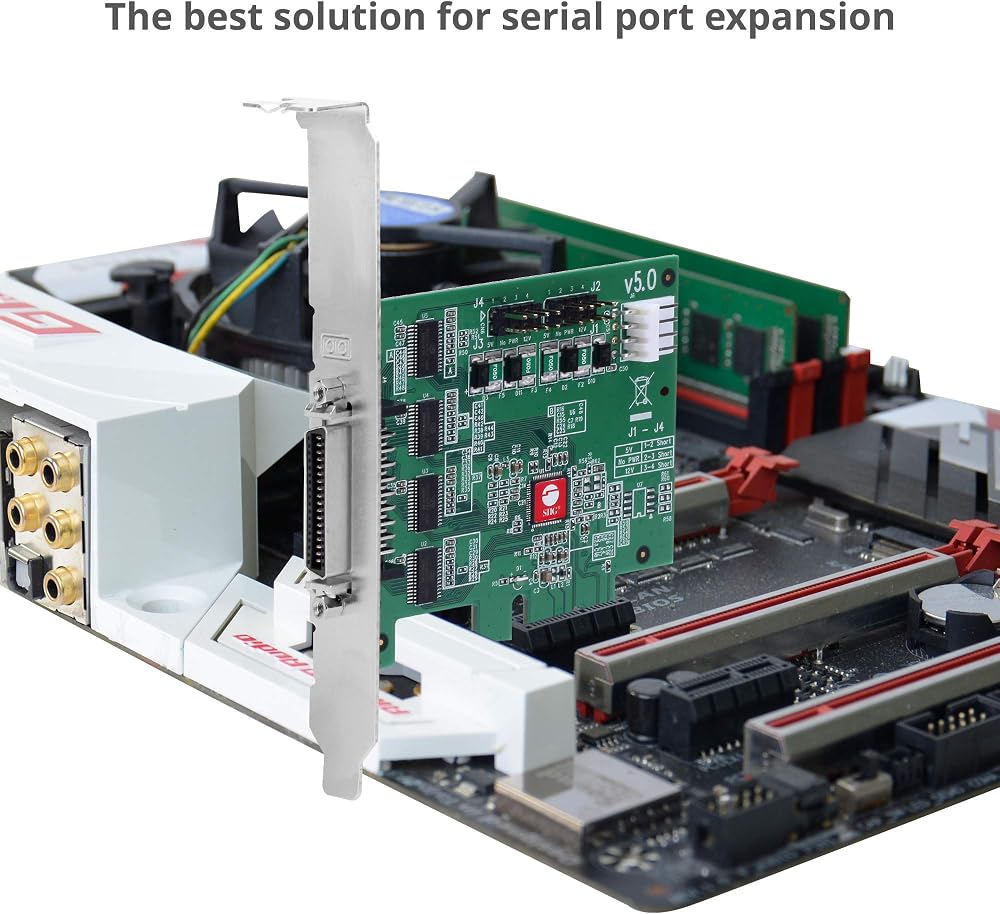

✅ Easily adds four RS232 DB9 serial ports through an available PCI Express slot with PCI Express 1-lane (x1) adapter works with any width PCI Express slot.

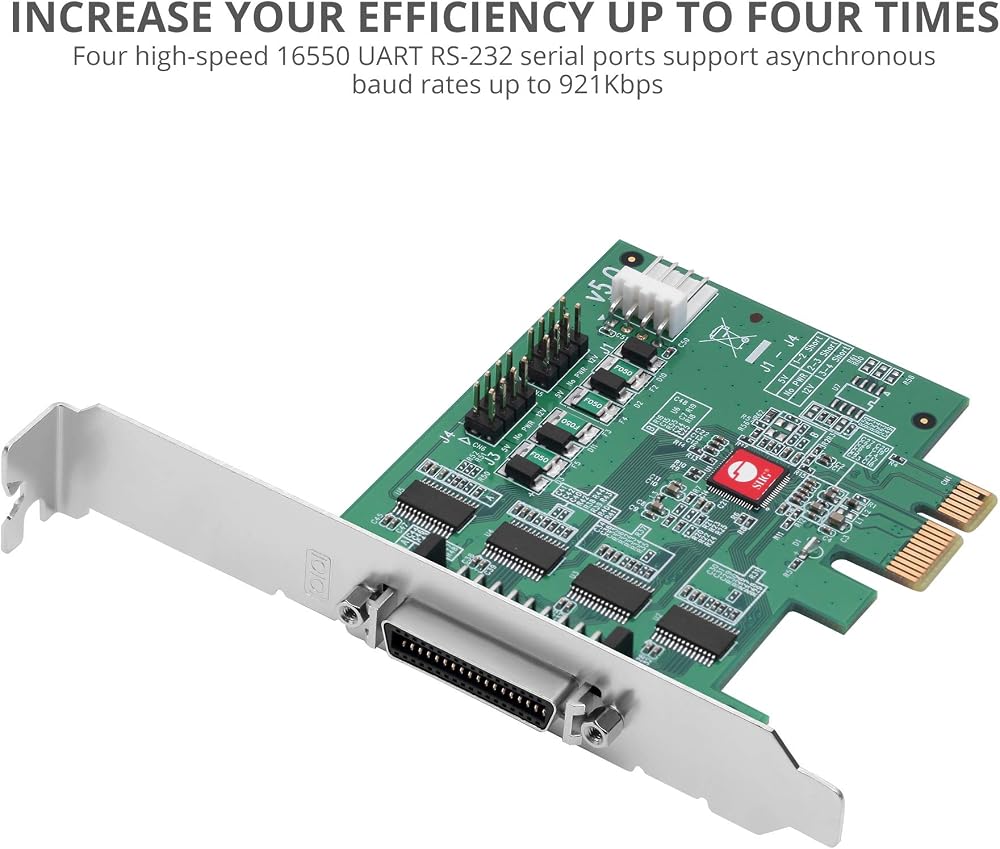

✅ Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps having Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment.
✅ Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup
✅ Supports hardware and software flow control, 5, 6, 7, 8 and 9-bit serial format with Onboard power connector provides reliable power source for devices that require power.

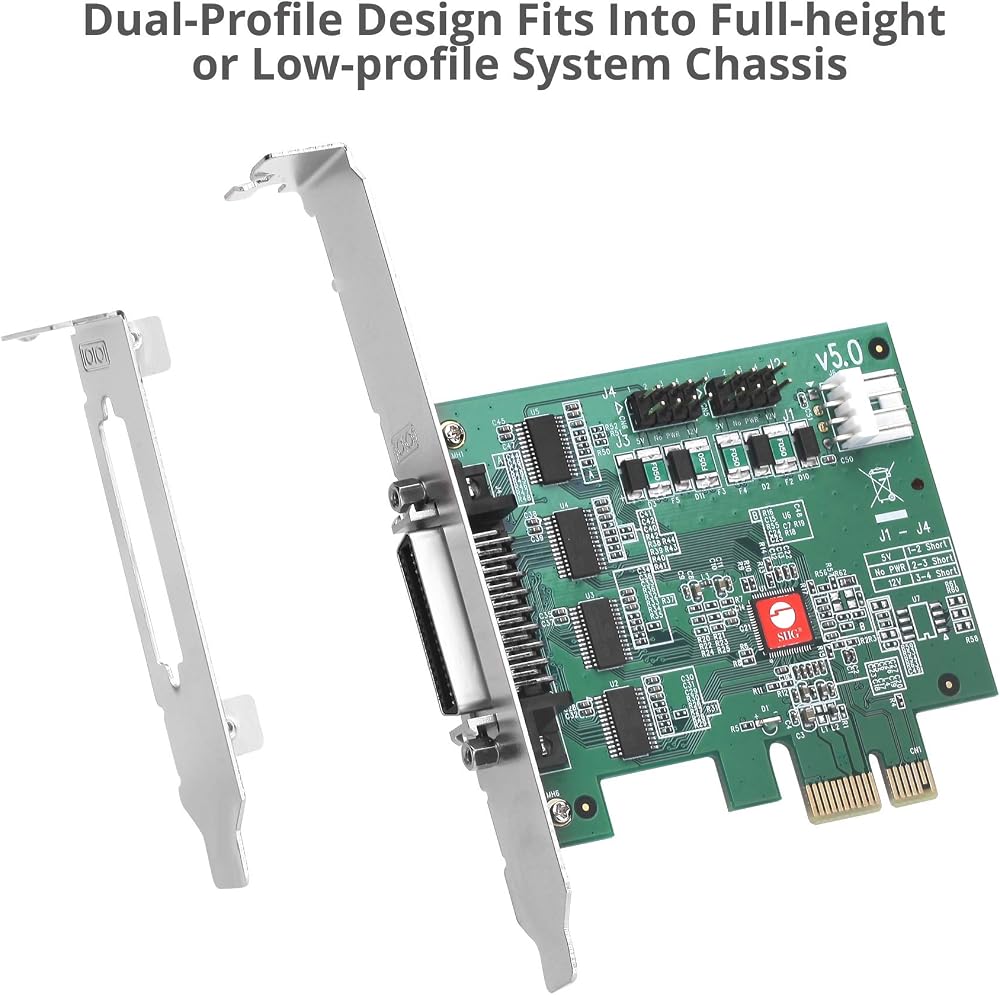

✅ Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets.
✅ At SIIG, we are proud of our products and service. Our products are of high quality and built to last. We provide 3 Year Warranty for our products and email support. Contact us thru Amazon if any issues arise.

وصف

Specification:

Chipset: ASIX MCS99100
Compliant with PCI Express Base Specification 2.0
Supports PCIe Power Management
Data transfer rate: Up to 921Kbps
Flow control: Hardware and Software
Stop bits: 5, 6, 7, 8 and 9-bit serial format
On-Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Serial power output: 0V / 5V / 12V, configured by jumper
Form factor: Full profile / Low profile

Product:

Dimensions (with full height bracket): 3.66" (W) x 0.87" (H) x 4.72" (L)
Weight: 0.10 lbs
Color: Green

Connectors:

4 x 9-pin D-sub, RS232 serial, Male (via fan-out cable)

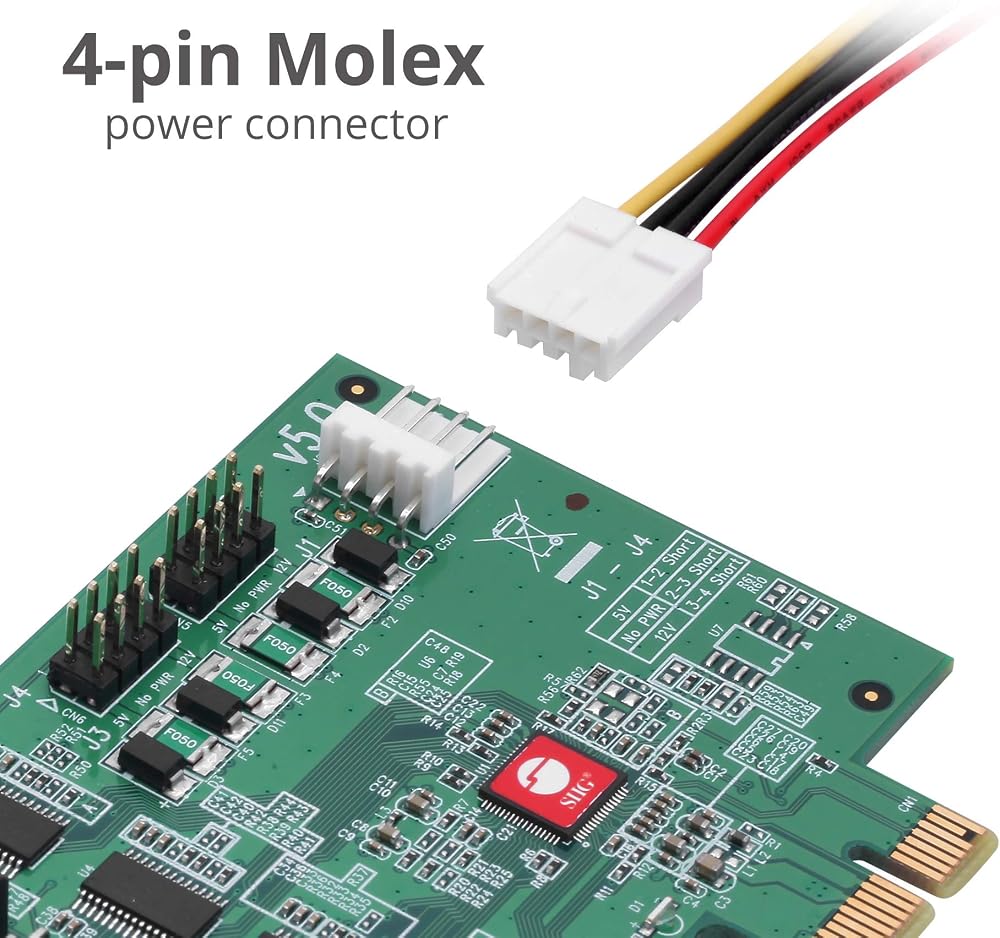

1 x 4-pin, Molex mini-power connector
2 x 8-pin header, a jumper for power output

Environmental conditions:

Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards: FCC, CE, RoHS
Warranty: 3 years limited
Country of origin: Taiwan

Compatibility Note:

Replaces part # JJ-E40011-S4

Requirements

PCI Express-enabled system with an available PCI Express slot

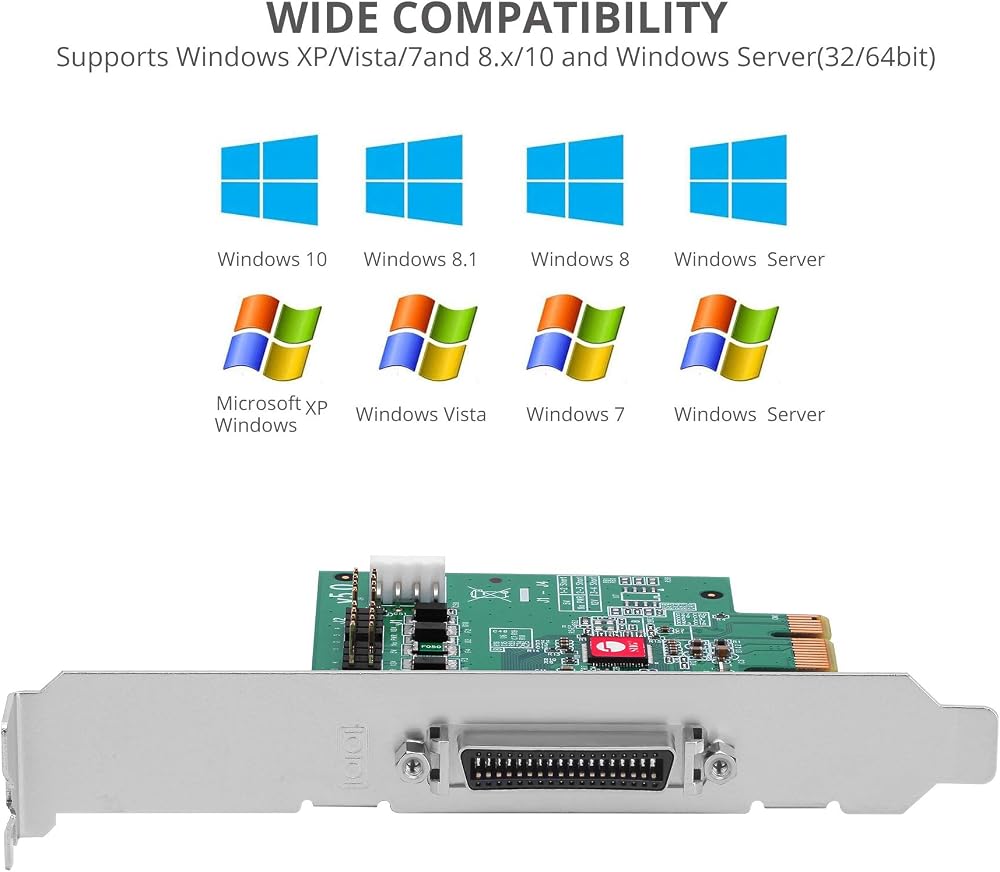

Windows 10 / 8.x / 7
Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008

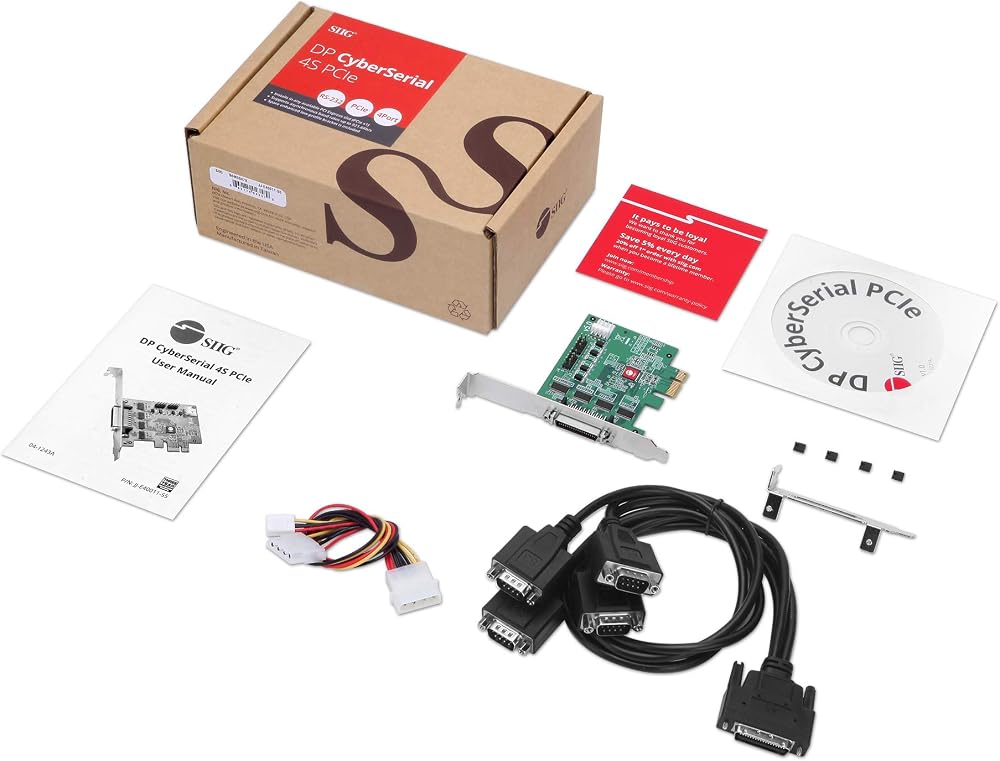

Package Contents

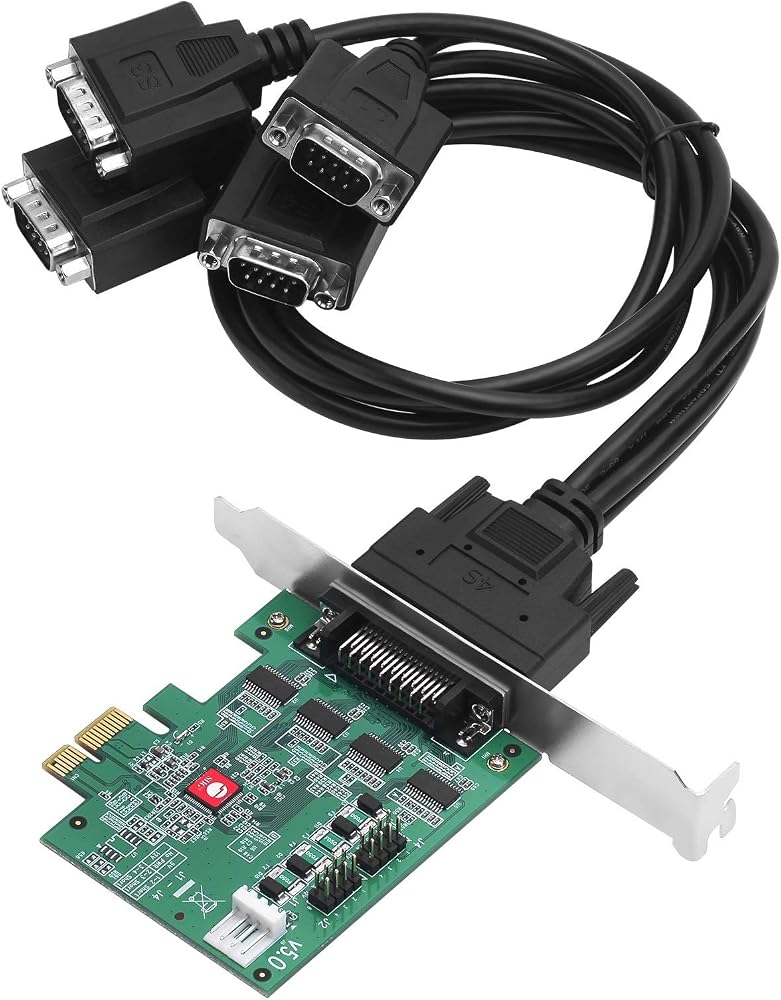

DP CyberSerial 4S PCIe board
Low profile bracket
4-Port fan-out cable (DFP-36pin)
Y-Split power cable
Voltage jumper (4pcs)
Driver CD
User manual
