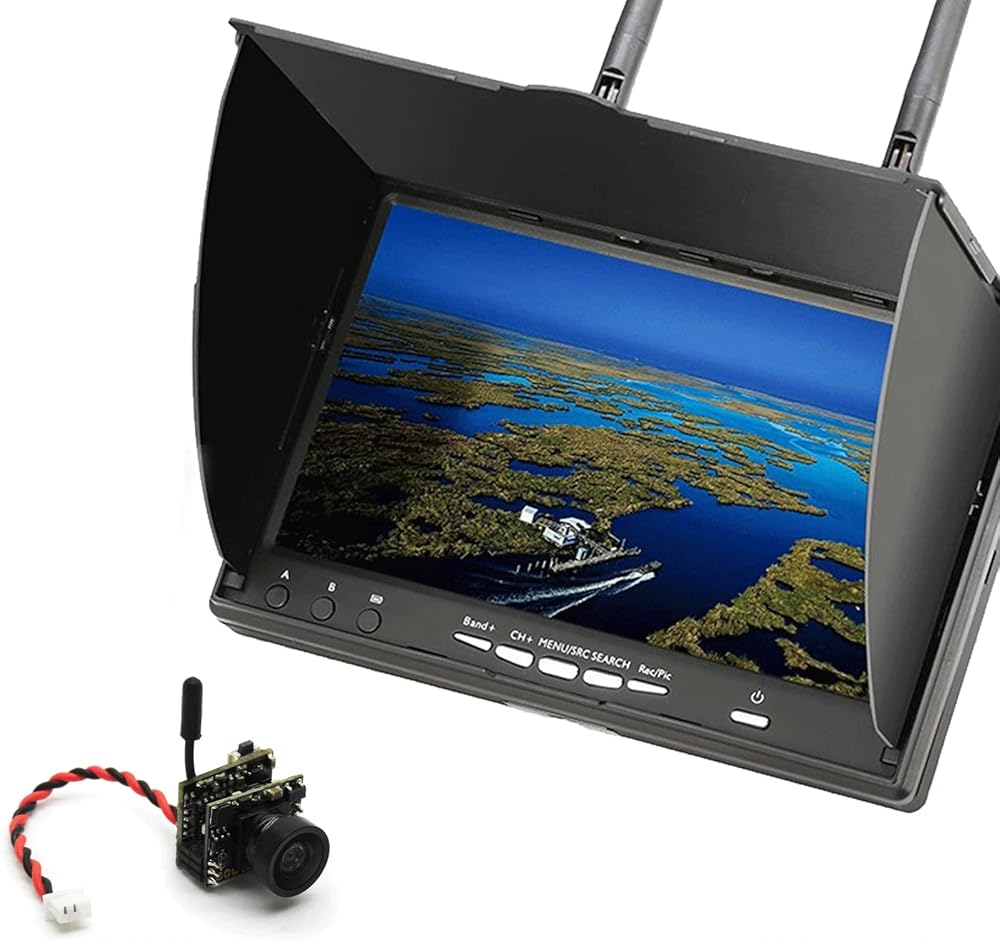

This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring diversity receivers for a better signal, built in rechargeable battery, auto-scan function and more. The camera is a modern micro AIO model, designed with the needs of drone pilots and RC enthusiasts in mind.

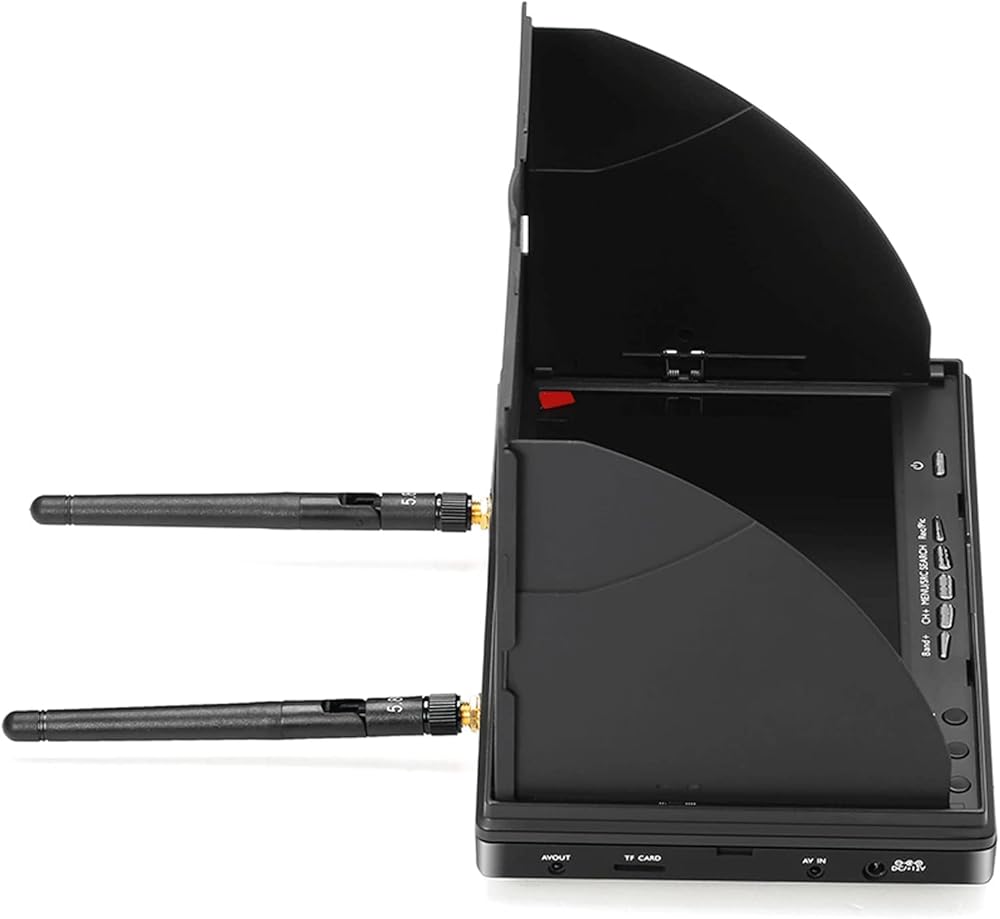

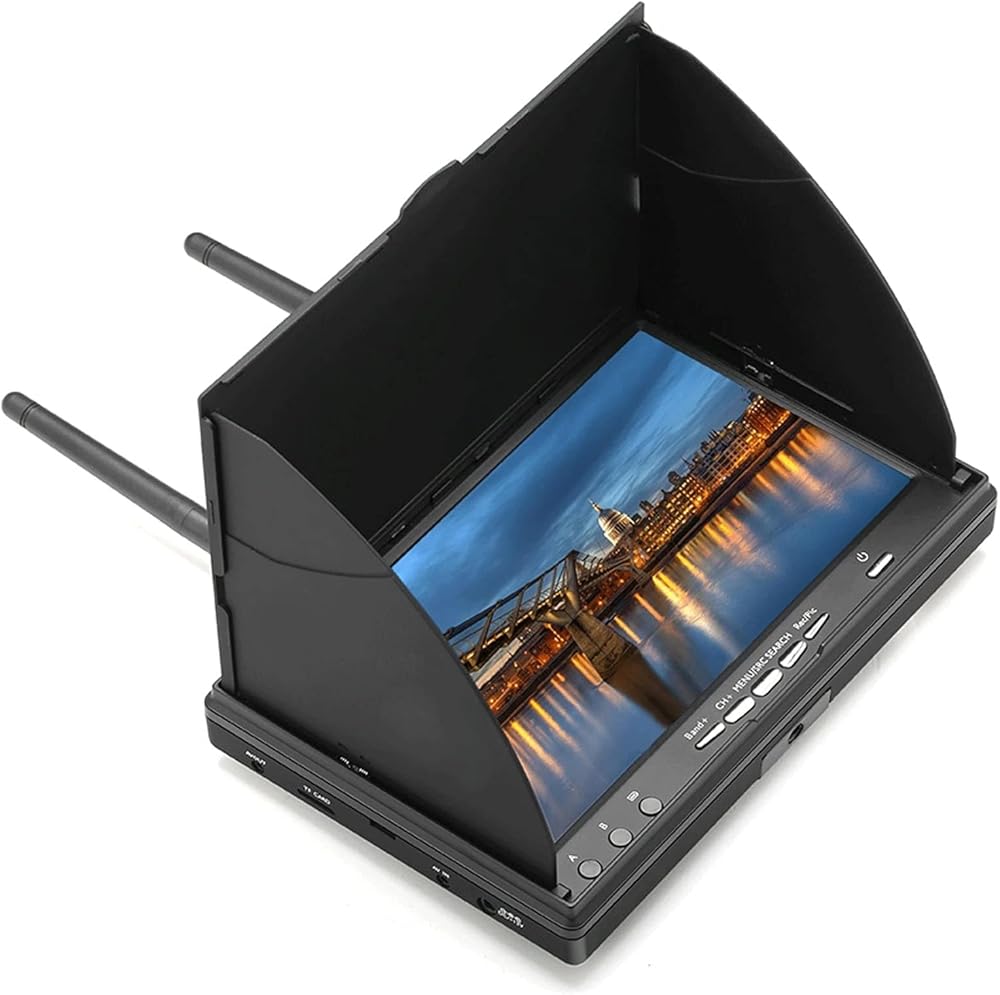

Diversity FPV Monitor Features:

TFT screen with exceptionally long operating life. LED backlight.
Wide input voltage 10V-24V
16:9 display
Full range of adjustments available through menu.

Built-in DVR Recorder

Diversity FPV Monitor Specifications:
Item Name : 5.8G FPV Monitor
Screen : 7 Inch TFT Screen
Frequency : 5.8G
Channel : 40CH
Sensitivity : -95dBm
Interface : AVIN/AVOUT/DCIN/USB
Build in 2000mAh 2S LiPo
Working Voltage : 7V - 16V
Language : English
Ratio : 16:9
Power Consumption : ≤5W
Size : 180x120x50mm

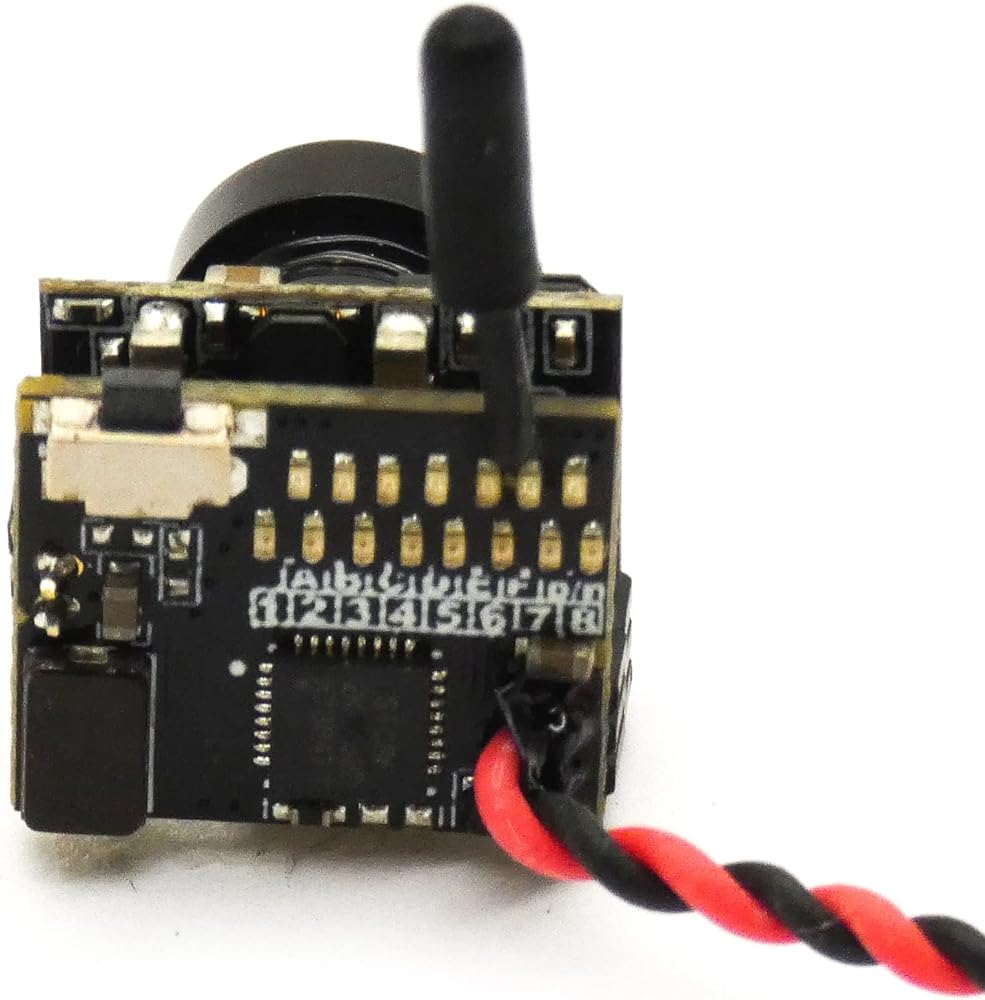

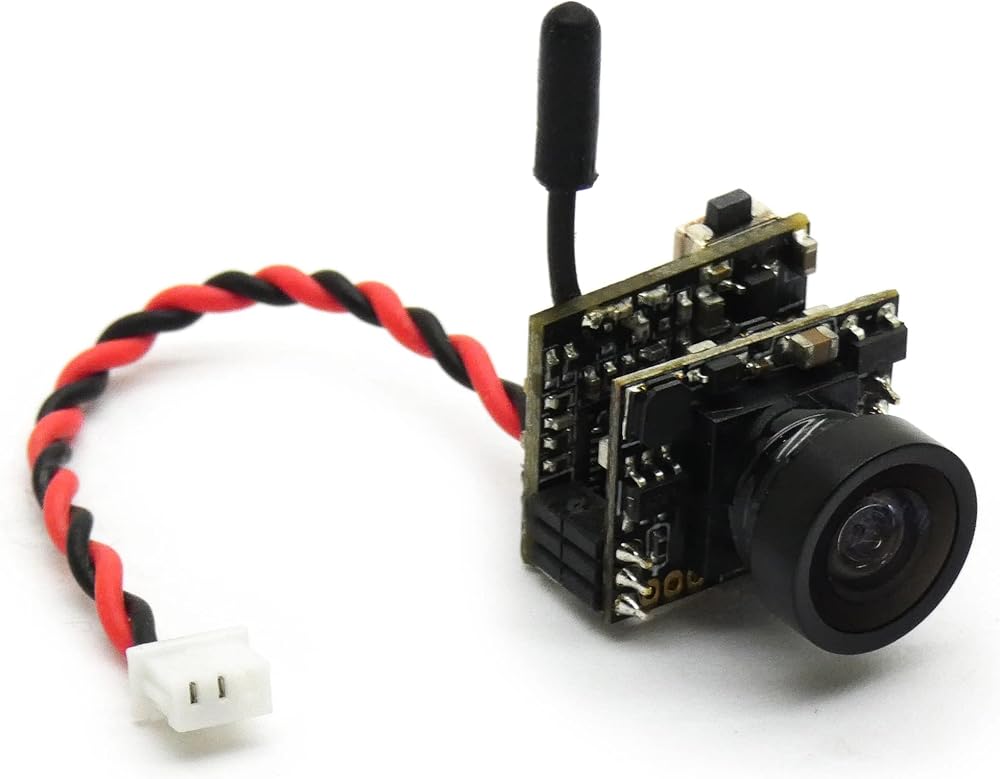

Micro FPV Camera Specifications:
Item name: TX02 AIO FPV VTX Camera
Output power: 25mW
Input power: 3.3-5V
Current consumption: 3.3-5V, 500mA (type)
Camera resolution: 800TVL
Video system: NTSC
Mini illumination: 1 lux
Field of view: 120 degree viewing angle
Antenna dimensions: 22x29mm diameter
Antenna: 5.8ghz Dipole
Size: 20x13x6mm
Weight: 4.57g

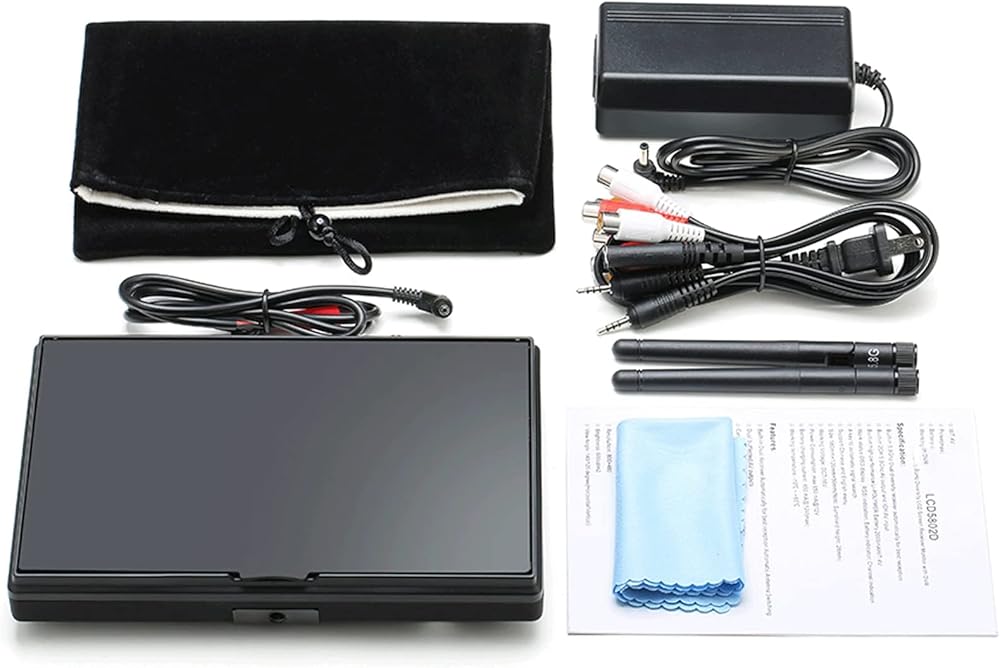

Package Contents:
1x Diversity Supported 7" AIO FPV Monitor
1x Sun Shade
1x HD Micro AIO FPV Camera
