FEELWORLD F5 Prox 5.5 Inch Touch Screen DSLR Camera Field Monitor 1600nit High Bright with 3D LUT 1920x1080 4K HDMI F970 Install and Power Kit Input Output 5V Type-c Input Tilt Arm in Saudi Arabia

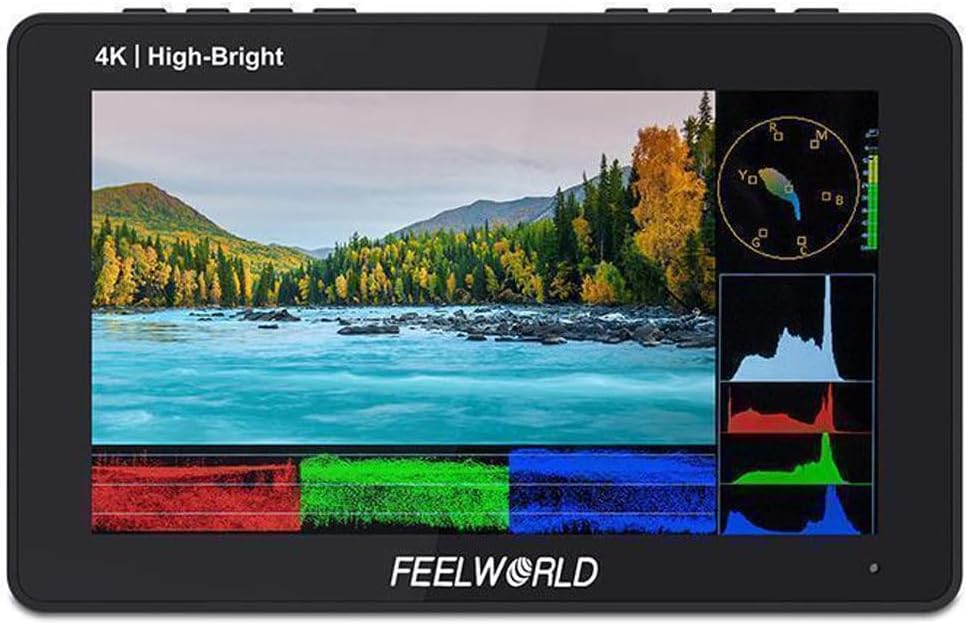

FEELWORLD F5 Prox 5.5 Inch Touch Screen DSLR Camera Field Monitor 1600nit High Bright with 3D LUT 1920x1080 4K HDMI F970 Install and Power Kit Input Output 5V Type-c Input Tilt Arm

SAR 647
Brand
FEELWORLD
Weight
0.6 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【1600nit High Bright and Easy Touchscreen】F5 PROX ensuring clear visibility even under bright sunlight or challenging lighting conditions. The F5 PROX provides a sharp image, with 1600nit, native 1920x1080 high resolution, REC-709 color calibration, make you enjoy sharper and richer colors image.
  • 【Custom 3D LUT Support】Supports upload 32 custom LUTs. 3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT, you also can load the custom .cube file via USB flash driver (up to load 32). Insert the USB flash driver to the standard accessory Type-C to USB adpater, then connect with Type-C interface of F5 PROX.
  • 【Accurate waveform monitoring】Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode.
  • 【Widely Compatible for Camera】The F5 PROX has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. With type-c input, F970 battery plate, the power kit and 8.4V DC output, flexible choice of power supply.
  • 【F970 External Install and Power Kit】F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a F970.

Description

Model: F5 PROX
Screen Size: 5.5" IPS Touch Screen
Resolution: 1920x1080 pixels
Pixel Pitch: 0.069 (H) x 0.069 (V) mm
Aspect Ratio: 16:9 Brightness: 1600cd/m²
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

Input
1 X HDMI
1 X Type-C: 5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply)

Output
1 X HDMI
1 X DC Output

Audio
Audio: Stereo Headphone

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General
Input Voltage: DC7～24V
Power Consumption: ≤9W
Power Connector: DC
Install Way: ¼-20 thread points
Unit Size: 148Lx93Hx20D (mm)
Unit Weight: 245g

Advanced Features
Support 3D LUT Log to Rec.709, user 3D LUT Upload
All Waves
Waveform (RGB, Y, YUV)
Histogram(RGB1, Y, RGB2)
Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
False Colors
Zebra Exposure (10-100IRE adjustable)
Check Field (Red, Green, Blue, Mono)
Scan Mode (Under Scan, Over Scan)
Anamorphic Mode (1.33x,1.6x, 2.0x, 2.0x mag)
Image Flip (H, V, H/V)
Image Freeze
Center Marker
Safe Frames (80%,85%,90%,93%,96%, 2.35:1)
Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
Color Temperature Adjustment
Nine Grid (Zoom one of the images to realize the full screen)
Zoom (2X, 4X, 9X, 16X)
Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
Pixel to Pixel
