Specification:
Item type: Scooter Controller Set
Material: Electronic components + ABS
Color: As picture shown
Weight: Approx. 280g
Drive mode: dual system drive
Induction method: for hall
Controller type and performance
Controller Types
Operating voltage range
Total power of controller
Control electric quantity
T2 wireless dual drive DC voltage 36V/24V 1300W 2
Control motor type and performance
Motor type
Maximum power of motor
Motor speed
Can not connect the motor for hall
DC Brushless Motor Within 650W Within 8000 rpm can not connect
Maximum power: 430W (36V)
Speed: 4200 RPM
Maximum speed: 35KM/H
Power connector: XT60 male plug
Carrying weight: ≤120KG
Long-distance distance: up to 20 meters

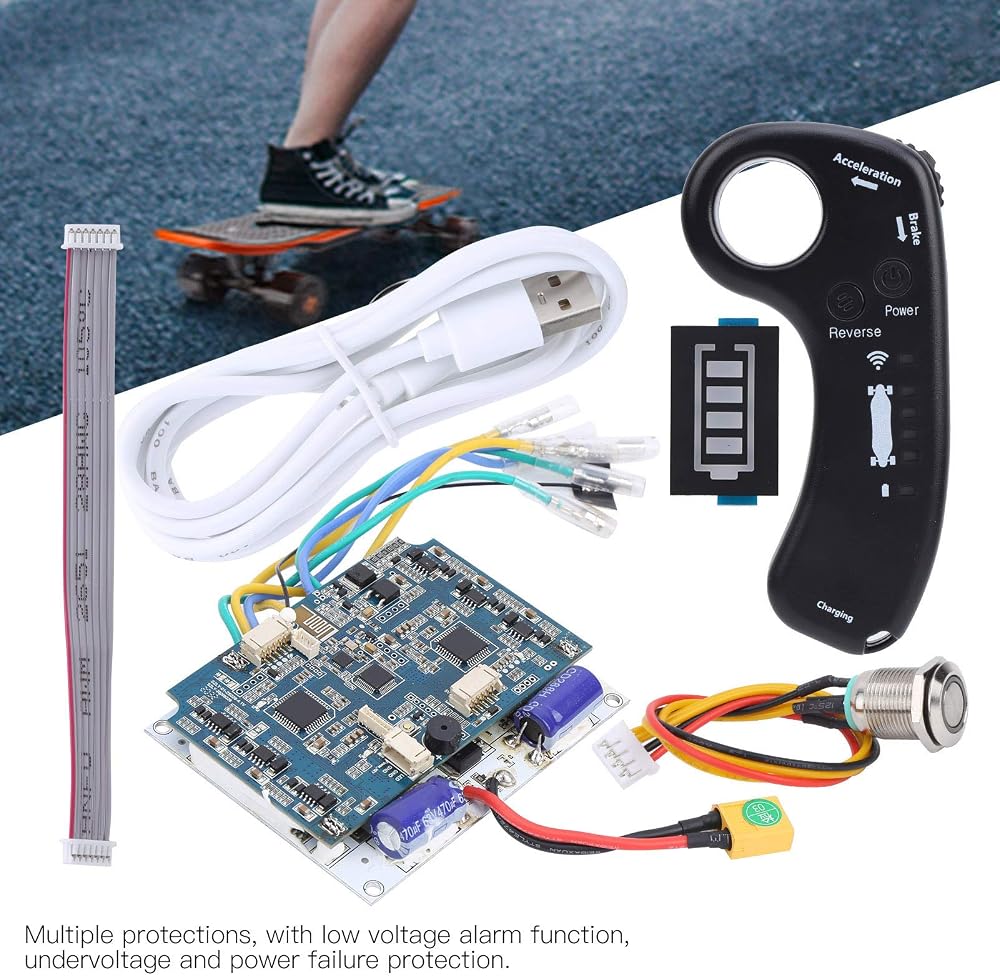

Protection: overvoltage, undervoltage, overheating, stall, CW/CCW, adjustable speed
Current: 12A
Voltage: 36V, 10S

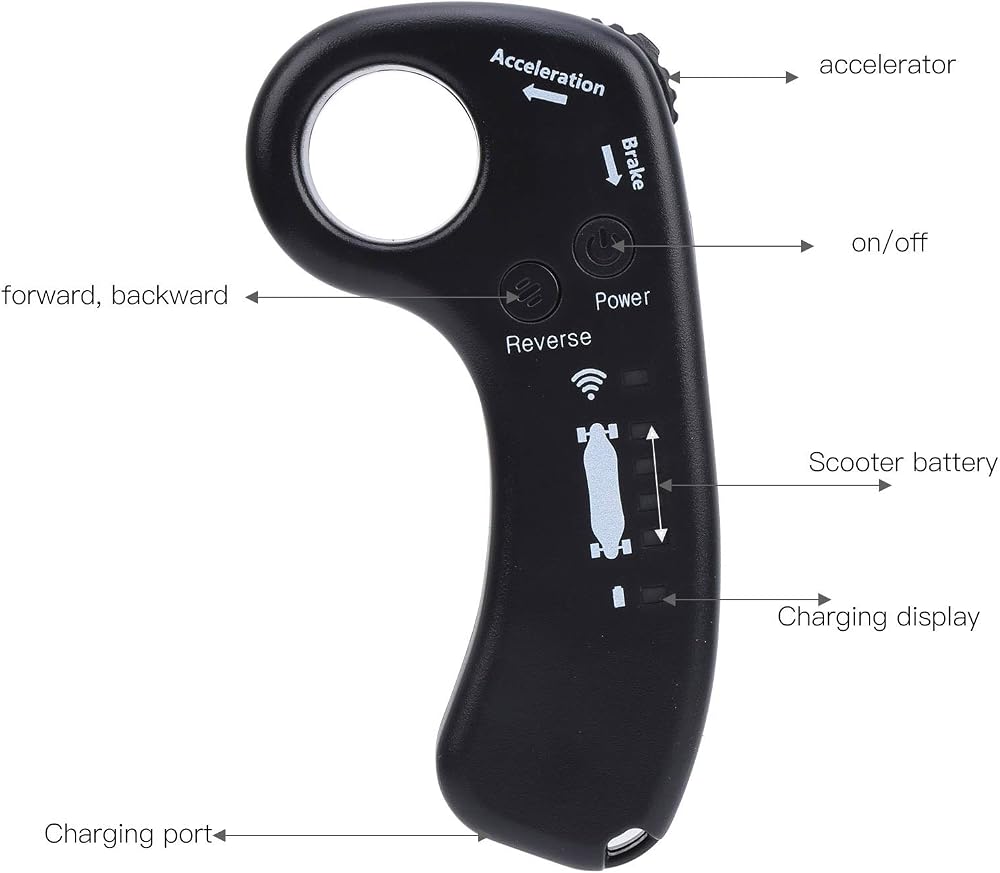

Remote control built-in lithium battery
The capacity of the remote control: 400MAH

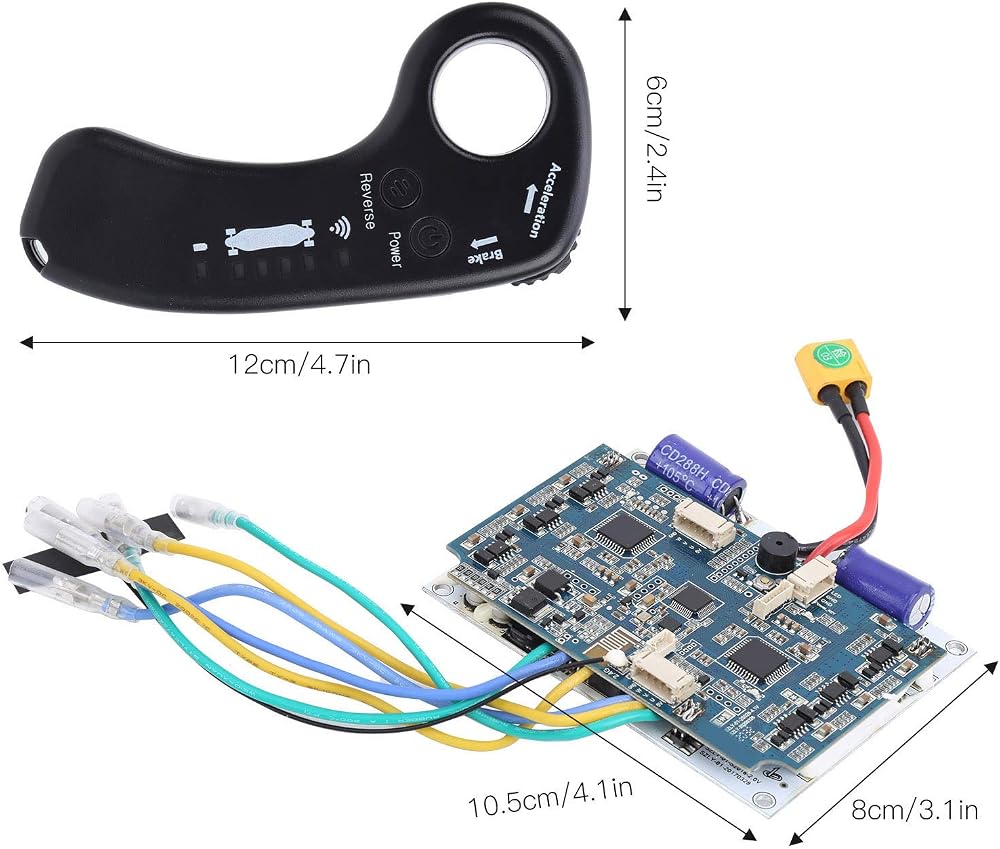

Total length of remote control: Approx. 12cm/4.7in
Remote control length: Approx. 6cm/2.4in
Circuit board size: Approx. 10.5x8cm/4.1x3.1in

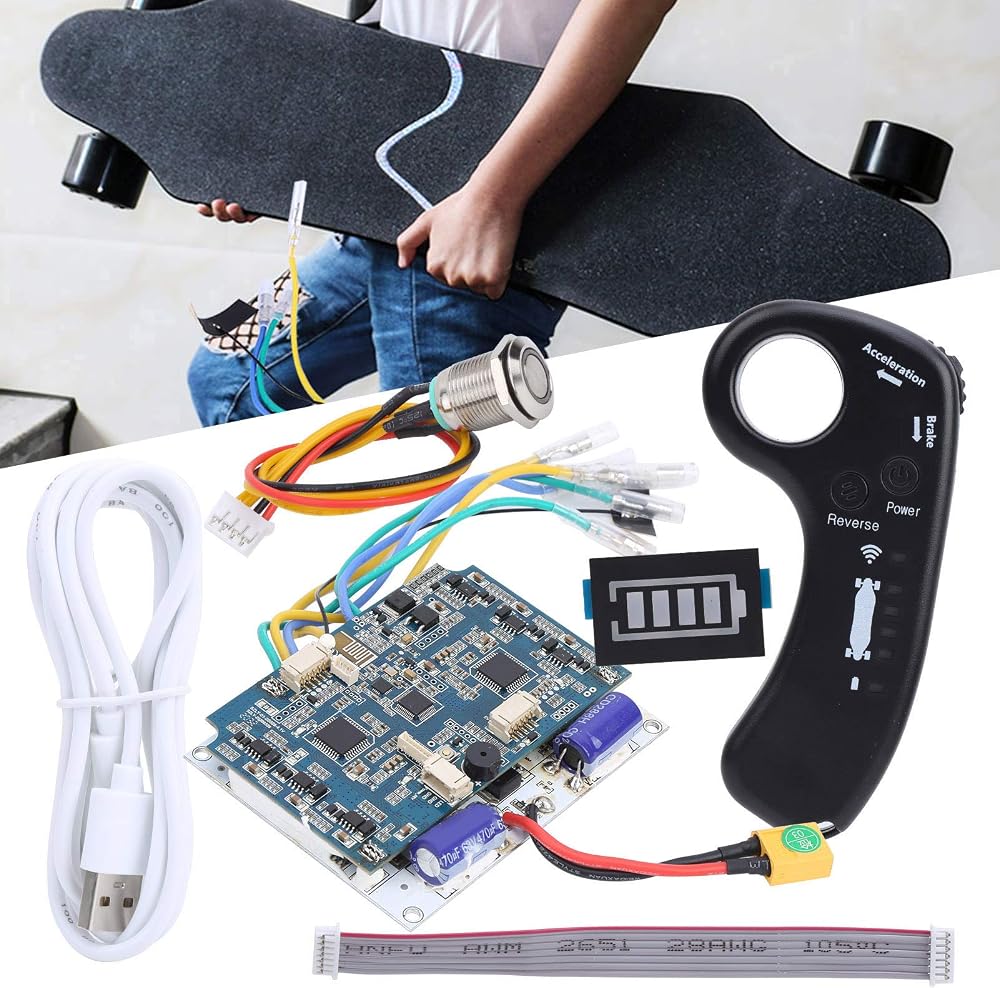

Application areas: scooters, unicycles, balance scooters
Note: Different voltage, alarm voltage, protection voltage are different
Suitable for hub motor model airplane motor 5055 5065 6354 6364 6374 6384
How to choose the right controller:
1. Confirm the voltage of your battery
6 series battery is 25.2V, 7 series battery is 29.4V, 10 series battery is 36V
2. Confirm the motor type
External motor, chain, belt drive, use belt controller
Hub motor, motor integrated wheel, please select the controller with the word “hub”

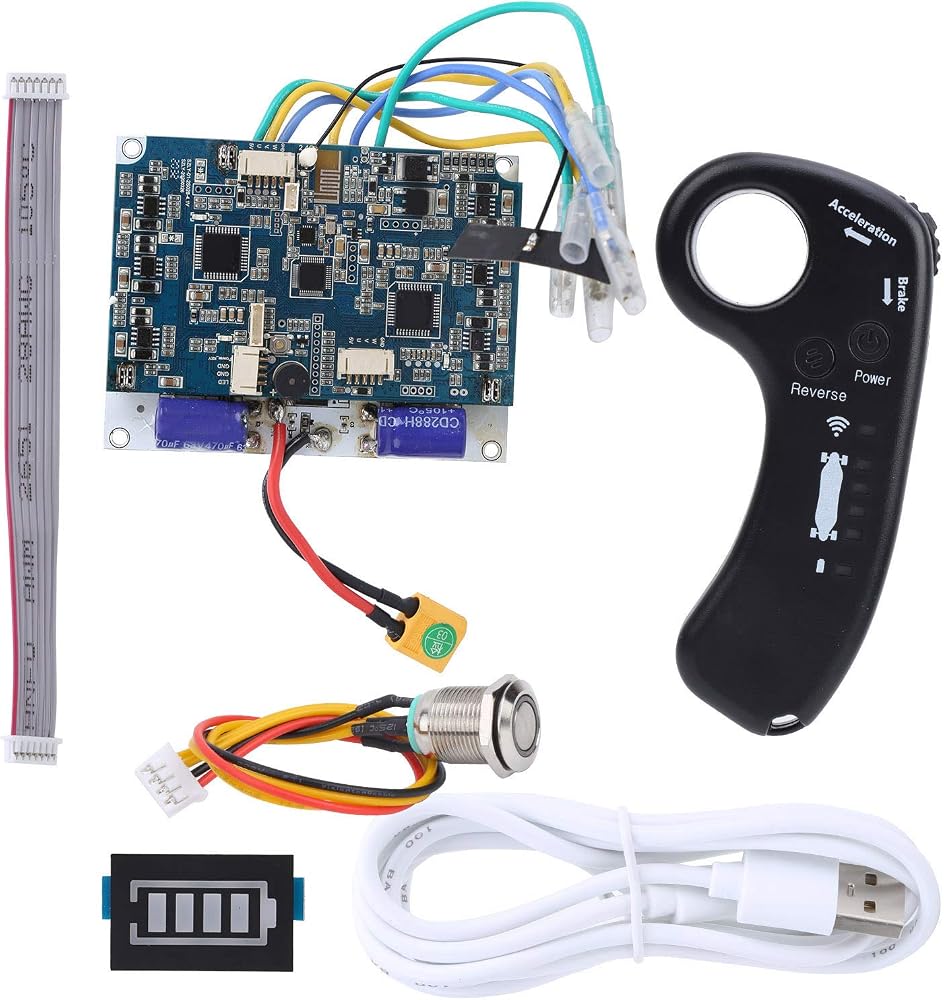

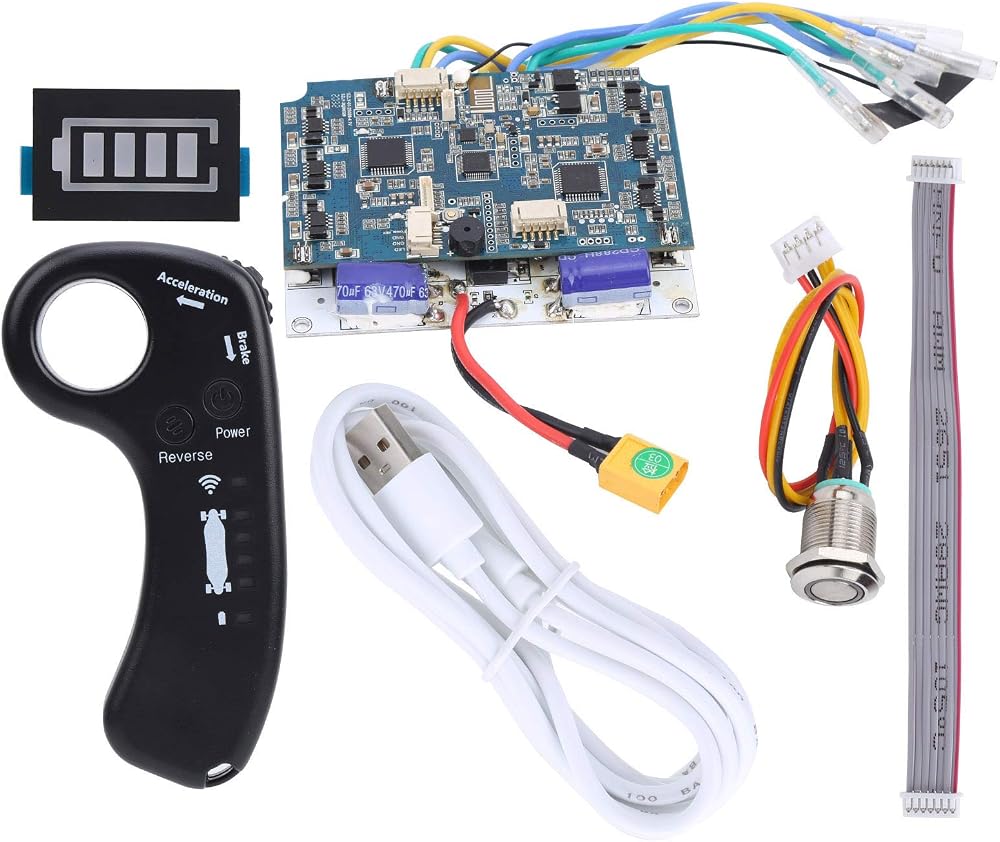

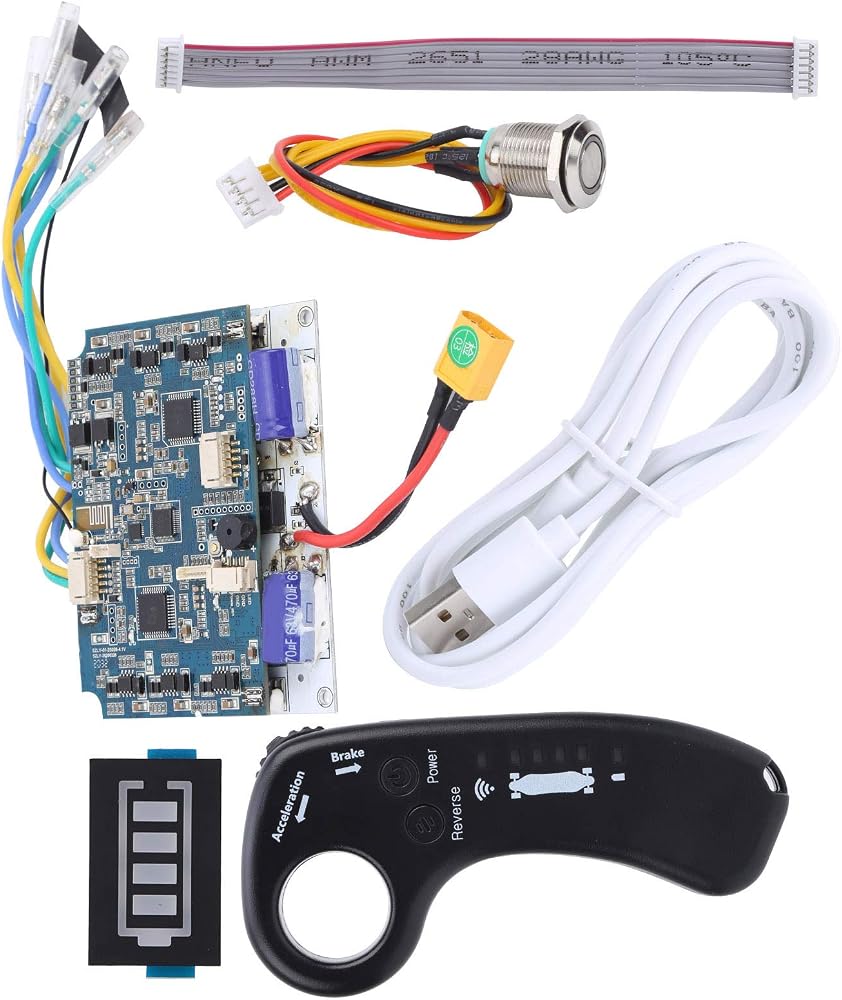

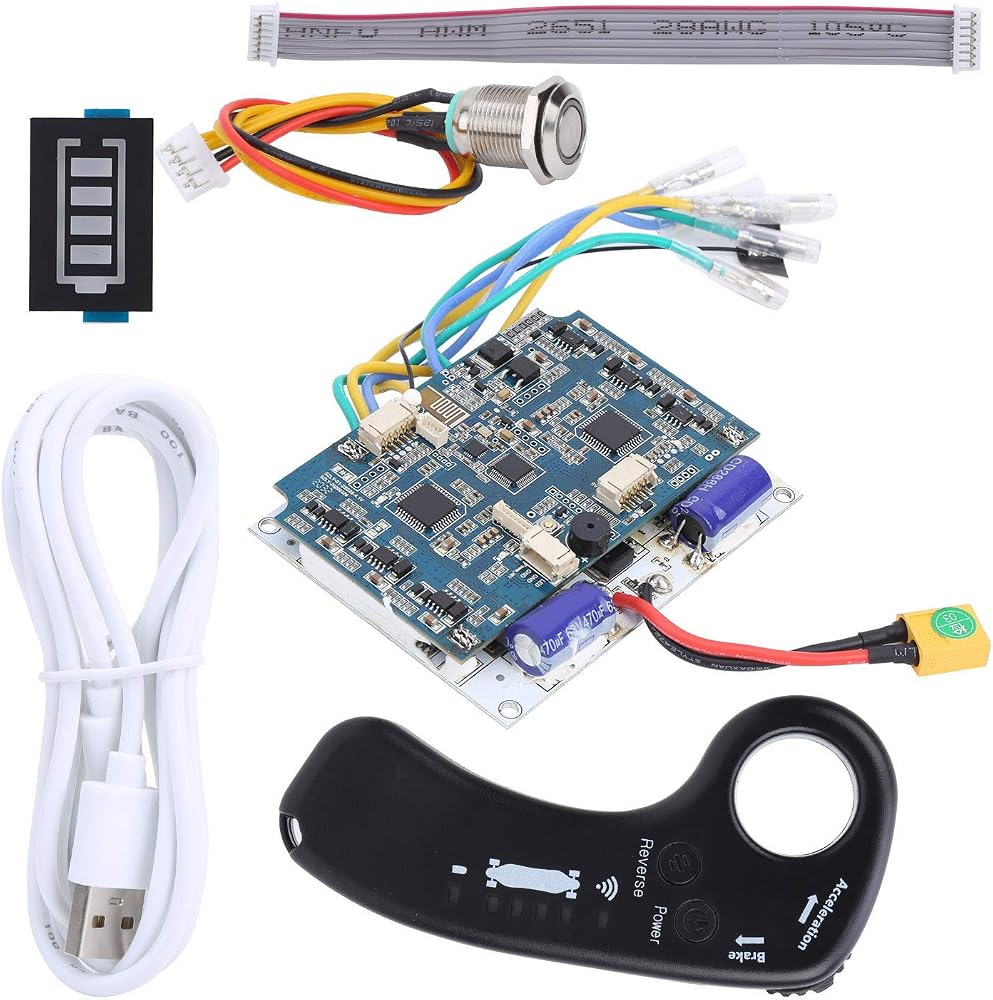

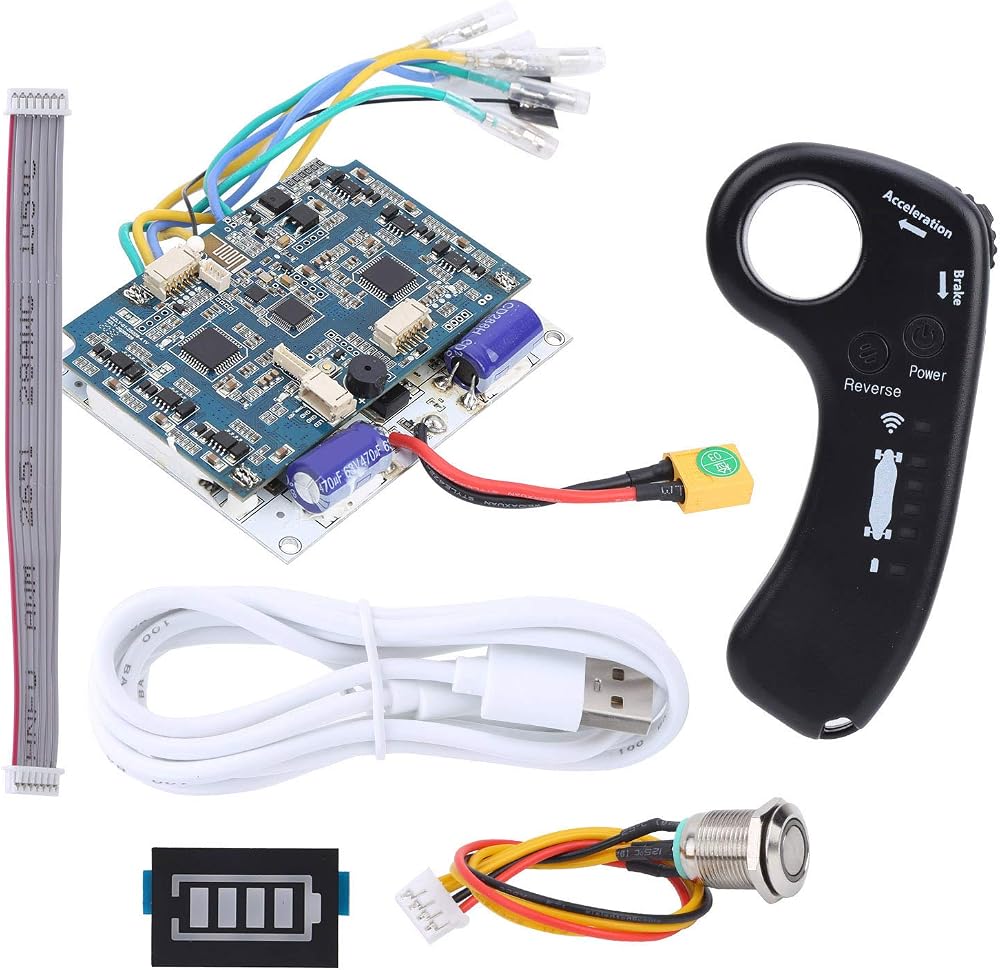

Package List:
1 x Scooter controller
1 x Remote control
1 x USB data cable
2 x Accessories
1 x Control panel
