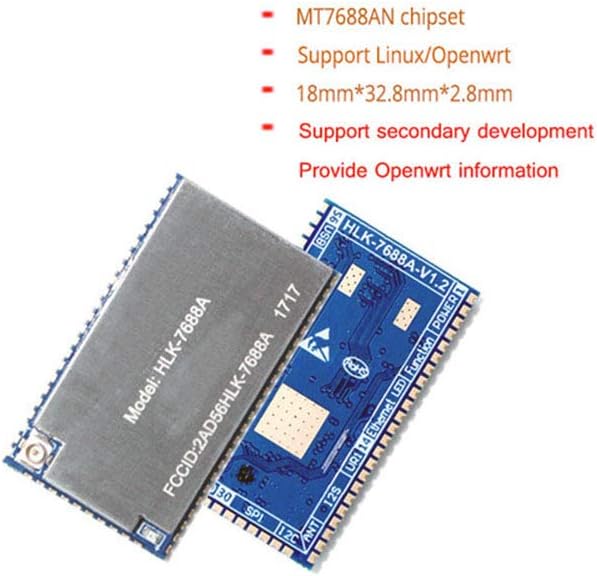

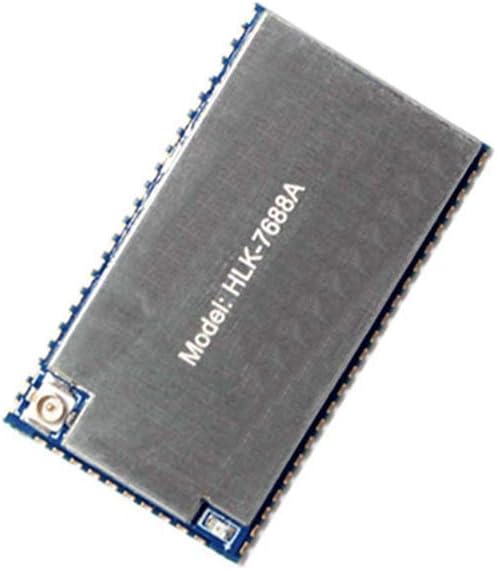

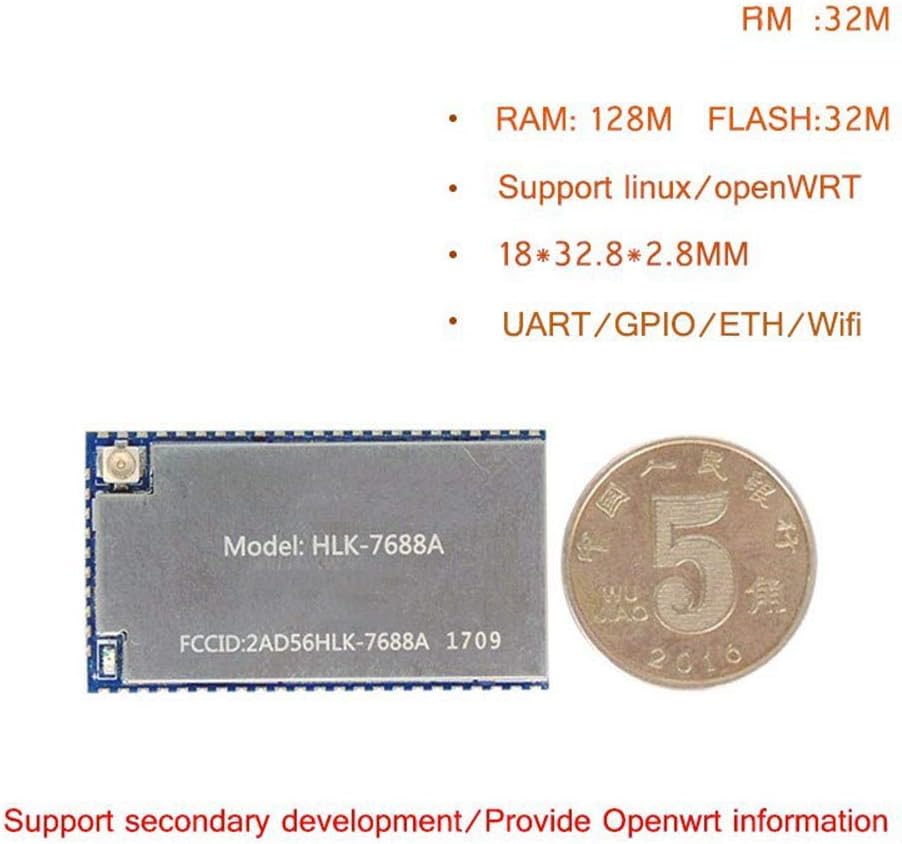

Taidacent IoT Intelligent Serial Port to WiFi Wireless Router Module 7688A OpenWrt Router Secondary Development Wireless WiFi Router MT7688 (Separate Bottom Plate) in Saudi Arabia Taidacent IoT Intelligent Serial Port to WiFi Wireless Router Module 7688A OpenWrt Router Secondary Development Wireless WiFi Router MT7688 (Separate Bottom Plate) in Saudi Arabia Taidacent IoT Intelligent Serial Port to WiFi Wireless Router Module 7688A OpenWrt Router Secondary Development Wireless WiFi Router MT7688 (Separate Bottom Plate) in Saudi Arabia Taidacent IoT Intelligent Serial Port to WiFi Wireless Router Module 7688A OpenWrt Router Secondary Development Wireless WiFi Router MT7688 (Separate Bottom Plate) in Saudi Arabia Taidacent IoT Intelligent Serial Port to WiFi Wireless Router Module 7688A OpenWrt Router Secondary Development Wireless WiFi Router MT7688 (Separate Bottom Plate) in Saudi Arabia Taidacent IoT Intelligent Serial Port to WiFi Wireless Router Module 7688A OpenWrt Router Secondary Development Wireless WiFi Router MT7688 (Separate Bottom Plate) in Saudi Arabia Taidacent IoT Intelligent Serial Port to WiFi Wireless Router Module 7688A OpenWrt Router Secondary Development Wireless WiFi Router MT7688 (Separate Bottom Plate) in Saudi Arabia

Taidacent IOT منفذ التسلسلي الذكي إلى WiFi Wireless Router Module 7688A OpenWrt Router Developmentary Development WiFi Router MT7688 (لوحة أسفل منفصلة)

SAR 139
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • The module supports Linux, OpenWRT operating system and custom development.
  • It could be widely applied to smart devices or cloud services application with its rich interface and powerful processors.
  • MT7688AN low power chip solution
  • Support AP, STA and AP+STA mode

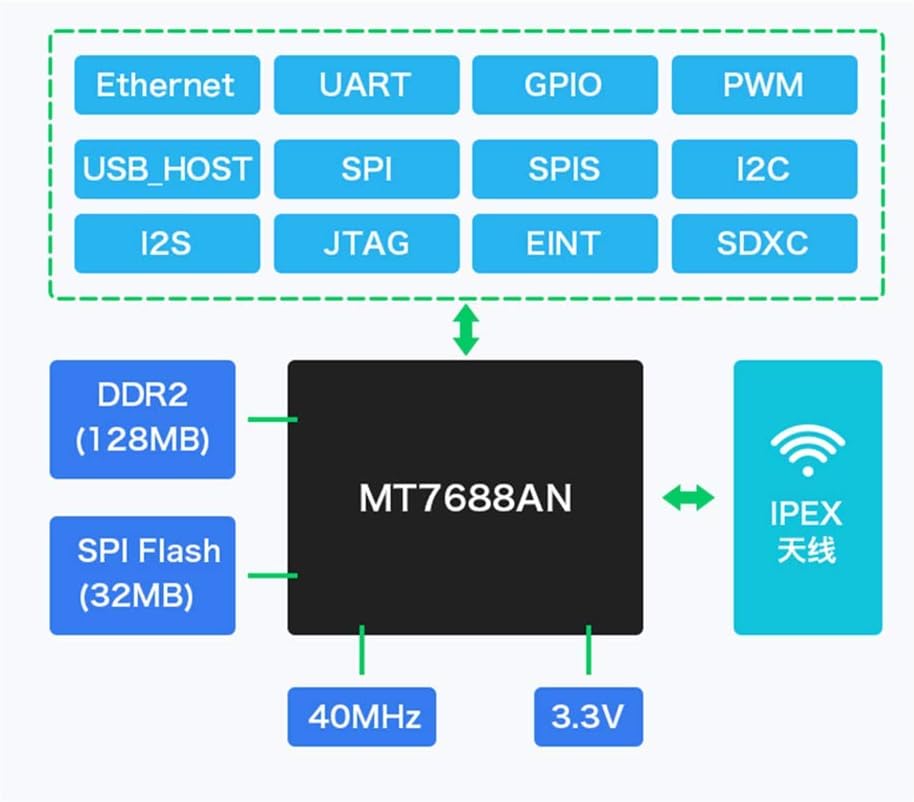

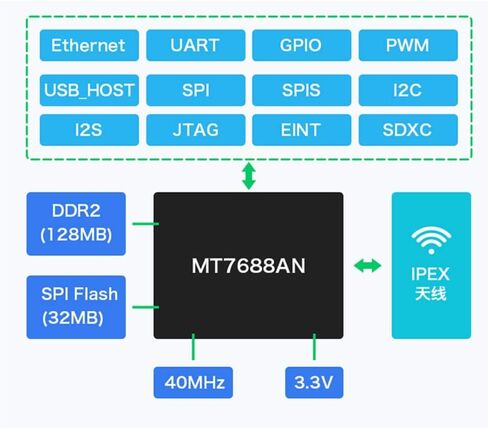

  • Rich peripheral interfaces, SPl, 12C, 12S, PCM, UART, JTAG, GPIO

وصف

The module supports Linux, OpenWRT operating system and custom development. It could be widely applied to smart devices or cloud services application with its rich interface and powerful processors.
·MT7688AN low power chip solution
· Support AP, STA and AP+STA mode
· Rich peripheral interfaces, SPl, 12C, 12S, PCM, UART, JTAG, GPIO
· Support OpenWrt secondary development, provide SDK and hardware information, customers can develop corresponding functions according to their needs)

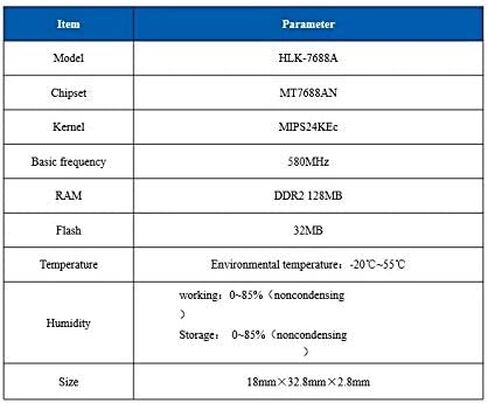

Feature
·Super data processing capability, MCU frequency up to 580MHz
·150M wireless rate
·Support 802.11b/g/n/v mode
·20/40 channel bandwidth
· Support AP, STA and AP+STA mixed mode
· 5 10/100M adaptive network ports, 1 USB2.0 host interface with SPI/SD-XC/eMMC

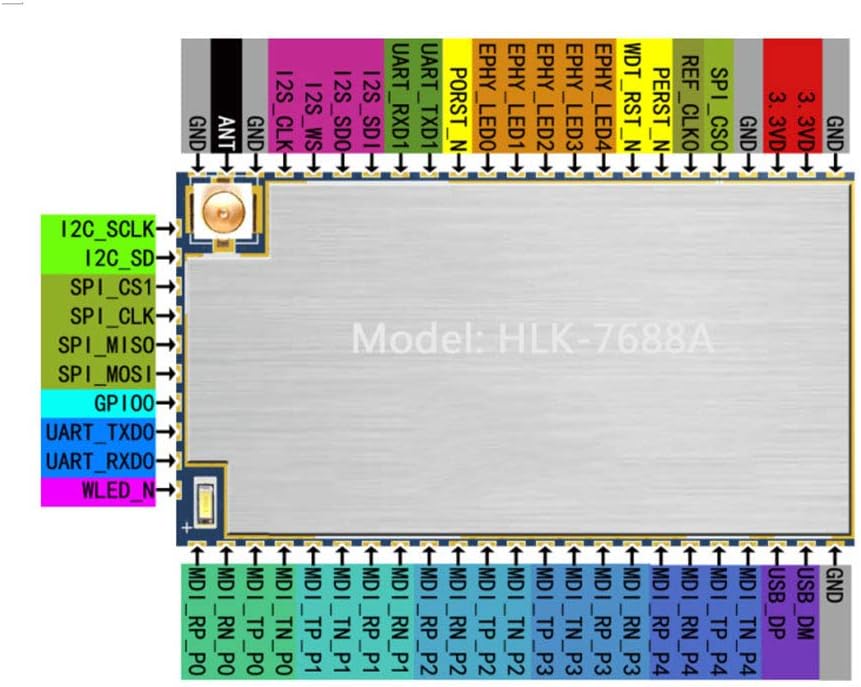

· Rich peripheral interfaces, SPlI2C, 12S, PCM, UART, JTAG, GPIO
· Support multiple encryption methods WEP64/128, TKIP, AES, WPA, WPA2, WAPI
·Support QOS, WMM, WMM-PS

·Support Linux2.6.36SDK, OpenWrt3.10
