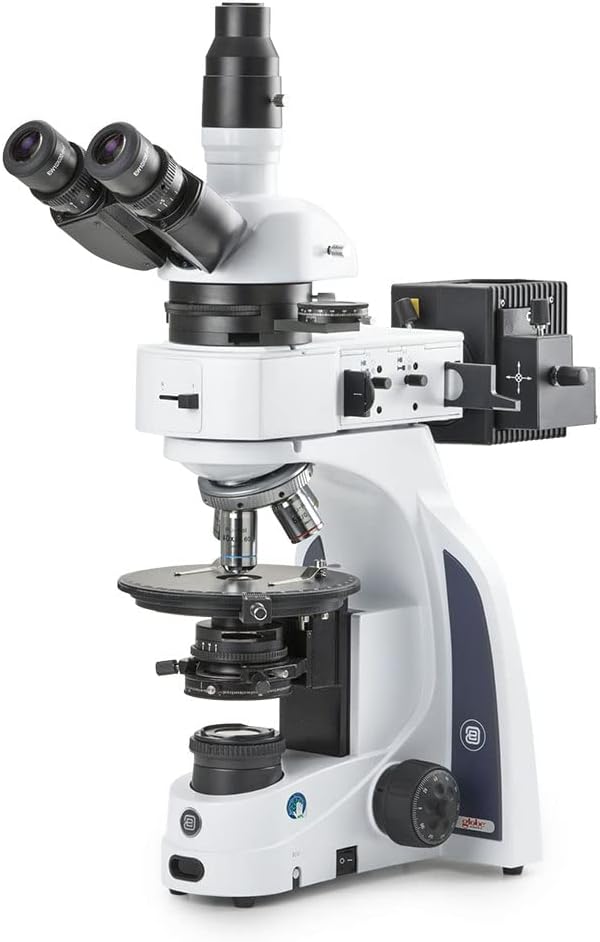

HEAD: Trinocular 30º Siedentopf, Ø 30mm eyepiece tube, 48-76mm, interpupilar, +/-5mm diopter adjustment on both tubes

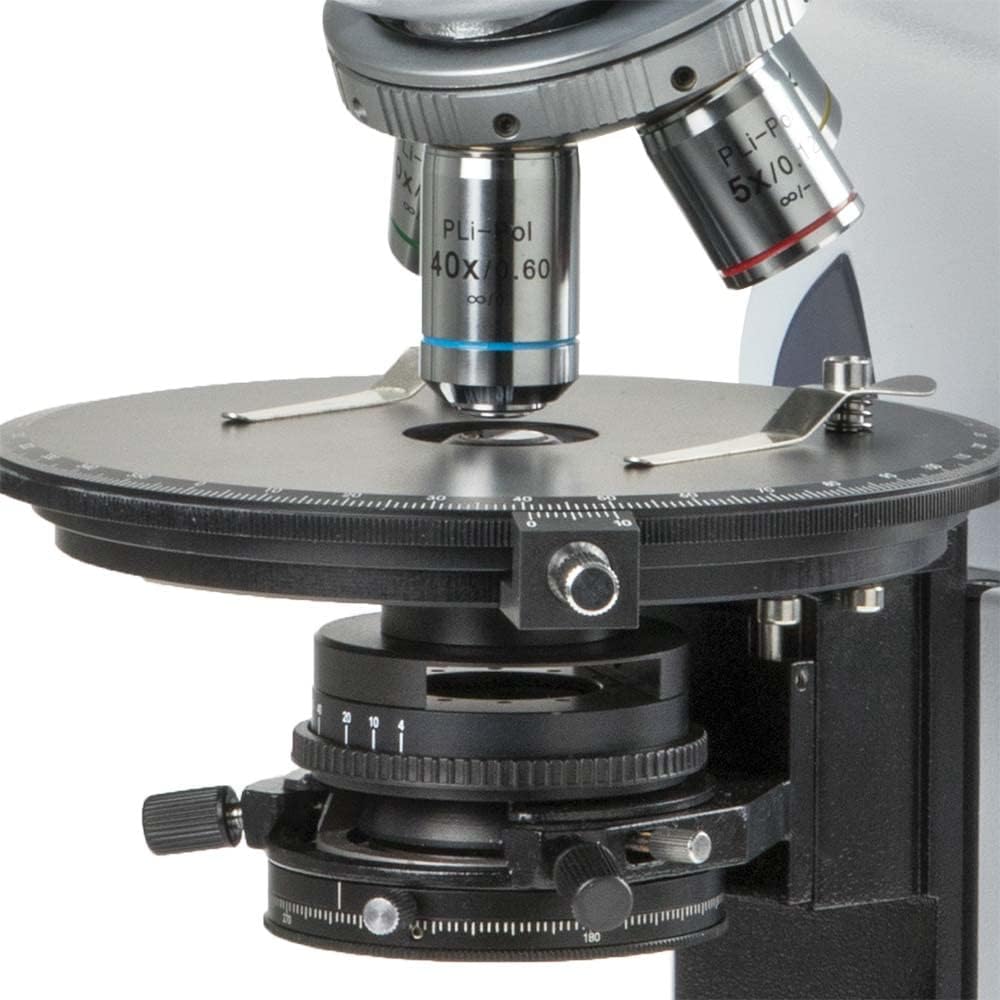

EYEPIECE: EWF10x/20mm, EWF10x/20mm with crosshairs and EWF10x/20mm with crosshairs and micrometer reticle, NOSEPIECE: Quadruple, OBJECTIVES: Plan PLPOLRI IOS 5x/0.12, 10x/0.25, 20x/0.40, S50x/0.75 objectives, STAGE: 360° Rotating Ø160mm graduated stage with two object clamps, CONDENSER: Height adjustment Abbe A.N. 1.25 with iris diaphragm and 360° swing outrotatable polarizer, ILLUMINATION: 50W 12VDC halogen epi-illumination and external 100-240VAC power supply
The iScope microscopes exceed today's standard, as they provide more comfort and convenience for microscopists with ergonomic features such as height adjustable eye tubes and a large rackless stage with a double slide holder.
The modern design and compact size of the iScope microscopes allow more working space, safer operation and enable easy storage. The iScope series is available in various configurations, suitable for life and biomedical sciences, universities, high schools, and routine medical applications.
Packed with features including quintuple objective turret design, diascopic intensity adjustable 3W NeoLED illumination, Abbe NA 1.25 condenser for brightfield, and cable storage management system, the iScope series is an ideal solution to support demanding applications for fundamental analysis and research.
Description
The iScope microscopes exceed today's standard, as they provide more comfort and convenience for microscopists with ergonomic features such as height adjustable eye tubes and a large rackless stage with a double slide holder. The modern design and compact size of the iScope microscopes allow more working space, safer operation and enable easy storage. The iScope series is available in various configurations, suitable for life and biomedical sciences, universities, high schools, and routine medical applications. Packed with features including quintuple objective turret design, diascopic intensity adjustable 3W NeoLED illumination, Abbe NA 1.25 condenser for brightfield, and cable storage management system, the iScope® series is an ideal solution to support demanding applications for fundamental analysis and research. • EWF 10x/22mm eyepiece • Binocular and trinocular models • Quintuple reversed nosepiece • E-Plan, Plan and Plan Phase infinity corrected IOS objectives • 156 x 138mm stage or 187/230 x 140mm rackless stage • Intensity adjustable 3W NeoLED™ Köhler illumination • iCare sensor for energy saving • Cable Storage System • CE certified • 10-Year warranty
