MINUA DIY Electronic Hourglass ering Kit LED Physical Science Learning Experiment in Saudi Arabia MINUA DIY Electronic Hourglass ering Kit LED Physical Science Learning Experiment in Saudi Arabia MINUA DIY Electronic Hourglass ering Kit LED Physical Science Learning Experiment in Saudi Arabia MINUA DIY Electronic Hourglass ering Kit LED Physical Science Learning Experiment in Saudi Arabia MINUA DIY Electronic Hourglass ering Kit LED Physical Science Learning Experiment in Saudi Arabia MINUA DIY Electronic Hourglass ering Kit LED Physical Science Learning Experiment in Saudi Arabia MINUA DIY Electronic Hourglass ering Kit LED Physical Science Learning Experiment in Saudi Arabia

MINUA DIY Electronic Hourglass ering Kit LED Physical Science Learning Experiment

SAR 50
Brand
MINUA
Weight
45 g
– 1 +

Special Features

  • 【 Feature】DIY electronic hourglass soldering kit includes the basic SMD components, 57pcs 5mm LED diode
  • 【Working voltage】DC 5V, PCB board size: 84x40mm/3.31x1.57inch(L*W).
  • 【Application 】It is a creative night decoration light, also soldering practice project for electronic enthusiast and DIY beginners, school basic electronic educational experiment.
  • 【Easy to Assemble 】High quality material and double-sided tin sprayed FR-4 circuit board, easy to tin welding and not easy to oxidize, which is conducive to success
  • 【 Warm tips 】Please check part values and quantities against part list; Please make sure all components in right dirction and right place; check whether any soldering points with poor contact.

Description

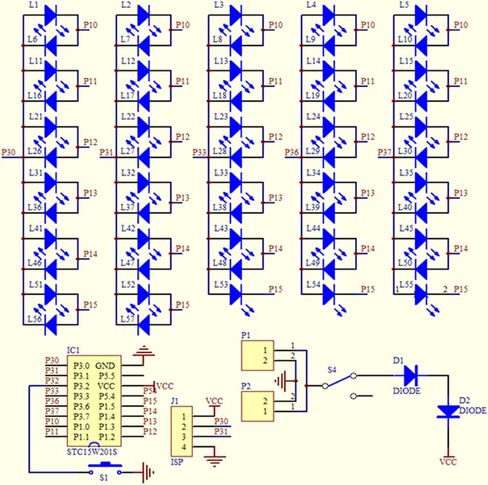

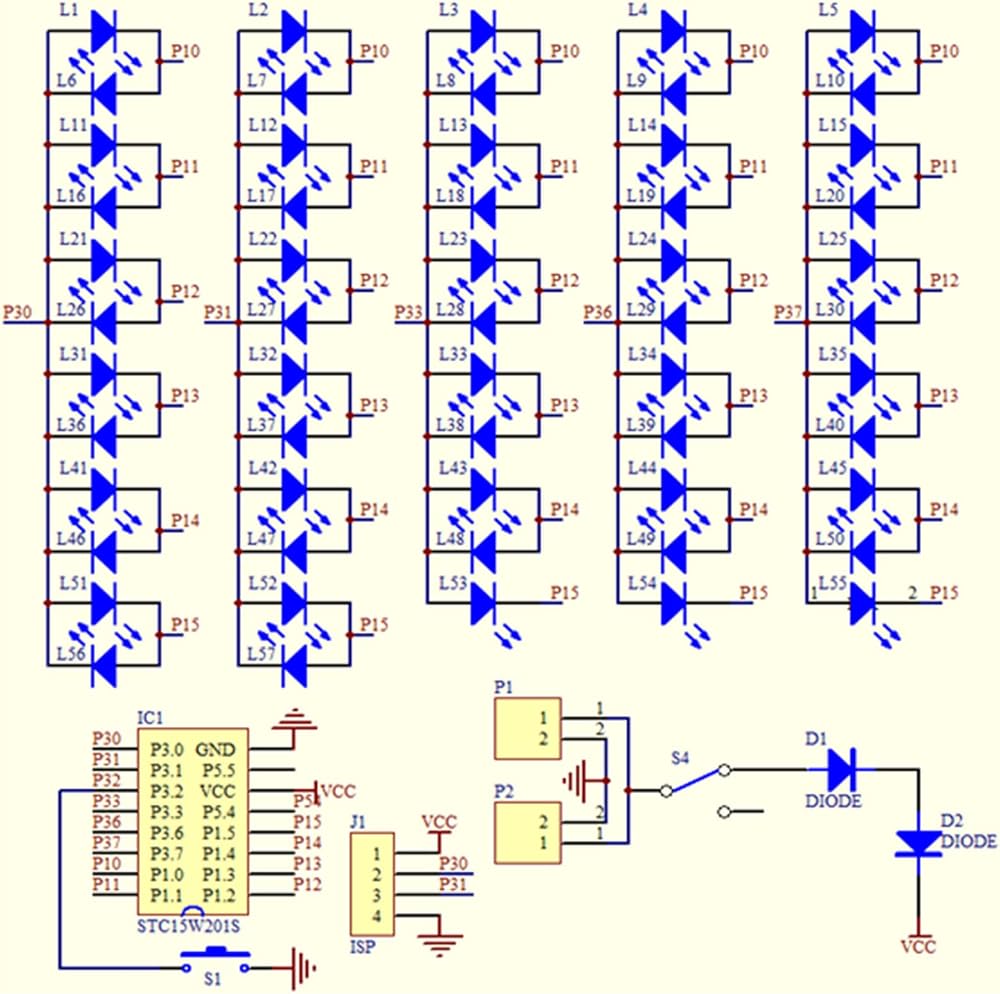

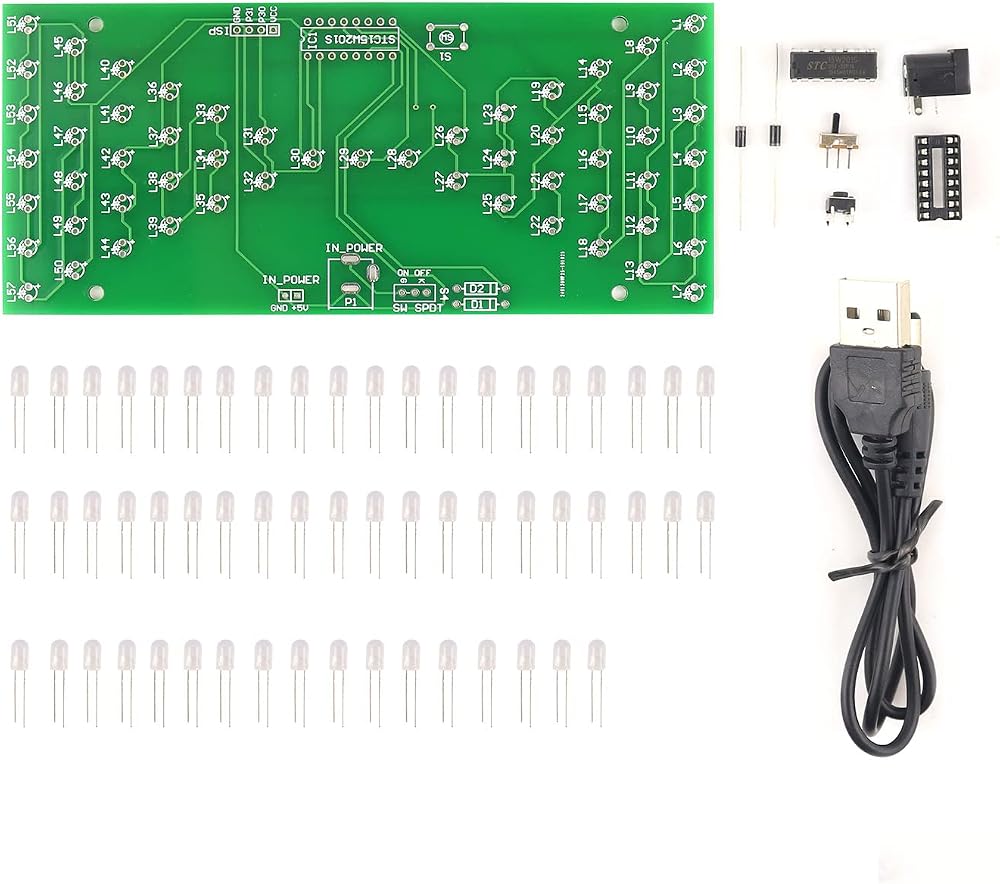

1.Parameter 1>.Board Size:84*40mm 2>.Power Supply Voltage:5V 2.Principle explanation The circuit consists of 57 3mm white hair blue LED composition of the hourglass pattern.In the control of the microcontroller, showing the effect of simulated hourglass.S1 is power switch,USB(Do not include in kits) and DC1(3mm power socket) are all power input interface,you can use any of them.ISP is the program download interface.Controller is SC15W201S with code(NOTE:Do not update the code inside arbitrarily,the internal code is not shared).If user can write code,user can update code by ISP interface.Switch S2 can control the speed of hourglass. 3. Component Description 1>.57pcs 3mm white LED 2>.1pcs Toggle Switches 3>.1pcs Button 4>.1pcs DIP-16 IC Socket 5>.1pcs DIP-16 STC15W201S 6>.1pcs Power Socket 7>.1pcs 4P Male Pin 8>.1pcs PCB
