Specifications:
Motor KV:620KV RPM/V
Motor Resistance (RM): 0.0765 Ω
Idle Current (Io/10V):0.8A/10V
Max Continuous Current:30A
Max Continuous Power: 465W
Weight:≈112g/3.95oz
Lipo Cell: 3-4S
connectors size :`````
Motor Diameter :46mm/1.81in
Motor Body Length: 25.5mm/1.003in
No. of Stator Arms: 24
Pole Count: 22
Overall Shaft Length: 33.4mm/1.31in
Shaft Diameter: 3.175mm/0.125in
Bolt holes spacing: 19mm/25mm/0.75in/0.98in
Bolt thread: M3×6

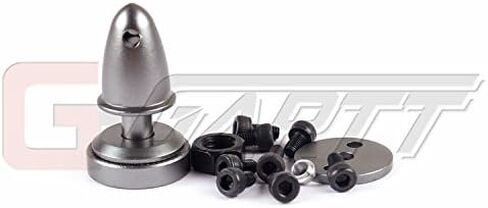

Package includes:
ML4108 500KV brushless motor X 1 When using the screws we provide, pay attention to the thickness of the motor mounting plate. If the mounting plate is too thin, it may cause the screws to be too long to be pushed up to the motor coil.
