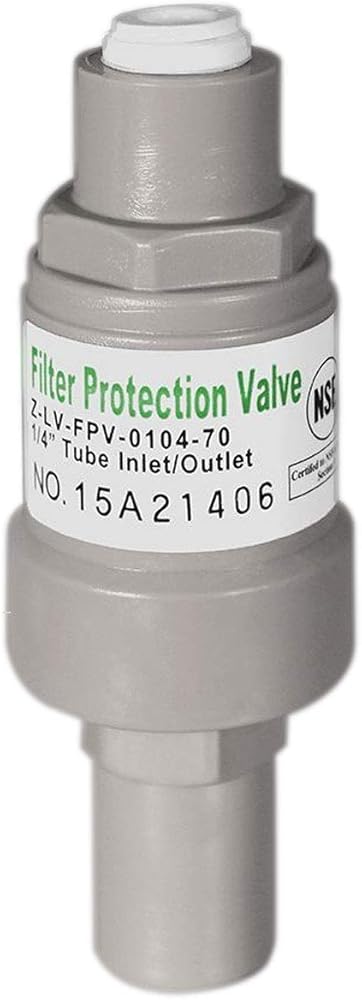

Reverse Osmosis Pressure Reducing limit Valve 70 PSI Water Filter regulator NSF in Saudi Arabia Reverse Osmosis Pressure Reducing limit Valve 70 PSI Water Filter regulator NSF in Saudi Arabia

انخفاض ضغط التناضح العكسي الصمام 70 رطل / رطل ترشيح منظم NSF

SAR 89
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Power: not required, Filtration Method: Reverse Osmosis
  • Type: reverse osmosis pressure control valve
  • Brand: Max Water
  • Color: Blue
  • Model: 105229

وصف

Features:

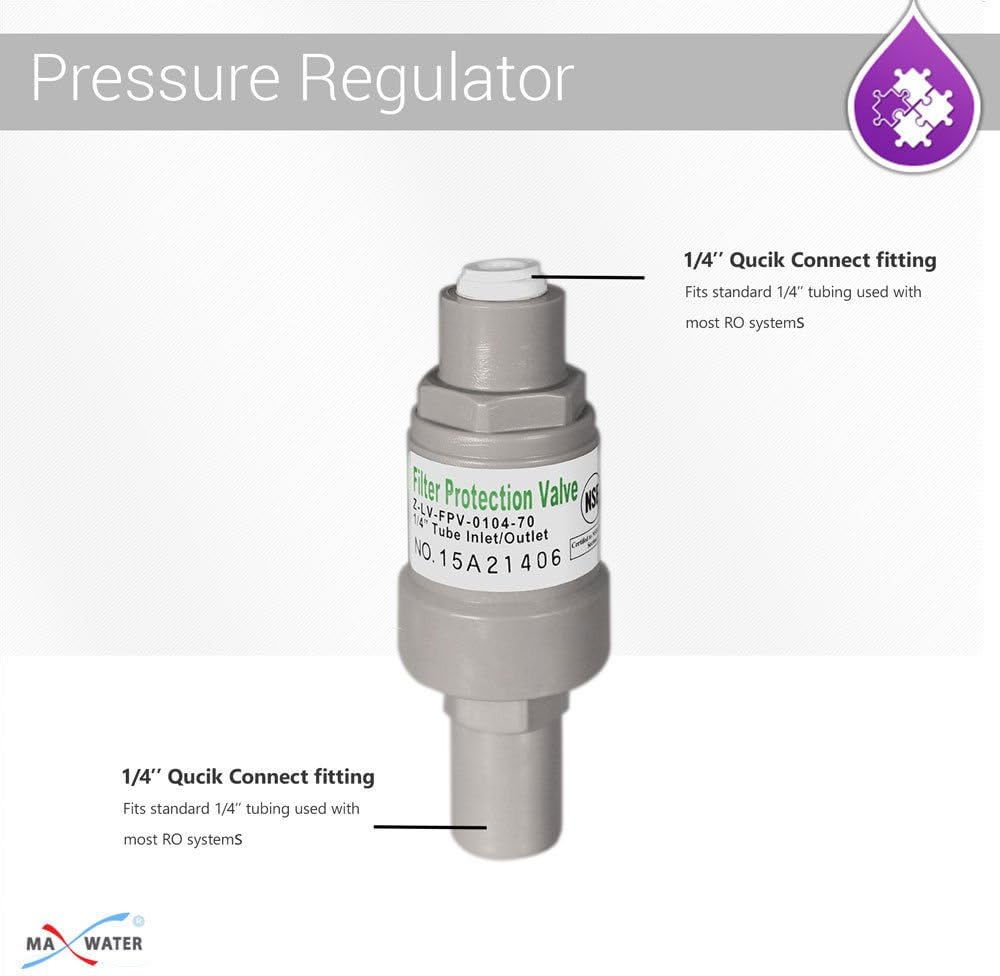

Filter Protection Valve 70PSI , 1/4 inch Inlet / Outlet Quick Fit Connectors
Ideal for all Reverse Osmosis Water Systems and any situation where you need to limit water pressure to 70 psi.
Designed for use with 1/4 inch tube (1/4 OD x 0.17 ID). ( OD= Outside diameter , ID=Inside Diameter)
Specifications:
Limiting Valve 70PSI
Flow 7.5L/min at 100 PSI
Max Pressure 230 PSI
Max Temperature 40 Degree C- Certified to NSF/ ANSI 61 Section 9.
Installation Steps.
Installation must be carried out by a qualified person
All pipe work must be flushed prior to installation
Do not apply heat near valve during installation
Must be fitted downstream of approved isolation valve
Must be installed in the direction as indicated by the flow arrow
Must be installed according to local regulations
