Parameters.
Adaptation voltage 3.6-16V ( with high voltage servo poking around )
General servo for 180 degrees servo, but the remote control can only let it turn 90 degrees
Board size: 25x9mm
Weight: 9g
Prerequisite: the servo supports pulse width 500-2500us range can rotate 180 degrees
Support 500-2500us 180 degree servo
The device will be extended to 500-2500us, so as to achieve the purpose of 180 degrees of rotation
Principle.
Remote control pwm output is: 1000-2000us; (at this time, the servo can turn 90 degrees)

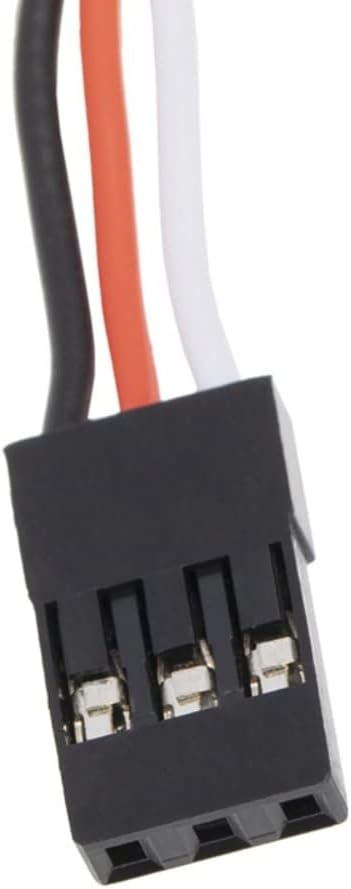

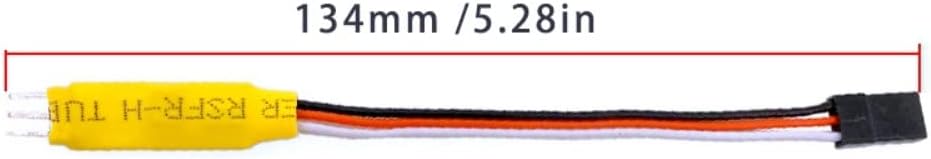

One side of the 3P line (134mm long), one side of the plug design, compact, easy to use
Applications.
Occasions where you want to extend the angle with a remote control, such as (robot arm, homemade sailboat)
Note: Some servos do not reach 180 degrees before they meet the limit plate, do not operate hard to cause the motor to block the rotation.
For example, the current is 1500, the motor is set in the middle position; then to make the servo turn 9 degrees counterclockwise, it should give a signal of 1600, but the reverser changes it to 1400, so the servo will turn 9 degrees clockwise.

Please note that this is the expansion of the remote control servo angle, the original control 90 degrees, expanded to become controllable 180 degrees servo. It is not a direct 90-degree servo into 180 degrees. This point is very important.

Package contents.

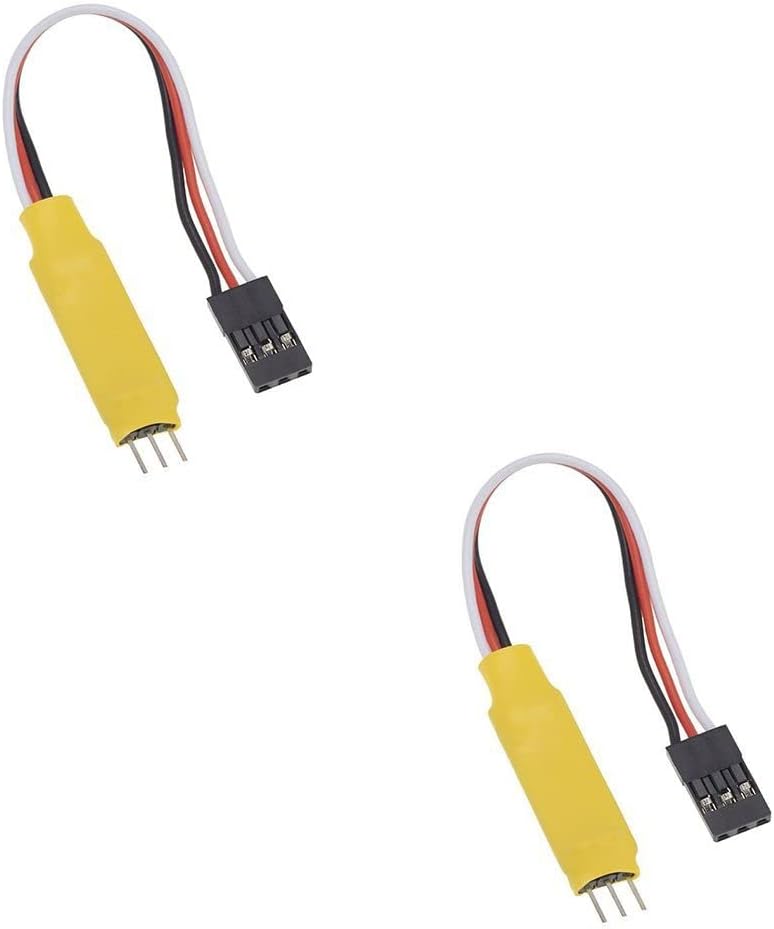

2 x Servo Extender

Only the above package contents, no other products are included.
Note: Lighting shots and different monitors may cause some differences between the color of the item in the picture and the real one. The allowable error of measurement is +/-1-3 cm.
