1/5 Large Scale Servo 150kg High Torque HV 18T Steel Gear Waterproof Digital Motor Servos (180 Degree)

SAR 262
Brand
MOREONERC
Weight
210 g
Size180 Degree
– 1 +

Special Features

  • 【Best RC Servo Upgrades】Designed for Large Scale RC, Robots, Industrial;
  • 【Excellent Performance】Operating Speed:0.19sec/60°; Stall Torque: 173kg-cm(2402.5oz-in)@12.6V,High Voltage Circuitry,Smooth Response and Plenty of Power;

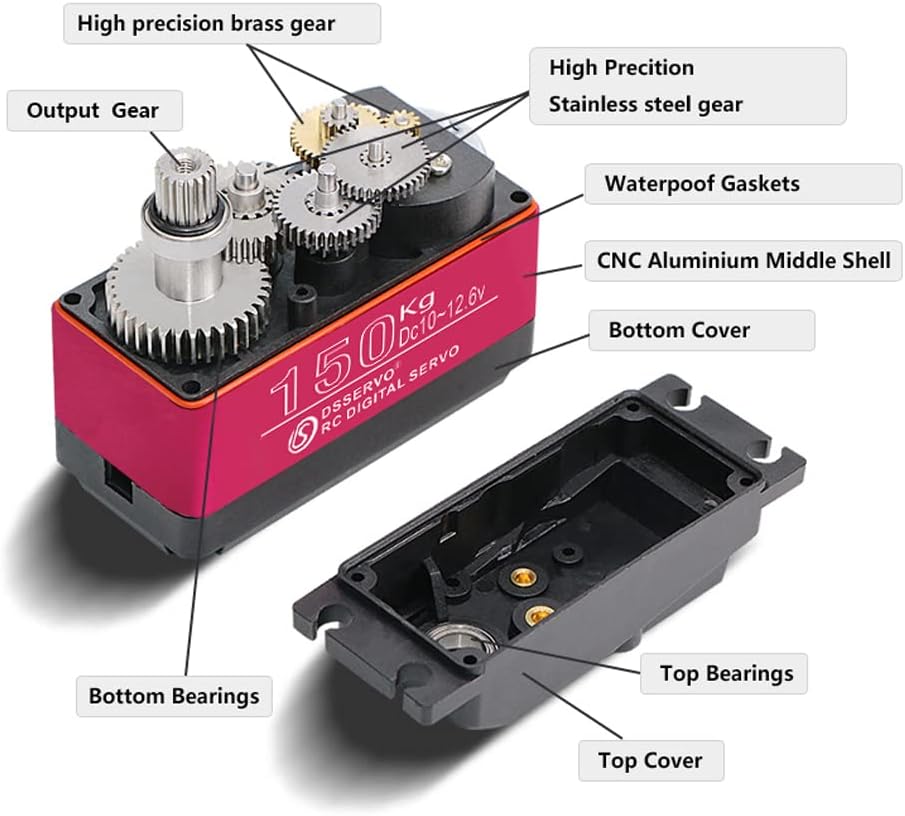

  • 【High Quality】 IP67 Waterproof,Extremely Strong Unique Stainless Steel Gears, Fast Heat Dissipation CNC Metal Case and High Strength Dual Ball Bearings Ensure Long Life and Durability;
  • 【Application Scope】Perfect for 1:5 Redcat HPI Baja 5B SS RC Crawler Compatible SAVOX-0236 LOSI XL and Other Models;

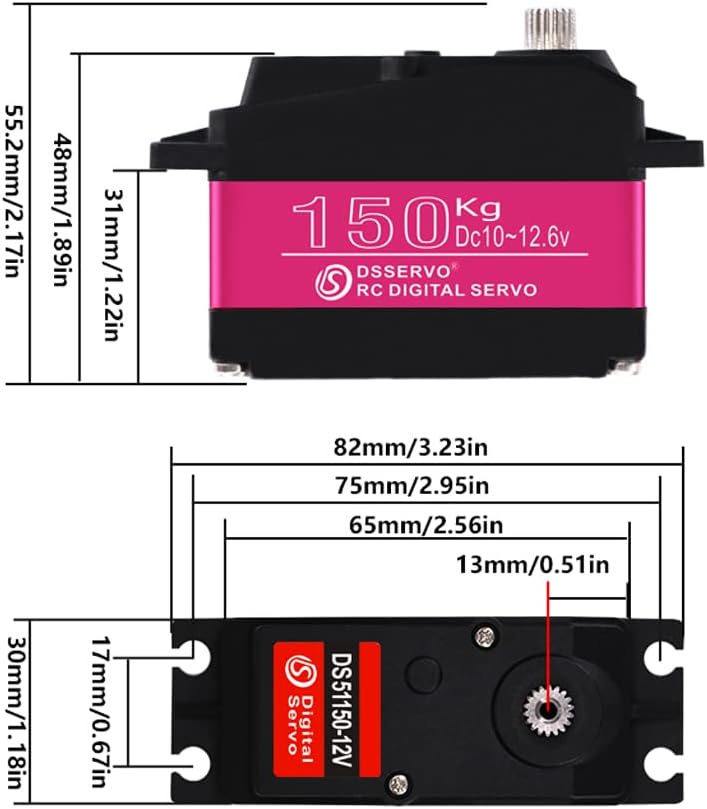

  • 【Dimensions(L x W x H) 】2.56 x 1.18 x 1.89 inches (65 x 30 x 48mm), Weight:175g (6.17oz)

Description

Operating Voltage:9 – 12.6Volts DC

Torque:
@10V: 150kg.cm(1180oz-in)
@12V: 165kg.cm(1361oz-in)
@12.6V:173kg.cm(1458oz-in)

Speed:
@10V: 0.24sec/60°
@12V：0.21sec/60°
@12.6V：0.19sec/60°

Operating Temperature: -15°C~70°C
Waterproof: IP67
Limit angle: 360°
Bearing: 2BB
Horn Gear Spline: 18 Tooth
Case Material : Engineering Plastic & Aluminum Alloy
Connector Wire: 17.7in (450mm)
Motor: 3-pole(s)
Command Signal:Pulse Width Modification
Amplifier Type: Digital Controller
Pulse Width Range: 500～2500usec
Neutral Position: 1500usec
Running Degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)
Dead Band Width: 3 usec
Rotating Direction Counterclockwise: (when 1000～2000usec)
CE /RoHs:Yes

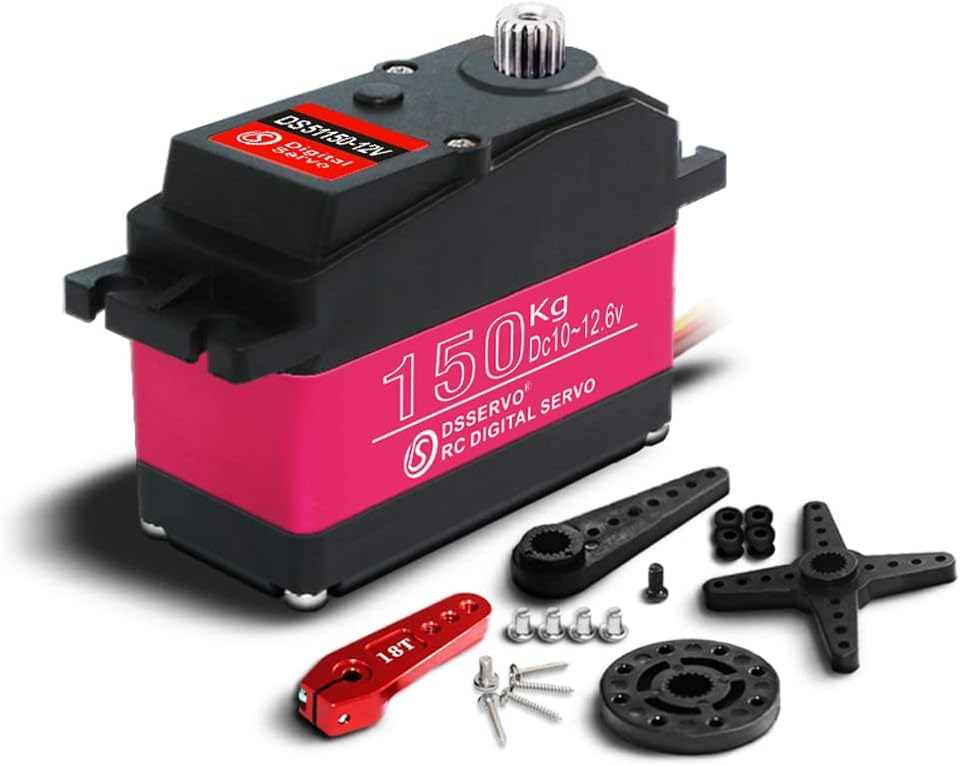

Contains:
Long Holder Aluminum & Short Holder Aluminum & Circle Holder-18T & Circle Holder -Orientation Angle:maximum 180 or 270 degree -Mechanical Angle :360 degree
(Plug/Output wheel/Radio control system compatible with Futaba JR Hitec)

Note:
1.Operating Voltage is DC9-12.6 V, Best Use Voltage is 12.6V
2.It Is Recommended to Use 2s Battery for Power Supply (9-12.6V)
