Package Includes:
1 x 4389102 Icemaker Sensor Control Board Kit with Instruction Manual
Compatible:
Refrigerator ice maker ice level optics control board kit

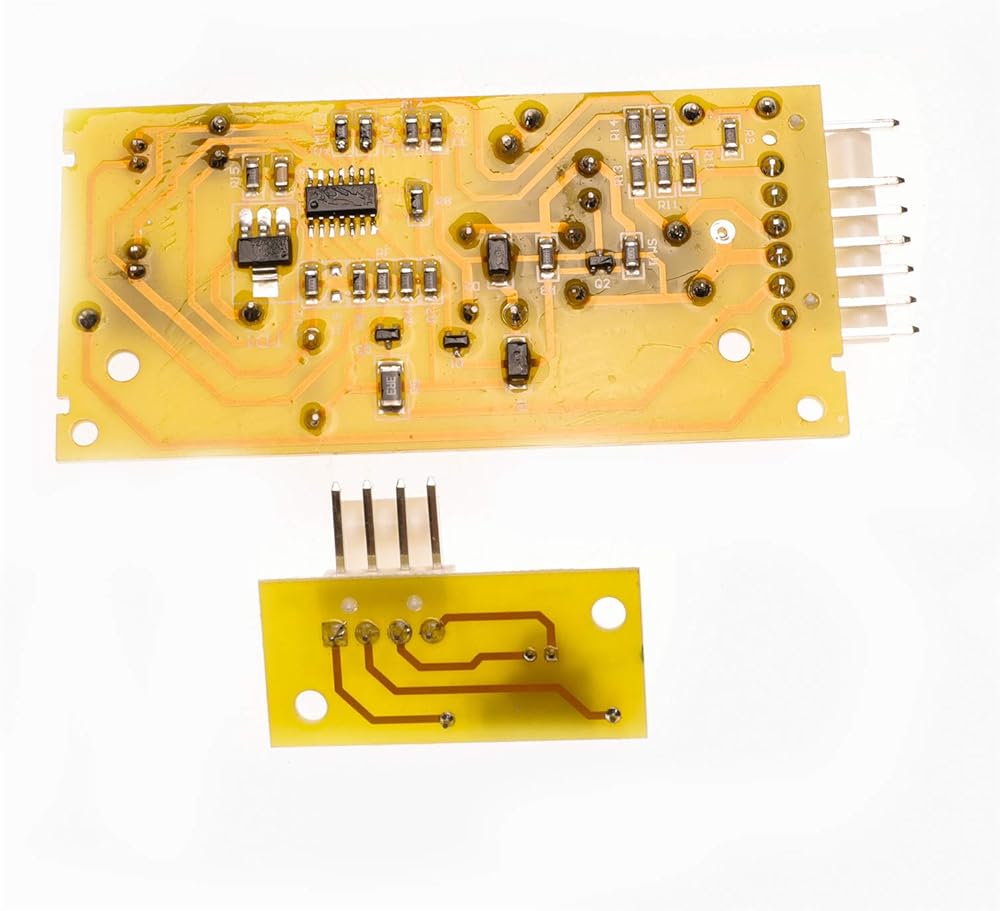

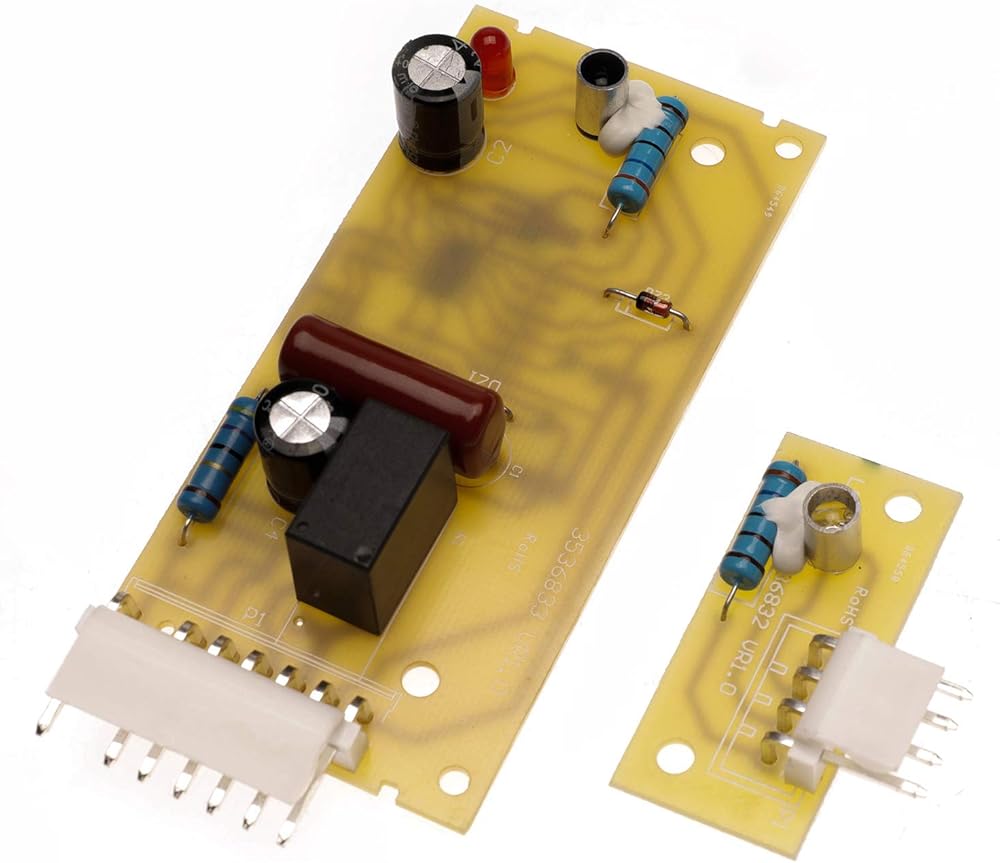

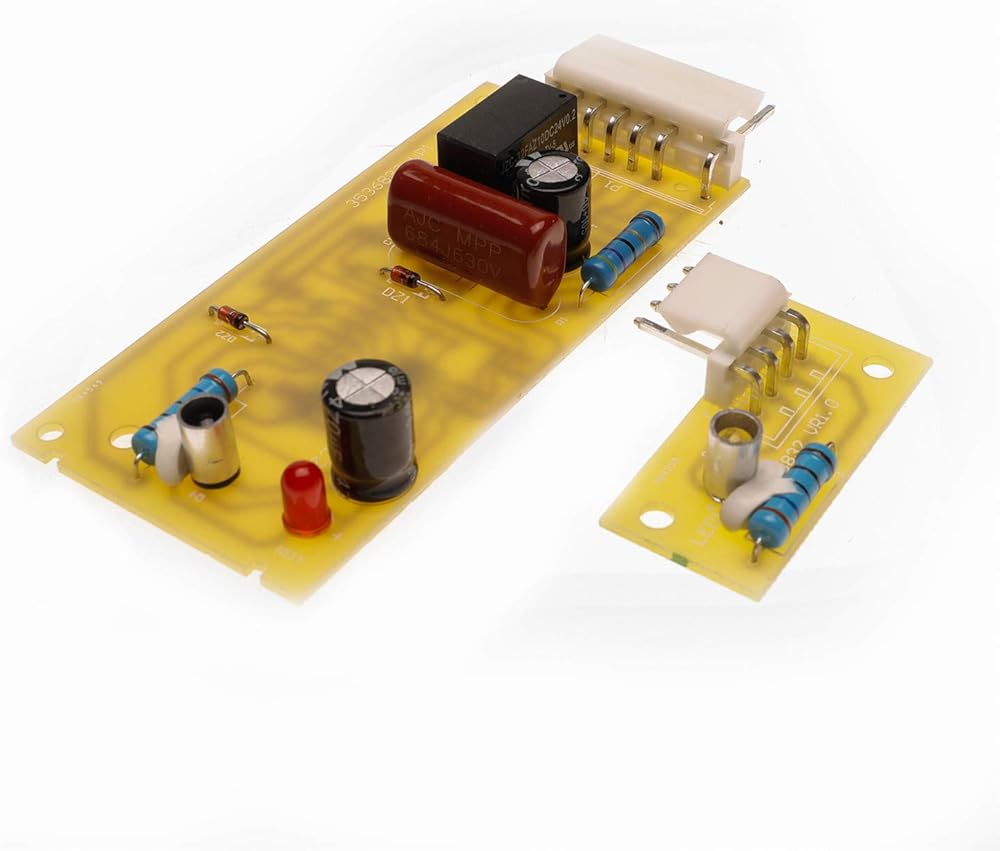

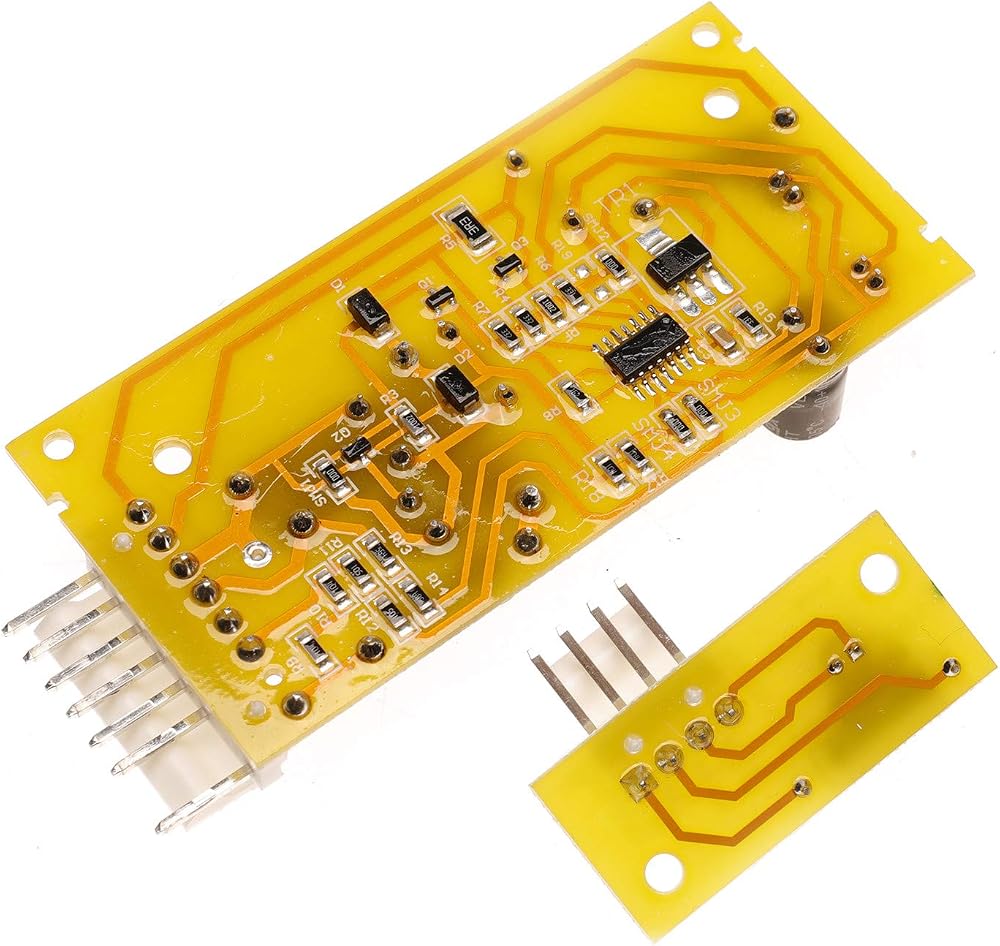

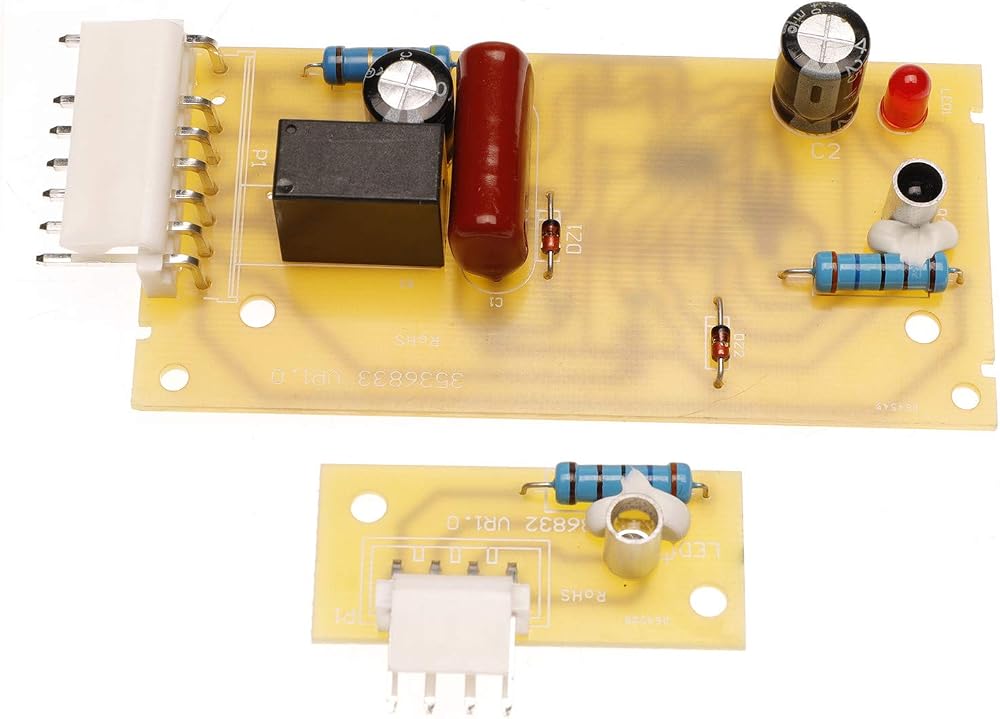

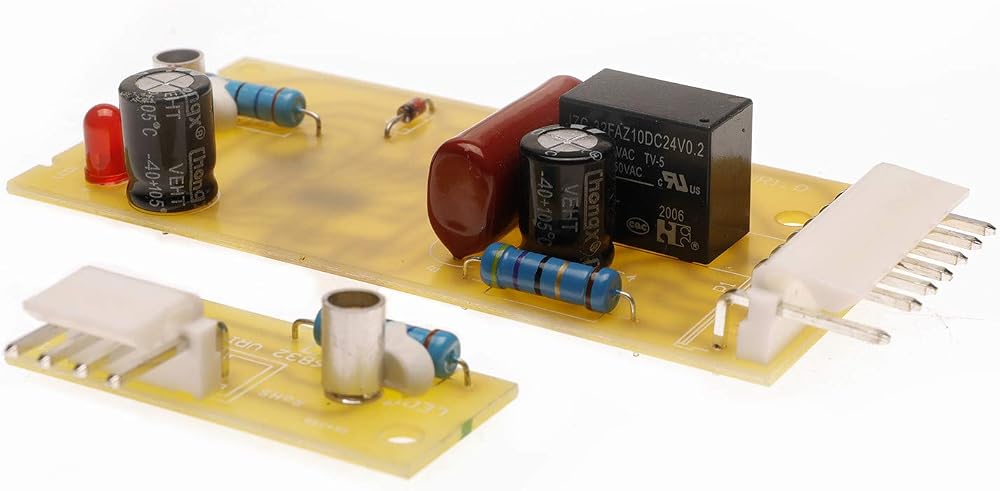

Includes emitter and receiver control boards
Designed to fit specific Whirlpool manufactured refrigerator models including
Jenn Air Kenmore Kitchen Aid Maytag
Replaces :
ADC9102 AP3137510 PS557945 PS10064583
2220398 2220402 W10193666 W10193840
2198585 2198586 2198588 2255114
W10290817 4388635 4389102 4389102R
W10757851 AP595676 PS10064583 TJ4389102R
Working Principle:
The ice maker is controlled by this 'Optics Board Kit' that scans the level of ice in the ice container
When the ice level in the container blocks the led beam (Full of Ice) it (shuts off the ice maker)
When the ice level in the container is below the led beam (Low Ice) it (turns on the ice maker)
If the ice level control board fails, the ice maker will stop making ice

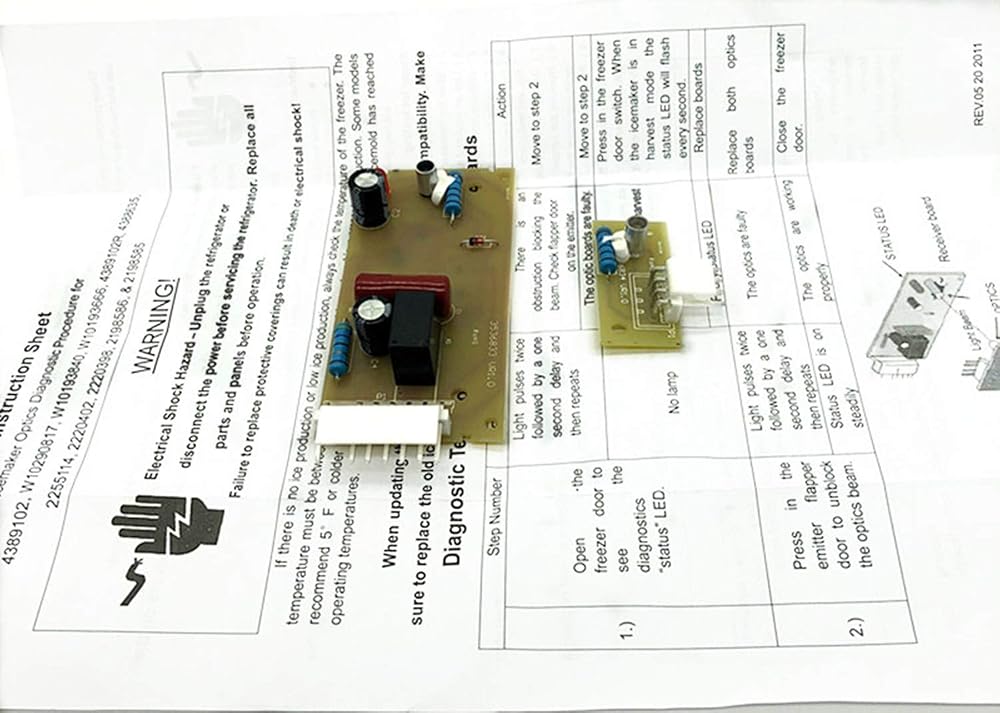

Tips: Our products are equipped with instructions
You can check the instructions or consult us first
You can send us refrigerator models number
we can help you to confirm if it can work or not
