Jayubien 16Pin ISO Car Stereo Radio Wiring Harness Adapter with Butt Connectors SWC Reverse Control Cable for Android Stereo Wire Harness in Saudi Arabia Jayubien 16Pin ISO Car Stereo Radio Wiring Harness Adapter with Butt Connectors SWC Reverse Control Cable for Android Stereo Wire Harness in Saudi Arabia Jayubien 16Pin ISO Car Stereo Radio Wiring Harness Adapter with Butt Connectors SWC Reverse Control Cable for Android Stereo Wire Harness in Saudi Arabia Jayubien 16Pin ISO Car Stereo Radio Wiring Harness Adapter with Butt Connectors SWC Reverse Control Cable for Android Stereo Wire Harness in Saudi Arabia Jayubien 16Pin ISO Car Stereo Radio Wiring Harness Adapter with Butt Connectors SWC Reverse Control Cable for Android Stereo Wire Harness in Saudi Arabia Jayubien 16Pin ISO Car Stereo Radio Wiring Harness Adapter with Butt Connectors SWC Reverse Control Cable for Android Stereo Wire Harness in Saudi Arabia Jayubien 16Pin ISO Car Stereo Radio Wiring Harness Adapter with Butt Connectors SWC Reverse Control Cable for Android Stereo Wire Harness in Saudi Arabia

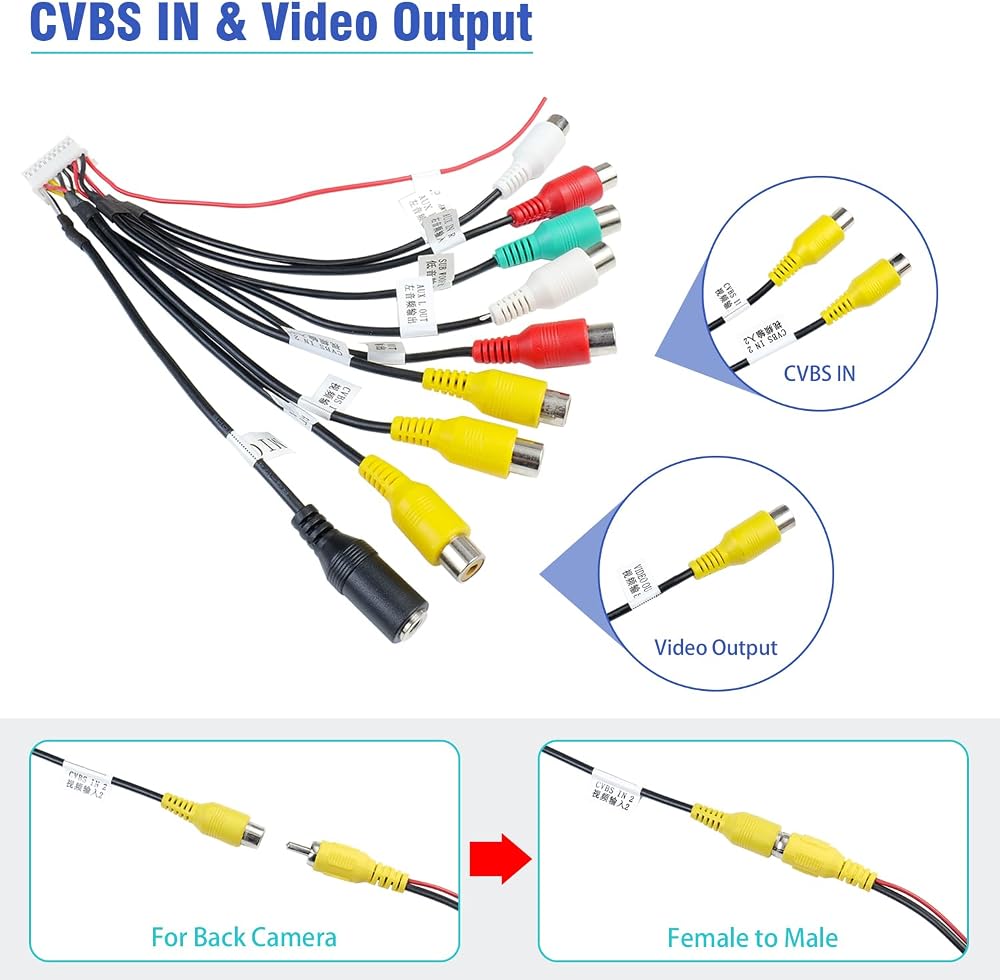

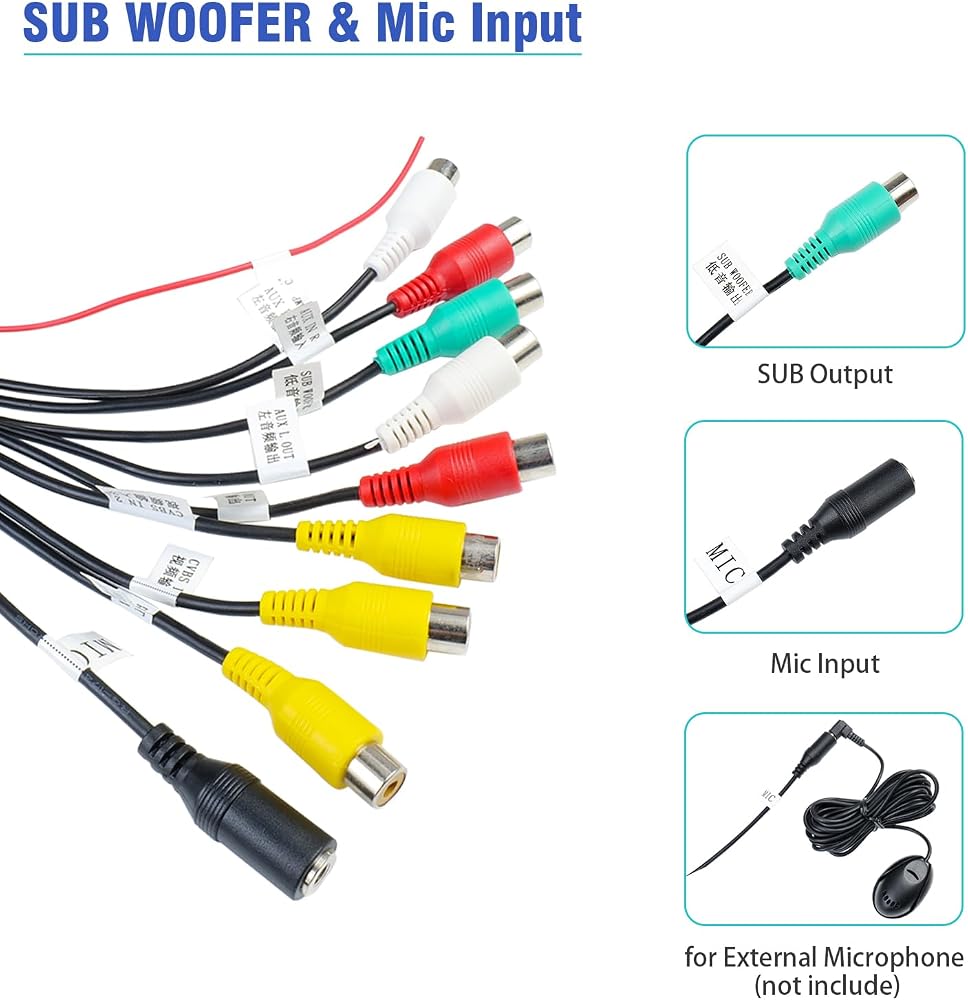

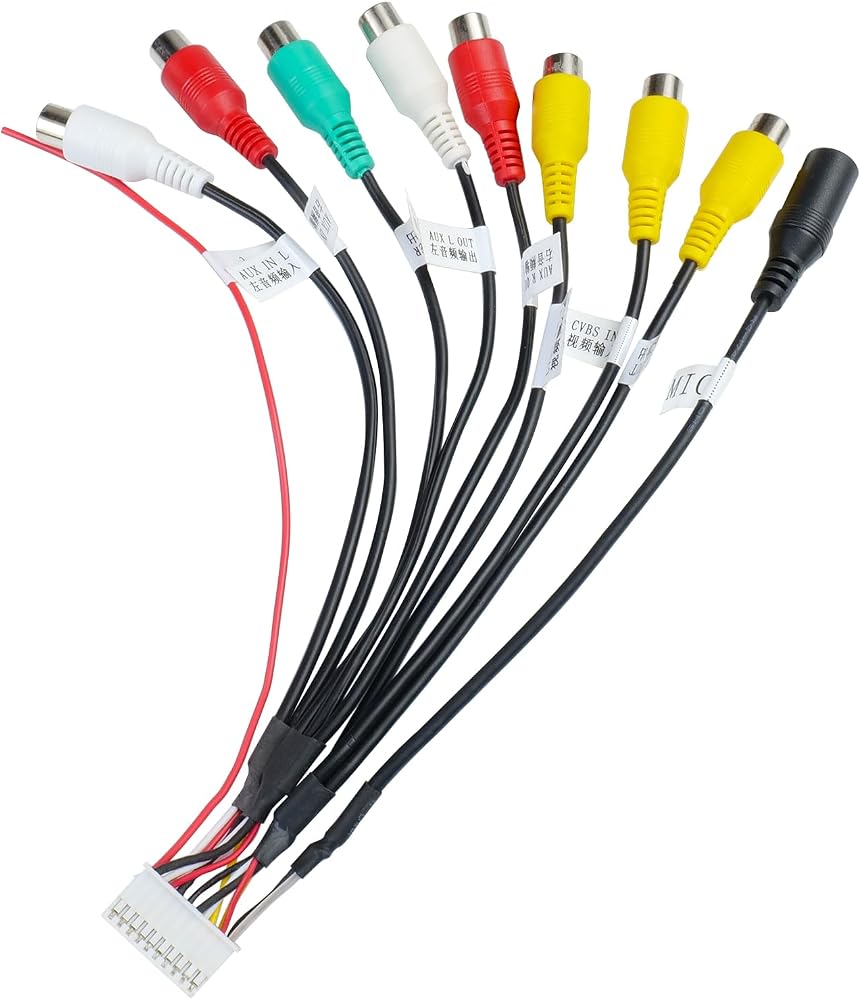

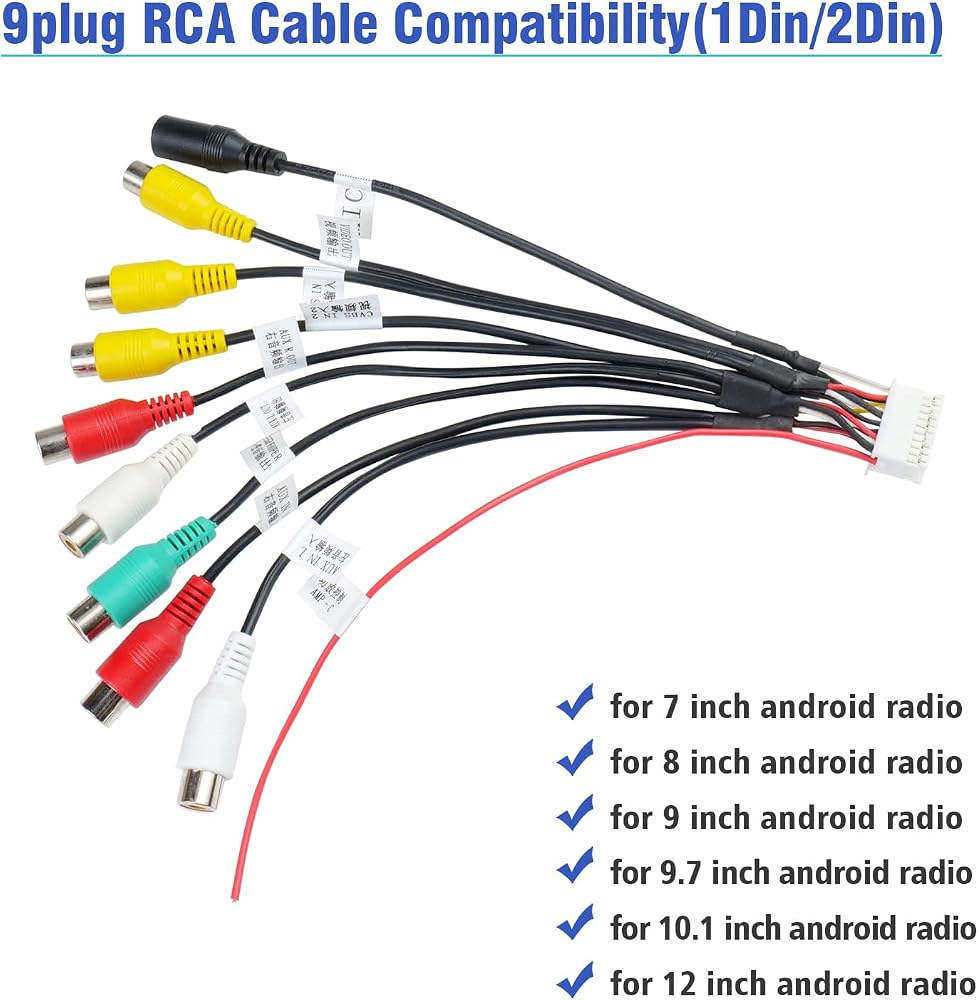

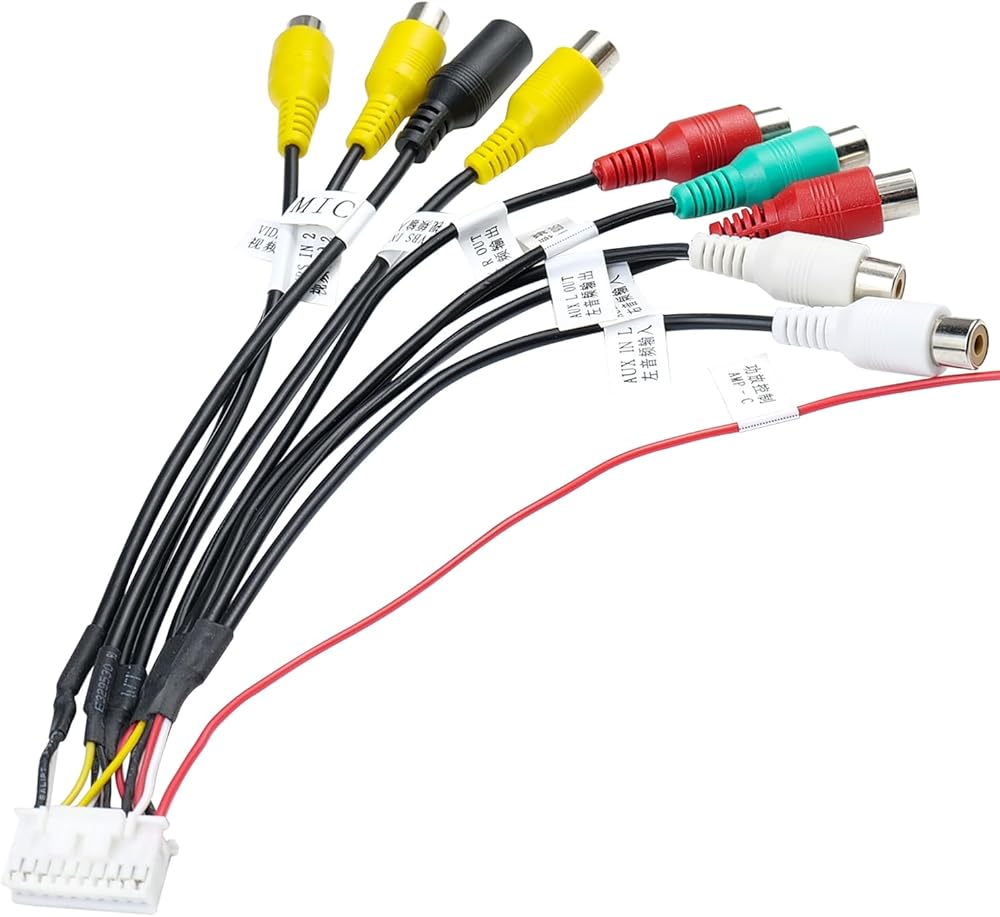

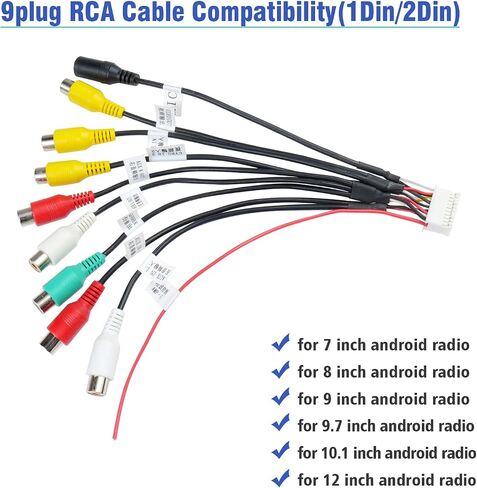

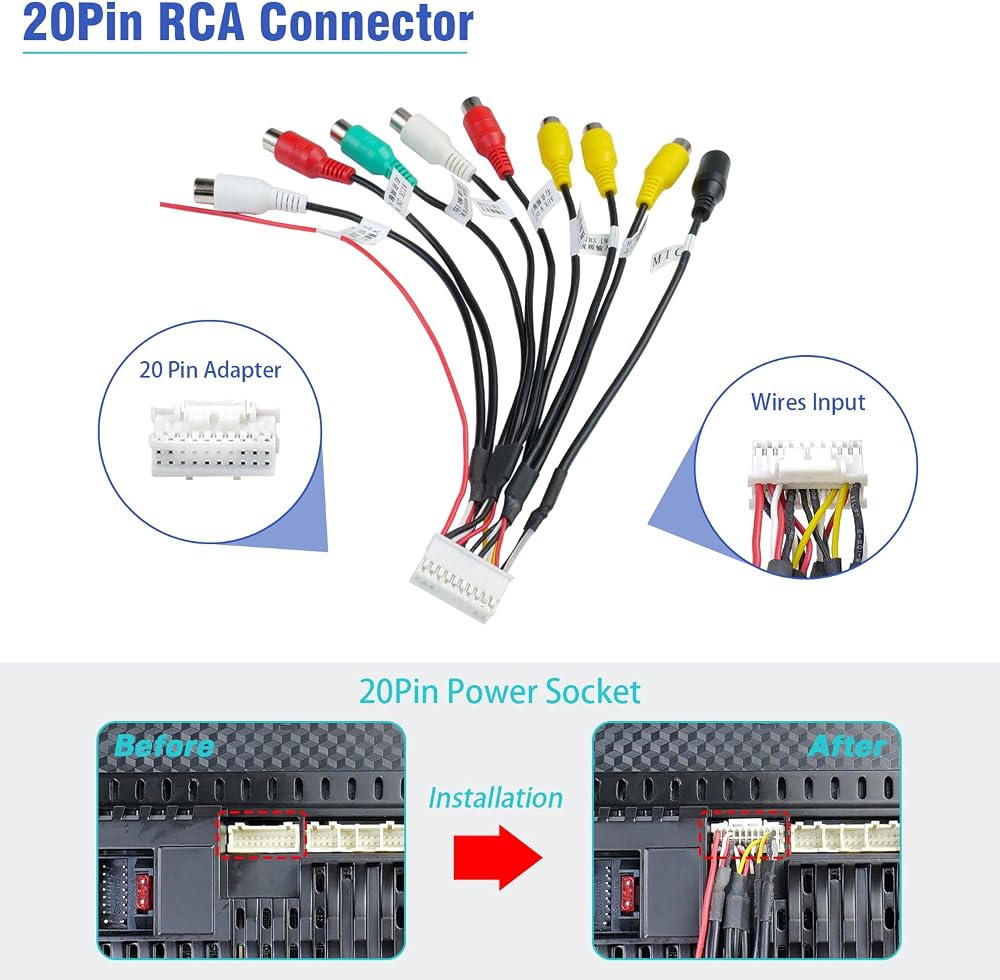

20Pin Connector with 9RCA Plug

SAR 35
– 1 +

Special Features

  • Iso Radio Wire Harness with Butt Connectors: Direct connect to your aftermarket android car radio. Included 16 pcs butt connectors for installation, support crimp the tails (not heat shrink). Not require soldering or additional tapes.
  • Car Stereo Wire Harness Adapter: 16pin android stereo stereo wire cable. It can use for most aftermarket android car stereo with 16 pin power socket, compatible with vehicle equipped with a 4-speaker system (not use for premium AMP system).
  • With Steering Wheel Control Cables: This iso radio adapter has KEY 1 and KEY 2 wires. It can be connected to the vehicle swc cable, allow you use swc function (not applicable for car with canbus).
  • Reverse Control Wire: Jayubien 16 pin iso stereo wiring harness has the reversing trigger cable to connect with your back camera rca detection cable.
  • Package List: 1 x 16Pin Car Radio Wiring Harness, 16 x Butt Connectors.

Description

Product Package
1 x 16Pin Wiring Harness for Car Stereo
16 x Butt Connectors

Wiring Connection of Radio Harness
ACC: Connect to ignition switch (red)
B+: To DC+12V (yellow)
GND : To B- (black)
+ILL : To illuminate backlight B+ (orange)

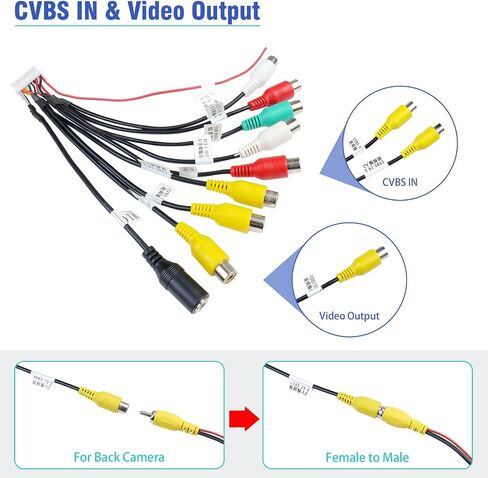

Reverse: To backup camera detection cable (out of the rca cord) (Brown)
KEY1 : To steering wheel control line 1 (pink)
KEY2 : To steering wheel control line 2 (orange)
ANT : To auto ANT (blue)
Rear R+: to rear right speaker + (Purple)
Rear R-: to rear right speaker -(Purple and Black)
Front L+: to front left speaker + (White)
Front L-: to front left speaker - (White and Black)
Rear L+: to rear left speaker + (Green)
Rear L-: to rear left speaker - (Green and Black)
Front R+: to front right speaker + (Gray)
Front R-: to front right speaker - (Gray and Black)

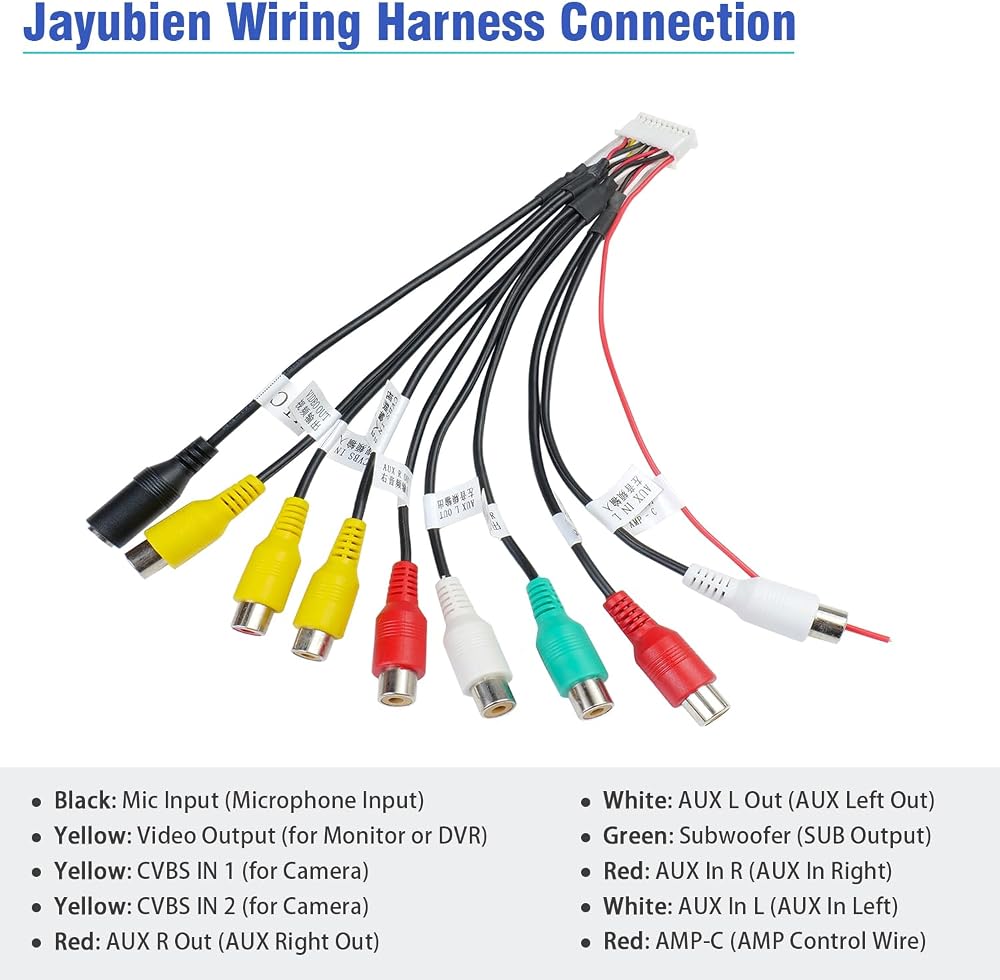

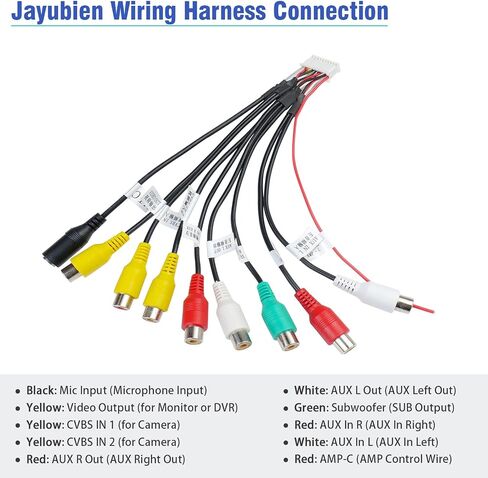

Jayubien Wiring Harness for Car Radio
Work with select universal 16 pin android car stereos
Support the butt connectors
With the SWC/ Reverse/ANT/ILL lines
