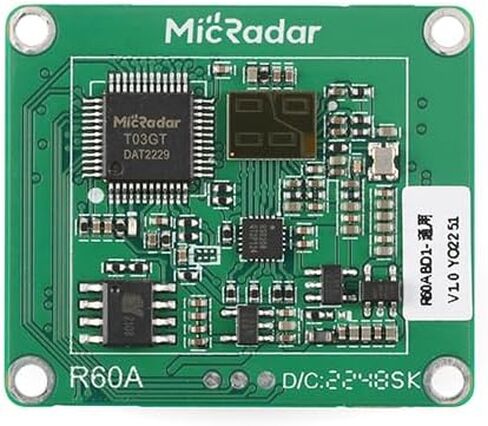

R60ABD1 60G Millimeter Wave Radar Breathing Sleep Monitoring Module Body Motion Detection Sensor Human Presence Detection Sensor Smart Home

SAR 157
Brand
JESSINIE
Weight
2 g
– 1 +

Special Features

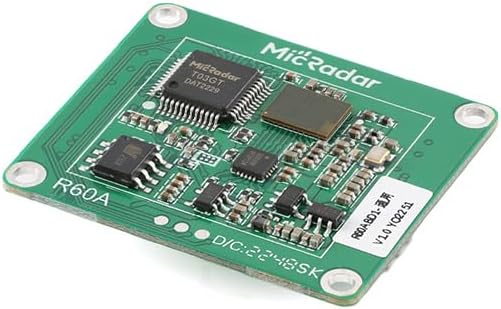

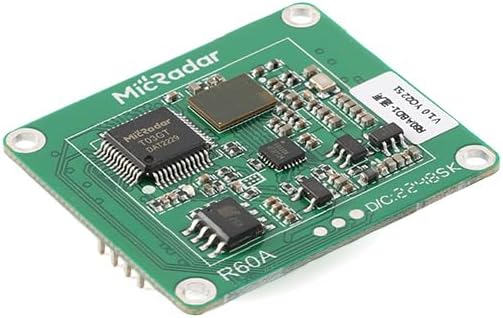

  • The R60ABD1 radar module uses 60G millimeter wave radar technology to achieve human respiratory perception and sleep assessment functions
  • The module is based on the FMCW radar system, which outputs the respiratory rate in specific situations. Combined with long-term sleep posture and body movement collection, it timely reports the sleep status and historical records
  • Within the radar detection range, small amplitude motion information of the human body can be detected. When the person remains stationary, small movements such as chest undulation can also be detected by the radar

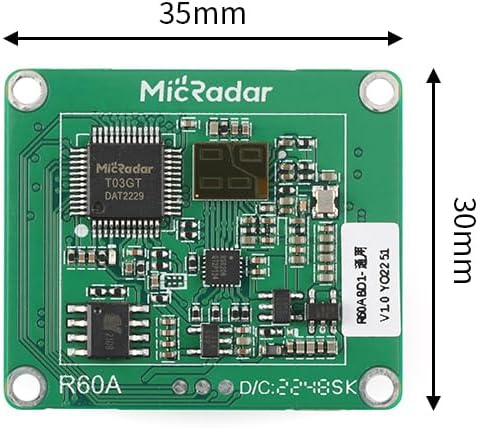

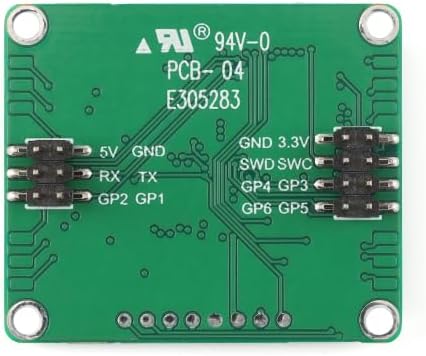

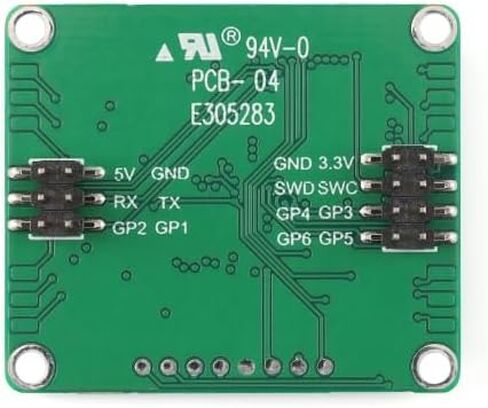

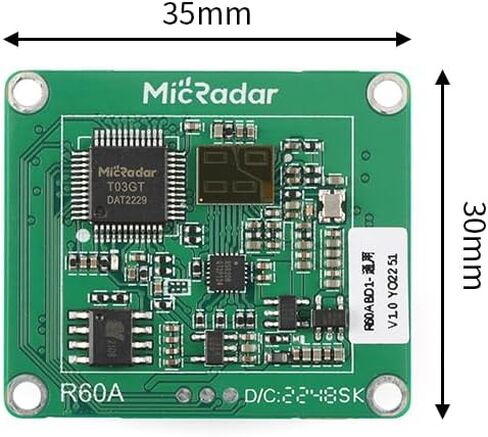

  • Volume: 35mm × 31mm × 7.5mm; Interface: Pitch 2.0mm double row pin interface, 2 * 3 and 2 * 4 sets of interfaces in total
  • Product application: Whole house intelligence, smart home appliances (TV, air conditioning, speakers, etc.), area personnel detection, sleep care, etc

Description

Electrical characteristics
Working voltage (VCC): 4.6V~6V (typical value 5V)
Working current (ICC): 90mA~100 mA (typical value 93mA)
Working temperature (TOP): -20 ℃~+60 ℃
Storage temperature (TST): -40 ℃~+105 ℃

Features:
Radar detection based on FMCW frequency modulated continuous wave signal;
Synchronous perception of human respiration;
Record of sleep quality;
Maximum detection distance for human sleep quality monitoring: ≤ 1.5 meters;
Maximum distance for human respiratory detection: ≤ 1.5 meters;
The output power of the radar module is within 0.5 watts and requires long-term power supply operation;
Not affected by temperature, humidity, noise, airflow, dust, light, and other environmental factors;
The product supports secondary development and adapts to various scenarios and applications;
Universal UART communication interface, providing universal protocols;
Time for unmanned detection (reporting): automatically detected according to the algorithm, with a typical value of 30 seconds;
Reserve 4 sets of I/O, which can be input and output according to user definitions, or perform simple interface simulations.
