Pyle Model : PLMRKT4A
Marine Amplified Speaker System4 Channel Waterproof MP3/ iPod Amplified 6.5'' Marine Speaker System
Two Pair 6.5'' 2-Way Marine Speakers:
6.5'' High Quality Polypropylene Cone
Suspension Cloth Surround
White Plastic Enclosure
2'' Polymer Cone Tweeter
200 Watts RMS / 400 Watts Peak
Frequency Response: 80-20KHz
Impedance: 8 Ohms
One Piece PLMRMP3A 4 Channel Waterproof Marine Power Amplifier
4 x 100 Watts RMS at 4 Ohms
4 x 200 Watts Max at 4 Ohms
4 x 300 Watts RMS at 2 Ohms
Electronic Crossover Network
2 Ohms Stereo Stable
Anti-Thump Turn-On
Soft Turn On/Off
Adjustable High Low Level Inputs
RCA Line Input
Power Protection Circuitry
Volume Gain Remote Control
T.H.D:
S/N Ratio: >95dB
Channel Separation: >65dB
Frequency Response: 10Hz- 40kHz
Fuse : 10A
Dimensions:6.10''L x 3.35''W x 1.38''H
Color: Silver
Accessories:
iPod / MP3 Waterproof Poly Bag
iPod / MP3 Waterproof 3.5mm Stereo to RCA Adaptor
Remote control for Volume Gain
This Pyle marine speaker system has everything you need to blast tunes at sea It comes with two pairs of 6.5' two-way speakers, 4-channel waterproof power amp, waterproof iPod/MP3 adaptor, and a waterproof poly bag. The speakers are constructed from high quality polypropylene cones, boasting 200 watts peak power and a white plastic enclosure. The PLMRMP3A amp pushes 200 watts max on each channel, so you know your speakers are well-matched. The amp also includes an electronic crossover network should you choose to expand your speaker system. The amp takes high and low level inputs, as well as an RCA line level input - so you can hook up your MP3 player using the included MP3 adaptor. And when things get wet, keep it safe in the included waterproof poly bag. Also includes a wired remote control for total control of your music from another spot on your vehicle.

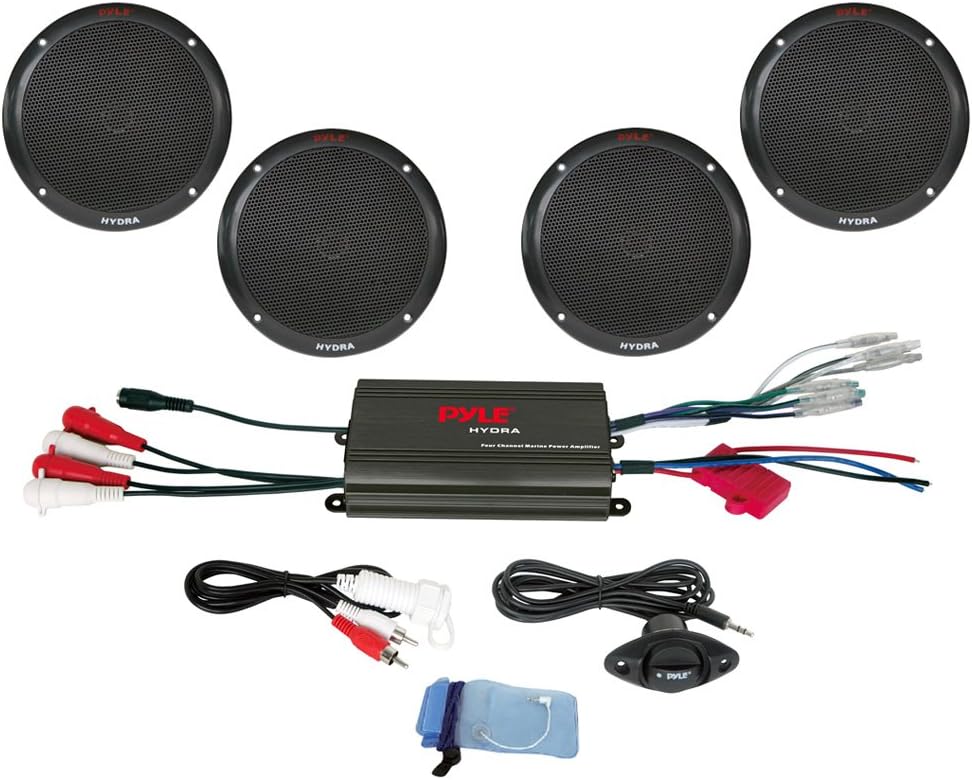

4-Channel Marine Speaker System with Amplifier

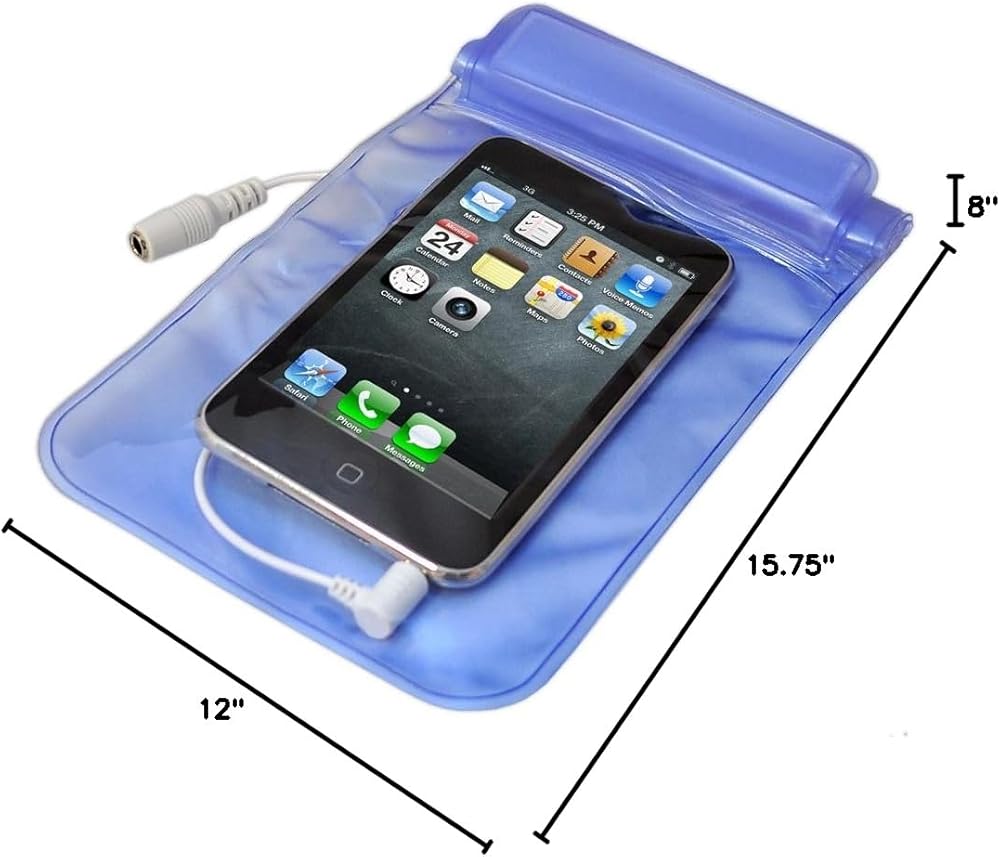

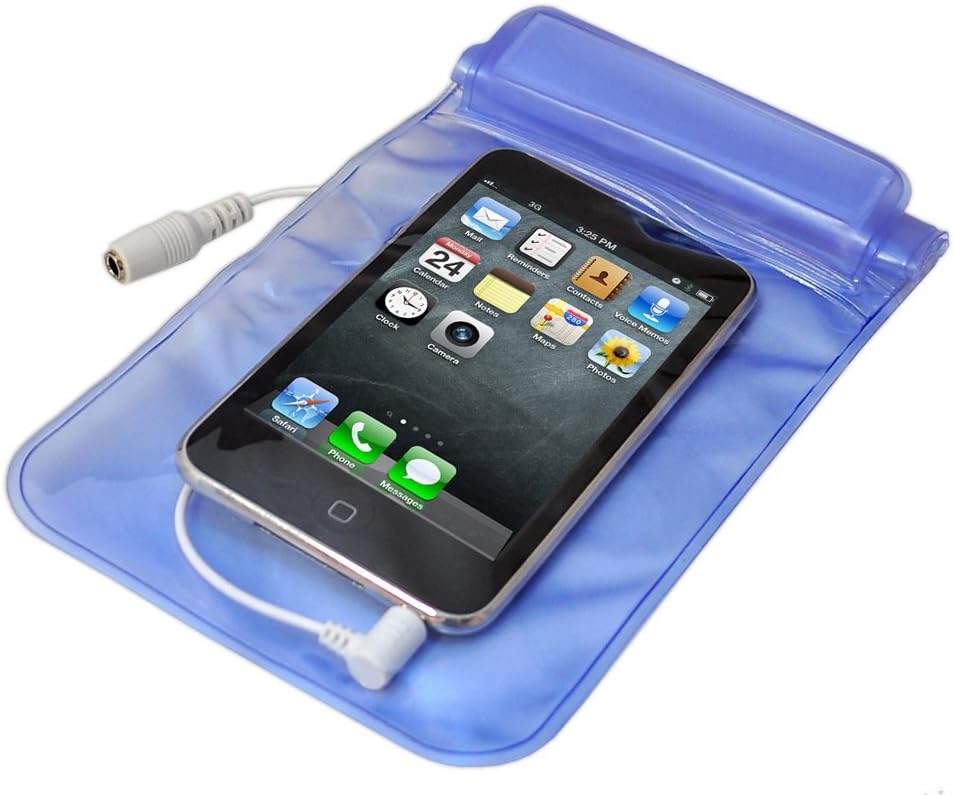

Waterproof Poly Bag Keeps Your Devices Dry

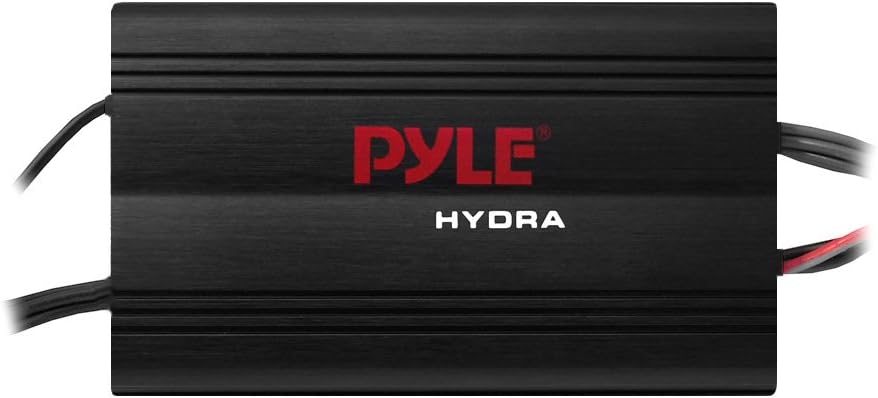

Hydra Series Amplifier

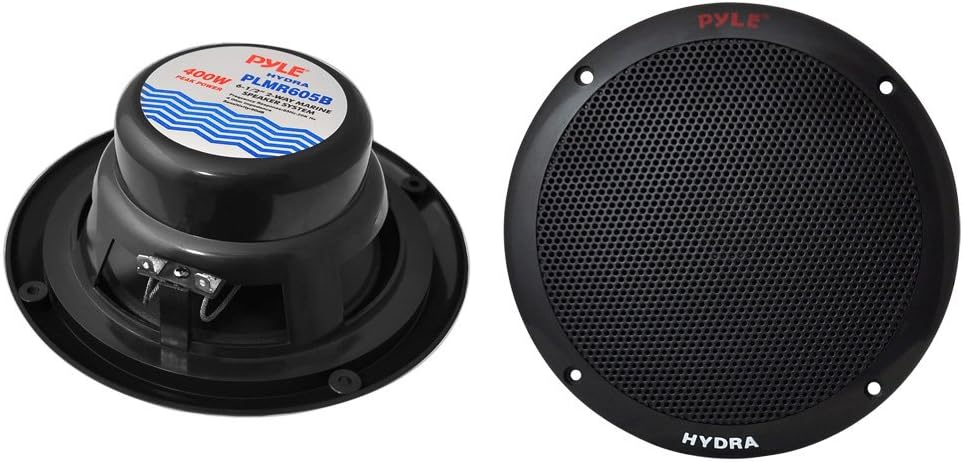

4 Speakers Included: 6.5" Dual Cone Marine Speakers

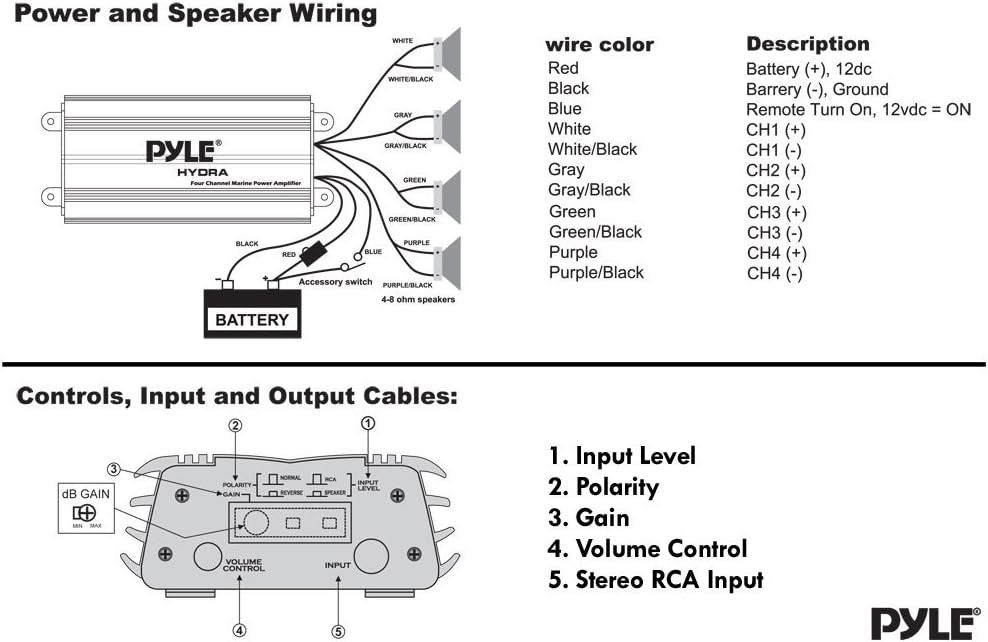

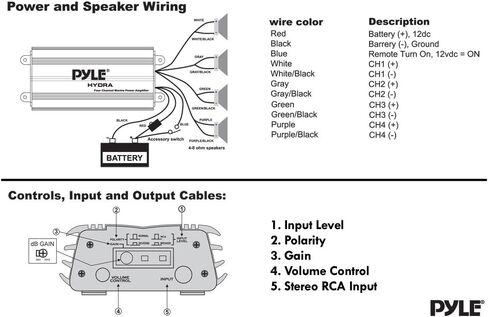

Wiring and Controls Diagram
Accessory Cables Included

Take Your Marine Audio To The Next LevelThe Pyle PLMRKT4A is a 4-Channel Marine Speaker System with amplifier designed for custom installation applications and makes it simple to expand the audio system capabilities for your vehicle - perfect for your boat, ATV or RV.
The Hydra Series Amplifier System is a great kit to start your marine audio system. It includes a 4-channel, 400-watt amplifier with tons of features, plus a total of (4) 6.5" 200-watt two-way speakers for rich, full-bodied audio. Also included are accessories to further enrich your marine audio experience, including remote volume control, 3.5mm stereo to RCA cable, and a waterproof poly bag for protecting your audio player from the elements.
Plug it inThis amplifier kit comes with a waterproof poly bag with 3.5mm jack so you can enjoy playing your favorite audio files from your iPod/MP3 player while keeping your device protected. The system includes RCA line inputs and the kit comes with a 3.5mm-to-RCA adaptor so you can connect your device through the poly bag. Additionally, you can also connect standard high and low level inputs from a marine head-unit or car stereo/radio.
Powerful 4-Channel AmplifierThe included amplifier provdes up to 400 Watt MAX power (200 Watt power on each of the 2 channels) -- plenty of power to get the boat rocking. The amplifier is also equipped with an electronic crossover network, adjustable high/low level inputs, and stereo RCA line-level inputs. The wired remote control allows you to adjust the amplifier gain easily -- no need to get the screwdriver every time you want to raise or lower the volume. Plus, it mounts to your dash for a clean, professional look.
A Pair of Waterproof Marine SpeakersThis kit includes a pair of 6.5" two-way marine speakers finished a pristine marine white -- the perfect addition to your boat's decor. Each speaker contains a high-quality polypropylene cone and 2" polymer cone tweeter for deep lows, rich mids, and sweet highs. With 200 watts of maximum power at 4 ohms, these speakers are perfectly matched with the included amplifier.
Fine-Tune Your AudioThe switches and gain settings are located behind a watertight plug, which also lights up when the amplifier is on. Customize your audio settings and make it sound just the way you want. Make adjustments to:
Input Level: Set the input sensitivity of the amp. If you are connecting to a LINE level source (typically an RCA type connection) then the switch should be in the LINE (out) position. When connecting to speaker outputs, headphone, or car radio sources then set the switch to the SPEAKER position.
Polarity: This switch allows the user to optimize bass performance in the case that there are more than 1 set of loudspeakers producing bass in the system. Play some music with strong bass content and listen with the switch alternately in the NORMAL and REVERSE position until it can be determined which settings results in more pleasing bass response.
Gain Control: Adjusts the overall level of the amplifier. When using the amp without volume control, the level should be set to achieve a balance with other loudspeakers in the system. As a rule, you should keep the gain settings as low as possible while still ensuring that the system will reach its full output power.
Volume Control: Plug for the waterproof remote volume control. When installed, this control will power off the amp when turned all the way down
RCA Stereo Input: Connect external audio devices like an iPod or just about any other MP3 player.
Custom InstallationBuilt-in mounting brackets and included hardware allow for easy and convenient installation. Attach the amplifier to a compartment or panel with just a few screws.
Built-in Safety This amp is equipped with power protection circuitry and soft turn on/off preventing damage to your speaker equipment.
Accessories IncludedKit comes with 4-channel waterproof marine amp, iPod/MP3 waterproof 3.5mm stereo to RCA adaptor, remote control for volume gain and waterproof poly bag.
Add Some PowerWith any quality marine audio system, you will need an amp to power your high powered marine audio system. With the Hydra Series Amplifiers you will have all the power you need to run even the highest rating marine system. All Pyle Hydra amplifiers are specially engineered for marine applications.
2-Way Marine Speaker FeaturesImpedance: 4 Ohms
2'' Polymer Cone Tweeter
6.5'' Polypropylene Cone
Cloth Surround Suspension
Frequency Response: 80-20KHz
100 Watts RMS / 200 Watts Peak
Additional Features 4 x 100 Watts RMS at 4 Ohms
4 x 200 Watts Max at 4 Ohms
4 x 300 Watts RMS at 2 Ohms
Fuse: 10A
RCA Line Input
T.H.D:
Soft Turn On/Off
S/N Ratio: >95dB
Anti-Thump Turn-On
2 Ohms Stereo Stable
Power Protection Circuitry
Channel Separation: >65dB
Volume Gain Remote Control
Remote Control for Volume Gain
Converter: High Low Level Inputs
Frequency Response: 10Hz - 40kHz
Dimensions: 6.10'' L x 3.35'' W x 1.38'' H
