The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally – in combination with DOMINO or a series of holes.
Because of its high tolerance compensation and high stability, the detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture – in the workshop as well as with the customer.
All joints are simple and quick to machine using the DOMINO DF 500 joiner. No additional special machine is required.
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture.
The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly.
Description

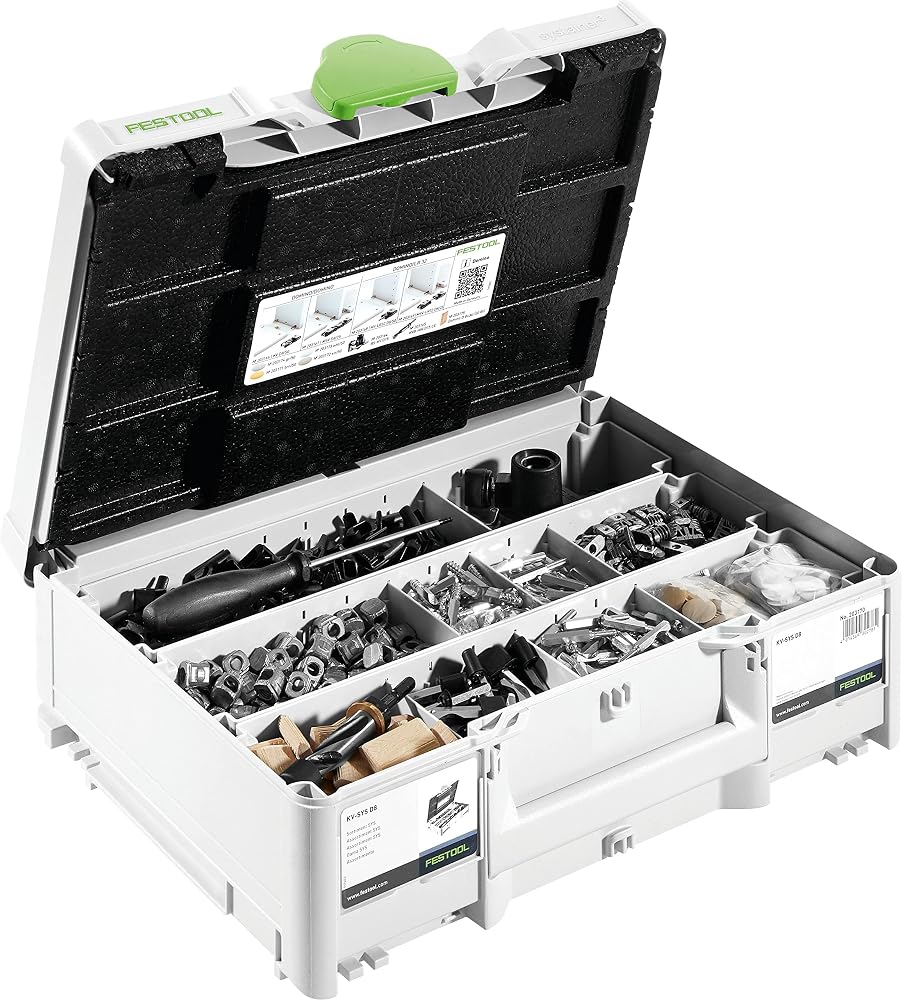

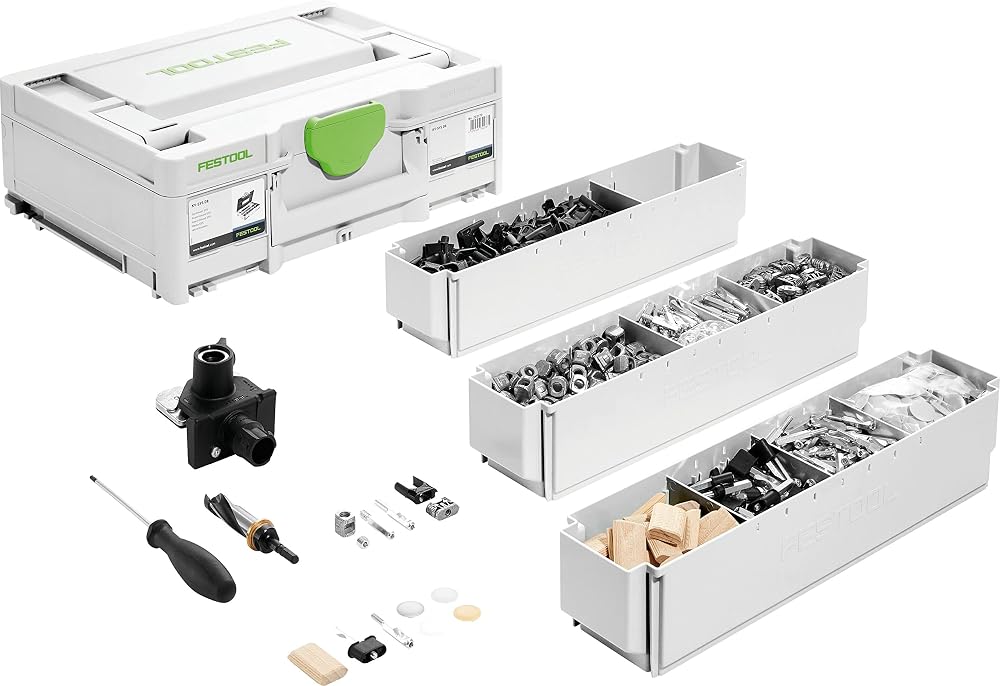

The connectors in Festool's 576797 DOMINO Connector Range KV-SYS D8 for the Domino DF 500 make knock-down joinery simple and extremely stable. From corner panel joints to center panel joints, to joints between a series of holes, they make it quick and easy to assemble, separate, and reassemble your work for increased flexibility across a wide range of applications. KV-SYS D8 Domino Connector Range Includes: 70 Domino/Domino KV D8 Basic Structure Connectors; 20 Domino/LR32 KV-LR32 D8 Basic Structure Connectors: 10 Domino/Domino MSV D8 Center Panel Connectors; 10 Domino/ LR32 MSV-LR32 D8 Center Panel Connectors; 50 Dark Brown Cover Caps' KV-AK D15 brn; 50 Silver Cover Caps, KV-AK D15 slr; 50 White Cover Caps, KV-AK D15 wht; 50 Grey Cover Caps, KV-AK D15 gr; 20 Domino D 8 x 36 mm; BS-KV D15 Drill Template; KVB-HW D15 CE Hinge Location Cutter; and a Screwdriver in a SYS3 M 112 Systainer.
