HV6 Rotary Table 6inch (150mm) Horizontal Vertical Milling Table 2/5inch(10mm) 3-Slot Milling Rotary Table MT-2 Rotary Table for Milling with Indexing Plate Set for Precision Milling Drilling

SAR 1,444
Category
Milling Machines
Weight
15 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

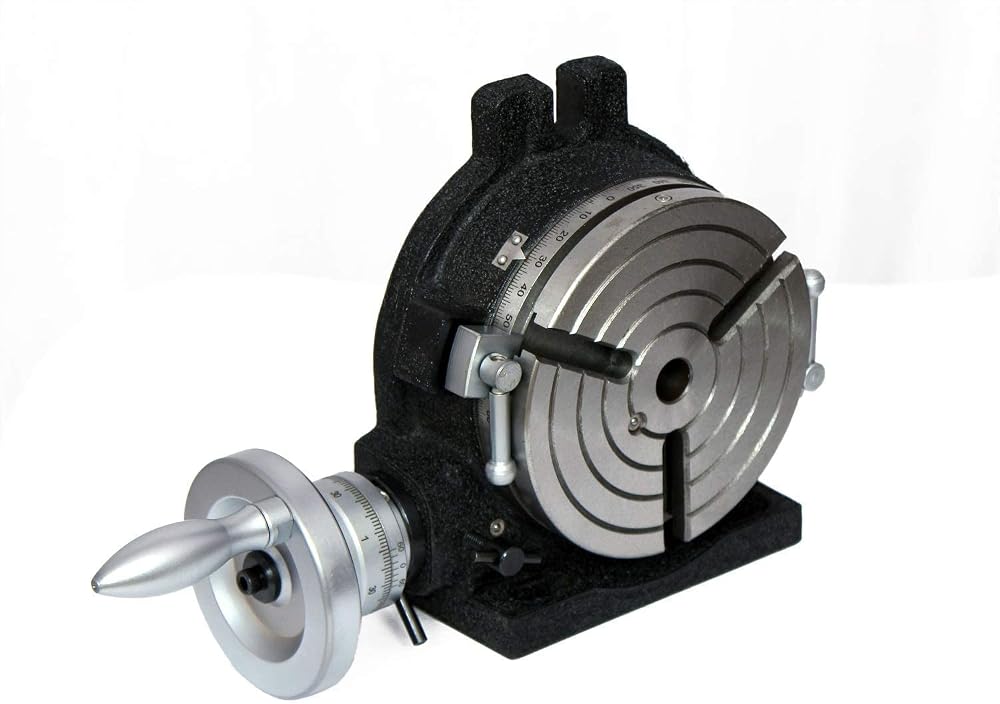

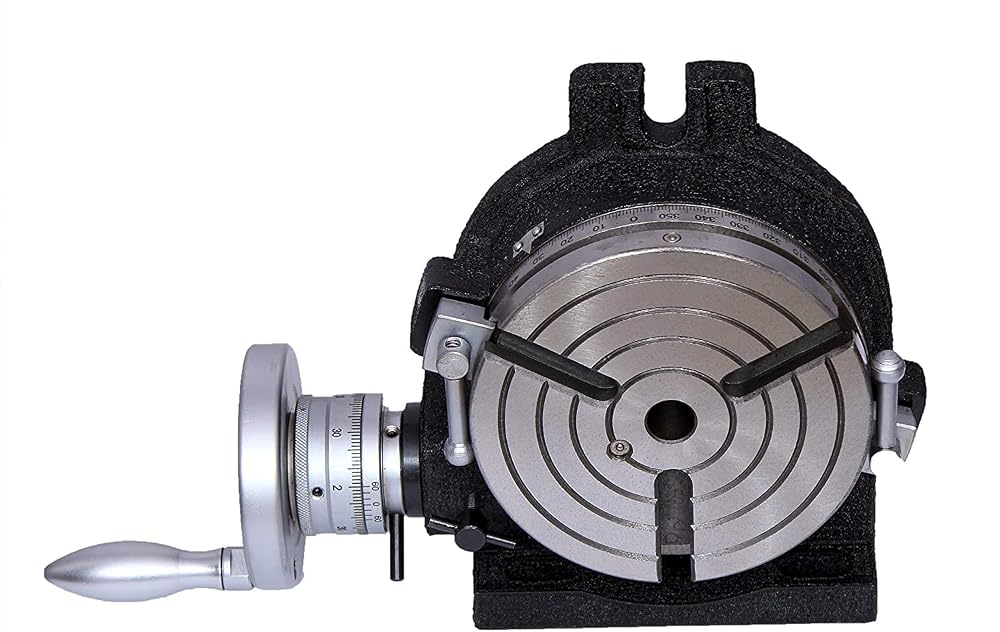

  • HV6 Rotary Table, Dividing Plate , Rotary Table Diameter :150 mm (6") Overall Height : 80 mm ( 3-1/4") Centre Height in Vertical Position: 105 mm Worm- Gear Ratio- 1:90, which means that the 1 handle rotation shall turn the table by 4 Degrees. Table Graduated 360 Degrees, Resettable Dial & Handwheel graduated in seconds. Vernier scale is caliberated to 10 seconds.

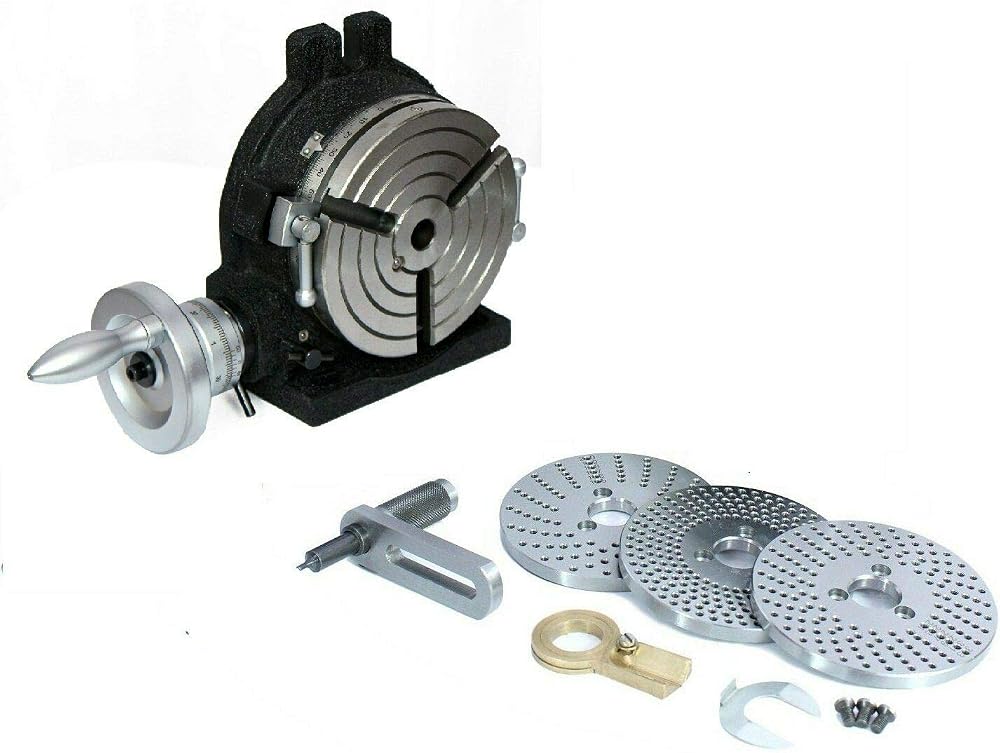

  • Centre Bore of the Table: 2MT 2 Oiling Points for a direct lubrication of the Table for longer life & better performance. Can be clamped in Horizontal as well Vertical Position. Supplied with Dividing Plate Set for Indexing for a total Indexing solution. Safety & Operation manual is also supplied.

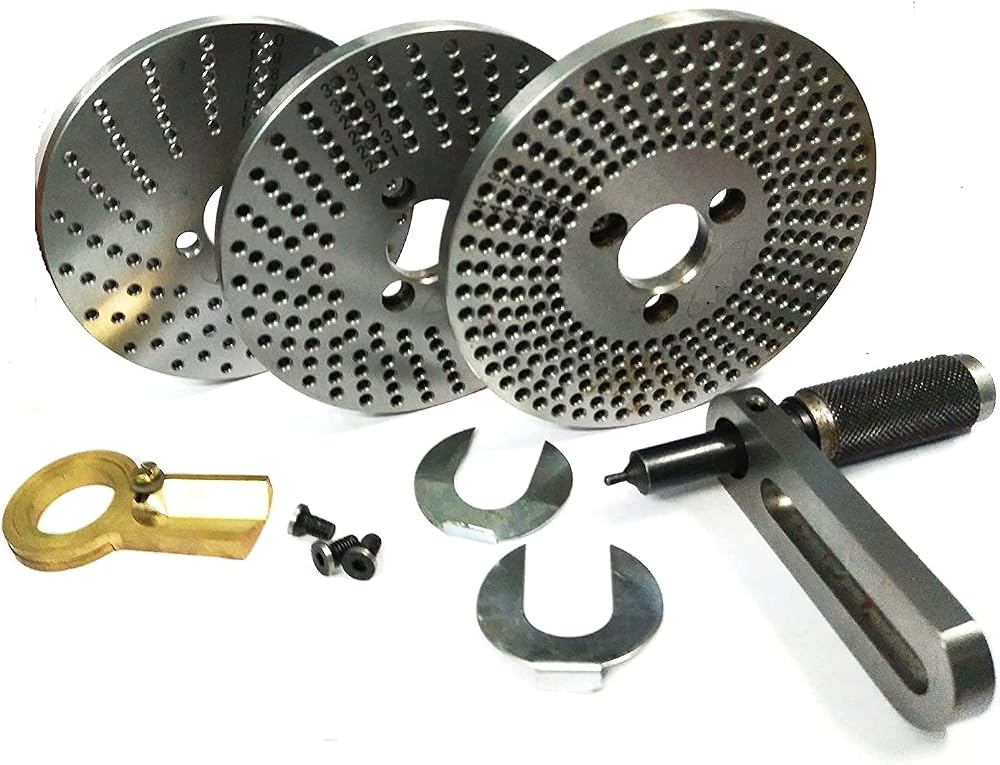

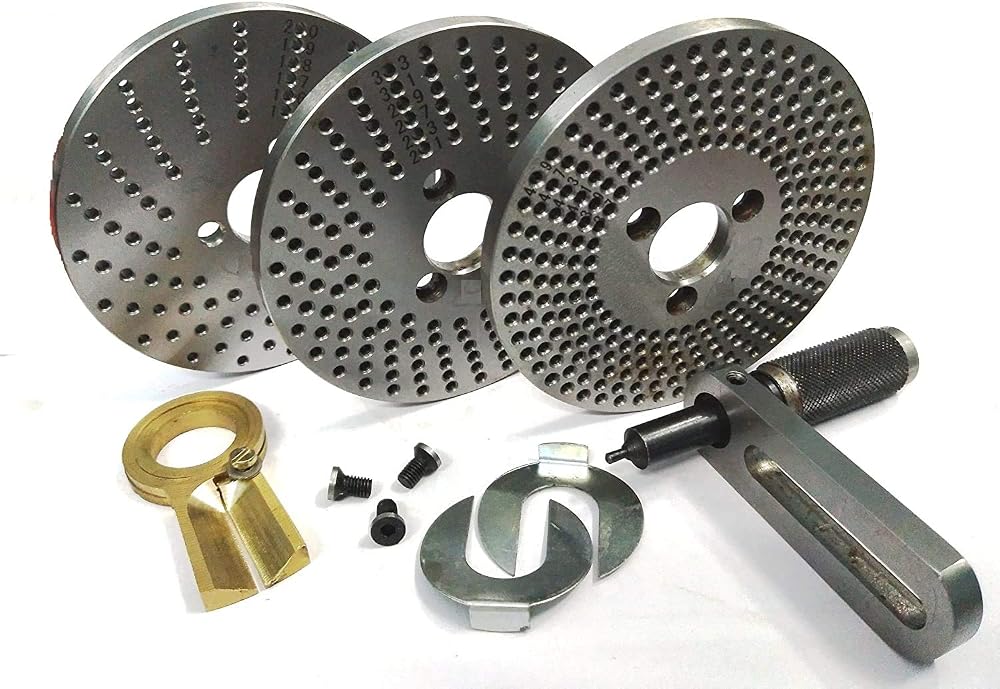

  • More Information about the Dividing Plate :- Set of 3 dividing plates designed to fit our HV4 & HV6 Rotary Tables. Centre Hole of the Plate is 21 mm No. of Holes in each Plate Plate A- 15, 16, 17, 18, 19, 20, Plate B- 21, 23, 27, 29, 31, 33 Plate C- 37, 39, 41, 47, 49 It is supplied with a brass stopper key, Bracket, Crank Handle & fixing screws.
  • A set of Steel Dividing Plates for Indexing with all required Accessories.

Description

HV6 Rotary Table, Dividing Plate Rotary Table Diameter :150 mm (6") Overall Height : 80 mm ( 3-1/4") Centre Height in Vertical Position: 105 mm Worm- Gear Ratio- 1:90, which means that the 1 handle rotation shall turn the table by 4 Degrees. Table Graduated 360 Degrees, Resettable Dial & Handwheel graduated in seconds. Vernier scale is caliberated to 10 seconds. Centre Bore of the Table: 2 MT 2 Oiling Points for a direct lubrication of the Table for longer life & better performance. Can be clamped in Horizontal as well Vertical Position. Supplied with Dividing Plate Set for Indexing. Safety & Operation manual is also supplied. More Information about the Dividing Plate :- Set of 3 dividing plates designed to fit our HV4 & HV6 Rotary Tables. Centre Hole of the Plate is 21 mm No. of Holes in each Plate Plate A- 15, 16, 17, 18, 19, 20, Plate B- 21, 23, 27, 29, 31, 33 Plate C- 37, 39, 41, 47, 49 It is supplied with a brass stopper key, Bracket, Crank Handle & fixing screws. A set of Steel Dividing Plates for Indexing with all required Accessories.
