YWBL-WH 30A 4 Channel Relay Module Expansion Board with Optocoupler for Arduino Raspberry Pi DSP AVR PIC ARM (5VDC) in Saudi Arabia YWBL-WH 30A 4 Channel Relay Module Expansion Board with Optocoupler for Arduino Raspberry Pi DSP AVR PIC ARM (5VDC) in Saudi Arabia YWBL-WH 30A 4 Channel Relay Module Expansion Board with Optocoupler for Arduino Raspberry Pi DSP AVR PIC ARM (5VDC) in Saudi Arabia YWBL-WH 30A 4 Channel Relay Module Expansion Board with Optocoupler for Arduino Raspberry Pi DSP AVR PIC ARM (5VDC) in Saudi Arabia YWBL-WH 30A 4 Channel Relay Module Expansion Board with Optocoupler for Arduino Raspberry Pi DSP AVR PIC ARM (5VDC) in Saudi Arabia YWBL-WH 30A 4 Channel Relay Module Expansion Board with Optocoupler for Arduino Raspberry Pi DSP AVR PIC ARM (5VDC) in Saudi Arabia YWBL-WH 30A 4 Channel Relay Module Expansion Board with Optocoupler for Arduino Raspberry Pi DSP AVR PIC ARM (5VDC) in Saudi Arabia YWBL-WH 30A 4 Channel Relay Module Expansion Board with Optocoupler for Arduino Raspberry Pi DSP AVR PIC ARM (5VDC) in Saudi Arabia

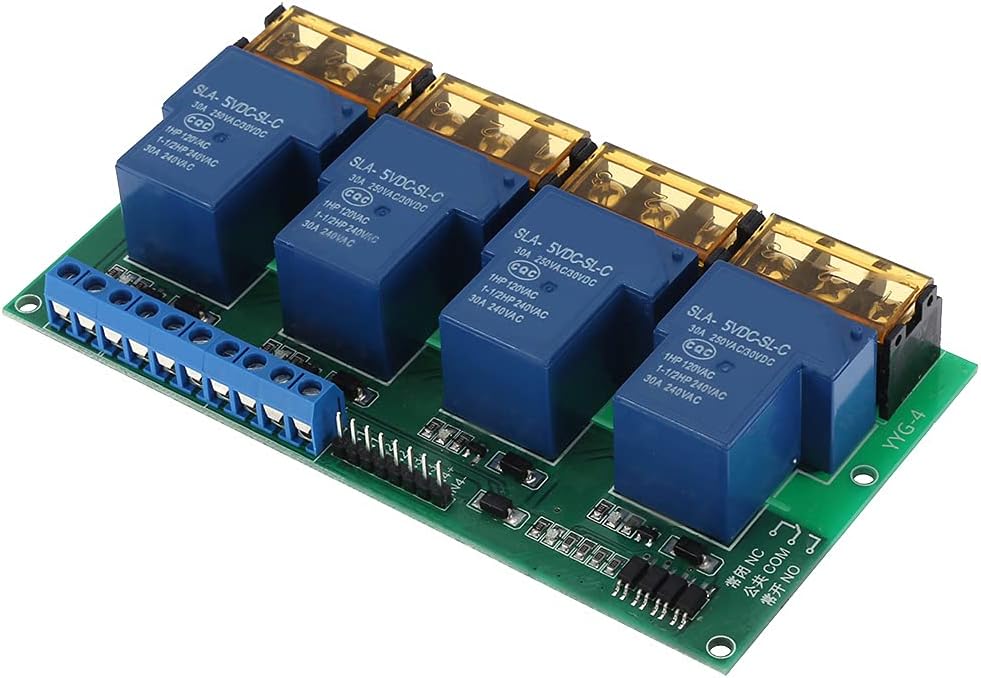

YWBL-WH 30A 4 Channel Relay Module Expansion Board with Optocoupler for DSP AVR ARM (5VDC)

SAR 88
Brand
YWBL-WH
Weight
170 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • The use of the industry's top quality miniature optocoupler, anti-interference ability, stable performance.
  • Output capability: AC 250V/30A, DC 30V/30A less than. Be able to control various appliances, and other equipments with large current
  • Product model: YYG-4 (12V) plus 5V, 24V optional, please note, note note voltage.
  • Adopt 9.5mm black barrier terminal, standard 30A terminal, stable and reliable, reliable quality. ApplicationSupports all MCU control, The industrial field, PLC control, Smart home control.

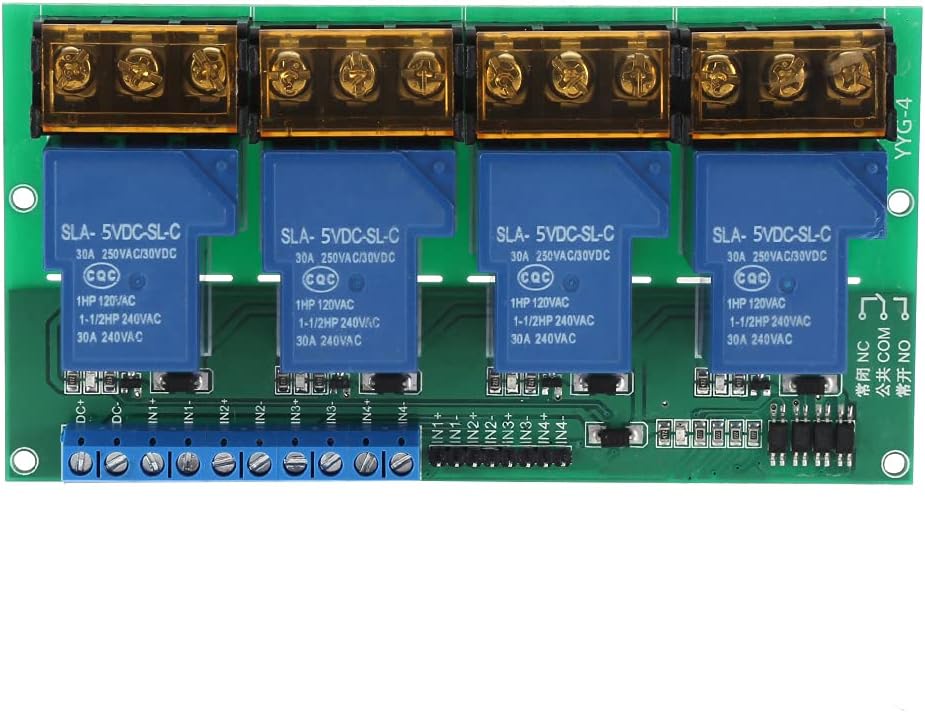

  • Module Interface Description:DC+: the positive pole of the external DC power supply, DC-: external DC power supply negative pole. IN1:IN2:IN3:IN4:Signal input terminal. NO: the relay often opens the interface, the relay suspends before pulling in, and then shortens the connection with the COM. COM: common interface of relay. NC: the relay is normally closed, the relay is short to the COM before it is pulled in.

Description

Features:
1. 100% brand new and high quality.

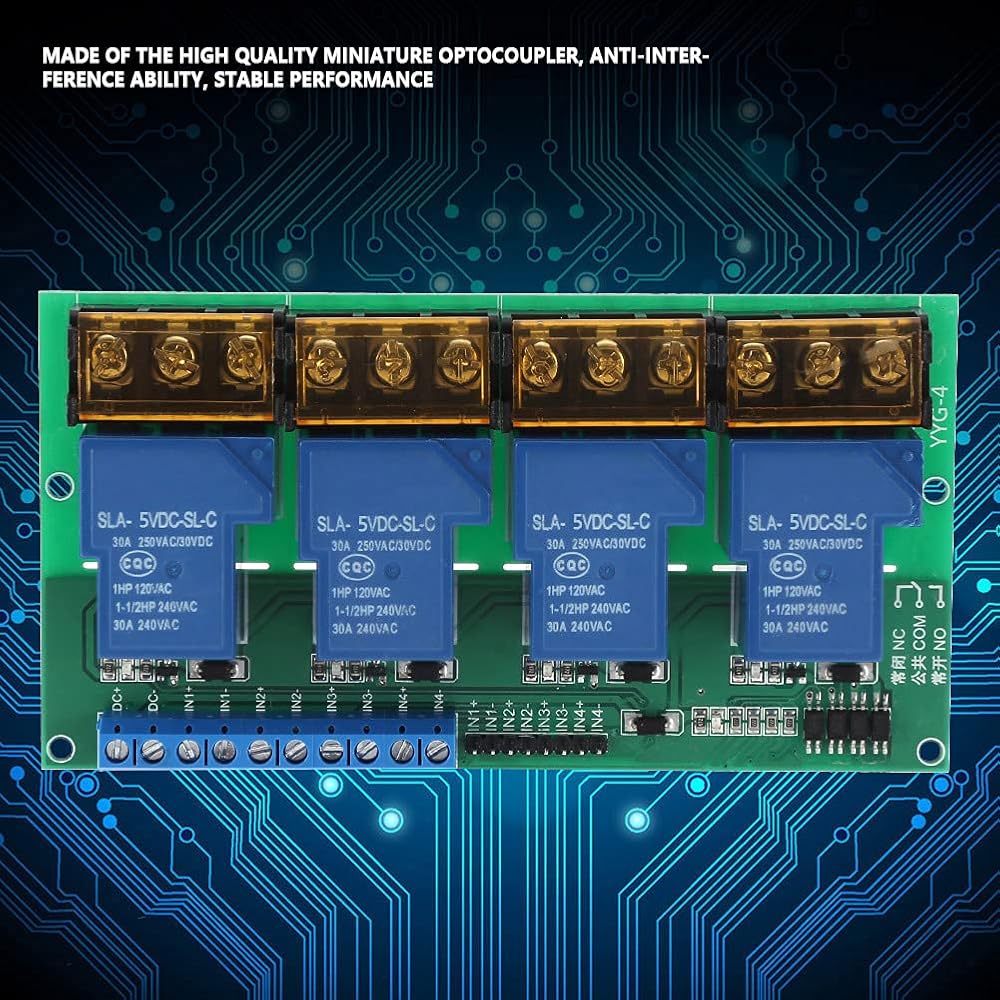

2. Made of the high quality miniature optocoupler, anti-interference ability, stable performance

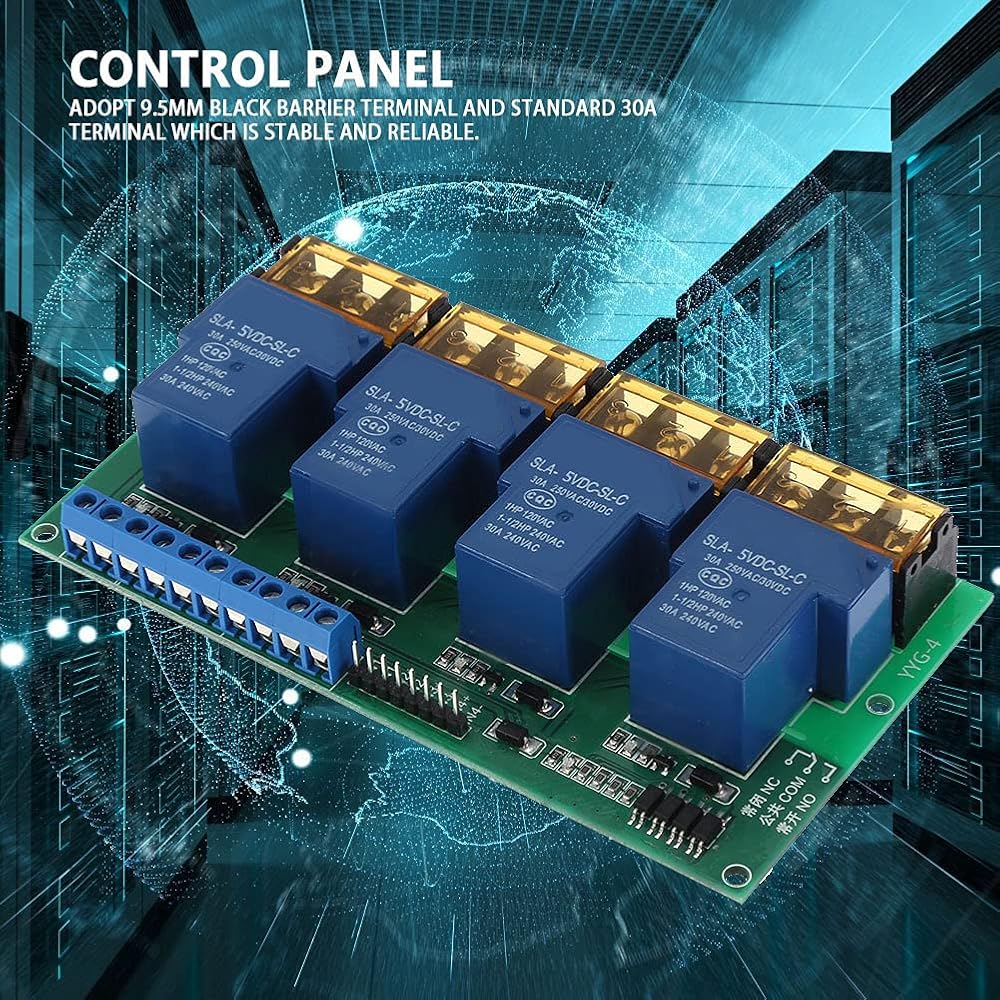

3. Adopt 9.5mm black barrier terminal and standard 30A terminal which is stable and reliable.
4. Four ways can select high/low level trigger.
5. Available in three style for you.

Specification:
Condition: 100% Brand New
Model: YYG-4
Output Capability: AC 250V/30A, less than DC 30V/30A
Optional Style: DC5V, DC12V, DC24V
Weight: Approx. 175g / 6.2oz

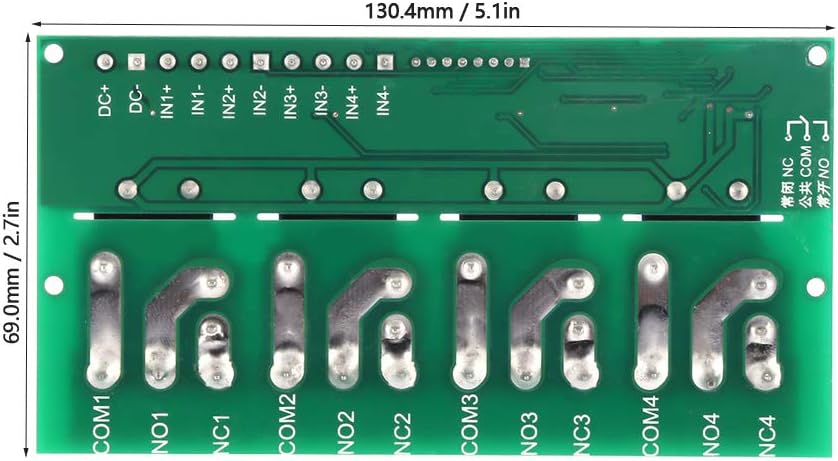

Size: Approx. 130.4 × 69.0mm / 5.1 × 2.7in

Package List:
1 × Four Way Relay Module
