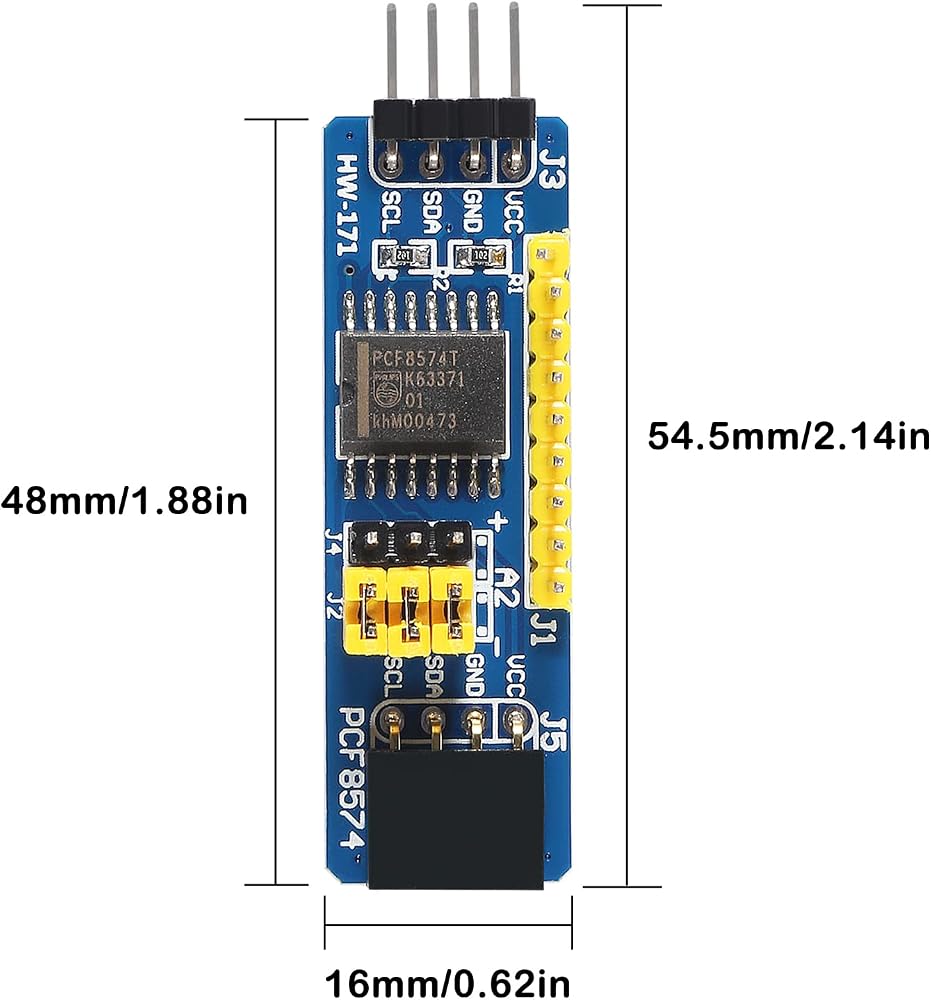

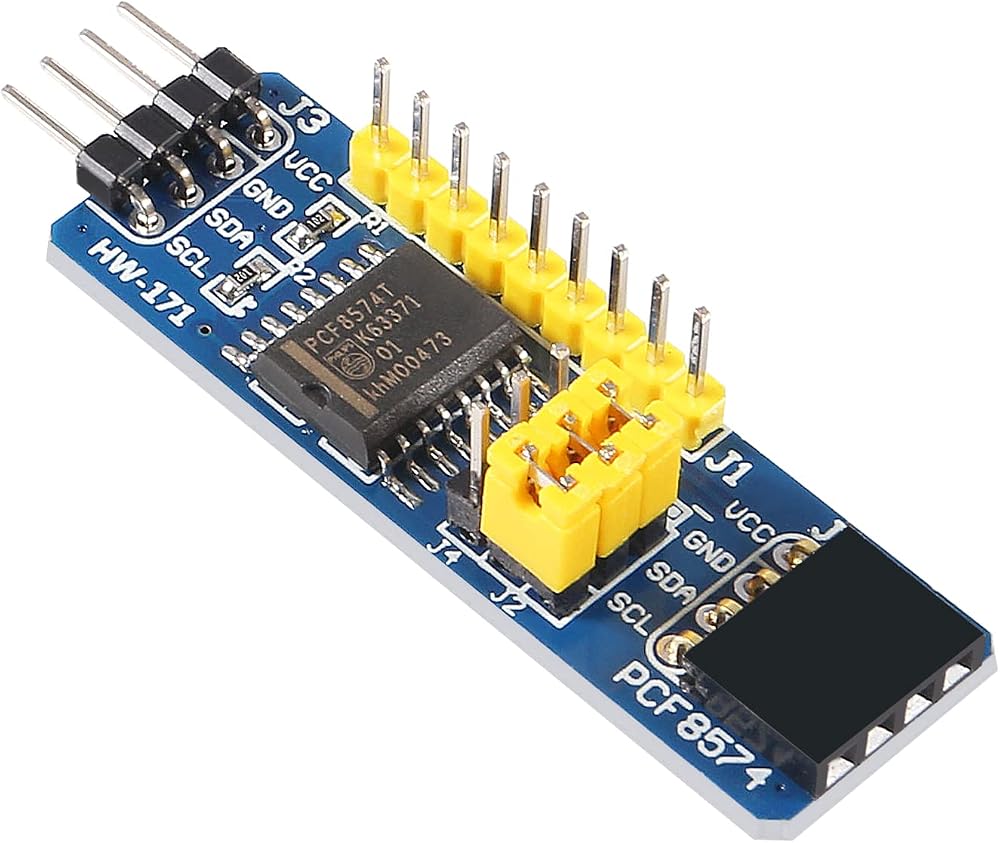

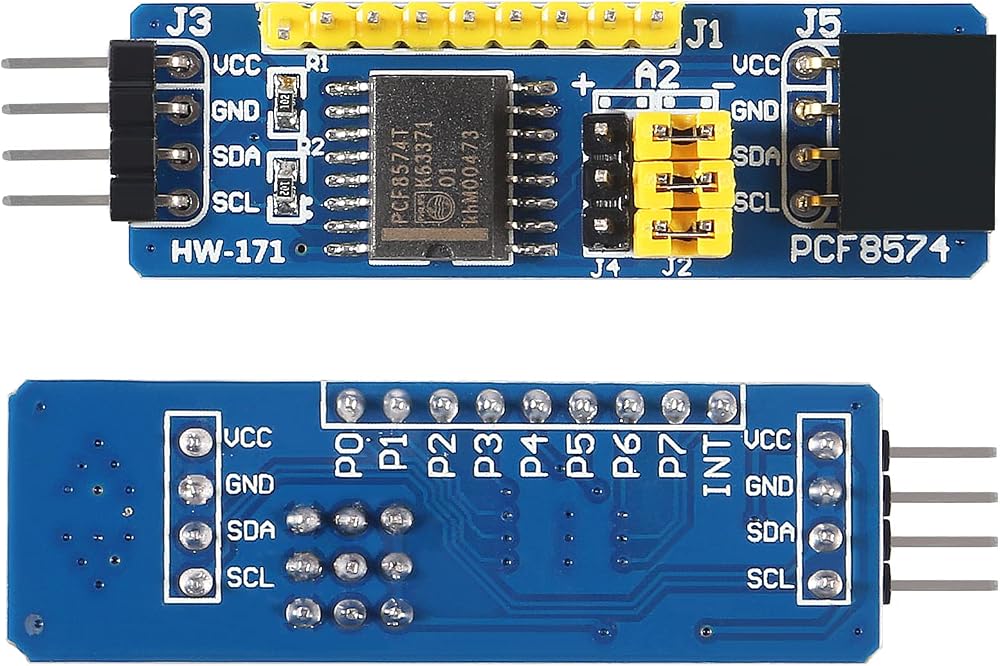

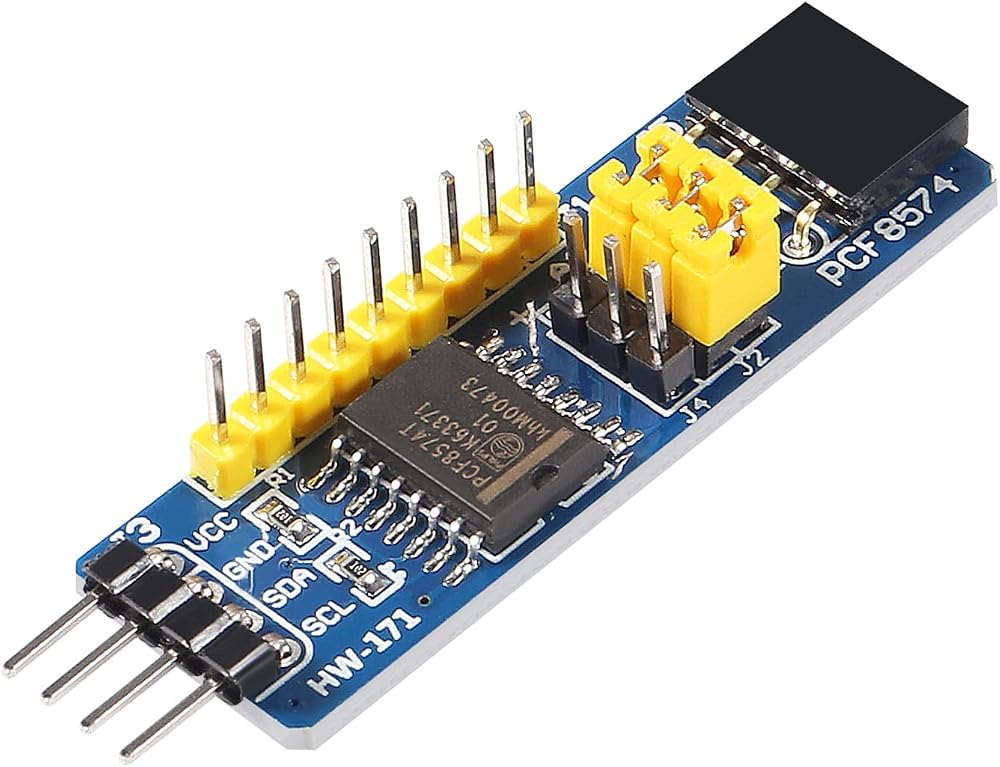

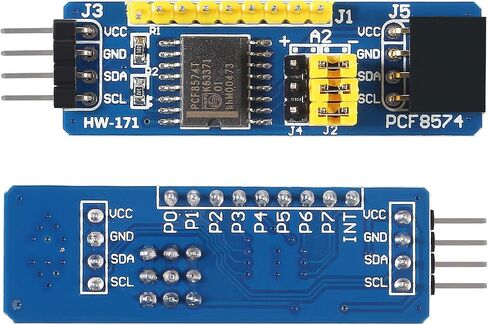

12PCS PCF8574 IO MCU Expansion Board I2C Interface 8bit I/O Expander IIC Bus Evaluation Development Module

SAR 79
Brand
Shutao
Weight
68 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • The PCF8574 IO Expansion Board provides general-purpose remote I O expansion via the two-wire bidirectional I2C-bus (serial clock (SCL), serial data (SDA).
  • PCF8574 IO expansion board with I2C interface, I / O expansion module, two I / O scalability 8 I / O (up to 8 simultaneous use the PCF8574 expanded to 64 I / O)
  • PCF8574T PCF8574 IO expansion board support I2C bus cascade (by pin header row seat docking methods can be used simultaneously multiple I2C modules)
  • This 8-bit input output (I O) expander for the two-line bidirectional bus (I2C) is designed for 2.5-V to 6-V VCC operation.
  • PCF8574T expansion board applicable to a variety of platforms including AVR / ARM

Description

I2C interface, I / O expansion module, two I / O scalability 8 I / O (up to 8 simultaneous use the PCF8574 expanded to 64 I / O)

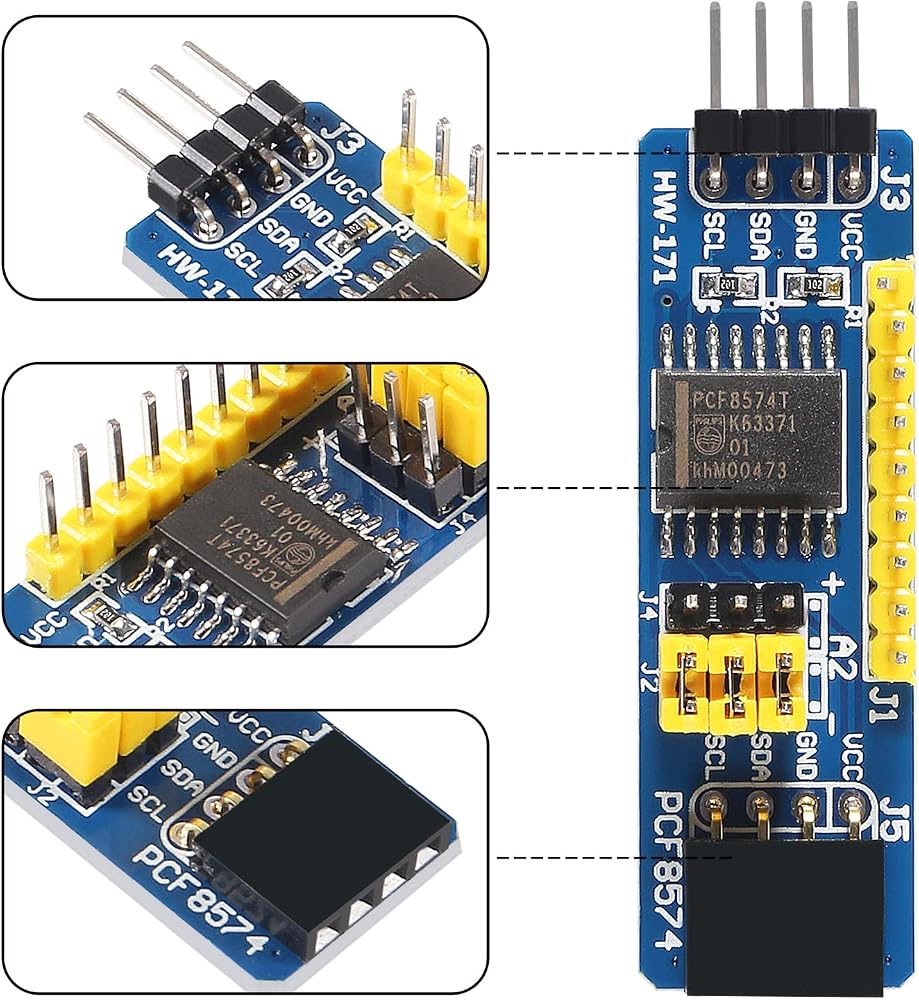

Most important feature: 1. Supports two interface types access target board: Pin or row seat
Support I2C bus cascade (by pin header row seat docking methods can be used simultaneously multiple I2C modules)
Typical application: I / O resource shortage MCU I / O expansion
Main resources: the PCF8574 I2C interface, 8-bit parallel

Information includes:
Test procedures (AVR, STM8, C8051F)
Circuit schematics
Related PDF data

Package Included:

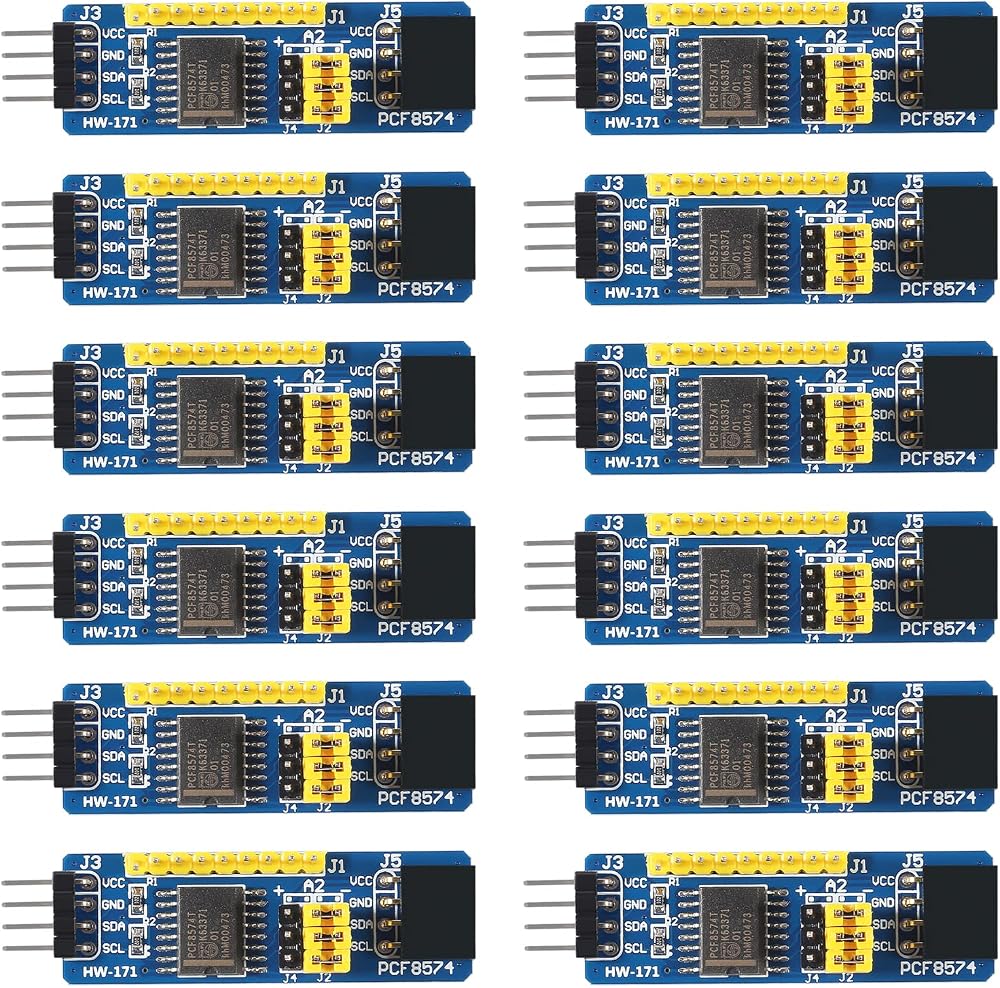

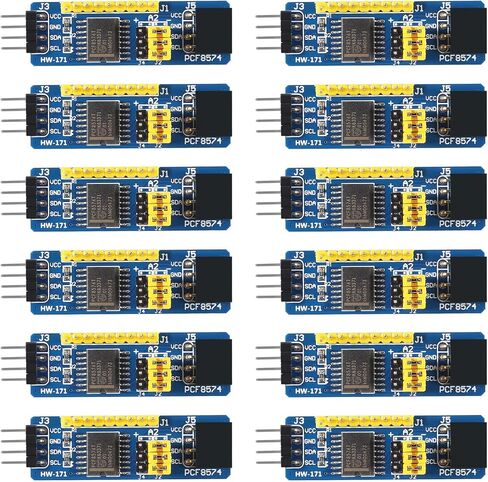

12 x PCF8574 IO Expansion Board
