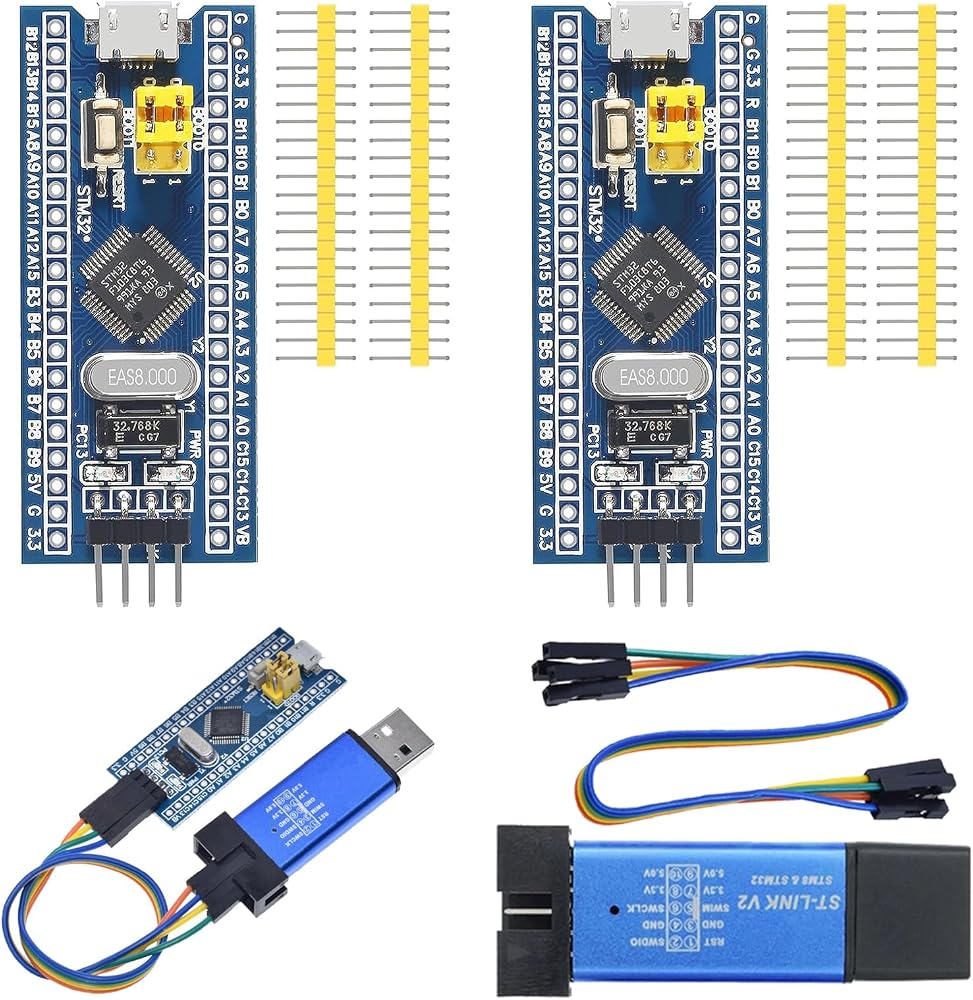

ALMOCN 2PCS STM32F103C8T6 ARM STM32 Minimum System Development Board STM32F103C8T6 Core Learning Board + 1PCS ST-Link V2 Emulator Downloader Programmer, Random Color in Saudi Arabia ALMOCN 2PCS STM32F103C8T6 ARM STM32 Minimum System Development Board STM32F103C8T6 Core Learning Board + 1PCS ST-Link V2 Emulator Downloader Programmer, Random Color in Saudi Arabia ALMOCN 2PCS STM32F103C8T6 ARM STM32 Minimum System Development Board STM32F103C8T6 Core Learning Board + 1PCS ST-Link V2 Emulator Downloader Programmer, Random Color in Saudi Arabia ALMOCN 2PCS STM32F103C8T6 ARM STM32 Minimum System Development Board STM32F103C8T6 Core Learning Board + 1PCS ST-Link V2 Emulator Downloader Programmer, Random Color in Saudi Arabia ALMOCN 2PCS STM32F103C8T6 ARM STM32 Minimum System Development Board STM32F103C8T6 Core Learning Board + 1PCS ST-Link V2 Emulator Downloader Programmer, Random Color in Saudi Arabia ALMOCN 2PCS STM32F103C8T6 ARM STM32 Minimum System Development Board STM32F103C8T6 Core Learning Board + 1PCS ST-Link V2 Emulator Downloader Programmer, Random Color in Saudi Arabia

2PCS STM32F103C8T6 ARM STM32 Minimum System Development Board STM32F103C8T6 Core Learning Board + 1PCS ST-Link V2 Emulator Downloader Programmer, Random Color

SAR 68
Brand
ALMOCN
Weight
18 g
ColorType 2
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

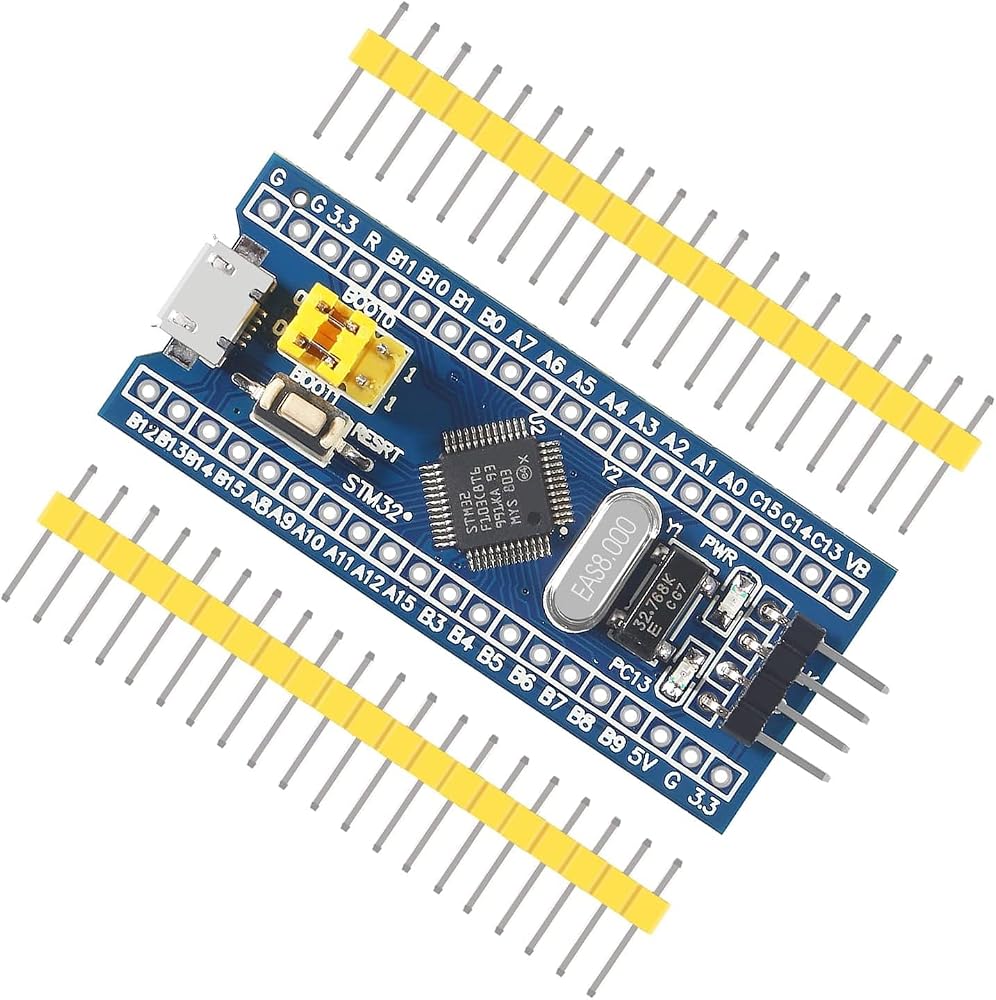

  • STM32F103C8T6 ARM STM32 minimum system development module.
  • Package include: 2pcs STM32F103C6T6 minimum system board, 1pcs ST-Link V2 programming unit emulator downloader.

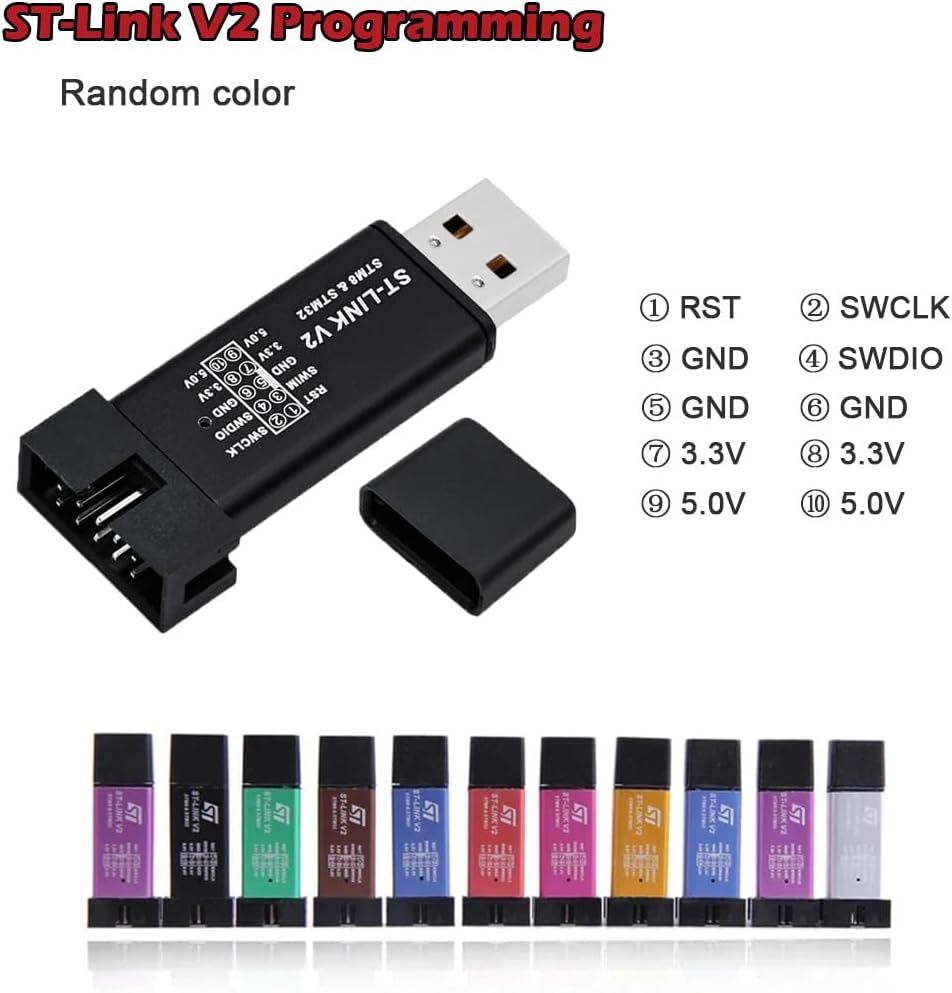

  • ST-Link V2 support the full range of STM32 SWD interface debugging, simple interface (including power supply), 4 line speed, stable work.
  • Use the current smart phones of Mirco USB interface, easy to use, USB communication and power supply can be done.

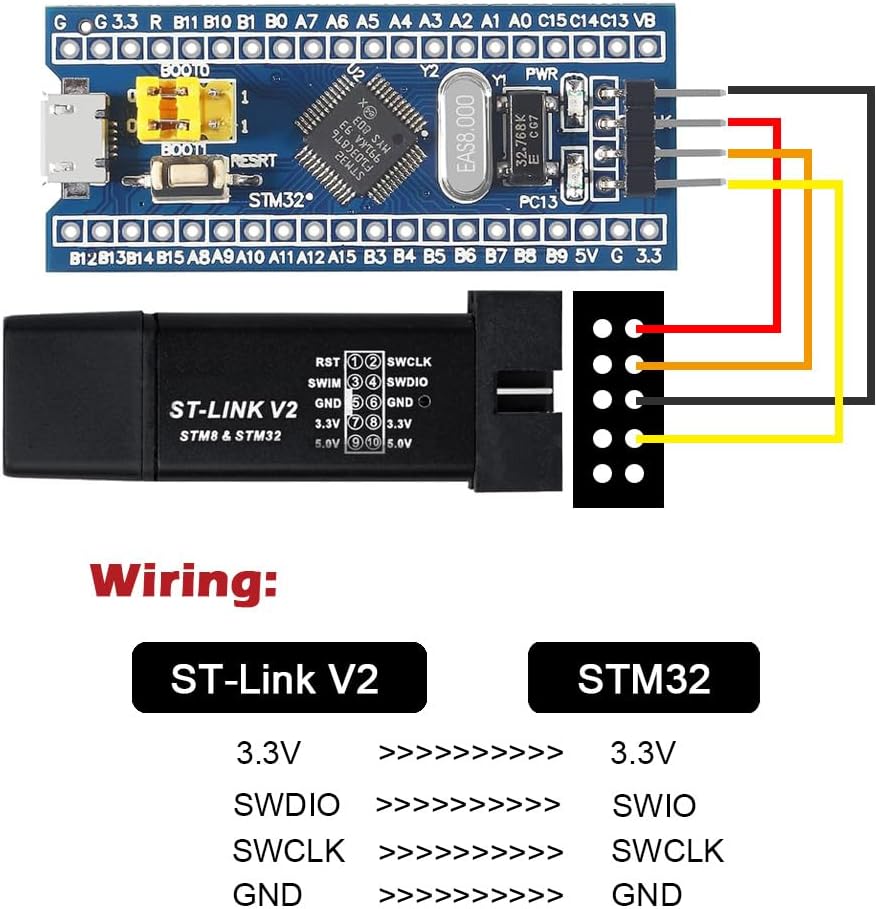

  • The board lead to all the I/O resources.Download with SWD debug interface, which requires a minimum of 3 wires to complete debug a download task

Description

Specifications:
【ST-LINK V2】
Input voltage (USB): 5V
Output Voltages: 3.3V, 5V
Interfaces: SWIM, SWD
Connectors: USB, 10 pin (molex type)

【STM32F103C8T6 】
Package Type: LQFP
Number of pins: 48
Kernel: Cortex-M3
Operating frequency: 72MHz
Storage resources: 64K Byte Flash, 20KByte SRAM
Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports
Analog-to-digital conversion: 2x ADC (12-bit / 16-channel)
Timers: 3 general timers and 1 advanced timer
Debug Download: Support JTAG / SWD debug interface to download, support for IAP
RT9193: 3.3V regulator chip, the maximum output of 300mA

Package included:
2 x STM32F103C6T6 Minimum System Board
1 x ST-Link V2 Programming Unit Emulator Downloader
